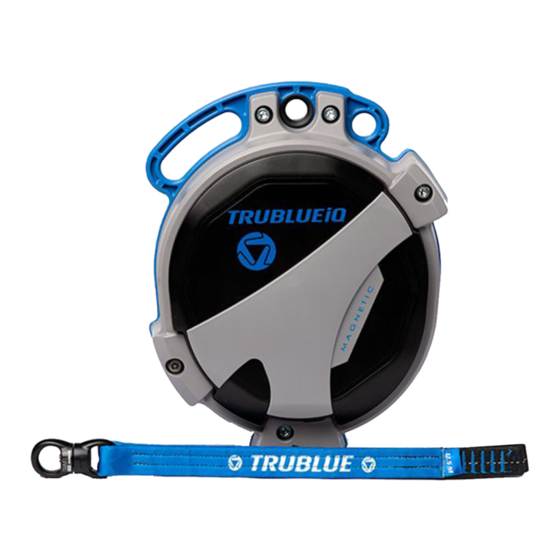

TRUBLUE iQ /
TRUBLUE iQ XL
AUTO BELAY

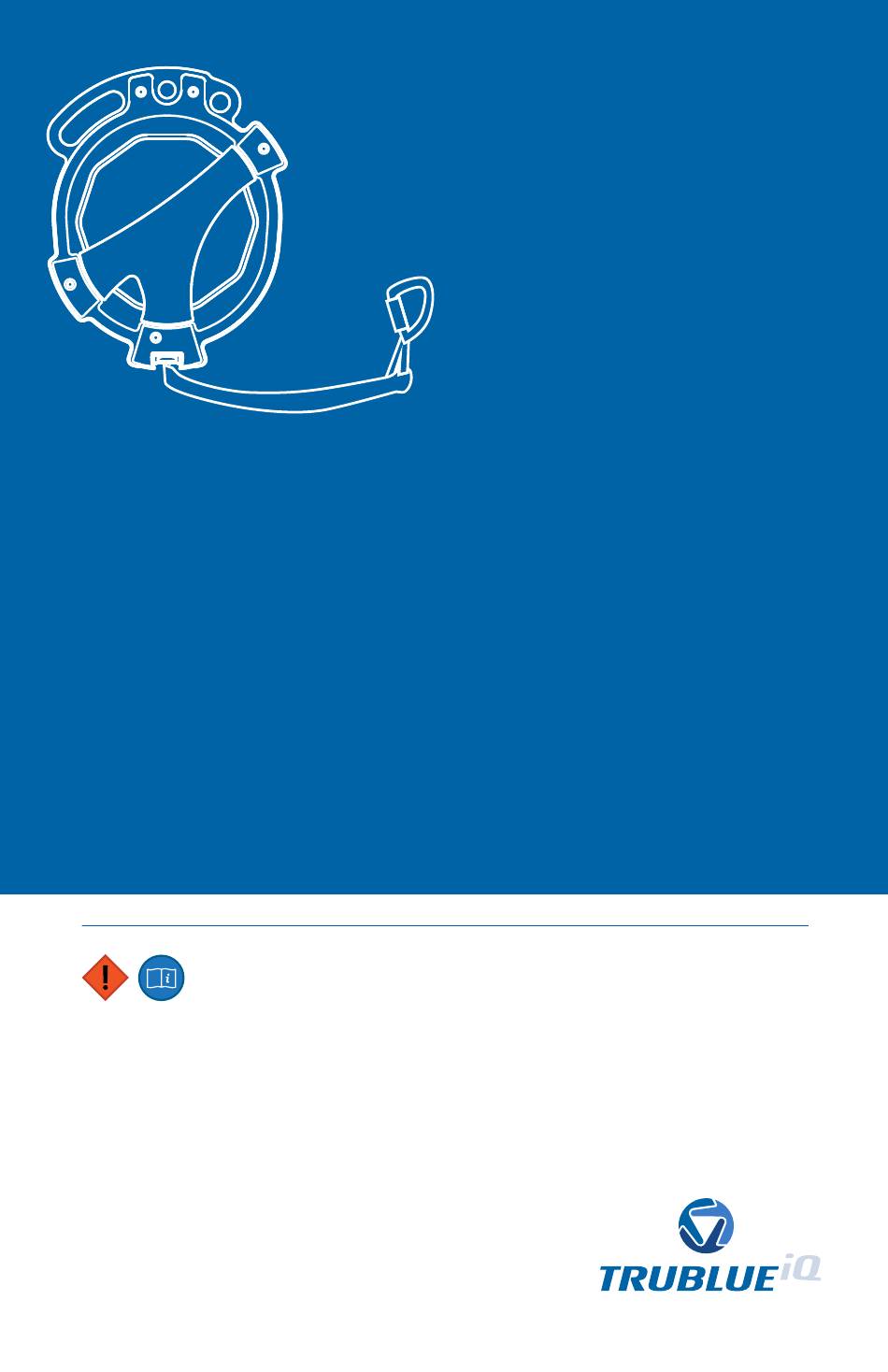

Operator Manual
Models: TBiQ-LT / TBiQ-XL
NOTE TO INSTALLERS
Always Read Instructions Before Use
Leave this Operator Manual attached to the auto belay. The
Operator Manual contains information relating to the safe
use of the TRUBLUE iQ Auto Belay and includes all product
registration and Warranty information. This document may
only be removed by the Owner/operator. Ensure that this
Operator Manual is readily available to operators at all times
Head Rush Technologies TRUBLUE iQ Operator Manual
P/N 12765-01
Head Rush Technologies products are covered by a number of patents, including
U.S. Patents 8,490,751; 8,851,235; 9,016,435; 8,851,235 and D654,412
& corresponding patents/applications in the USA and in other countries worldwide.
Advertisement
Table of Contents
Related Manuals for head rush technologies TRUBLUE iQ
Summary of Contents for head rush technologies TRUBLUE iQ
- Page 1 Leave this Operator Manual attached to the auto belay. The Operator Manual contains information relating to the safe use of the TRUBLUE iQ Auto Belay and includes all product registration and Warranty information. This document may only be removed by the Owner/operator. Ensure that this...
-
Page 3: Table Of Contents
TABLE OF CONTENTS SAFETY INFORMATION 1.1 Symbols Used in this Manual WARRANTY CONDITIONS 2.1 Customer Responsibility CERTIFICATION 3.1 Standards DESCRIPTION SPECIFICATIONS AUTO BELAY PARTS 6.1 Label 6.2 Location of Safety Labels 6.3 Icon Descriptions UNPACKING 7.1 Precautions 7.2 Receipt of the Auto Belay 7.3 Unpacking the Auto Belay 7.4 Storage INSTALLATION... - Page 4 10.0 INSPECTION & MAINTENANCE 10.1 Annual Recertification 10.2 Scheduled Maintenance 10.2.1 Safety Precautions 10.3 Daily Inspection 10.4 Weekly Inspection 10.4.1 Inspection Procedure 10.4.2 Webbing Wear 10.5 Six Month Inspection 10.5.1 Inspection Procedure 10.5.2 Webbing Inspection 10.6 Nozzle Replacement 10.7 Webbing Line Replacement 10.7.1 Safety Precautions 10.7.2 Webbing Line Replacement Procedure 10.8 Replacement Parts...
- Page 5 Auto Belay system, its component parts, and all associated hardware. Users of the TRUBLUE iQ Auto Belay must be trained on proper usage of the Auto Belay. It is the responsibility of owner/operator to provide this training. Failure to do so can result in death, serious injury, and equipment damage.
-
Page 6: Safety Information
SAFETY INFORMATION Symbols Used in this Manual The following safety symbols are used throughout this Manual to highlight potential dangers. One or more precautions may be associated with practices and procedures described within this Manual. Failure to adhere to any precautions highlighted can result in death, serious injury, or equipment damage. -
Page 7: Warranty Conditions
2.0 WARRANTY CONDITIONS The TRUBLUE iQ Auto Belay Devices are warranted against factory defects in materials and workmanship (excluding specific Field Replaceable Wear Parts - see “Replacement Parts” section below) for a period of two (2) years from date of purchase. - Page 8 ƒ The installer and Owner/operator must fully understand these instructions. Any questions must be submitted in writing to Head Rush Technologies. Adherence to the Operator Manual, Manufacturer’s instructions, and advice given by authorized Head Rush service technicians is the responsibility of the owner, installer, and operator.
-
Page 9: Certification
3.0 CERTIFICATION Standards NOTE If the TRUBLUE iQ Auto Belay is resold outside of the country of destination, the reseller must provide instructions for use, service, maintenance and repair in the language of the country of use. The TRUBLUE iQ Auto Belay can be used as a climbing/descent system device only in combination with other components. -
Page 10: Description
The TBiQ-LT offers a maximum descent height of 12.5 m (41 ft), and the TBiQ-XL offers a maximum descent height of 20 m (65.6 ft). TRUBLUE iQ Auto Belays are suitable for user weights ranging from 10 - 150 kg (22 - 330 lbs). -
Page 11: Specifications
5.0 SPECIFICATIONS TRUBLUE iQ: TBiQ-LT (12.5m) MODELS TBiQ-XL (20m) IN ACCORDANCE WITH EN 341:2011-1A AND CERTIFICATION EN 360:2002 DIMENSIONS 292 x 369 x 201 mm (11.5 x 14.5 x 7.9 in) TBiQ-LT: 15.9kg (35lbs) NET WEIGHT TBiQ-XL: 19.0kg (41lbs) MATERIALS... -
Page 12: Auto Belay Parts
6.0 AUTO BELAY PARTS PRIMARY MOUNT SECONDARY HANDLE CASING MOUNT (UNLOADED) COVER (BACK) COVER (FRONT) NOZZLE WEBBING LINE CARABINER Label TBiQ-XX SN iQ### ### # SN iQXL ### ## Model number Unit serial number 0123 IN ACCORDANCE WITH EN 341:2011-1A AND EN 360:2002 Notified body EN standard and... -
Page 13: Location Of Safety Labels
Operating (Dry): -10°C to 60°C (14°F 140°F) to 140°F) Operating (Dry): -10°C to 60°C (14°F to 140°F) HEAD RUSH TECHNOLOGIES HEAD RUSH TECHNOLOGIES 1699 Cherry Street, Suite C 1699 Cherry Street, Suite C Louisville, Colorado 80027, USA Louisville, Colorado 80027, USA www.headrushtech.com... -
Page 14: Icon Descriptions
Never install the device where the line passes Temperature Range over sharp edges, high friction areas Never permit line to wrap around or become Minimum Height entangled with neck, arms, or legs Only compatible with TRUBLUE iQ webbing 12816-01 www.headrushtech.com | +1-720-565-6885... - Page 15 Inspect the webbing daily clear, Always land with Check retraction before slightly bent knees to each use absorb landing Do not let TBiQ-SD (The TRUBLUE iQ Speed only) Serial number retract uncontrolled EN 362/EN 12275 Minimum connector Manufacture Date strength for installation...
-
Page 16: Unpacking
Auto Belay for the annual recertification. Please keep packaging in a safe place until required. Receipt of the Auto Belay The TRUBLUE iQ Auto Belay is packaged in a recycled cardboard box and contains: ƒ 1 x TRUBLUE iQ Auto Belay Model TBiQ-LT or TRUBLUE iQ Auto Belay Model TBiQ-XL ƒ... -
Page 17: Storage
Product Registration is critical for receiving product notifications, recertification notices, and up-to-date information for the safe use of the TRUBLUE iQ Auto Belay. Registration is fast and easy and can be done online www.headrushtech.com/register 5. Read the Operator Manual and familiarize yourself with all aspects of installation, operation, care and maintenance. -
Page 18: Installation
Standards for anchor points, hardware, and equipment used with the Auto Belay. 8.2.1 ANCHOR POINTS All anchor points and connectors used with a TRUBLUE iQ Auto Belay must conform to any federal or state requirements for such devices. www.headrushtech.com | +1-720-565-6885... -
Page 19: Harness
Belay must be of compatible size, shape and strength for the mounting point to which they are attached. 8.2.4 SELECTING A LOCATION The TRUBLUE iQ Auto Belay is to be mounted at the top of the climbing route/ descent path with the Nozzle and webbing line pointed down. www.headrushtech.com | +1-720-565-6885... -
Page 20: Outdoor Installations
Ensure the mounting insert is used with the connector to reduce wear on the mounting point. The TRUBLUE iQ Auto Belay is manufactured with a: single central pivot mounting point, an offset mounting point, and formed handle located at the top of the casing. -
Page 21: Orientation
Only use the central mounting point as shown. Ensure mounting hardware is secure and the unit is free to pivot in all directions. The TRUBLUE iQ has a plastic mounting insert which is inserted through the primary mount attachment point. The mounting connector or carabiner should always be used with the plastic mounting insert during installation. - Page 22 The flat cover should be mounted facing the climbing wall. The rounded plastic cover with the gray sash should be facing away from the climbing wall. CEILING ROUNDING FLAT PLASTIC COVER WITH GRAY SASH COVER Line swing to minimize MOUNTING HEIGHT webbing and (vertical distance from Nozzle wear...
-
Page 23: Operation
EMERGENCY RESPONSE PLAN Owners and operators must have devised an emergency rescue plan for any user in distress at all sites operating TRUBLUE iQ Auto Belay Devices. Operators must inform users of the Auto Belay of the procedure for rescuing a user in distress prior to use. -
Page 24: Operator Training
Operator Training All personnel involved in the operation of the Auto Belay must be trained and deemed competent in the following aspects of TRUBLUE iQ Auto Belay operation: ƒ Transportation and storage. ƒ Installation, use of attachment points, attachment methods and hardware. -
Page 25: Harness
Prior to using, the user must be trained by the owner/operator and completely understand the following precautions: ƒ Check Auto Belay operation by pulling out a short section and allowing it to retract. ‚ If the Auto Belay line fails to retract, do not clip into the Auto Belay and request assistance. -
Page 26: Operation
9.4.2 SECONDARY CONNECTIONS TO THE HARNESS A secondary connector may be used with the TRUBLUE iQ. It is the responsibility of the operator to determine if a secondary connector is required for use. Head Rush Technologies offers several options for secondary connectors, or continuous connection systems. -
Page 27: Inspection & Maintenance
Operation of a TRUBLUE iQ Auto Belay without a current Certification Label visible is strictly forbidden. Severe bodily injury or death could occur. The TRUBLUE iQ Auto Belay requires an annual recertification to be carried out by an authorized Head Rush Technologies service agent. -
Page 28: Safety Precautions
10.4 Weekly Inspection The TRUBLUE iQ Auto Belay must be inspected weekly for correct operation and overall condition. The weekly inspection may be carried out with the unit in place or removed to a sturdy work table. The weekly inspection and the 6 month inspection must be recorded in the inspection log at the back of this Manual. -
Page 29: Inspection Procedure
10.4.1 INSPECTION PROCEDURE Ensure adequate lighting and unrestricted access is available to permit a thorough inspection of all areas of the Auto Belay. This inspection should be completed either with the Auto Belay dismounted or by climbing to the location of the Auto Belay and anchoring in, so you may visually inspect the unit and the entire length of webbing. -
Page 30: Webbing Wear
WEBBING WEAR INSPECT WEBBING DAILY Webbing in your TRUBLUE iQ must be evaluated on a daily basis. A detailed description of when a webbing should be taken out of service is included in the Wear Tables below. Webbing MUST be taken out of service by the time the webbing resembles the stage of wear designated in the Wear Tables, or after 1.5 years of usage, whichever occurs first. - Page 31 WEAR TABLES Webbing pictures outlined in in the tables below show webbing that MUST be taken out of service and replaced immediately to continue using your TRUBLUE TRUBLUE iQ Edge and Face Wear Progress of Bumper Stitch Separation Edge Wear...
- Page 32 DAMAGED wall climbing. Remove TRUBLUE iQ at the end of day or cov- UV FADED Sun is damaging webbing er unit and webbing after use. Allow webbing to WEBBING retract into the device when not in use.
-
Page 33: Six Month Inspection
10.5 Six Month Inspection The TRUBLUE iQ Auto Belay requires an in-depth six (6) month inspection by the Owner/operator. For the six month inspections the unit must be dismounted and removed to a sturdy work table. 10.5.1 INSPECTION PROCEDURE 1. Dismount the Auto Belay (refer to Installation Instructions). - Page 34 ƒ UV degradation – although difficult to detect, visual indications are discoloration, and fading of the webbing surface. The webbing will also become very soft. Consider replacement. ƒ Chemical attack, this can result in soft or weak fibers, color change or flaking of the surface.
-
Page 35: Nozzle Replacement
If the Nozzle assembly shows signs of excessive wear that could impede retraction of the webbing, damage, or poor fit it must be replaced. USE ONLY GENUINE TRUBLUE iQ REPLACEMENT PARTS ALWAYS REPLACE NOZZLE AS A PAIR If Nozzle requires replacement, always replace as a matched pair – do not mix worn and new Nozzle pieces. -
Page 36: Webbing Line Replacement
Uncontrolled retraction will result in internal damage and require repair by the Manufacturer. USE ONLY GENUINE TRUBLUE iQ REPLACEMENT PARTS The TBiQ-LT must use the 12.5M webbing. There is a blue tag near the bartack with “12.5M”. The TBiQ-XL must use the 20.0M webbing. There is a purple tag near the bartack with “20M”. -
Page 37: Webbing Line Replacement Procedure
TRUBLUE webbing, or any webbing from any other manufacture. Incompatible webbing may result in severe injury or death if used. The TRUBLUE iQ webbing has a white yarn down the center and is sold by authorized Head Rush Technologies locations. - Page 38 8. Fit the new webbing line, passing the threaded shackle pin through the loop as shown below. Hand Tight Correct shackle fit 9. Tighten the shackle pin to hand tight, ensuring the threads are fully engaged and the end of the pin is flush with the joining shackle as shown. 10.
-
Page 39: Replacement Parts
10.8 Replacement Parts Your TRUBLUE iQ Auto Belay is fitted with a number of replaceable parts that may be refitted without the need to return the device to an authorized Head Rush Technologies service agent. Always follow the Manufacturer’s instructions as detailed in this Operator Manual and any Part Replacement Guide supplied when undertaking replacement of a part. -
Page 40: Transportation
Reuse the original packaging when shipping Auto Belay. 10.11 Upgrades The TRUBLUE iQ has a patent pending interface which allows for future upgrades. These upgrades will provide additional functions and features for your Auto Belay. All upgrades once available will be listed at www.headrushtech.com. -
Page 41: Inspection Logs
12.0 INSPECTION LOGS 12.1 Weekly Inspection Log INSPECTION REMINDER: A webbing inspection must be performed daily and must include at least a visual inspection sufficient to evaluate the wear and integrity of the device’s webbing. The inspection may be performed from the ground if the webbing can be adequately inspected. - Page 42 Model# Serial # Webbing Date of Manufacture: Webbing Replacement Date (DOM + 1.5yrs): WEEKLY INSPECTION 1. Visually inspect casing, mounting holes, and covers for wear, impact damage, cracking, deformation, or corrosion. Replace damaged items or remove from service. OCT NOV Week 1 Week 2 Week 3...
-
Page 43: Six Month Inspection Log
12.2 Six Month Inspection Log This guide is provided for your convenience in keeping track of your bi-annual (every 6 months) unit inspections. Refer to the Operator Manual for in- depth instruction on how to perform outlined tasks. The Operator Manual and additional copies of the Six Month Inspection Log can be found at www. - Page 44 Inspect the webbing joining shackle, ensuring that: ƒ The shackle pin is secure and straight – do not attempt to tighten. (NOTE - The shackle pin is secured with thread locking compound and any attempt to turn will compromise its security.) ƒ...
- Page 45 NOTES www.headrushtech.com | +1-720-565-6885...
- Page 46 www.headrushtech.com | +1-720-565-6885...
- Page 48 REGISTER YOUR DEVICE Get automatic updates on recertification and product information – visit www.headrushtech.com/register ANNUAL RECERTIFICATION IS REQUIRED Please keep the shipping box for your device. For instructions on annual recertification, visit www.headrushtech.com/annual-service +1-720-565-6885 www.headrushtech.com info@headrushtech.com July 2021...
