Summary of Contents for ETS NORDcanopy

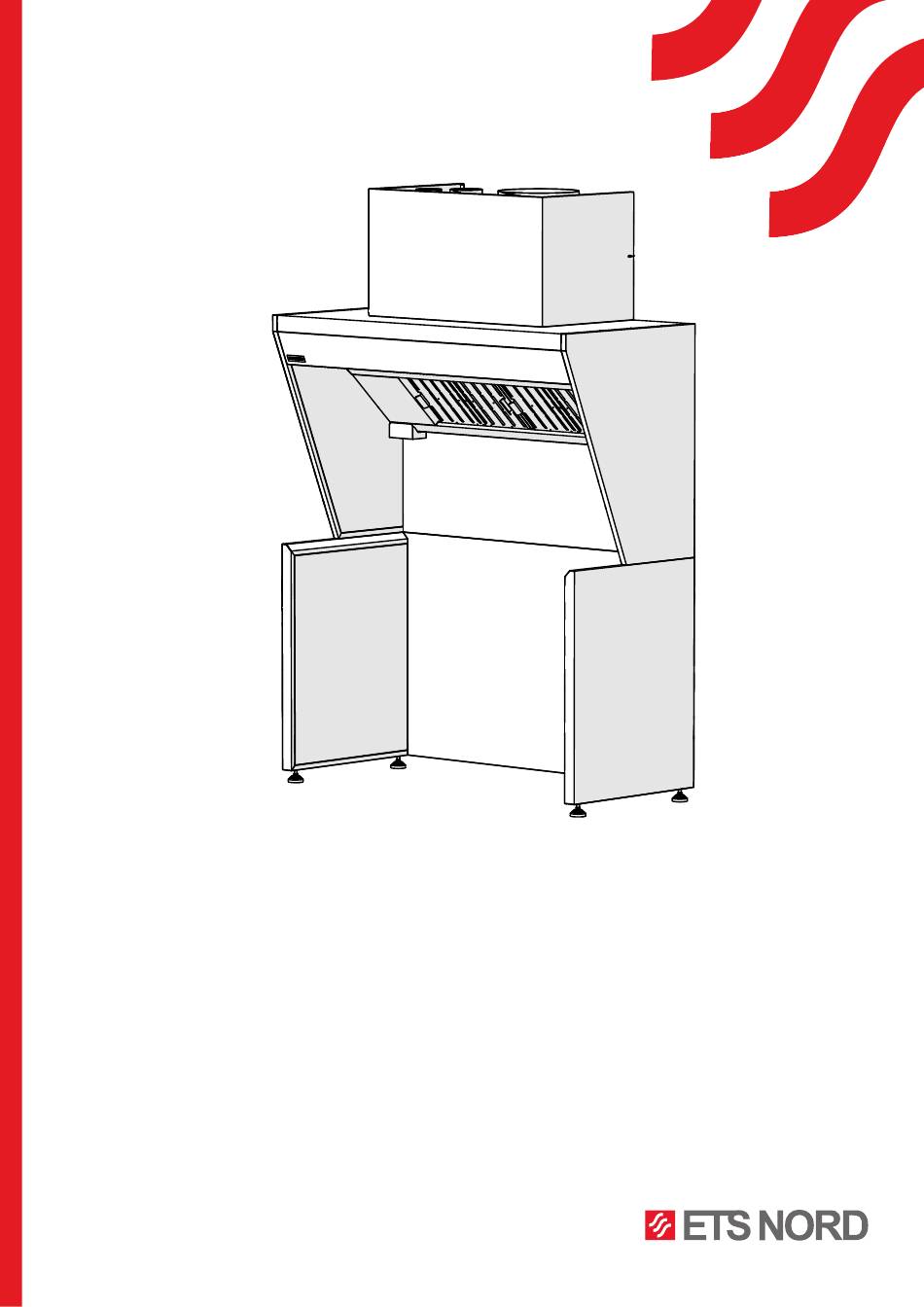

- Page 1 NORDcanopy HG Installation, use and maintenance manual www.nordcooking.com...
-
Page 2: Table Of Contents
® ® Installation, use and maintenance manual 1. A Frame installation canopy type HG2 .......................4 1. B Wall installation canopy type HG1 ......................5 2. Installing the ozonator ..........................6 3. Installing supply air adjusting damper ......................6 4. Installing cover plate ..........................7 5. - Page 3 ® ® L/2-100 L/2-200 L=1000-1900 L=2000-2500 L=2000-2500 L+50 Materjal: Hannes Lung 12.06.2020 Teostas Nimetus: Kontrollis Kinnitas Tä LEHT: ETS NORD AS 2 / 3 L-50 L+50 H* - vastavalt tellimusele www.etsnord.com RDM-34-0921 Materjal:...
-
Page 4: A Frame Installation Canopy Type Hg2
® ® 1. A Frame installation canopy type HG2 A 1.1 Frame Sidepanels are connected by M5x20mm bolts. K x8 A 1.2 Connecting the canopy with frame First step of the connection is attaching the frame’s back wall with M5x20mm bolts. Secondly the sides are attached with M5 self drilling screws. -
Page 5: B Wall Installation Canopy Type Hg1
® ® A 1.3 Installing frame interior walls Interior walls are glued to side panels interior, using the tape attached to the product. A 1.4 Leveling the canopy Canopy is leveled in a way that the frame sides are reaching 25 mm above the work surface. 925-975 mm 1. -
Page 6: Installing The Ozonator
® ® Installing the ozonator Ozonator air duct is connected with NIL coupling in a way that the ozonator would be removable later on. Connection of the ozonator is show in the "Ozonator Installation and maintenance manual”. Osonaator Ozonator Installing supply air adjusting damper Supply air adjusting damper is used to regulate AirGrip air nozzle system. -
Page 7: Installing Cover Plate
Installing cover plate Installing HFK grease filters, blind plates and grease collection container Measuring and adjusting exhaust airflow NORDcanopy canopies are fitted with measuring nozzles located inside the canopy. ATTN! During measurement, HFK all grease filters and blind plates must be in place and the front panel must be closed. -
Page 8: Luminaire Connection
® ® Luminaire connection NB! PERFORMED BT ELECTRICIAN Replacing the luminaires Spot LED lighting is fastened with spring clips on the top surface of the canopy ceiling. For replacing the luminaire, it should be pulled downward from the canopy ceiling. Kitchen canopy maintenance All internal and external surfaces of the kitchen canopy, including light fixtures, are cleaned using neutral cleaning agents. - Page 9 ETS NORD AS Address: Peterburi tee 53 11415 Tallinn Estonia Phone: +372 680 7360 info@etsnord.ee www.etsnord.ee ETS NORD Finland Address: Pakkasraitti 4 04360 Tuusula Finland Phone: +358 0401 842 842 info@etsnord.fi www.etsnord.fi ETS NORD Sweden Address: Järsjögatan 7 69235 Kumla...
