Summary of Contents for B&Q PRH850C

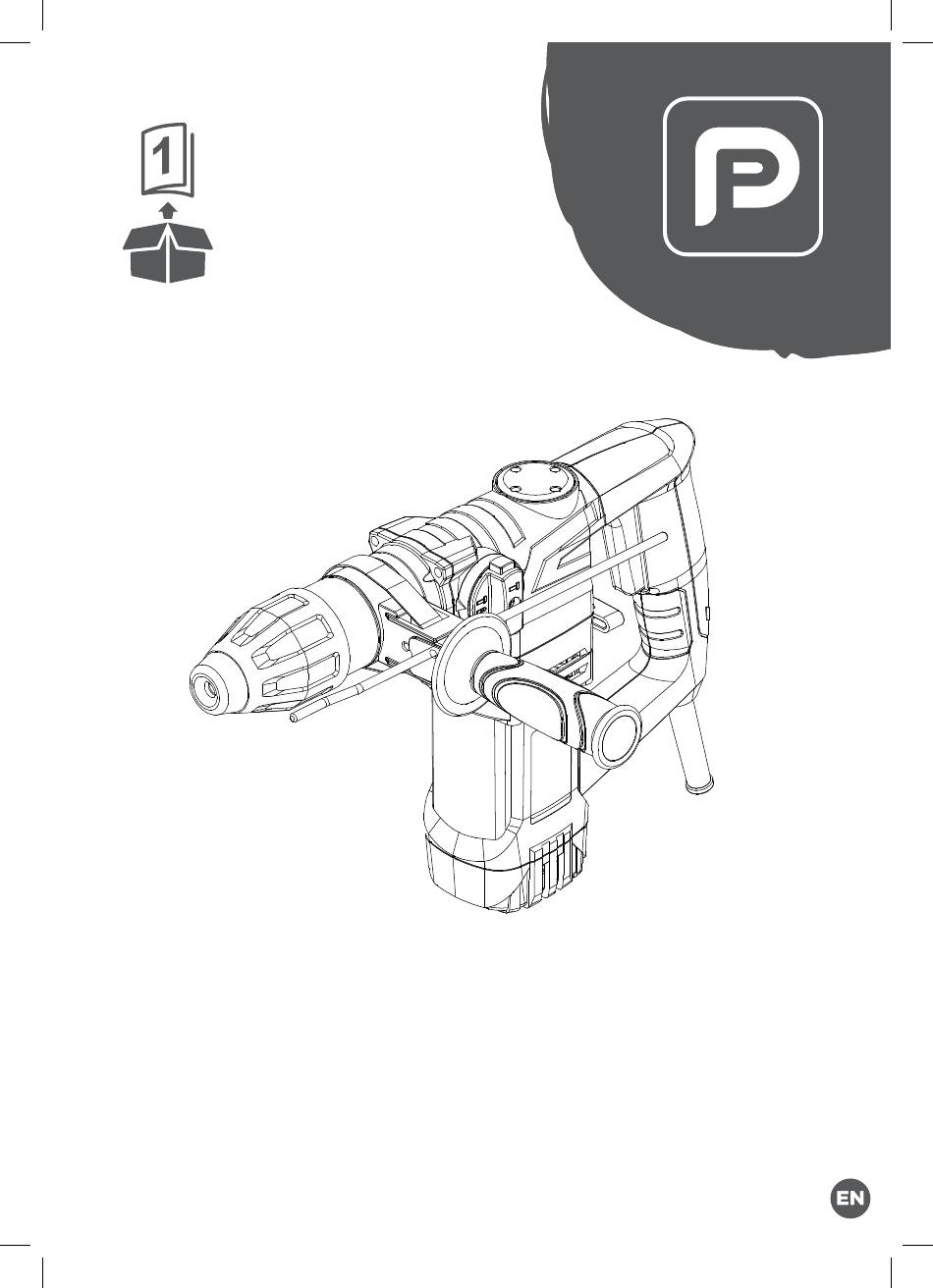

- Page 1 EAN 3663602794790 PRH850C ORIGINAL INSTRUCTIONS V30318...
-
Page 2: Table Of Contents
Safety instructions Product description Assembly Care & maintenance Guarantee Declaration of conformity... - Page 3 WARNING! Please read all safety warnings carefully and be sure that they are fully understood before handling the tool.
- Page 4 Product description...
- Page 5 90°...
-
Page 6: Safety Instructions
Safety instructions GENERAL POWER TOOL SAFETY WARNING WARNING Read all safety warnings and all instructions. Failure to follow the warnings and instructions may result in electric shock, fire and/ or serious injury. Save all warnings and instructions for future reference. The term “power tool”... - Page 7 b) Use personal protective equipment. Always wear eye protection. Protective equipment such as dust mask, non-skid safety shoes, hard hat, or hearing protection used for appropriate conditions will reduce personal injuries. c) Prevent unintentional starting. Ensure the switch is in the off-position before connecting to power source and/or battery pack, picking up or carrying the tool.
- Page 8 SAFETY WARNINGS FOR ROTARY HAMMER a) Wear ear protectors. Exposure to noise can cause hearing loss. b) Use auxiliary handle(s), if supplied with the tool. Loss of control can cause personal injury. c) Hold power tool by insulated gripping surfaces only, when performing an operation where the cutting accessory may contact hidden wiring or its own cord.
- Page 9 u) Switch off the power tool immediately when the drill bit jams. Be prepared for high reaction torque that can cause kickback. The drill bit jams when: the power tool is subject to overload or it becomes wedged in the workpiece. Switch the power tool off.
- Page 10 WARNING! Some dust particles created by power sanding, sawing, grinding, drill and other construction jobs contain chemicals known to cause cancer, birth defects or other reproductive harm. Some examples of these chemicals are: • Lead from lead-based paints. • Crystalline silica from bricks and cement and other masonry products. •...
- Page 11 WARNING! The vibration emission during actual use of the power tool can differ from the declared total value depending on the ways in which the tool is used: • How the materials are grinded, cut or drilled. • If the tool is in good condition and well maintained. •...
- Page 12 VIBRATION AND NOISE REDUCTION To reduce the impact of noise and vibration emission, limit the time of operation, use low-vibration and low-noise operating modes as well as wear personal protective equipment. Take the following points into account to minimise the vibration and noise exposure risks: 1.
-
Page 13: Product Description
Product description Part index The index below refers to Fig. 1 on page 4. SDS-PLUS Drill chuck Main handle Chuck sleeve On/Off switch Rotation stop switch Hammer stop switch a. Unlocking button Auxiliary handle b. Position indicator Depth stop Grease box cover Symbols On the product, the rating label and within these instructions you will find among others the following symbols and abbreviations. - Page 14 EN 60745-1 and EN 60745-2-6 The noise for the operator may exceed 80 dB(A) and ear protection measures are necessary. Rating label explanation PRH850C = Model number P = Brand name RH = Rotary hammer 850C = Power (Watts)
-
Page 15: Assembly
Assembly Unpacking 1. Unpack all parts and lay them on a flat, stable surface. 2. Remove all packing materials and shipping devices, if applicable. 3. Make sure the delivery contents are complete and free of any damage. If you find that parts are missing or show damage do not use the product but contact your dealer. - Page 16 Auxiliary handle (Fig. A) WARNING! For all work with the machine, the auxiliary handle (2) must always be mounted. Do not make any changes or modifications to the auxiliary handle. Do not continue to use the power tool when the auxiliary handle is damaged.
-
Page 17: Use
The depth stop (9) is just for indicating the drilling depth and cannot withstand a large pressing force. Slow down your feeding speed/force of drilling to prevent depth stop from displacing or damaging when the target depth is nearly reached. Intended use The power tool is intended for hammer drilling and light-duty chiselling work into concrete, brick and stone when equipped with SDS-Plus bits. - Page 18 1. Press the unlocking button (3a) and turn the rotation stop switch (3), so that the desired operation mode symbol is turned to the position indicator (3b). 2. Release the unlocking button (3a) and ensure that locking function of the rotation stop switch is engaged.
- Page 19 On/Off Mode Action Application Press the On/ Switch on the power tool. The drilling speed/ Off switch (6) and power depends on the pressing depth of the hold it in desired switch. pressing depth. Release the On/Off Switch off the power tool. switch (6) Operation General...
- Page 20 Hammer drilling 1. In principle, masonry should be drilled in hammer drilling mode with maximum speed. However, in the first few seconds, the drill bit may deviate from the original desired position due to the hammer action. To avoid this, use inching mode to the On/Off switch until the drill bit tip is well seated in workpiece.
-
Page 21: Care & Maintenance
Care & maintenance WARNING! Always switch the product off, disconnect the product from the power supply and let the product cool down before performing inspection, maintenance and cleaning work! Only perform care and maintenance work according to these instructions! All further works must be performed by a qualified specialist! Clean 1. - Page 22 Power cord If the replacement of the supply cord is necessary, this has to be done by the manufacturer or his agent in order to avoid a safety hazard. UK plug (only for UK market) Replacement of the plug shall always be carried out by the manufacturer of the tool or his service organization and follow the instructions below.
- Page 23 1. Switch the product off and disconnect it from the power supply. Remove drill bit if applicable. Ensure that the chuck key is attached in the chuck key holder. 2. Protect the product from any heavy impact or strong vibrations which may occur during transportation in vehicles.
- Page 24 Troubleshooting Suspected malfunctions are often due to causes that the users can fix themselves. Therefore check the product using this section. In most cases the problem can be solved quickly. WARNING! Only perform the steps described within these instructions! All further inspection, maintenance and repair work must be performed by an authorised service centre or a similarly qualified specialist if you cannot solve the problem yourself! Problem...
-
Page 25: Guarantee
Guarantee This power tool is guaranteed for 1 year from the date of purchase, if bought in store, delivered or if bought online, for normal (non-professional or commercial) household use. You may only make a claim under this guarantee upon presentation of your sales receipt or purchase invoice. -
Page 26: Declaration Of Conformity
London W2 6PX United Kingdom Declare that the product: 850W Rotary hammer PRH850C Serial number: 00001-99999 Complies with the essential health and safety requirements of the following directives: 2006/42/EC The Machinery Directive References to the following harmonized standard were made:... - Page 27 Manufacturer • Fabricant • Producent • Hersteller • Producator • Fabricante: Kingfisher International Products Limited, 3 Sheldon Square, London, W2 6PX, United Kingdom www.kingfisher.com/products Distributor: B&Q plc, Chandlers Ford, Hants, SO53 3LE United Kingdom www.diy.com Screwfix Direct Limited, Trade House, Mead Avenue, Yeovil, BA22 8RT, United Kingdom www.screwfix.com To view instruction manuals online,...
