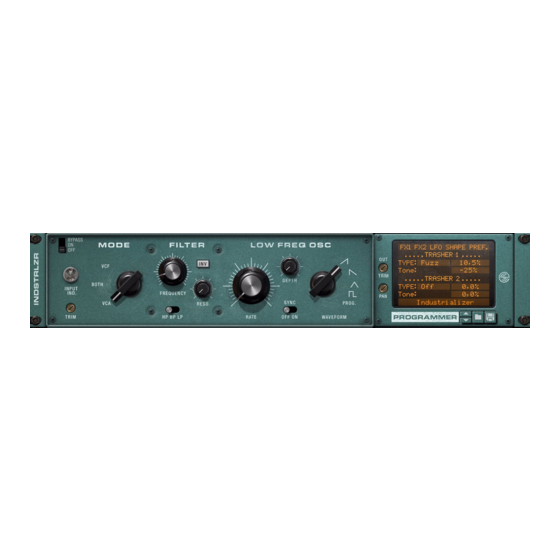

Summary of Contents for Ekssperimental Sounds INDSTRLZR

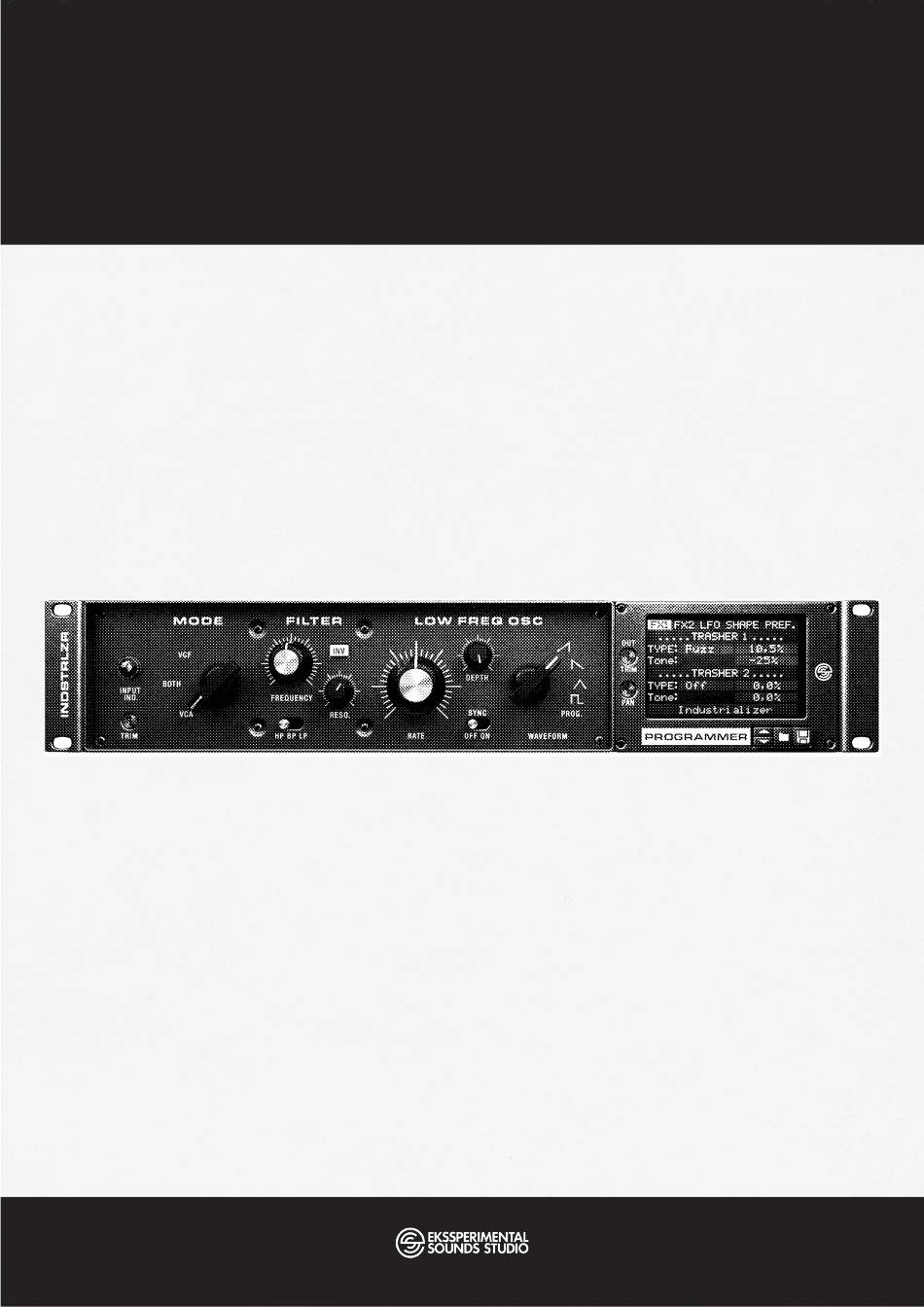

- Page 1 INDSTRLZR Multi Effect Unit...
- Page 2 DIY project designed by Roy Gwinn, published as the ‘GEP’ (Guitar Effects Pedal) in Practical Electronics magazine (July 1975 issue). The INDSTRLZR features the same principle of an LFO modulating a VCA and a VCF and comes with additional features like programmable LFO shape, Multimode filter, syncing, additional effects and CV and audio modulation input.
- Page 3 FRONT PANEL PROGRAMMER INPUT IND. & TRIM OUTPUT: Trimming of the output signal from -inf (-100%) to +12dB Input indicator, the brighntess is controlled by the input signal. (+100%) Zero dB at 0%. Trim input from -inf (-100%) to +12dB (+100%) Zero dB at 0%. PAN: Panning of output signal from Left to Right.
- Page 4 Reason rack. Thanks to all of you who buy my products I can continue to learn and develope more fun and inspiring devices for our beloved rack. I hope you will enjoy INDSTRLZR! Cheers, Erik Söderberg 2021 http://ekss.se...
