Summary of Contents for ISYGLT BW-03
- Page 1 Technical Data / Instruction Manual BW-03 Article no. 80087170 BW-03-UP Article no. 80087171 BW-03-LP Article no. 80087173 Motion Sensor Seebacher GmbH www.seebacher.de Phone: +49 (0) 80 41 / 77 77 6 Marktstrasse 57, 83646 Bad Tölz info@seebacher.de Fax: +49 (0) 80 41 / 77 77 2...
-
Page 2: Notes On Documentation
These instructions are intended for qualified personnel who are 1. Notes on documentation familiar with the assembly, installation and operation of the ISYGLT system. It is essential that you read these operating instructions through before commissioning and keep them accessible for further 1.1. -
Page 3: Safety Instructions
2.6. Use of spare parts and additional equipment protection type. For applications with a higher required IP protec- tion type, the ISYGLT module must be installed in a housing or a The module may be damaged if unsuitable spare parts and addi- cabinet with a higher IP protection type. -
Page 4: Warranty
These are limited to the intended use of the module and refer EU on waste electrical and electronic equipment at the local collec- to the repair or replacement of the ISYGLT module. Please send the tion points for waste electrical and electronic equipment! device with an attached error description to our company address given below. -
Page 5: Product Description

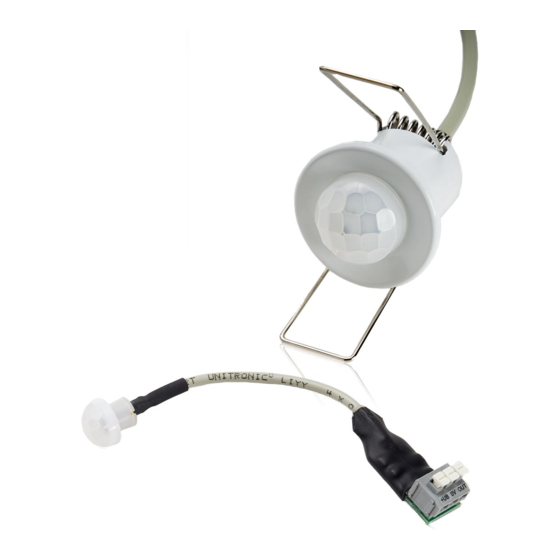

Design • BW-03: White plastic lens for gluing into devices or luminaires • BW-03-UP: Flush-mounted combination plate matching the respective switch range with white plastic lens • BW-03-LP: In light spot housing for installation in ceilings or hollow walls • BW-03-LP-K4M: same as BW-03-LP, but with 4m long connection cable 10. - Page 6 10.1. Pin assignment Operating voltage Operating voltage Switching output View 17.4mm 23.0mm approx. 125.0mm BW-03 80.0mm BW-03-UP 68.0mm 30.0mm approx. 125.0mm 12.0mm 22.0mm BW-03-LP Diameter of cut-out: optimum 26mm, maximum 28mm Seebacher GmbH www.seebacher.de Phone: +49 (0) 80 41 / 77 77 6 Marktstrasse 57, 83646 Bad Tölz...
- Page 7 11. Wiring diagram +24V BUS-A BUS-B 1 2 3 4 5 6 7 8 Address ISYGLT I/O module Art.no.: 8002***** Seebacher GmbH www.seebacher.de Phone: +49 (0) 80 41 / 77 77 6 Marktstrasse 57, 83646 Bad Tölz info@seebacher.de Fax: +49 (0) 80 41 / 77 77 2...
- Page 8 Detection range Side view Top view 46,5¡ 55¡ (Max. 15.9m) (Max. 12.3m) Misprints and technical changes reserved. Seebacher GmbH www.seebacher.de Phone: +49 (0) 80 41 / 77 77 6 Marktstrasse 57, 83646 Bad Tölz info@seebacher.de Fax: +49 (0) 80 41 / 77 77 2...
