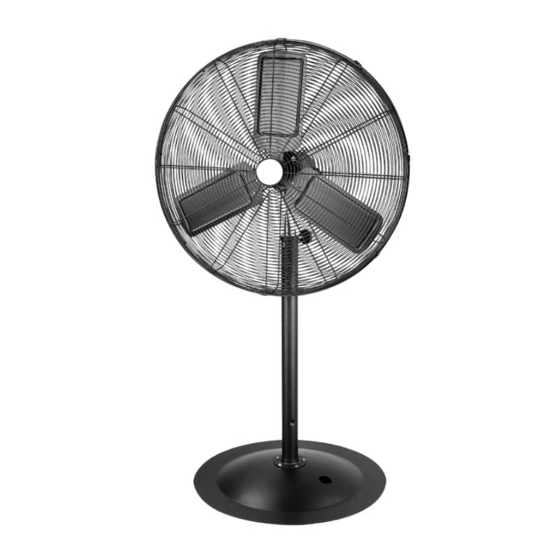

High velocity pedestal fan

Advertisement

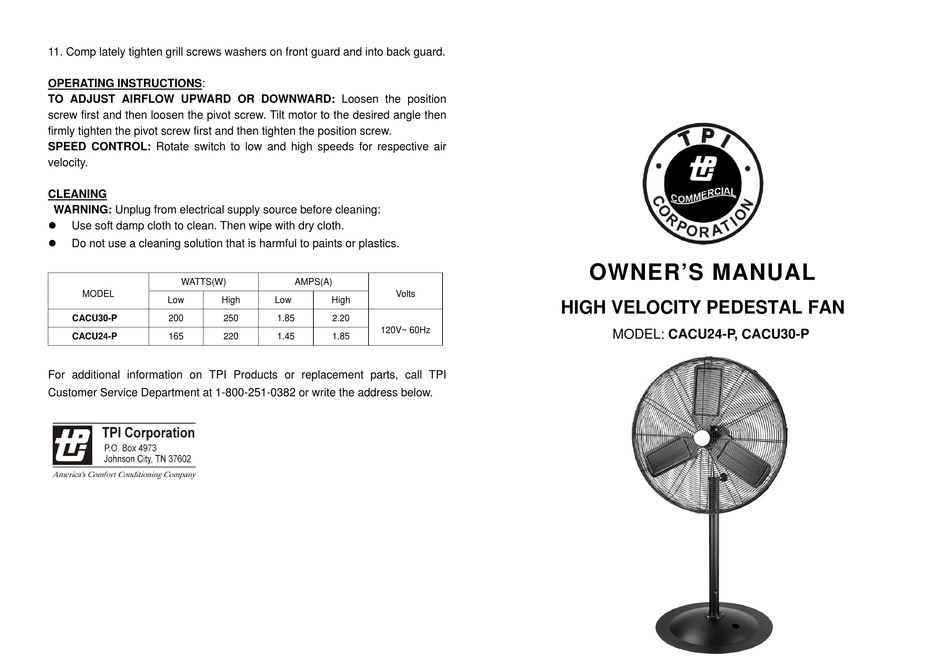

11. Comp lately tighten grill screws washers on front guard and into back guard.

OPERATING INSTRUCTIONS:

TO ADJUST AIRFLOW UPWARD OR DOWNWARD: Loosen the position
screw first and then loosen the pivot screw. Tilt motor to the desired angle then
firmly tighten the pivot screw first and then tighten the position screw.
SPEED CONTROL: Rotate switch to low and high speeds for respective air
velocity.

CLEANING

WARNING: Unplug from electrical supply source before cleaning:
Use soft damp cloth to clean. Then wipe with dry cloth.
Do not use a cleaning solution that is harmful to paints or plastics.
WATTS(W)
MODEL
Low
High
CACU30-P
200
250
CACU24-P
165
220
For additional information on TPI Products or replacement parts, call TPI
Customer Service Department at 1-800-251-0382 or write the address below.
AMPS(A)
Volts
Low
High
1.85
2.20
120V~ 60Hz
1.45
1.85
OWNER'S MANUAL
HIGH VELOCITY PEDESTAL FAN
MODEL: CACU24-P, CACU30-P

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the CACU24-P and is the answer not in the manual?

Questions and answers

Summary of Contents for TPI Corporation CACU24-P

  • Page 1 MODEL Volts High High HIGH VELOCITY PEDESTAL FAN CACU30-P 1.85 2.20 120V~ 60Hz MODEL: CACU24-P, CACU30-P CACU24-P 1.45 1.85 For additional information on TPI Products or replacement parts, call TPI Customer Service Department at 1-800-251-0382 or write the address below.
  • Page 2 READ AND SAVE THESE INSTRUCTIONS WARNING: be sure front and rear guard screws are completely screwed down in locking position before operation. CAUTION: Read and follow all instructions before Operating Fan. Do not use COLUMN ASSEMBLY INSTRUCTIONS: fan if any part is damaged or missing. 1.
