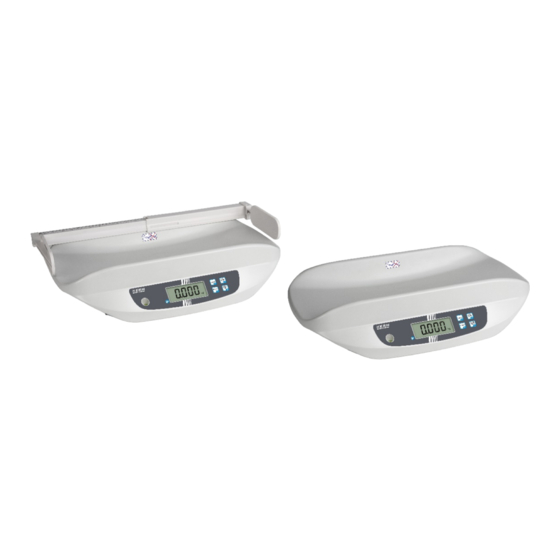

Summary of Contents for PROMAT KERN MBA 10K-3M
- Page 1 KERN & Sohn GmbH Ziegelei 1 Phone: +49-[0]7433- 9933-0 D-72336 Balingen Fax: +49-[0]7433-9933-149 E-Mail: info@kern-sohn.com Internet: www.kern-sohn.com Operating manual Baby scale KERN MBA Typ TMBA-B Version 1.0 2020-12 TMBA_B-BAPS-d-2010...
-
Page 2: Table Of Contents
KERN MBA Version 1.0 2020-12 Operating manual Baby scale Contents Technical data ....................4 Declaration of conformity ................5 Appliance overview ..................6 Dimensions ..........................7 Overview of display ........................7 Keyboard overview ........................9 Basic Information (General) ................ 10 Intended use ........................... - Page 3 Servicing, maintenance, disposal .............. 29 11.1 Cleaning ..........................29 11.2 Cleaning / disinfecting ......................29 11.3 Sterilisation ..........................29 11.4 Servicing, maintenance ......................29 11.5 Disposal ........................... 29 Instant help ....................30 Adjustment ....................31 Equipment (optional) ................... 33 TMBA_B-BAPS-e-2010...
-
Page 4: Technical Data
1 Technical data KERN MBA 10K-3M Item no./ Type TMBA 15K-3M-B Weighing range (max) 15 kg Readability (d) 0.005 kg Reproducibility 0.005 kg Linearity 0.005 kg Display LCD with 25mm high digits Recommended adjustment 15 kg weight, not added (class) (M1) Stabilization time (typical) 3 sec. -
Page 5: Declaration Of Conformity
2 Declaration of conformity The current EC/EU Conformity declaration can be found online in: www.kern-sohn.com/ce TMBA_B-BAPS-e-2010... -
Page 6: Appliance Overview
3 Appliance overview 1. Height measuring rod (optional) 2. Baby weighing pan 3. Keyboard 4. LED 5. Bubble level 6. Mains connection 7. Rubber feet (height adjustable) 8. Battery compartment / adjustment switch inside 9. WIFI compartment TMBA_B-BAPS-e-2010... -
Page 7: Dimensions
3.1 Dimensions 3.2 Overview of display Display Designation Description GROSS Gross weight display Illuminated when gross weight of the baby is displayed Net weight display Illuminated when net weight of the baby is displayed Illuminated after weighing scale was tared TARE Taring display Illuminated after weighing scale was... - Page 8 Stability display Scales are in a steady state W1 – W2 Display weighing range Illuminated, when the load is within the displayed range HOLD HOLD function Is displayed with active Hold function Lights when the voltage drops below the prescribed minimum. Rechargeable battery Lights when the rechargeable battery symbol...
-
Page 9: Keyboard Overview
3.3 Keyboard overview Button Designation Function ON/OFF-button Turn on/off For numeric entry: • Decimal point further to the right In menu: • Confirm selection HOLD button Hold function For numeric entry: • Decimal point further to the left • TARE-key/ Tare balance Zeroing key Weighing scale will be reset to „0.0“... -
Page 10: Basic Information (General)
4 Basic Information (General) 4.1 Intended use These balances serve as a means of determining the weight of babies in medical treatment rooms (hospitals or Doctor practices). The frequently used function of the baby scale is recognising, preventing and controlling illnesses. The WIFI interface allows the measured results to be transmitted wirelessly to a PC. -
Page 11: Improper Use / Contraindications
4.2 Improper Use / Contraindications Do not use these scales for dynamic weighing processes. Do not leave permanent load on the weighing pan. This may damage the measuring system. Impacts and overloading exceeding the stated maximum load (max) of the weighing plate, minus a possibly existing tare load, must be strictly avoided. -
Page 12: Monitoring Of Test Resources
4.4 Monitoring of Test Resources In the framework of quality assurance the measuring-related weighing properties of the balance and, if applicable, the testing weight, must be checked regularly. The responsible user must define a suitable interval as well as type and scope of this test. Information is available on KERN’s home page (www.kern-sohn.com) with regard to the monitoring of balance test substances and the test weights required for this. -
Page 13: Basic Safety Precautions
5 Basic Safety Precautions 5.1 Pay attention to the instructions in the Operation Manual Carefully read this operation manual before setup and commissioning, even if you are already familiar with KERN balances. 5.2 Preparing for use • Check the balance for damage before any use •... -
Page 14: Transport And Storage
6 Transport and storage 6.1 Testing upon acceptance When receiving the appliance, please check packaging immediately, and the appliance itself when unpacking for possible visible damage. 6.2 Packaging / return transport Keep all parts of the original packaging for a possibly required return. -
Page 15: Unpacking, Setup And Commissioning
7 Unpacking, Setup and Commissioning 7.1 Installation Site, Location of Use The balances are designed in a way that reliable weighing results are achieved in common conditions of use. You will work accurately and fast, if you select the right location for your balance. -
Page 16: Installation
7.4 Installation Carefully remove the balance from the packaging, remove plastic cover and setup balance at the intended workstation. Levelling Level balance with foot screws until the air bubble of the water balance is in the prescribed circle. 7.5 Battery operation The balance offers also the possibility to be operated with 6x AA-batteries. - Page 17 If the batteries are run down,to turn off, press the button and immediately change the batteries. If the balance is not used for a longer time, take out the batteries and store them separately. Leaking battery liquid could damage the balance. Capacity of batteries exhausted.
- Page 18 Insert batteries: Remove the battery compartment lid on the lower side of the balance Connect the battery block with batteries to the contact of the housing and insert into the battery compartment. Fix it using the battery compartment lid. TMBA_B-BAPS-e-2010...
-
Page 19: Mains Connection (Option)
7.6 Mains connection (option) Power is supplied by the external power unit which also serves to isolate the mains supply from the scale. The stated voltage value must be the same as the local voltage. Only approved genuine KERN power supply units may be used in compliance with Directive EN 60601-1. -
Page 20: Taring
8.2 Taring The tare weight of any preloads can be deducted by pressing a button so that the actual weight of the baby is displayed in subsequent weighings. Put object (such as towel or padding) on the weighing pan. Wait for stability display (example) Press , the zero display appears. -
Page 21: Hold Function (Standstill Function)
8.3 Hold function (Standstill function) The balance has an integrated standstill function (mean value calculation). This allows one to weigh the baby exactly, even if it is not restful in the weighing pan. Start balance by pressing Await zero display Place the baby, press , “---------“... -
Page 22: Auto Off (Automatic Switch-Off Function)
8.4 Auto off (Automatic switch-off function) The balance offers the possibility of an automatic switch-off. It can be adjusted: Selectable between 30, 60, 180 sec. and off. Switch-on the balance, in weighing mode press approx. 3 sec.; AF will be displayed. Press , the switch-off time set as last will be displayed, e.g. -
Page 23: Using The Optional Equipment Height Measuring Rod Mba-A01
8.5 Using the optional equipment height measuring rod MBA-A01 The scale has the ability to determine not only the weight but also the body height using the optional height measuring rod. Fixed stop Movable stop min. 30 cm max. 80 cm For this purpose proceed as follows: ... -
Page 24: Using The Optional Equipment Wifi Interface Ymi-A01 (Tmba-A02-A)
8.6 Using the optional equipment WIFI interface YMI-A01 (TMBA-A02-A) If the WIFI is not setup yet, the device will create a WIFI access point once powered up. Use your computer to connect to this access point. The SSID is “AI_THINKER_xxxxxx” Use a web browser to visit the webpage http://192.168.4.1/ In the webpage:... -
Page 25: Printing Function
8.6.1 Printing function After the Software and the scale is connected propperly, weighing data can be transferred using the button on the scale. Printout example: 30.06.2020 10:04:36: 0.000 kg (Stable) Also the weighing result can be send using remote commands. 8.6.2 Remote commands Send stable value Tare the Scale... -
Page 26: Menu
9 Menu Access to service menu “tCH” is locked in verified balances. To disable the access lock, destroy the seal mark and actuate the adjustment switch. For position of adjustment switch, see chap. 13. Attention: After destruction of the seal the weighing system must be re- verified by an authorised agency and a new verification wire/seal mark fitted before it can be reused for applications subject to verification. -
Page 27: Menu Overview
9.2 Menu overview Function Settings Description AF oFF Automatic shutdown switched off Automatic AF 30 Automatic shutdown after 30 min. shutdown Auto off AF 60 Automatic shutdown after 60 min. AF 180 Automatic shutdown after 180 min. Reset weighing scale to factory setting reset to factory setting TMBA_B-BAPS-e-2010... -
Page 28: Error Reports
10 Error reports Display Description Zero range exceeded (on start-up or when pressing the key) • Load on weighing pan • Excess load, during zero setting of weighing scale • Incorrect adjusting process • Fault on load cell Battery capacity exhausted Zero range exceeded Zero setting range not achieved Adjustment error... -
Page 29: Servicing, Maintenance, Disposal
11 Servicing, maintenance, disposal 11.1 Cleaning Before any maintenance, cleaning and repair work disconnect the appliance from the operating voltage. 11.2 Cleaning / disinfecting Clean weighing platform (such as seat) as well as casing with household detergents or commercially available disinfectants, e.g. 70% isopropanol. We recommend a disinfectant suitable for wiping disinfection. -
Page 30: Instant Help
12 Instant help In case of a fault in the program sequence, the balance should be shortly switched off. The weighing process must then be restarted from the beginning. Failure: Possible causes: The balance is not switched on. The displayed weight does not glow. -
Page 31: Adjustment
13 Adjustment As the acceleration value due to gravity is not the same at every location on earth, each display unit with connected weighing plate must be coordinated - in compliance with the underlying physical weighing principle - to the existing acceleration due to gravity at its place of location (only if the weighing system has not already been adjusted to the location in the factory). - Page 32 Procedure: Switch on balance Operate adjustment switch; for position see chap.14 The balance is now in service menu. Press repeatedly until cAL E appears Confirm with , the adjustment weight selected as last is displayed, e.g. 5000 kg (example) Select desired setting with and acknowledge by (example)
-
Page 33: Equipment (Optional)
14 Equipment (optional) Item number Type number Product MBA-A01 TMBA-A01-A Height measuring rod YKA-43 TYKA-43-A Netzteil (EU/UK/CH) YKA-44 TYKA-44-A Netzteil (EU) YMI-A01 TMBA-A02-A WIFI Interface (factory option) TMBA_B-BAPS-e-2010...
