Summary of Contents for Assured Wireless AW12-HP

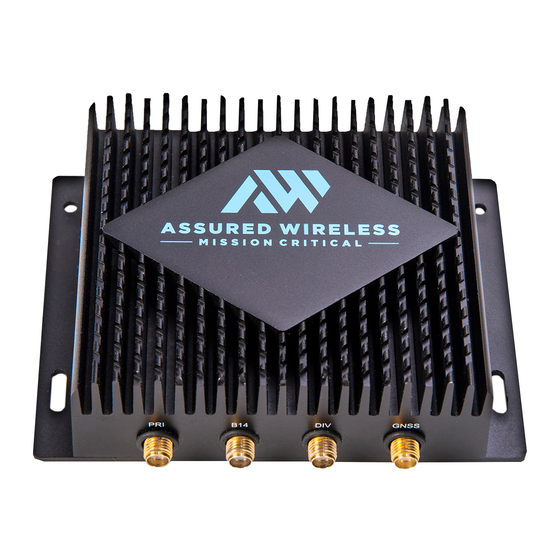

- Page 1 AW12-HP User Manual AW12-HP User Manual Assured Wireless Corporation 16885 W. Bernardo Dr Suite 300 San Diego CA 92127 858-859-2942 info@assured-wireless.com...
- Page 2 AW12-HP User Manual Index About this Manual ................3 Product Overview ................3 How to use it ..................3 3.1 picture both top and bottom side ..............3 3.2 power on device ................... 4 Contact information ................ 4...
- Page 3 2. Product Overview AW12-HP supports B14 power class1 transmit power of 31dBm and supports other AT&T bands in the US market. Main features are the followings Cellular bands: AT&T band: B2/B4/B5/B12/B14/B29/B30/B66;...
- Page 4 AW12-HP User Manual 3.2 power on device Insert USIM card Connect antennas according above pictures Add power, please note that input power voltage range is 5V to 12V, and recommend input power voltage is 12V The device will connect internet automatically 4.
- Page 5 AW12-HP User Manual equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation.
- Page 6 AW12-HP User Manual this manual. Antenna Installation The antenna must be installed such that 20 cm is maintained between the antenna and users, The transmitter module may not be co-located with any other transmitter or antenna. Only antennas of the same type and with equal or less gains as shown below may be used with this module.
