SERVICE MANUAL
MODEL: 14N23
CHASSIS: M123SP

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 14N23 and is the answer not in the manual?

Questions and answers

Related Manuals for Qls 14N23

Summary of Contents for Qls 14N23

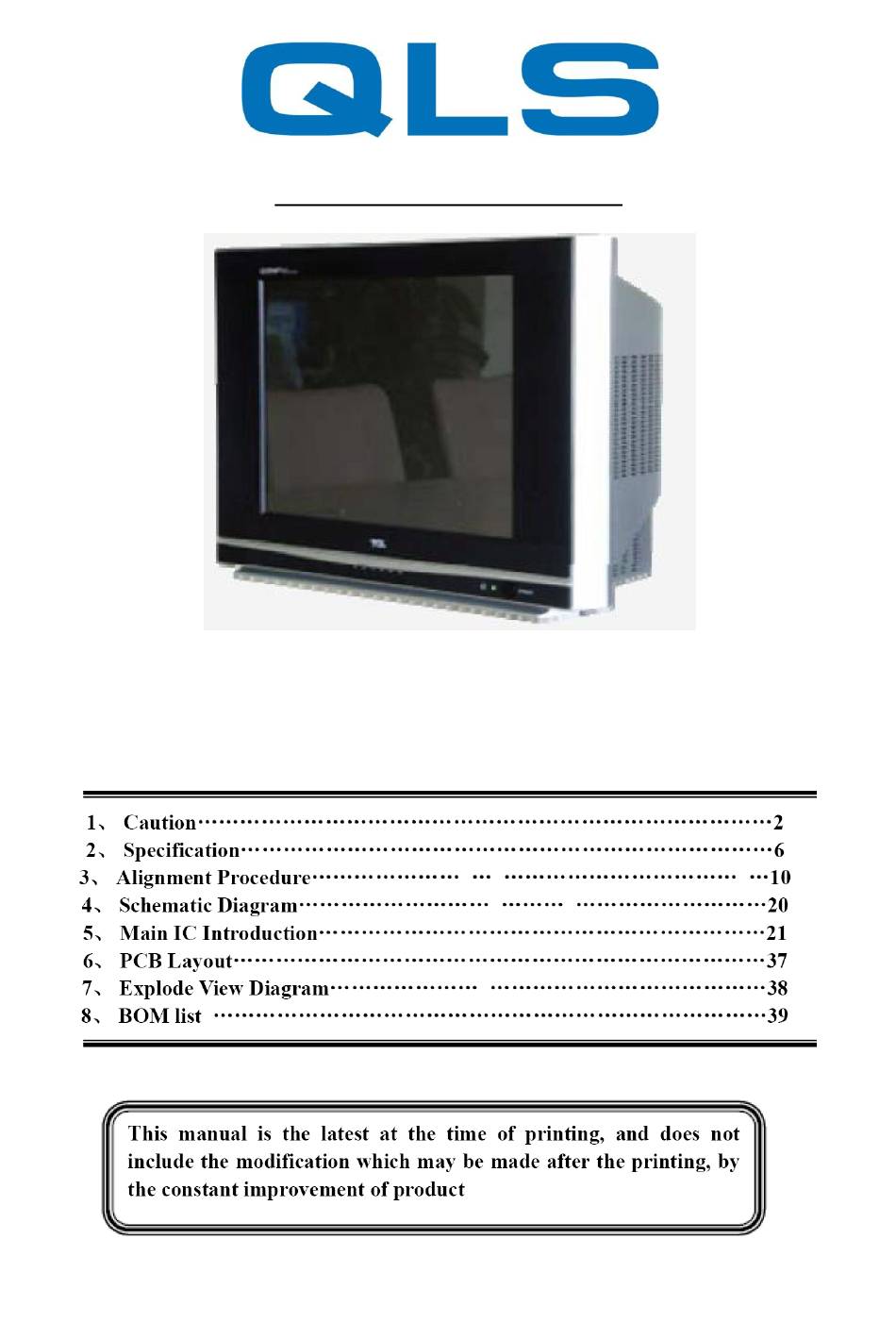

  • Page 1 SERVICE MANUAL MODEL: 14N23 CHASSIS: M123SP...
  • Page 2 1、 CAUTION: Use of controls, adjustments or procedures other than those specified herein may result in hazardous radiation exposure. CA UTION: TO REDUCE THE RISK OF CAUTION ELECTRICAL SHOCK, DO NOT REMOVE COVER (OR BACK). NO USER SERVICEABLE RISK RISK OF OF ELECTRI ELECTRIC C PARTS INSIDE.
  • Page 3 IMPORTANT SAFETY INSTRUCTIONS CAUTION: Read all of these instructions. Save these instructions for later use. Follow all Warnings and Instructions marked on the audio equipment. 1. Read Instructions- All the safety and operating instructions should be read before the product is operated. 2.
  • Page 4 PROTECTION AND LOCATION OF YOUR SET Do not use this television set near water ... for example, near a bathtub, washbowl, kitchen sink, or laundry tub, in a wet basement, or near a swimming pool, etc. Never expose the set to rain or water. If the set has been exposed to rain or water, unplug the set from the wall outlet and refer servicing to qualified service personnel.
  • Page 5 OPERATION OF YOUR SET 18. This television set should be operated only from the type of power source indicated on the marking label. If you are not sure of the type of power supply at your home, consult your television dealer or local power company. For television sets designed to operate from battery power, refer to the operating instructions.
  • Page 6 2、 Specification Model 机型 Item 内容 主要数据 Master Data -Customer ID -顾客ID 南美 -Destination SOUTH AMERICA -目的地 -Brand -牌子 -BOM NO. -BOM号 -Assembling Way Unit -走货方式 -Chassis M123SP -机芯号 接收 Reception -Tuning [Channels Amt.] -频道数量 -Tuning [Technology] -调谐技术 -Tuning [Indication] --------- -搜台指示...
  • Page 7 TCL-Thomson Electronics R D Center (Shen’Zhen Lab) Model 机型 Item 内容 -America SAP -美国SAP -Korea Stereo -韩国立体声 -Thai Bilingual -泰国双语 -Super Woofer -超重低音 -AVL -自动音量平衡 -Sound Control [General] -声音控制（普通的） Volume 音量 静音 Mute -Sound Control [Special] -声音控制（特殊的） 高音 Treble 低音 Bass 平衡...
  • Page 8 TCL-Thomson Electronics R D Center (Shen’Zhen Lab) Model 机型 Item 内容 -Number of Local Control(incl.Mains) -本机控制按键孔数量(包括主开关) -Number of Indicator Control(incl.Mains) -本机指示灯数量(包括主开关上的灯) Local Controls Front -正面的控制孔数量 电源开关 -Mains Switch -CH+ CH- VOL+ VOL- 频道+-，音量+- -TV/AV TV / AV -Menu 菜单 -Auto Search 自动搜台...
  • Page 9 TCL-Thomson Electronics R D Center (Shen’Zhen Lab) Model 机型 Item 内容 Carton Color 纸箱颜色 -Documents and Manuals -文件和手册 说明书 Instruction Book 屏幕贴纸 Screen Sticker 塑料袋 Plastic Bag 保修卡 Warranty Card Guarantee Doc. 保证书 警告标签 Warning Label Approbation Label 认证标签 其他 Others -Languages Instruction Book English...

  • Page 10: Table Of Contents

    3、 Alignment Procedure Table of Content Ⅰ. SUMMARIZE........................... 5 Ⅱ. ALIGNMENT CONTENTS： ....................6 1. A ....................6 DJUSTMENT OF VOLTAGE 2. RF AGC ......................6 ADJUSTMENT 3. S & F ................7 CREEN OCUS VOLTAGE ADJUSTMENT 4. 1 A NSTC DJUSTMENT OF CONTRAST...

  • Page 11: Ⅰ. Summarize

    TCL-THOMSON Electronics R&D Center (Shen’Zhen Lab) M123SP Alignment Procedure Ⅰ. Summarize M123SP，is NTSC-PAL system model developed for TCL market specially. In trial run, burn the software to TMPA8873PSNG IC by OTP method. After the trial run, make the mask，please take care in production.     T o solve the probable problems in production, for the workers participate in alignment, please be familiar with the Alignment Procedure, and be master of the features.

  • Page 12: Ⅱ. Alignment Contents

    TCL-THOMSON Electronics R&D Center (Shen’Zhen Lab) Ⅱ. Alignment contents： 1. Adjustment of B+ voltage Receive Philips standard testing pattern to RF input. If the VR800 exists in the board, adjust it in STANDARD mode until voltage at following value： Model B+ (v) 110±2.0 M123SP...

  • Page 13: Screen & Focus Voltage Adjustment

    TCL-THOMSON Electronics R&D Center (Shen’Zhen Lab) 3. Screen & Focus voltage adjustment ① Apply pattern signal in normal status, enter Factory mode，press“INPUT” button to stop vertical scan. Note：(the RC/GC/BC is preset to be 40，GD/BD is 40） Adjust the SCRREEN switch on the flyback transformer to make a horizontal shining ②...

  • Page 14: White Balance Adjustment (Normal)

    TCL-THOMSON Electronics R&D Center (Shen’Zhen Lab) equipment, white balance can be adjusted automatically as following: Press “BUS OFF” button under factory mode, the TV set will adjust automatically. standard： Warm X=310+8, Y=314+8 Cool X=278+8, Y=282+8 Remark: 1) Provided the production line is equipped with the self- White balance adjusting equipment, white balance of M123SP chassis can be adjusted automatically as following: Press “I2C BUS”...

  • Page 15: Ps Line Polartities Test

    TCL-THOMSON Electronics R&D Center (Shen’Zhen Lab) 8. PS line polartities test : Connect follow the graphic below： DC PS Sound reminder 2.2k PS socket M TO F801 Plug the PS line onto the PS socket M, then touch any pin of F801 with the probe, the LED DX will shine at the moment, with sound reminder, or it is disqualification.

  • Page 16: High Voltage And I B Value Limit Test ( Random Test )

    TCL-THOMSON Electronics R&D Center (Shen’Zhen Lab) 10. High voltage and Ib value limit test( random test ) Instruments： High voltage meter， Ib meter. Input signal pattern： White vertical Input signal intensity： 60dBuv (1 Mv rms) Test means： Connect High voltage meter and Ib meter. Test voltage of different Ib separately, It should meet the requirements below：...
  • Page 17 TCL-THOMSON Electronics R&D Center (Shen’Zhen Lab) FAC 03 Data STRAP Model BLACK* BLACK* STRAP F0 SIF FREQ HL QG PIF FREQ HPOS6 HPOS5 南美 M123SP 20E10 Data FAC 04 Model CNTX CNTN BRTX BRTN COLX COLN TNTX TNTN 南美 M123SP 20E10 Data FAC 05...
  • Page 18 TCL-THOMSON Electronics R&D Center (Shen’Zhen Lab) Data FAC 10 Model CURTCEN VOLX PWTM MODE4 MODE5 MODE6 MODE7 MODE8 MODE9 南美 M123SP 20E10 Data FAC 11 Model CON1 CON2 CON3 STSADJ ALI 1 ALI 2 ALI3 南美 M123SP 20E10 Data FAC 12 Model SVM1 OSD2...
  • Page 19 TCL-THOMSON Electronics R&D Center (Shen’Zhen Lab) Data FAC 18 FAC 19 Model S-COL S-BRI S-CON S-SHP M-COL M-BRI M-CON M-SHP 南美 M123SP 20E10 Data FAC 20 Model SEG-POINT1 SEG-POINT2 DATA-VL DATA-VH DATA-UF SPE-POS1 SPE-DATA1 SENSI-ON SENSI-OFF 南美 M123SP 20E10 Data FAC 21 THEATER-BAS THEATER-TRE CONCERT-BAS CONCERT-TRE BROCAST-BAS BROCAST-TRE Model...
  • Page 21 5、 IC Brief Introduction TOSHIBA Integrated Circuit TMPA8873PSNG TMPA8873CMNG /CPNG /CRNG /CSNG MCU and Signal Processor for a PAL/NTSC TV The TMPA8873CPNG is an integrated circuit for a PAL/NTSC TV. A MCU and a TV signal processor are integrated in a 64-pin shrink DIP package.
  • Page 22 Confidential TMPA8873PSNG /CMNG /CPNG /CRNG /CSNG Features CCD Decoder • High speed 8-bit CPU (TLCS-870/X series) • Digital data slicer for NTSC Instruction execution time: 0.5 µs (at 8 MHz) • (TMPA8873CPNG) • Clock generation for OSD display • 48-Kbytes ROM, 2-Kbytes RAM •...
  • Page 23 Confidential TMPA8873PSNG /CMNG /CPNG /CRNG /CSNG Block Diagram P61/LED1/ADC8bit P63/LED2 P60/ADC8bit P30/Int3/RXIN P53/ADC8bit/TC1/Int2 P31/Int4/TC3 uP DVss P20/Int5/Stop Reset P40/PWM14bit P50/PWM7bit/TC2/Int0 P51/SCL TEST P52/SDA uP DVDD 5V uP VVss uP AVdd 5V TV DEF GND uP MPAGND TV Dig GND Hout Bout HAFC 1 Gout...
  • Page 24 Confidential TMPA8873PSNG /CMNG /CPNG /CRNG /CSNG Basic Structure 1. Internal Connections TMPA8873 has two pieces of IC chip in one package, using Multi-Chip-Package (MCP) technology. One is a micro controller (MCU) and the other one is a signal processor (SP) for a color TV. There are some internal connections between these two ICs for handling below signals.
  • Page 25 Confidential TMPA8873PSNG /CMNG /CPNG /CRNG /CSNG TERMINAL INTERFACE MCU BLOCK Pin Name Function Interface Circuit Key‑on Wake‑up 5kΩ (/KWU5) (Input) Key on wake up input (AIN5) (Input) A/D converter analog input Initial"Hi‑Z" (LED1) (Output) LED output Disable Key‑on Wake‑up 5kΩ (/KWU4) (Input) Key on wake up input...
  • Page 26 Confidential TMPA8873PSNG /CMNG /CPNG /CRNG /CSNG Pin Name Function Interface Circuit Osc.enable 500Ω Xout Output X’tal connecting pins Input 1.2MΩ 1kΩ TEST Input Test pin for out-going test CPU core Power up DVdd Digtal curcuit Supply Supply 5V Slicer Power ⎯ up VVss GND for Slicer circuit Supply Power...
  • Page 27 Confidential TMPA8873PSNG /CMNG /CPNG /CRNG /CSNG Pin Name Function Interface Circuit Initial"Hi‑Z" Open drain (SCL) (I/O) IIC bus serial clock input / output output enable SIO serial data input (SI1) (Input) Disable Initial"Hi‑Z" (/PWM8) (Output) 7-bit D/A conversion (PWM) output (TC2) (Input) Timer/Counter input Disable (INT0)
  • Page 28 Confidential TMPA8873PSNG /CMNG /CPNG /CRNG /CSNG Pin Name Function Interface Circuit Initial"Hi‑Z" External interrupt input (INT3) (Input) Remote control signal (RXIN) (Input) preprocessor input Disable (LED2) (Output) LED output Initial"Hi‑Z" Disable 2005/03/29...
  • Page 29 Confidential TMPA8873PSNG /CMNG /CPNG /CRNG /CSNG SIGNAL PROCESSOR BLOCK Pin Name Function Interface Circuit I/O Signal TV DEF GND terminal for TV DEF ⎯ ⎯ AGND block. FBP in Input terminal for FBP. 200Ω 10kΩ Output terminal for 50Ω H out Horizontal driving pulse.
  • Page 30 Confidential TMPA8873PSNG /CMNG /CPNG /CRNG /CSNG Pin Name Function Interface Circuit I/O Signal 1.5kΩ Y in Input terminal for Y signal. 1.5kΩ 11kΩ 5kΩ Cr in Input terminal for Cr signal. 5kΩ 35kΩ Input terminal for Audio Ext Au1 signal 1. 1.5kΩ...
  • Page 31 Confidential TMPA8873PSNG /CMNG /CPNG /CRNG /CSNG Pin Name Function Interface Circuit I/O Signal Output terminal 1 for Audio Au out 1 signal. Output terminal 2 for Audio Au out 2 signal. Output terminal for detected TV out PIF signal. 1bit DAC Output terminal for 1bit /SIF out DAC or detected SIF signal.
  • Page 32 Confidential TMPA8873PSNG /CMNG /CPNG /CRNG /CSNG Pin Name Function Interface Circuit I/O Signal Terminal to be connected 5kΩ Reg Fil capacitor for stabilizing 5kΩ internal bias. Output terminal for External AUDIO audio signal or TV audio Monitor out signal selected by BUS (Audio SW).
  • Page 33 Confidential TMPA8873PSNG /CMNG /CPNG /CRNG /CSNG Pin Name Function Interface Circuit I/O Signal Vcc terminal for Y/C circuit. ⎯ ⎯ YC Vcc 5V Supply 5V. Output terminal for Sync pulse. A pull up resister is required 5kΩ Sync out because of its open collector output.
  • Page 34 Confidential TMPA8873PSNG /CMNG /CPNG /CRNG /CSNG Signal Processor Descriptions 1. Tank-Coil-Less PIF VCO TMPA8873 adopts a tank-coil-less PIF VCO circuit, which has advantages of cost, performance of weak IF input and easy to design PCB layout. The PIF PLL system has self-alignment circuit, so that the micro controller needs only to order the PIF PLL system to start self-alignment through the IIC bus.
  • Page 35 Confidential TMPA8873PSNG /CMNG /CPNG /CRNG /CSNG 6. AV Switch The audio switch has two inputs for an external audio, and one for internal demodulated audio signal. The two external audio inputs can use as audio stereo input. The switched audio signal goes into the audio attenuator, which has controllability of audio gain from 0dB to –80dB or less with near log curve characteristic.
  • Page 36 Confidential TMPA8873PSNG /CMNG /CPNG /CRNG /CSNG 13. Signal Detection Flags There are some flags on the READ BUS registers. They indicate that a certain signal is detected at the moment. But reliability of a detection result is not so accurate if checking only one flag, so that confirming several flags, which means similar result by each other, at the same time is recommended.
  • Page 37 6、 PCB Layout...
  • Page 39 03-EN23SGP-BO23 B - PAL M/N NTSC-M AV.ST/RCA-2/S.AV IN M PART NO. SEPC LOCATION T8-HS36R3-M123 11-0BC337-0BX TRANSISTOR (NPN) BC337-40 Q1501 T8-HS36R3-M123 13-C73C03-02B IC SC73C0302 IC1501 T8-HS36R3-M123 14-IRE05B-XX0 IR EMITTING DIODE TSAL6200 D1501 T8-HS36R3-M123 18-CB0221-JNX RES. C.F. 220 OHM 1/6W +/-5% R1502 T8-HS36R3-M123 18-CB0229-JNX RES.
  • Page 40 T8-0014SGP-MAY 18-CB0102-JNX RES. C.F. 1K OHM 1/6W +/-5% R415 T8-0014SGP-MAY 18-CB0102-JNX RES. C.F. 1K OHM 1/6W +/-5% R007 T8-0014SGP-MAY 18-CB0103-JNX RES. C.F. 10K OHM 1/6W +/-5% R406 T8-0014SGP-MAY 18-CB0103-JNX RES. C.F. 10K OHM 1/6W +/-5% R012 T8-0014SGP-MAY 18-CB0121-JNX RES. C.F. 120 OHM 1/6W +/-5% R401 T8-0014SGP-MAY 18-CB0222-JNX...
  • Page 41 T8-0014SGP-MAY 25-BCB470-M1X CAP. ELEC 47 UF 16V +/-20% C202 T8-0014SGP-MAY 25-BCB470-M1X CAP. ELEC 47 UF 16V +/-20% C081 T8-0014SGP-MAY 25-BCB471-M1X CAP. ELEC 470 UF 16V +/-20% C606 T8-0014SGP-MAY 25-BCB471-M1X CAP. ELEC 470 UF 16V +/-20% C307 T8-0014SGP-MAY 25-BCB471-M1X CAP. ELEC 470 UF 16V +/-20% C217 T8-0014SGP-MAY 25-BDB470-M1X...
  • Page 42 T8-0014SGP-MAY 41-WJ0075-B00 WIREBAREJUMPER7.5MM J203 T8-0014SGP-MAY 41-WJ0075-B00 WIREBAREJUMPER7.5MM J208 T8-0014SGP-MAY 41-WJ0075-B00 WIREBAREJUMPER7.5MM J301 T8-0014SGP-MAY 41-WJ0075-B00 WIREBAREJUMPER7.5MM J303 T8-0014SGP-MAY 41-WJ0075-B00 WIREBAREJUMPER7.5MM J312 T8-0014SGP-MAY 41-WJ0075-B00 WIREBAREJUMPER7.5MM J924 T8-0014SGP-MAY 41-WJ0075-B00 WIREBAREJUMPER7.5MM J206 T8-0014SGP-MAY 41-WJ0075-B00 WIREBAREJUMPER7.5MM J911 T8-0014SGP-MAY 41-WJ0075-B00 WIREBAREJUMPER7.5MM J020 T8-0014SGP-MAY 41-WJ0075-B00 WIREBAREJUMPER7.5MM J018 T8-0014SGP-MAY 41-WJ0075-B00 WIREBAREJUMPER7.5MM...
  • Page 43 T8-0014SGP-MAY 41-WJ0125-B00 WIREBAREJUMPER12.5MM JP103 T8-0014SGP-MAY 41-WJ0125-B00 WIREBAREJUMPER12.5MM J923 T8-0014SGP-MAY 41-WJ0125-B00 WIREBAREJUMPER12.5MM J607 T8-0014SGP-MAY 41-WJ0125-B00 WIREBAREJUMPER12.5MM J413 T8-0014SGP-MAY 41-WJ0125-B00 WIREBAREJUMPER12.5MM J304 T8-0014SGP-MAY 41-WJ0125-B00 WIREBAREJUMPER12.5MM J914 T8-0014SGP-MAY 41-WJ0125-B00 WIREBAREJUMPER12.5MM J302 T8-0014SGP-MAY 41-WJ0125-B00 WIREBAREJUMPER12.5MM J204 T8-0014SGP-MAY 41-WJ0125-B00 WIREBAREJUMPER12.5MM J015 T8-0014SGP-MAY 41-WJ0125-B00 WIREBAREJUMPER12.5MM J014 T8-0014SGP-MAY 41-WJ0125-B00 WIREBAREJUMPER12.5MM...
  • Page 44 T8-0014SGP-PWY 10-1N4148-ABX DIODE 1N4148 (SWITCHING) D814 T8-0014SGP-PWY 10-79C18V-DBX DIODE ZENER 18V 1/2W 5% D821 TCL10-79C7V5-DBX= DIODE ZENER T8-0014SGP-PWY 10-79C7V5-DBX D844 7V5 1/2W 5 T8-0014SGP-PWY 11-SA1015-YBX TRANSISTOR ST2SA1015Y (PNP) Q801 T8-0014SGP-PWY 13-000TL4-31T IC-REGSPECKT TL431ACLP R=N IC803 T8-0014SGP-PWY 18-CB0103-JNX RES. C.F. 10K OHM 1/6W +/-5% R853 T8-0014SGP-PWY 18-CB0222-JNX...
  • Page 45 T8-0014SGP-PWY 66-343730-0B0 HOLLOW RIVET 1.6MMX3.0MMX3.2MM T803(1,13,15) T8-0014SGP-PWY 66-343730-0B0 HOLLOW RIVET 1.6MMX3.0MMX3.2MM FOR RT801 T8-0014SGP-PWY 66-343730-0B0 HOLLOW RIVET 1.6MMX3.0MMX3.2MM FOR Q815 T8-0014SGP-PWY 66-343740-0B0 HOLLOW RIVET (2.3MMX4.0MMX3.5MM) FOR P803 T8-0014SGP-PWY 66-343740-0B0 HOLLOW RIVET (2.3MMX4.0MMX3.5MM) FOR C806 T8-0EN23GP-KE1 18-CB0124-JNX RES. C.F. 120K OHM 1/6W +/-5% R008 T8-0EN23GP-KE1 18-CB0152-JNX...
  • Page 46 54-205140-000 SPACER CRT MOUNTING T=2MM MTG CRT TO FC CRT FIBRE SHEET T8-0EN23GP-FC2 54-314740-0X0 MTG CRT TO FC (22MMX22MMX0.8MM) PAI FRONTPANEL 14N23 T8-0EN23GP-FC2 55-450090-0HN9L A1527&A6819 9L 00 DEC FRONTPANEL -- A6819&A1527 T8-0EN23GP-FC2 55-EN23FC-1CN9U 00 9A 00 TV PAI KEY CLUSTER NH21 BK 00 6M...
  • Page 47 T8-0EN23GP-FC2 56-DA41PK-1HA6M TV PAI KEY 14N23 A1527 R=N T8-0EN23GP-FC2 56-EN23LE-0HC5Z LENS T8-0EN23GP-FC2 57-10654X-00F TWIST TIE NY66 TV PRI OVERLAY 29E23 黑在银色 T8-0EN23GP-FC2 58-D106SI-3UI8E 877C上 R=N MTG F.CAB T8-0EN23GP-FC2 59-130460-00X RUBBER PAD (25MMX7MM) FOOTING T8-0EN23GP-FC2 62-216340-0UN TCL62-216340-0UN= BLOCK R=N T8-0EN23GP-FC2 62-450080-0HN...
  • Page 48 SCREW-ST 4MM 20MM JIS B 1122 12 T8-0EN23GP-RCY 63-B40200-AB3G MTG FC&RC MTG RCA JACK & T8-0EN23GP-RCY 63-F30100-BT3G SCREW-ST 3MM 10MM ISO 65 0 0 R=Y REAR CAB. MTG REAR T8-0EN23GP-RCY 63-W30100-AB4G S/T SCREW W 3 X 10 AB TRACKING MTG SUPPORTER T8-0EN23GP-RCY 63-W30100-AB4G S/T SCREW W 3 X 10 AB...
  • Page 49 T8-0014SGP-MAY 19-AB0102-JTX RES SMD 1K OHM 1/10W 0603 R953 T8-0014SGP-MAY 19-AB0102-JTX RES SMD 1K OHM 1/10W 0603 R954 T8-0014SGP-MAY 19-AB0102-JTX RES SMD 1K OHM 1/10W 0603 R013 T8-0014SGP-MAY 19-AB0102-JTX RES SMD 1K OHM 1/10W 0603 R901 T8-0014SGP-MAY 19-AB0103-JTX RES SMD 10K OHM 1/10W 0603 R052 T8-0014SGP-MAY 19-AB0103-JTX...
  • Page 50 T8-0014SGP-MAY 19-AB0473-JTX SMD. RES 47K OHM 1/10W 0603 R928 T8-0014SGP-MAY 19-AB0473-JTX SMD. RES 47K OHM 1/10W 0603 R927 T8-0014SGP-MAY 19-AB0473-JTX SMD. RES 47K OHM 1/10W 0603 R926 T8-0014SGP-MAY 19-AB0510-JTX RES SMD 51 OHM 1/10W 0603 R923 T8-0014SGP-MAY 19-AB0512-JTX RES. SMD 5.1K OHM 1/10W J 0603 R306 T8-0014SGP-MAY 19-AB0820-JTX...
  • Page 51 T8-0014SGP-PWY 13-TEA150-6TB IC TEA1506T/N1 118 IC801 T8-0014SGP-PWY 19-AB0100-JTX RES SMD 10 OHM 1/10W +/-5% R814 T8-0014SGP-PWY 19-AB0102-JTX RES SMD 1K OHM 1/10W 0603 R844 T8-0014SGP-PWY 19-AB0103-JTX RES SMD 10K OHM 1/10W 0603 R841 T8-0014SGP-PWY 19-AB0103-JTX RES SMD 10K OHM 1/10W 0603 R825 T8-0014SGP-PWY 19-AB0122-JTX...
  • Page 52 03-EN23SGP-BO23 V8-TSM123-06E06 SOFTWARE CODE FOR IC001 T8-0014SGP-MAY 11-DD5023-0CX TRANSISTOR 3DD5023 Q402 T8-0014SGP-MAY 13-TDA486-4AS IC TDA4864AJ IC301 T8-0014SGP-MAY 13-TEA202-5BP IC TEA2025B2X2W IC601 T8-0014SGP-MAY 18-CB0470-JNX RES. C.F. 47 OHM 1/6W +/-5% C404 T8-0014SGP-MAY 18-EF0478-JGX RES. FUS. 0.47 OHM 1W +/-5% R403 T8-0014SGP-MAY 18-EG0109-JHX RES.
  • Page 53 T8-0014SGP-PWY 11-SK2645-0AX TRANSISTOR 2SK2645-01MR (POWER Q815 TCL13-0HPC92-2CP= PHOTO COUPLER T8-0014SGP-PWY 13-0HPC92-2CP IC802 HPC922-C T8-0014SGP-PWY 18-CD0101-JNX RES. C.F. 100 OHM 1/4W +/-5% R813 T8-0014SGP-PWY 18-EF0229-JGX RES. FUS. 2.2 OHM 1W +/-5% R843 T8-0014SGP-PWY 18-FG0229-JHX RES. M.O. 2.2 OHM 2W +/-5% R852 T8-0014SGP-PWY 18-KF0825-JHX RES.
  • Page 54 P802 FOR POWER T8-EN23SGP-OT4 46-35063W-03XG PIN BASE *3 VH-3A CORD T8-EN23SGP-OT4 47-RCA035-XX0G RCA JACK AV-3.2-6W-K P903 FOR PRODUCTION T8-EN23SGP-OT4 70-271510-00A SERVICE CARD T8-EN23SGP-OT4 71-270870-0A9 LABEL T8-0EN23GP-KE1 02-IRR001-XX1 IR RECEIVER MODULE HRM380017 IR081 T8-0EN23GP-KE1 14-LED03R-XX1 LED RED Φ3MM FO203 D081 T8-0EN23GP-KE1 25-BCB220-M1X CAP.
