Summary of Contents for Admiral 62cc

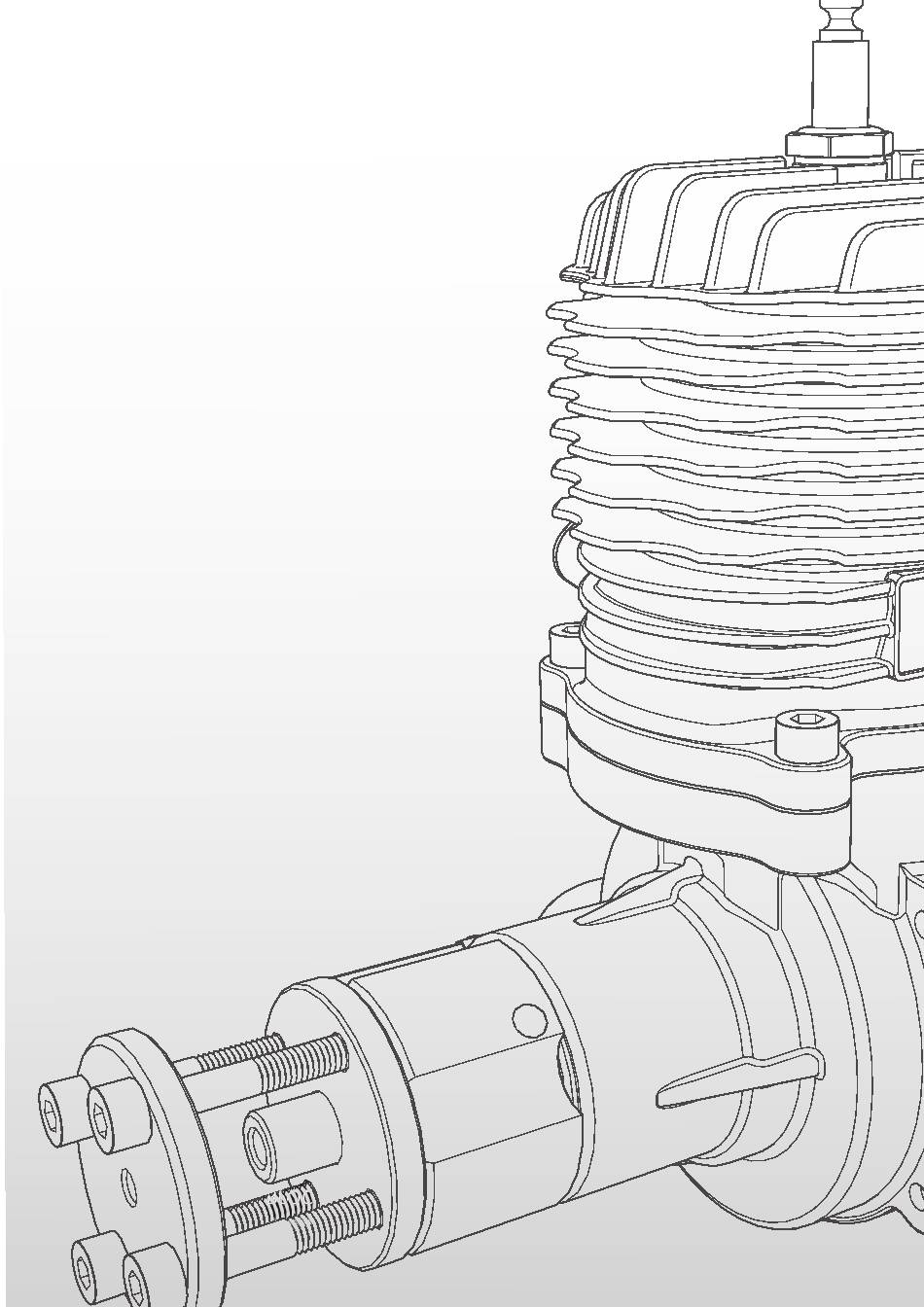

- Page 1 62CC GASOLINE ENGINE INSTRUCTION MANUAL...
-
Page 2: Safety Instructions
ENGLISH SAFETY INSTRUCTIONS Note: Warning: Beware: ENVIRONMENTAL CONCERNS: DECLARATION OF CONFORMITY... -
Page 3: Installing The Engine
ENGLISH INTRODUCTION care care follow INSTALLING THE ENGINE WARNING: A: Choke Lever C: Fuel Inlet... - Page 4 ENGLISH CONNECTING THE THROTTLE LINKAGE 16mm (5/8 in) the pushrod where it meets this hole. Using pliers, bend the pushrod so there is a 90° bend at the mark. Using a pushrod keeper re the pushrod in the servo arm. CONNECTING THE ELECTRONIC IGNITION BASELINE NEEDLE SETTINGS gine are 1.5 turns out for the high-speed...
-
Page 5: Engine Break-In
ENGLISH FUEL To properly mix the fuel, add 4.0 oz of high quality 2-stroke oil to one gallon (or 32 mL of oil to one liter) of 87–93 octane fuel. We tested primarily with Red Line two-stroke oil. Other high-quality two-stroke oils will also work well. -
Page 6: Troubleshooting Guide
ENGLISH 1. Power ON the radio system but leave the engine power system OFF. 7. Let the engine run at high idle for 30 se- 2. Close the choke valve on the carburetor. conds to stabilize the temperatures. 4. Power ON the engine power system. pression. -
Page 7: Specifications
ENGLISH SPECIFICATIONS Spark Plug Cap Engine Mount Di- mensions Propeller Bolt Dimensions Disp 62cc Bore 46.0 mm (1.80 in) Stroke 37.0 mm (1.50 in) Cylinder Nikasil plated Aluminum Plug type CM-6 Engine Weight 1483 g (52.3 oz) 1.5 H 1.75 L... -
Page 8: Exploded View
ENGLISH EXPLODED VIEW... - Page 9 ENGLISH PARTS LIST Walbro Carburetor 62 Front Prop Washer 62 Rear Prop Washer 62 Prop Bolt Set (4) M5 x 45 62 Prop Drive Retaining Bolt 62 Prop Driver with Key 62 kup Magnet 62 Front Crankcase with Bearings 62 Front Cranksha Rear Cranksha Crankcase Align Keys (2) 62...
