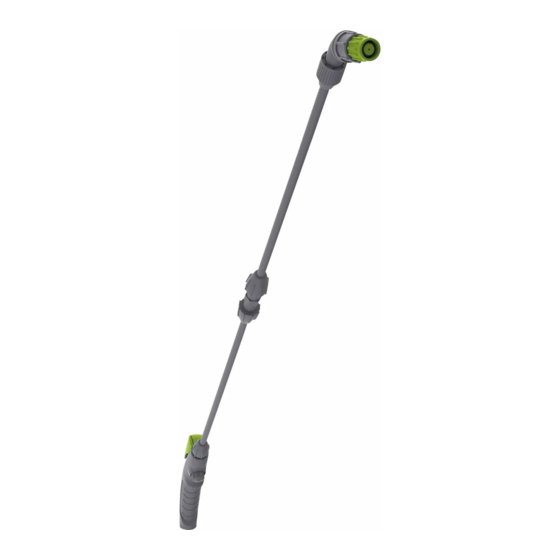

- Page 1 Lance & Nozzle Kit for Garden Sprayers Product Manual...
- Page 2 Introduction Important Pack contents Read these instructions before assembly Part name Qty. and use. Nozzle assembly with Cone spray Release pressure from the bottle before refilling Nozzle Strip spray or replacing parts. This is done by slowly pulling up the Safety Valve and holding until all air Lance with Caps and O Rings has been released.
- Page 3 Nozzle Replacement 1. Nozzle Replacement Your new Nozzle comes with two spray patterns. One for cone spray and one for strip spray pattern. Choose the one suitable for your particular spraying application. 1.1 To fit strip spray, remove the green Nozzle from the grey attachment cap.
- Page 4 Nozzle and Lance Replacement 2. Nozzle and Lance Replacement Nozzle and Lance – To Remove 2.1 Unscrew the Large Handle Retaining Cap 321 and pull the Nozzle and Lance out of the Handle Assembly. 2.2 Discard the old Lance assembly. Nozzle and Lance –...
- Page 5 Extension Lance 3. Extension Lance Can be added to the existing Lance to help in hard-to-reach applications 3.1 Unscrew the Large Handle Retaining Cap 321 and pull the Lance and Nozzle out of the Handle Assembly. Inspect parts. If they are still in good condition they can be re-used.
- Page 6 Safety Instructions Safety Instructions Caution: contents under pressure. Read this before operating. • Release pressure from the bottle before refilling or replacing parts. This is done by slowly pulling up the safety valve and holding until all air has been released. Then unscrew the container cap. Note: some remaining air may be expelled.
- Page 7 Customer Service Centre during their local business hours: Australia 1300 300 564 hhl.enquiries@woolworths.com.au New Zealand 0800 021 027 hhl@progressive.co.nz Hills Websites hillshome.com.au Hills Home Living hillshome.com.au/need-help/ Hills Consumer Advice...
- Page 8 Hills Home Living A.B.N. 92 138 990 584 Issue October 2016 HH2381a...
