Operating Manual

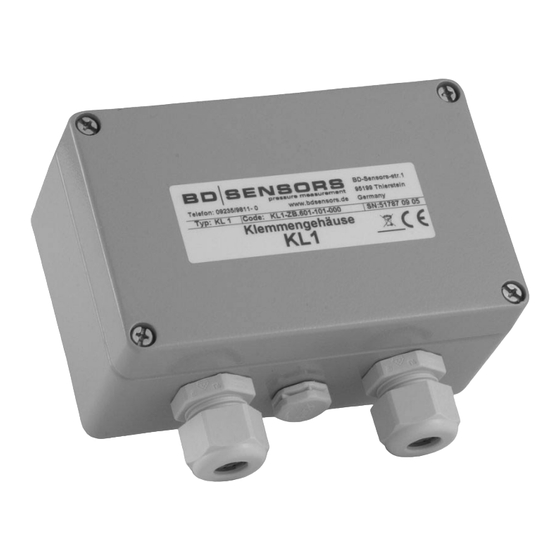

Terminal Box KL 1
Important notes:
Please read this operating manual carefully before installation and start- up
of the terminal box.
This operating manual must be kept at an accessible location for further
use.
The device may only be installed, used and serviced by persons who are
familiar with this operating manual as well as with the applicable regulations
on occupational safety and accident prevention.
BD SENSORS GmbH
BD-Sensors-Straße 1
D - 95199 Thierstein
Telefon +49 (0) 92 35 / 98 11- 0
Telefax +49 (0) 92 35 / 98 11- 11
www.bdsensors.de
info@bdsensors.de
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Summary of Contents for BD Sensors KL 1
- Page 1 Operating Manual Terminal Box KL 1 Important notes: Please read this operating manual carefully before installation and start- up of the terminal box. This operating manual must be kept at an accessible location for further use. The device may only be installed, used and serviced by persons who are familiar with this operating manual as well as with the applicable regulations on occupational safety and accident prevention.
- Page 2 Pt 100 transmitter for BD SENSORS de- vices. • The terminal box KL 1 is equipped with a pressure balance item for equalization of atmospheric reference. Caused by this on the supply side a cable without ventilation tube can be used.
- Page 3 KL 1 2. Product identification The device can be identified by its type plate. It provides the most important data. Serial Type number designation Disposal note Ordering code Fig. 1 Type plate 3. Installation 3.1 General notes • Do not use any force when installing the device! •...
- Page 4 + (white) transmitter transmitter temperature + (yellow) (optional) connecting cable for Pt 100- transmitter sensor of the BD SENSORS temperature - (grey) (optional) transmitter (connection according to 3-wire-method) transmitter temperature - (pink) (optional) supply...
- Page 5 (gauge measure- sure balance item has to be replaced. ment) The pressure balance item can be ordered from BD SENSORS as spare part. broken signal current - responded overvoltage - please send the device to...
- Page 6 If desired, the device can be cleaned using non-aggressive cleaning solutions. 7. Repair Please return the device to BD SENSORS for repair if you encounter malfunctions that can- not be remedied. We will do our best to process all repairs as quickly as possible. Apart from the defective device, we will need you to provide us with a detailed error description.
- Page 7 KL 1 10. Appendix General Number of signal lines 2-wire (4 ... 20 mA) / V = 12 … 36 VDC Housing aluminium die cast case, grey powder-coated Ingress protection IP 66 Cable entries cable gland M16x1.5 Polyamide, seals NBR, IP 68, diameter range: standard 5 ...
- Page 8 KL 1 BD SENSORS GmbH BD-Sensors-Str. 1 95199 Thierstein Germany Phone +49 (0) 92 35 / 98 11- 0 Fax +49 (0) 92 35 / 98 11- 11 The addresses of our agencies abroad are listed on our homepage www.bdsensors.com.
