Summary of Contents for Coremorrow N60

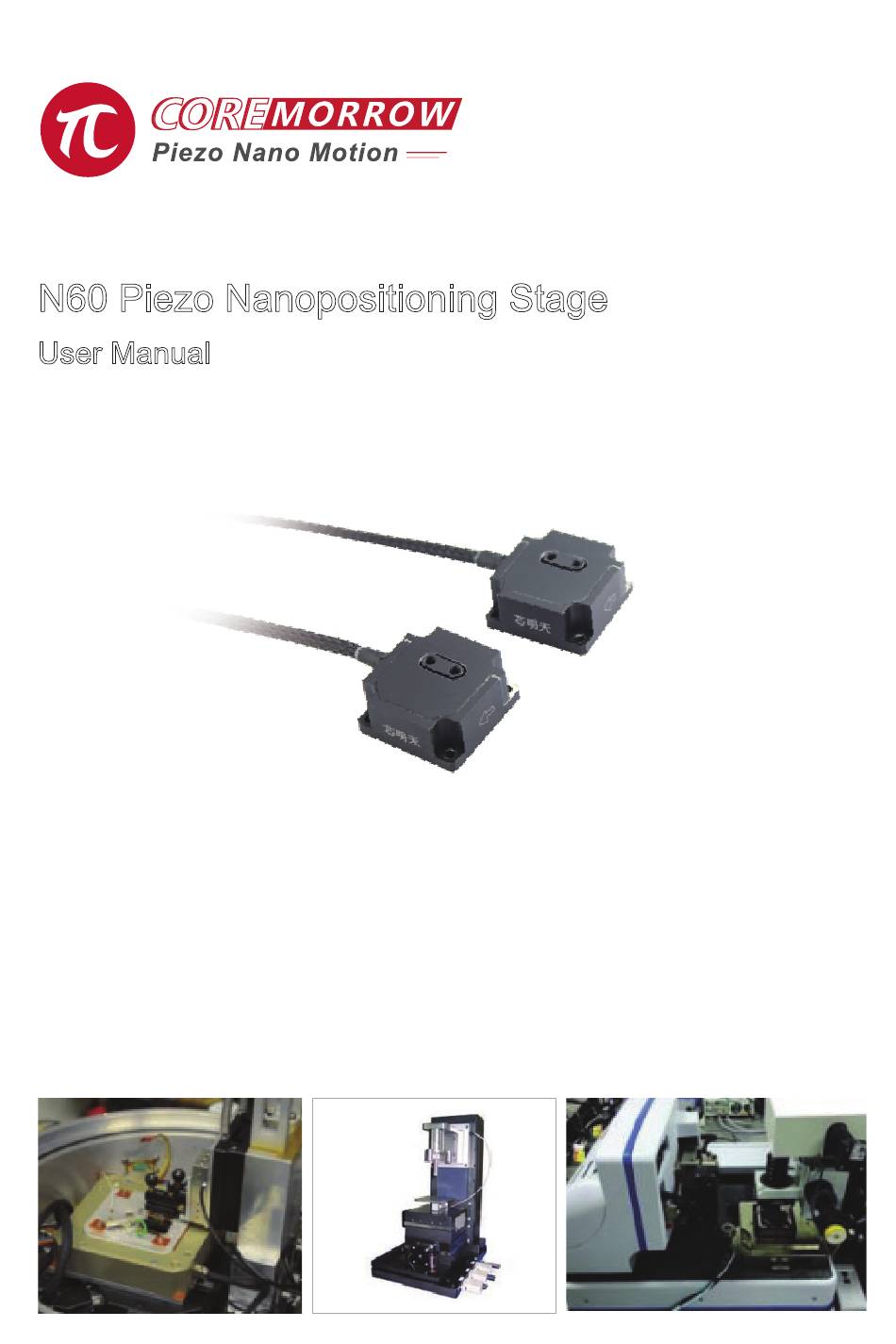

- Page 1 N60 Piezo Nanopositioning Stage User Manual Version: V1.0 This document describes the following products: ■ N60.X30S ■ N60.X30K...
- Page 2 DECLARATION Thank you for choosing Core Tomorrow (CoreMorrow for short) products! This user manual is applicable to N60 Piezo Nanopositioning Stage, for your smooth and correct use of this product, Please read this manual carefully before use, and follow the relevant instructions in the manual for installation and use.
-
Page 3: Table Of Contents
Contents 1. Introduction ............................2 1.1 Purpose and content ........................2 1.2 Symbol and meaning ........................2 1.3 Users of This Manual ........................2 1.4 Manual Lost and Reissued ......................2 2. Safety Guide ............................3 3. Product Overview ...........................4 3.1 Product Introduction ........................4 3.2 Product Features ........................5 3.3 Motion direction ........................5 4. -
Page 4: Introduction
The default user of this manual has knowledge of piezoelectric products and controllers, and has a certain basis for their installation and use. 1.4 Manual Lost and Reissued If this manual is lost, please contact CoreMorrow. We will send you the latest version of the user manual. -
Page 5: Safety Guide
Do not disassemble N60 piezoelectric nanopositioning stage. Discharge N60 before mounting, which can be done by connecting to the controller. Do not unplug the wire connecting with controller during operation. -
Page 6: Product Overview
N60 piezoelectric nanopositioning stage has the following advantages: High performance piezo stack: N60 piezoelectric nanopositioning stage is driven by a highly reliable ceramic actuator with a fully insulated structure, so its performance and service life are far better than the traditional actuator. -
Page 7: Product Features
This product can also be customized according to the requirements. N60 is mainly used in biotechnology, interferometry, quality detection, optical detection, nano-positioning, microscopy and imaging, image processing and etc. 3.2 Product Features Small size, large displacement. Closed-loop strain gauge sensor, high positioning accuracy. -
Page 8: Installation And Operation
2、Use M2.5 screws to mount the N60 and tighten. 3、Mount a load and tighten it properly to achieve high positioning accuracy. 4、Connect N60's connector to the corresponding interface of the controller according to the identification on the leads. The connection mode of LEMO connector is shown in the following figure. -
Page 9: Load
When mounting the load, ensure that the load quality is less than the maximum load capacity of N60, and try to mount the load in the center of the moving surface. The correct position to mount the load is shown below. - Page 10 N60 Piezo Nanopositioning Stage User Manual For the protection of the product, we do not recommend that the load is too high. If a higher load must be used, please appropriately low the position of the center of gravity of the load.
- Page 11 We recommend using the connection method shown in the figure below. FIG.7 Correct bolt connection Please do not connect in this way as shown in the following figure. FIG.8 Inappropriate bolt connection...
-
Page 12: Operating
150V). 5.After use, please carry out voltage reset operation. Please take light steps when N60 in operation, do not knock the product, so as not to affect the use of the product or even damage the product. The resolution of the product itself is unlimited, and the resolution depends on the performance of the controller. -
Page 13: Transportation And Inspection
Do not remove the grounding protection during the operation. If you need to remove it temporarily, please reconnect the grounding protection before starting it again. The driving voltage shall not exceed the voltage range of N60. If any abnormal noise or oscillation occurs during use, turn off the power immediately and check the parameter setting. -
Page 14: Maintenance And Treatment
N60 Piezo Nanopositioning Stage User Manual Attention: Please handle with care when opening the package, so as not to knock against the product and cause permanent damage to it. Please do not use heavy tools or rough way to open. -
Page 15: Daily Maintenance
If the user cannot solve the problem by himself in the process of using, please record the problem in detail and contact CoreMorrow, and professional technical personnel will help to solve. Problems caused by improper operation are not covered by the warranty. -
Page 16: Connector
N60 Piezo Nanopositioning Stage User Manual 8. Connector 8.1 Driving and Sensor Connector The connector of PZT driving wire is LEMO, and model is LEMO ERA.00.250.CTL, as shown in below. FIG.9 1-contact LEMO The sensor connector is 4-contacts LEMO, and the model is LEMO ERA.0S.304.CLL，as shown in the following figure. -
Page 17: Customer Service
Computer operating system that installs supporting software 10.Contact us Harbin Core Tomorrow Science & Technology Co., Ltd. Tel: +86-451-86268790 Fax: +86-451-86267847 Email: info@coremorrow.com Website: www.coremorrow.com Address: Building I2, No.191 Xuefu Road, Nangang District, Harbin, HLJ, China CoreMorrow Official and CTO WeChat are below:...
