Summary of Contents for LAPPSET SONA

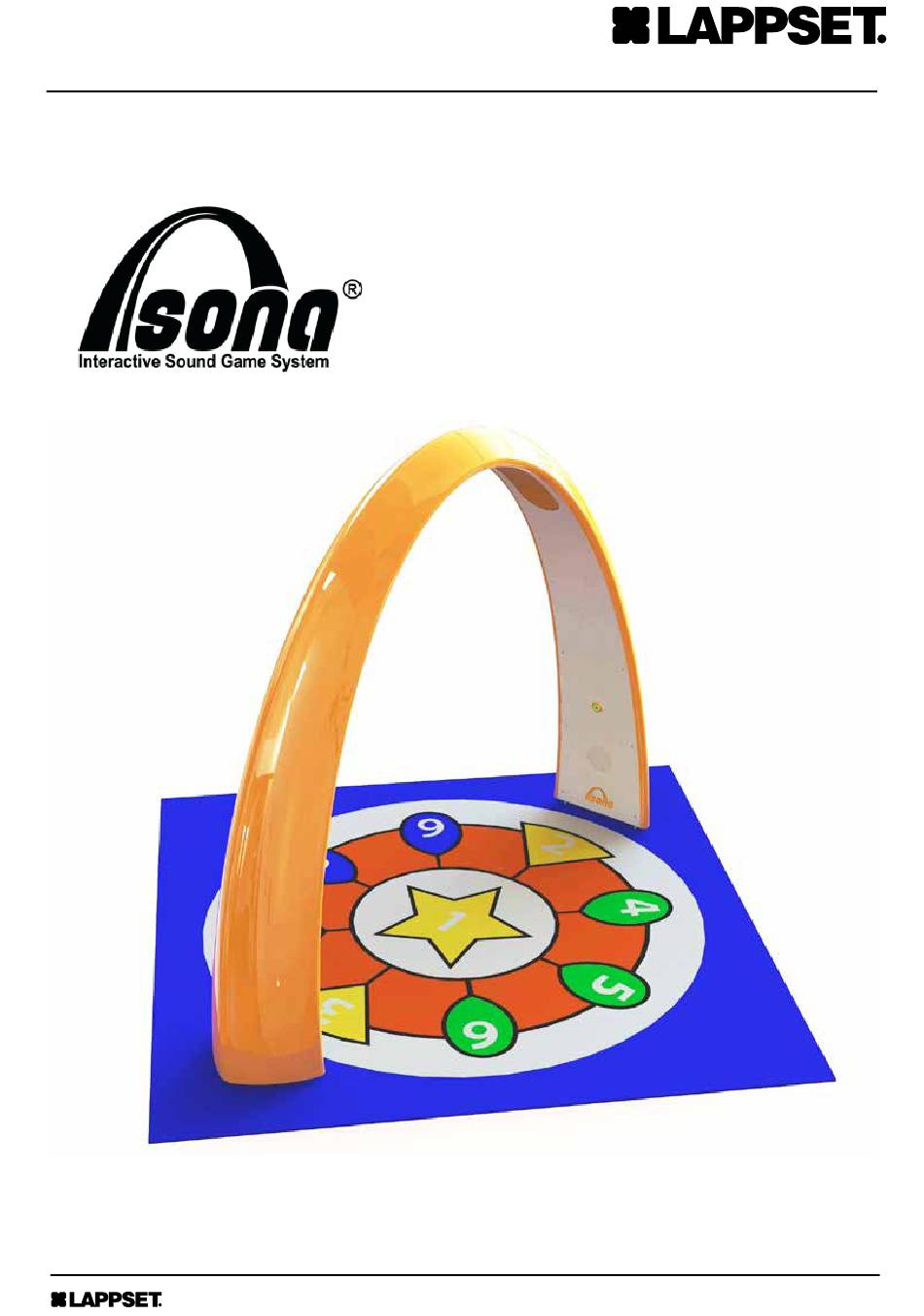

- Page 1 Sona installation manual v2.0 May 28, 2013 Sona installation manual v2.0 - 1 -...
-
Page 2: Table Of Contents
13 The hinge cap interactive@lappset.com 14 Electronics 15 Closing up 16 Finishing touch 17 Maintenance 18 Angry Birds version - parts 19 Angry Birds version - Installation 22 Warranty 23 Safety certificate 24 Environment Sona installation manual v2.0 - 2 -... - Page 3 (above nr. 2 on the play floor) is closest to the power supply. This way, cable lengths and power loss are limited. Assembling • Have a 3G SIM Card ready to install in the Sona • (electronic) tools for hexagon M8 and M10 for online management. bolts/nuts •...
-
Page 4: Sona Isometric View
Sona isometric view Sona installation manual v2.0 - 4 -... -
Page 5: Parts - Sona
Button plate Plate 100-112 100-113 199-221 199-065_C 199-501 EAO Button EAO Bazel polyester clamp Hinge tube FunkyFloor 100-107 100-102 199-310 199-599 Speaker JBL Sona YIN box electronics board Installation mould Grey parts are pre-installed Sona installation manual v2.0 - 5 -... -
Page 6: Parts - Mounting
100-274 100-277 100-276 Torque nut M8 Torque Nut M10 Hex nut M16 Hex nut M8 100-281 100-282 100-284 Washer M8 Washer M10 Washer M16 100-508 100-231 100-507 Rope anchor bolt M16 Transparent sealant Sona installation manual v2.0 - 6 -... -
Page 7: Dimensions
Dimensions 940mm 37in 4965mm 195in Sona installation manual v2.0 - 7 -... -
Page 8: Foundation
Put funky floor on top and add sand. FunkyFloor anchor bolt M16 199-599 350mm 13,8in Installation mould 100-277 700mm 27,5i Parallel! Hex nut M16 100-284 350mm 13,8in Washer M16 700mm 27,5in Parallel! DETAIL A Sona installation manual v2.0 - 8 -... - Page 9 Make sure the power cable has at least 1,5m over- length. Power cable. Power cable. 1300mm 51in >1,5m above >1,5m above ground ground Concrete Concrete Anchor bolts x3 Anchor bolts x3 700mm 28in 700mm 28in Sona installation manual v2.0 - 9 -...
-
Page 10: Funky Floor On Tiles
Install the Funky Floor on the plateau, pull the edges over the concrete borders and lock them by putting them at least 15cm (6inch) vertically into the ground. Sona installation manual v2.0 - 10 - - 10 -... -
Page 11: The Arch
SCAL DETAIL A SCALE 1 : 10 Connect the arches together with 100-245 (3x), 100-274 (3x) and 100-282 on both sides (6x). Use the top holes on the side. Do not tighten yet. Sona installation manual v2.0 - 11 -... -
Page 12: Polyester Caps
100-240 and nut 100-276 to the steel Install polyester caps frame with the polyester clamps 199-221 frame. 199-401 and bolts 100-243 + washers 100-281. After installing the caps, tighten all the bolts in the arch. Sona installation manual v2.0 - 12 -... -
Page 13: The Hinge Cap
100-247 and nut 100-271. : 10 SCALE 1 : 10 SCALE 1 : 10 SCALE 1 : 10 SCALE 1 : 10 SCALE 1 : SCALE 1 : 10 SCALE 1 : 10 Final result. Sona installation manual v2.0 - 13 -... -
Page 14: Electronics
Cable 1: main computer cable. Cable 2: sound cable out. Cable 3: Cable to speaker on other side In top of bow On mountingplate Ampli er Camera 15V. 12V. 230 V. in Power Active Safety Transformer Sona installation manual v2.0 - 14 -... -
Page 15: Closing Up
(button, on hinge side and number 2 side) and 199-024. cap. Close up with bolts 100-213. 199-017 199-024 Button plate Plate 100-213 Connect the button to the electronic box in the Sona. Bolt secured M10x30 Sona installation manual v2.0 - 15 -... -
Page 16: Finishing Touch
100-507 Close the top gap with transparent sealant to make Sona watertight. Transparent sealant Now Sona is ready to play. Look in the product manual how to get it online, and do all settings. Let’s play! Sona installation manual v2.0... -
Page 17: Maintenance
Sweep the sand is swept away due to intensive use, sweep it back with a broom. If the filling sand is lost replace it with quarts sand washed and dries with a dimension of > 0,2 and < 1,0 mm. Sona installation manual v2.0 - 17 -... -
Page 18: Angry Birds Version - Parts
Angry Birds version - parts The Sona Angry Birds version is equipped with a 3D figure of an Angry Bird on top of the Sona arch. The figure is mounted on a foot flange, which is placed on top of the Sona. -
Page 19: Angry Birds Version - Installation
Torque Nut M10 Washer M10 Hex bolt M10x50 199-610 AB foot flange Slide down flange 199-610 on the Sona Detail E: construction. Bolt shut with 100-254 (2x), 100-274 (2x) and 100-282 (4x) Make sure the power cables... - Page 20 Angry Birds version - installation SONA ANGRY BIRDS AB2. Bolt the AB figure in place with 100-213 (4x). 904803 100-213 Caution! Do not use electric machine! AB figure Bolt secured M10x30 Detail F: Sona installation manual v2.0 - 20 -...
- Page 21 Angry Birds version - installation AB3. 199-402 Cover the AB Sona with the special polyester caps with cutout for the foot flange. Polyester cap AB Sona installation manual v2.0 - 21 -...
-
Page 22: Warranty
The warranty covers the free delivery of spare parts to the warehouse of the retail dealer in question. Faulty parts have to be replaced by Lappset components. The inspection of delivery has to be done before installation and possible damages have to be informed immediately. The delivery time for spare parts is one week from the factory. -
Page 23: Safety Certificate
Safety certificate Sona installation manual v2.0 - 23 -... -
Page 24: Environment
Lappset has as its motto: “Responsibility is in our DNA” and that we carry it for a reason. Sona installation manual v2.0...
