INCLUDED:
a.
b.
a. Adapter Post
c.
b. Threaded Stud
d.
INSTRUCTIONS:
1. Remove cap covering the binocular tripod adapter socket.

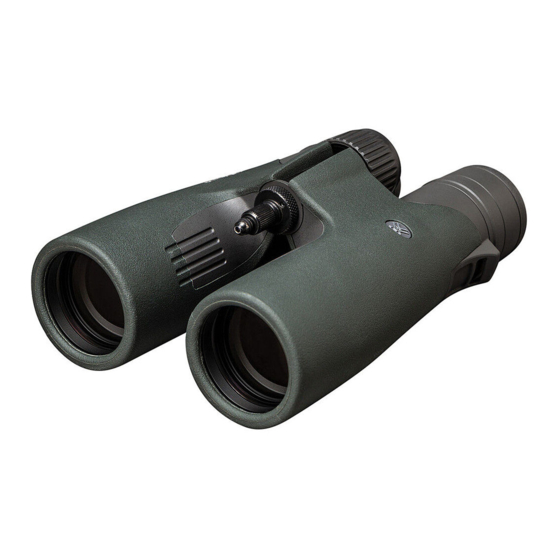

2. Insert the threaded stud into the binocular tripod adapter
3. Using the 1.3mm Allen wrench, tighten the set screw in
4. Attach adapter post to the tripod plate utilizing the
5. Mount the binoculars to the tripod by inserting the
socket and tighten using the 2.0mm Allen wrench.
DO NOT OVERTIGHTEN.
the threaded stud. DO NOT OVERTIGHTEN.
tripod's 1/4-20 mount.
threaded stud into the adapter post. Tighten by hand
using the locking knob until secure.
c. 1.3mm Allen Wrench
d. 2.0mm Allen Wrench
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Vortex Pro Binocular Adapter
Summary of Contents for Vortex Pro Binocular Adapter
- Page 1 INCLUDED: a. Adapter Post c. 1.3mm Allen Wrench b. Threaded Stud d. 2.0mm Allen Wrench INSTRUCTIONS: 1. Remove cap covering the binocular tripod adapter socket. 2. Insert the threaded stud into the binocular tripod adapter socket and tighten using the 2.0mm Allen wrench. DO NOT OVERTIGHTEN.
- Page 2 Note: The VIP Warranty does not cover loss, theft, deliberate damage, or cosmetic damage not affecting product performance. For the most up to date manual, visit VortexOptics.com M-00292-0 © 2021 Vortex Optics ® Registered Trademark and TM Trademark of Vortex Optics...
