D-Link DAP-1365 Setup Procedure

Hide thumbs Also See for DAP-1365:

Table of Contents

Download this manual

Technical Support Setup Procedure

How to configure DAP-1365 as Access Point with non-

default wireless SSID?

(Note: Please ensure the device LED is blinking orange colour before you do setup.

If it is not blinking in orange colour, follow the guide on page 4 on how to reset the device

before follow the guide to setup.)

Step 1: Copy down the wireless name and password that was on the sticker of the device.

Step 2: Plug DAP-1365 direct to power outlet.

Step 3: Click on the Computer Icon on the right bottom side of the Windows.

Page | 1

Table of Contents

Do you have a question about the DAP-1365 and is the answer not in the manual?

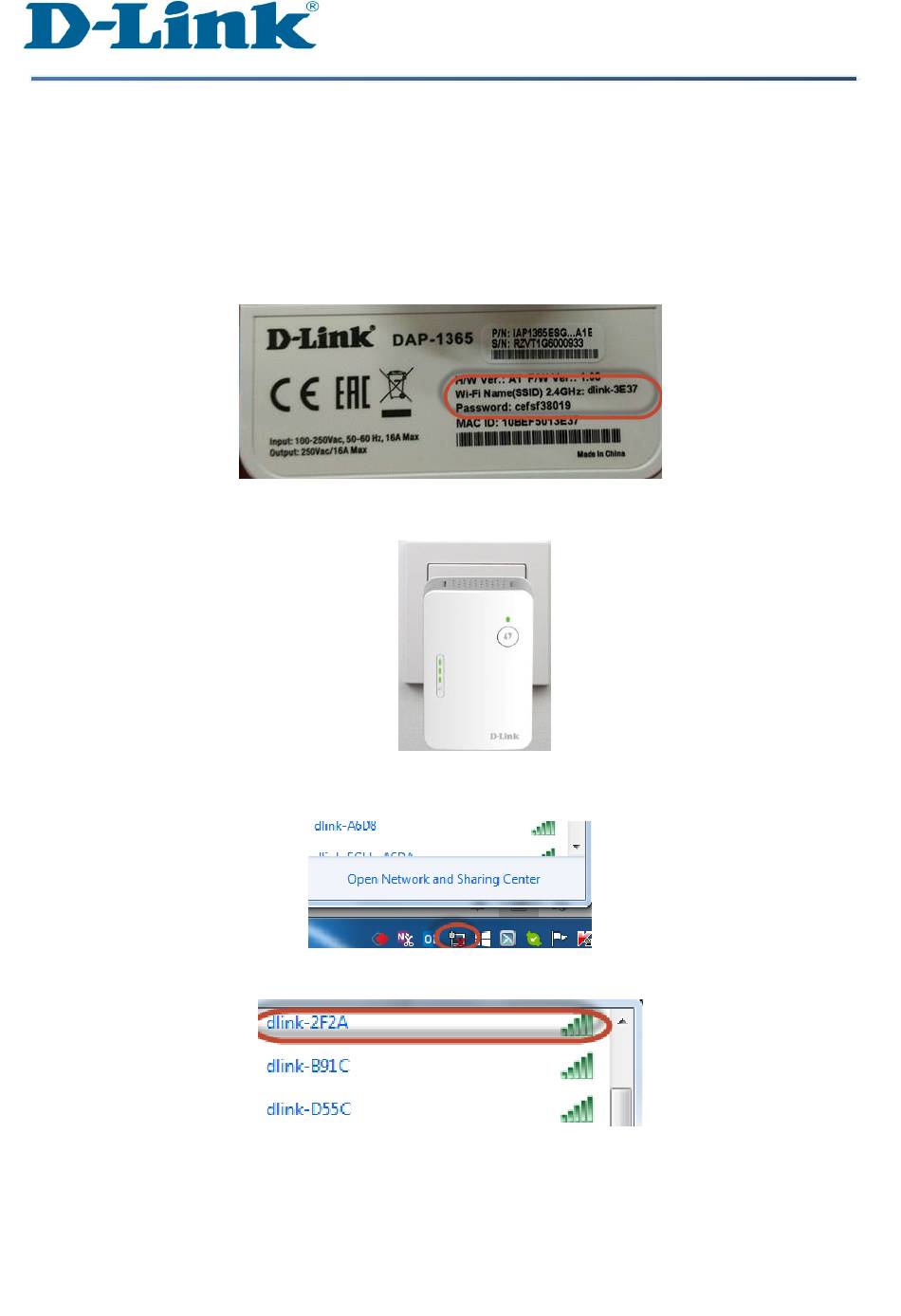

Page 1 Technical Support Setup Procedure How to configure DAP-1365 as Access Point with non- default wireless SSID? (Note: Please ensure the device LED is blinking orange colour before you do setup. If it is not blinking in orange colour, follow the guide on page 4 on how to reset the device before follow the guide to setup.)
Page 2 Technical Support Setup Procedure Step 5: Enter the Wifi Password which had copy down earlier on. Click on OK. Step 6: Open Internet Explorer and enter http://192.168.0.50 on the URL bar. Step 7: Click on X. Step 8: Click on OK. Step 9: Click on Settings and select Extender.
Page 3 Step 12: Click on Save. Step 13 a) Plug DAP-1365 direct to power outlet. b) Connect LAN Cable from DAP-1365 to LAN port of the Router. Step 14: Use computer to connect to the wireless you had setup. --- END ---...
Page 4 How to reset DAP-1365. Step 1: Plug DAP-1365 direct to power outlet. Step 2: Power on DAP-1365 and wait for 1 min. Step 3: Use a paper clip to press and hold the Reset Button for 30 second. Step 4: Wait for 2 min for the device to fully power on after reset.
