ABH 6000 Series Installation Instructions

NOTES
1. TRIM CAN BE MOUNTED UP, DOWN, HORIZONTALLY OR VERTICALLY.
2. USES STANDARD 161 DOOR PREP.
3. VISION LITE MUST BE AT LEAST 6" FROM CENTERLINE OF TRIM.
1
SQUARE
-OR-
ROUND
COVER
NOTE:
BEFORE MOUNTING BASE ASSEMBLIES
CAM PIN MUST BE ROTATED TOWARDS
SIDE INDICATED BY ARROW STAMPED
ON THE BASE.
DETAIL "A"
INSTALLATION INSTRUCTIONS:
1. Prep door according to latch backset and determine if trim is to be mounted horizontal or vertical mounting using backset template.
2. Install latch using either wood (item 5) or machine screws (item 2) depending on door type.
3. Install trim:
A) Test both handle assemblies to determine which is the push or pull type.
B) Select the pull handle assembly (item 8) first.
C) Place pull handle on pull side of the door and slide cam shaft into latch cam. Then place the push side handle assembly (item 4)
on the push side of the door. Slide push side cam shaft into latch cam. By hand, fasten both trim handles with (4) 1/4-20
machine screws (item 3) and (4) 1/4-20 hex nuts (item 7). Test both handles for free movement of the latch bolt before
tightening all screws. If latch bolt does not extend or retract freely because of any type of binding, loosen mounting screws to
adjust alignment of trim handles and re-tighten screws one at a time while checking latch bolt movement from both handles.
D) Test for proper operation and check that the mounting hardware (item 3) & (item 7) is tight before proceeding with the next step.
E) Place covers (item 1) over push and pull trims and secure with (2) 8-32 flat head screws (item 2) on each cover
PATENT No. 6,196,599
6000 SERIES INSTALLATION
2
3
PUSH
CAM SHAFT
6
2
5
LATCH CAM
ALL PREP MOUNTING HOLES
TO BE STRAIGHT & PARALLEL
TO ONE ANOTHER, THIS WILL
HELP PREVENT ANY BINDING
OF MECHANICAL PARTS.
O www.abhmfg.com
R
E-mail: abhinfo@abhmfg.com
Architectural Builders Hardware Mfg., Inc.
1222 Ardmore Ave., Itasca, IL 60143
630.875.9900; FAX 800.9FAXABH (932.9224)
**
4
VERIFY CORRECT BACKSET AND HORIZONTAL
OR VERTICAL MOUNTING BEFORE DRILLING.
THEN USE BACKSET TEMPLATE THAT IS SUPPLIED.
PULL
10
CAM SHAFT
* *
HANDLES
UP

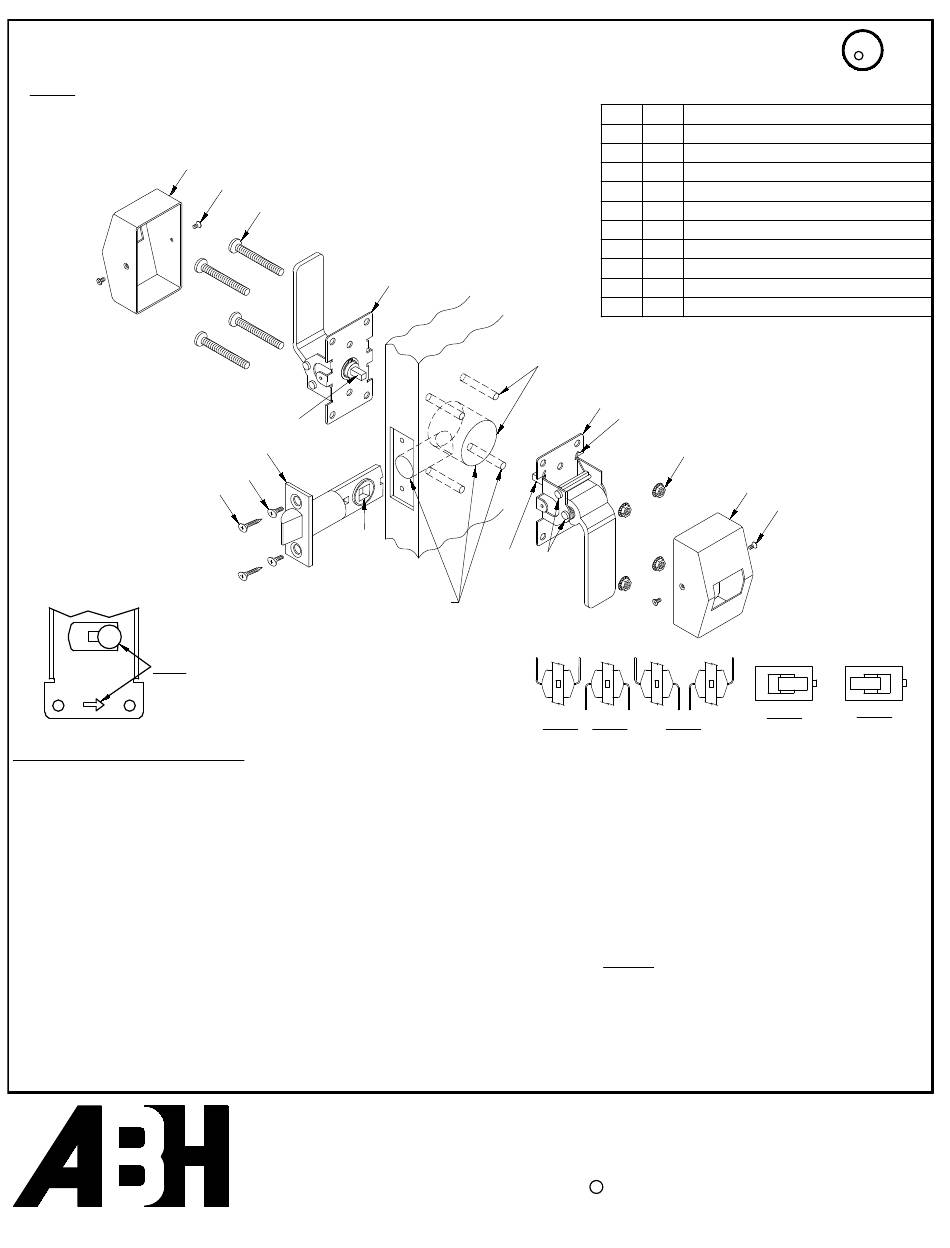

ITEM QTY PART DESCRIPTION
1
2 COVER
2 6 8-32 x 3/8" FHMS
3 4 1/4-20 x 2-1/2" TRUSS HD. M.S.
4
1 PUSH SIDE HANDLE ASSEMBLY
5 2 #8 x 3/4" FHWS
6 1
LATCH
7
4 1/4-20 NUT W/ NYLON WASHER
8
1 PULL SIDE HANDLE ASSEMBLY
9 REF
SPRING
10 REF
PIN & COTTER PIN
8
9
7
1
PUSH PULL
PULL PUSH HANDLES
HORIZONTAL
HANDLES HANDLES
WITH 7"
DOWN MIXED
BACKSET
