PARABOLIC DISH SOUND COLLECTOR
BATTERY
COMPARTMENT
We constantly improve and update our products. Sometimes, as a result of these improvements,
what is seen on the package, or in the instructions may differ somewhat in color or content from
ASSEMBLY:
1) Carefully remove the components from the box.
2) The parabolic dish should be oriented so that the two support stands are on the
bottom and the viewer hole is at the top of the dish.
3)
The transparent parabolic dish is attached to the front of the OR7008 by squeezing
gently on the two tabs at the front of the unit and pushing the dish over the two
locking tabs as shown in Picture 2.
ELECTRONIC LISTENING DISH
MICROPHONE
RED SIGNAL LIGHT
ON /OFF
SWITCH
the product in the package.
Recommended for ages 5+
orbitor OR7008

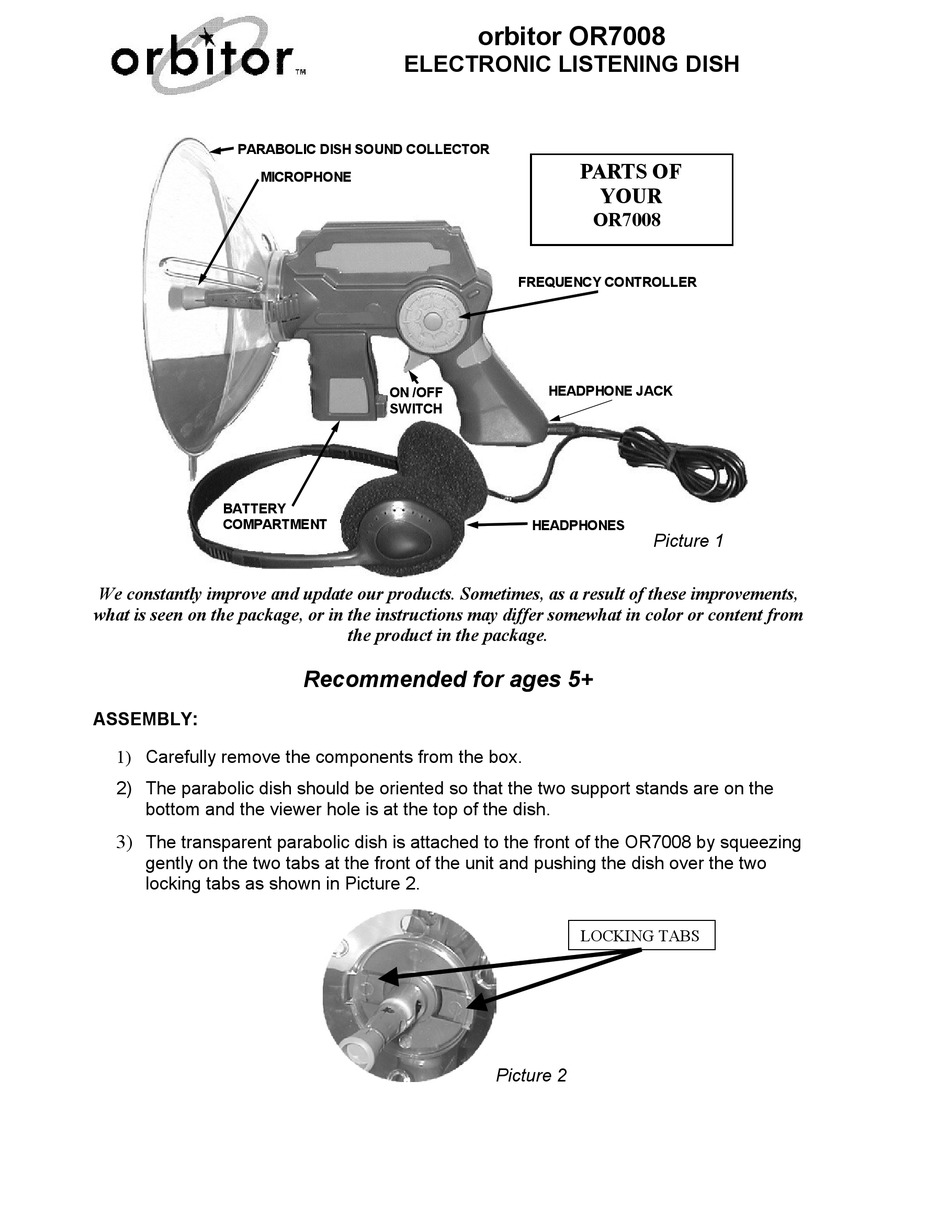

PARTS OF
YOUR
IA5008S
OR7008
FREQUENCY CONTROLLER
HEADPHONE JACK
HEADPHONES
LOCKING TABS
Picture 2
Picture 1
Advertisement
Table of Contents
Related Manuals for Citiwell OR7008
Summary of Contents for Citiwell OR7008
- Page 1 The transparent parabolic dish is attached to the front of the OR7008 by squeezing gently on the two tabs at the front of the unit and pushing the dish over the two locking tabs as shown in Picture 2.
- Page 2 OR7008’s earphone jack and the tape recorder’s LINE IN or MIC jack, and plugging the headphones into the tape recorder’s EARPHONE jack.
- Page 3 BATTERY INFORMATION: This unit uses one 9 volt battery. Always use a fresh battery. If the unit will not be used for an extended term remove the battery. Do not try and recharge a non-rechargeable battery. Do not take a battery apart. Do not short circuit the terminals. Do not dispose of battery in fire.
