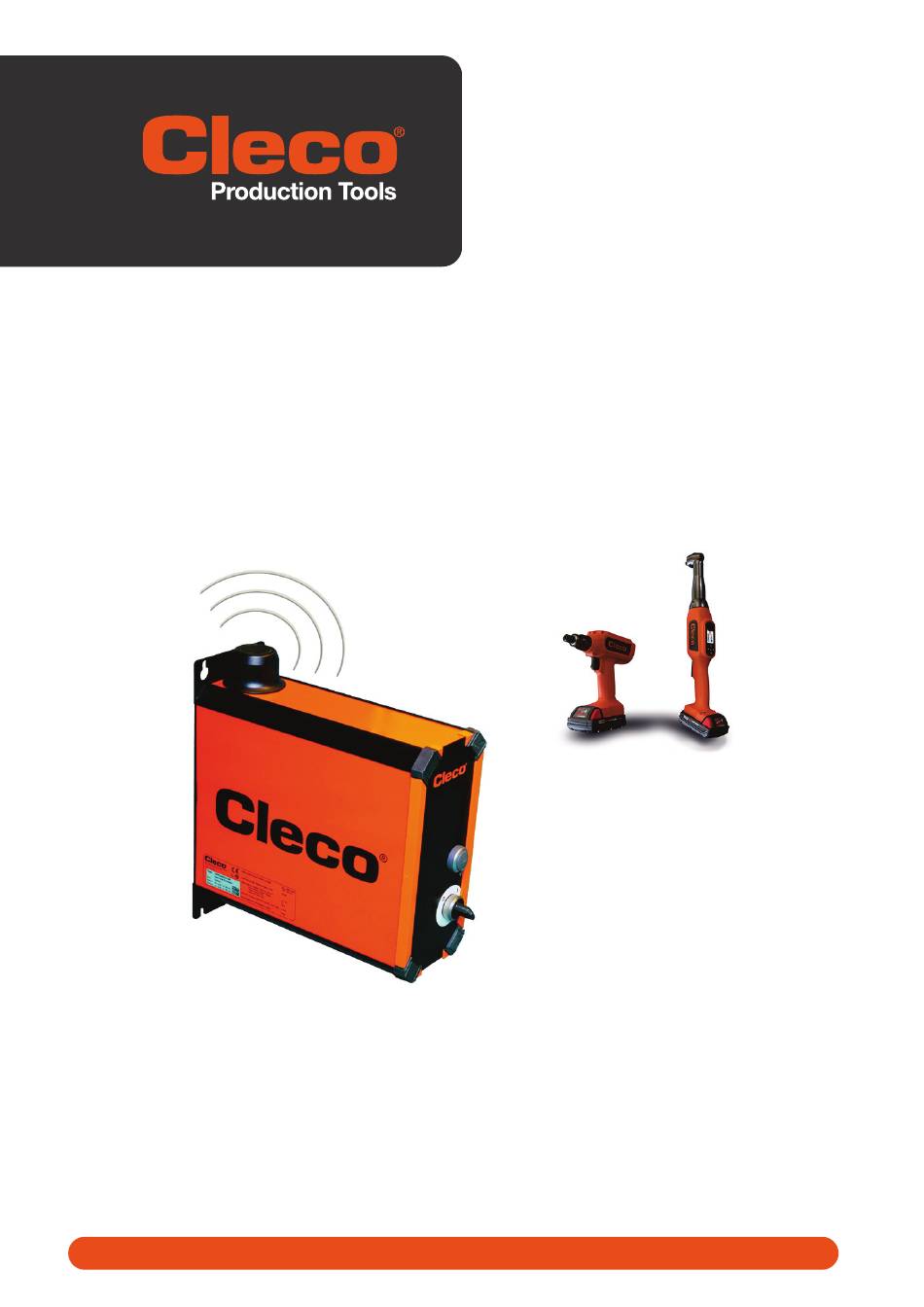

- Page 1 Quick Installation Guide P2402KA 2019-05 ™ CellCore Data Transmission CellCore Installation For additional product information visit our website at www.ClecoTools.com...
- Page 2 Copyright © Apex Tool Group, 2019 No part of this document may be reproduced in any way or in any form, in whole or in part, or in a natural or machine-readable language, or transmitted on electronic, mechanical, optical, or other media, without the express permission of the Apex Tool Group.
-
Page 3: Table Of Contents
Contents About this description ................4 System layout ..................5 WLAN communication ....................5 2.1.1 Data on the tool ......................5 2.1.2 Country-specific channel settings................6 2.1.3 Cell planning for access point ..................7 Bluetooth connection....................7 Setting up the mPro200GC-AP ............8 Prior to Initial Startup .................... -
Page 4: About This Description
About this description About this description The original language of this description is German. This description is intended for anyone who sets up the cordless EC tool CCBA or CCBP on a mPro200GC- AP controller. This Instruction Manual is the Original Instruction Manual and •... -
Page 5: System Layout
System layout System layout The communication between the controller and the tool is possible via WLAN or Bluetooth.The access point is integrated in the mPro200GC-AP controller. To communicate with the controller, the tools must be in the mPro mode. WLAN communication The system layout described is based on communication via WLAN. -
Page 6: Country-Specific Channel Settings
System layout 2.1.2 Country-specific channel settings The cordless CellCore tools work in the license-free 2.4 GHz/5 GHz ISM band: Band Channel Frequency World Europe USA/Canada in GHz World 2.4 GHz 2.412 IEEE802.11b/g 2.417 2.422 2.427 2.432 2.437 2.442 2.447 2.452 2.457 2.462 2.467... -
Page 7: Cell Planning For Access Point
System layout 2.1.3 Cell planning for access point Each channel operates with a frequency range of 22 MHz. To avoid overlapping the frequency ranges, the channels must be chosen so that they do not overlap. In other words, a maximum of 3 independent chan- nels (e.g., 1, 6 and 11) are available in the 2.4 GHz frequency band. -
Page 8: Setting Up The Mpro200Gc-Ap
Setting up the mPro200GC-AP Setting up the mPro200GC-AP Prior to Initial Startup To set up the controller, the following items are required: • • Ethernet cable • Software mProRemote Professional • Software LiveWire Utilities • Monitor with VGA connector, keyboard and mouse (optional) Download the mProRemote Professional and LiveWire Utilities software from the following website: http://software.apextoolgroup.com/current-software-packages/pc-software/ Install the mProRemote Professional software on the PC, see Document mProRemote Professional. - Page 9 Setting up the mPro200GC-AP Abb. 3-1: WLAN AP Configuration Parameter Description Activate WLAN Commu- If the checkbox is activated, WLAN is active on the controller. nication → The Bluetooth function is deactivated. SSID Enter the SSID for the WLAN name (access point) to which a connection is to be established.
-
Page 10: Configuring Tool Rf Settings With The Pc
Setting up the mPro200GC-AP For all other settings, default values are assigned, which can not be changed. If the PC can not establish a connection to the controller, then the settings can be made via a monitor connected to the controller. Connect a monitor via a VGA connection, as well as a keyboard and a mouse, to the controller. - Page 11 Setting up the mPro200GC-AP Abb. 3-5: RF Settings Parameter Description SSID Enter SSID. SSID must be identical to the access point. Encryption Select WPA/WPA2-PSK TKIP or WPA/WPA2-PSK AES. Network key Enter the network key. The network key must be identical to the access point.
-
Page 12: Configuring Tool Bluetooth Settings With Mpro200Gc-Ap
Setting up the mPro200GC-AP Parameter Description Wireless channel There are two setting options: • Select Auto after the corresponding channel is automatically searched for. • Assign the channel selected during the WLAN configuration. <Scan channels> Scan wireless channels. The button is not active if a channel is selected for Wireless channel. - Page 13 Setting up the mPro200GC-AP Abb. 3-6: Bluetooth AP Configuration The Bluetooth AP Configuration tab contains the following setting options: Parameter Description Activate Bluetooth Com- If the check box is activated, Bluetooth is active on the controller. munication → The WLAN function is deactivated. Name Enter the name used to display the control on the tool.
-
Page 14: Installing The Tool On The Controller
Setting up the mPro200GC-AP Installing the tool on the controller Up to 16 tools can be connected to one controller. Select Navigator > Tool Setup on the user interface of the controller. Press <Install> to add a tool to the tool list. Carry out the following settings: Parameter Description... - Page 16 POWER TOOLS SALES & SERVICE CENTERS Please note that all locations may not service all products. Contact the nearest Cleco® Sales & Service Center for the appropriate facility to handle your service requirements. Sales Center Service Center NORTH AMERICA | SOUTH AMERICA DETROIT, MICHIGAN LEXINGTON, MEXICO...
