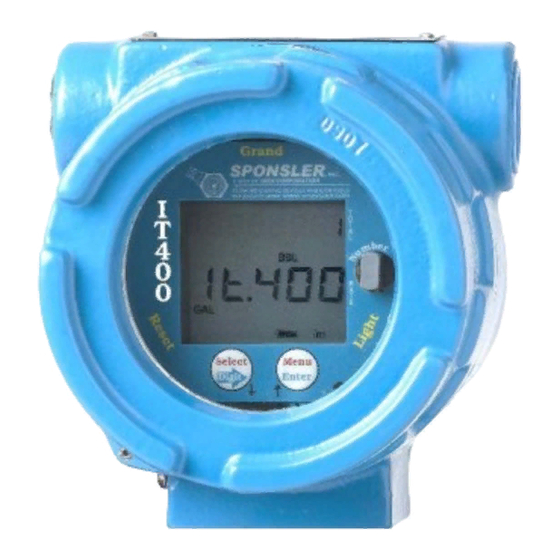

Summary of Contents for Sponsler IT400

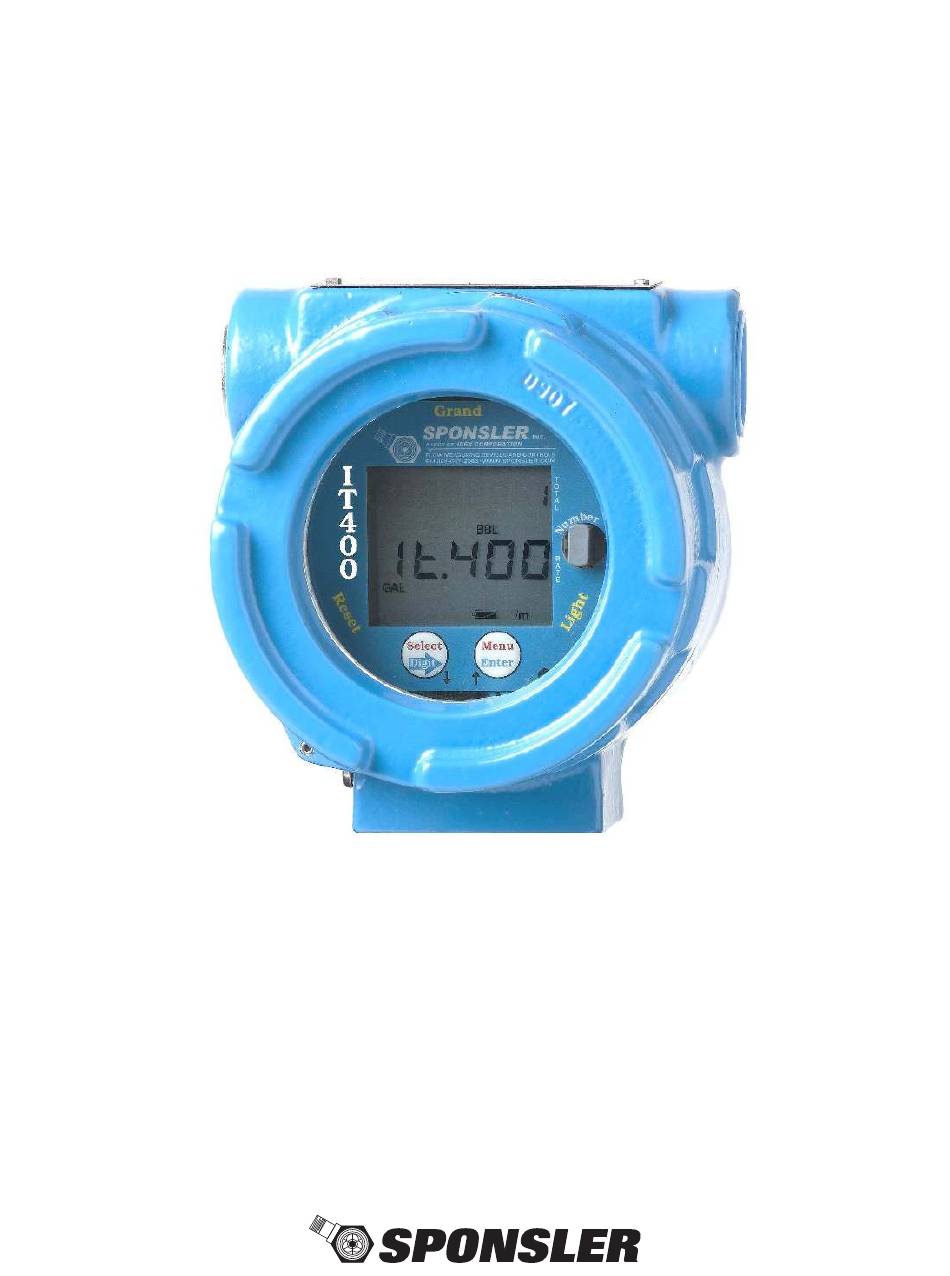

- Page 1 INSTALLATION & OPERATION MANUAL IT400 Remote Totalizer & Rate Indicator Document # MN-IT400-R2c.doc...
- Page 2 • The manufacturer assumes no liability for damage caused by incorrect use of the instrument or for modifications or changes made to the instrument. Technical Improvements Liquid Controls Sponsler, Inc. may modify the technical data herein without notice. Warning: Do not open the enclosure when an explosive gas atmosphere is present.
-
Page 3: Table Of Contents
Liquid Controls IT400 Remote Totalizer & Rate Indicator DOC#: MN-IT400-R2c.doc Page: Sponsler, Inc. Table of Contents Description ............................1 CE Declaration of Conformity ......................1 Specifications ............................ 2 Wiring and Hookup Diagrams ....................... 3 IT400 Operational Overview ......................... 7 Calibration ............................7 Temperature Compensation ...................... -
Page 4: Description
Sponsler, Inc. Description General Unit Operation The IT400 Remote Totalizer and Rate Indicator is a microcontroller based flow instrument capable of translating flow information and conditions to the built-in display and various outputs. Features • Pulse input supports turbine as well as many other pulse-type flowmeters •... -
Page 5: Specifications
Liquid Controls IT400 Remote Totalizer & Rate Indicator Page: 2 DOC#: MN-IT400-R2c.doc Sponsler, Inc. Specifications Outputs Display • • Factored Pulse (Max: 150mA, 30VDC, 150mW) Total • • Opto-isolated open collector output 8 digit 5.40mm high LCD (continuous display) •... -
Page 6: Wiring And Hookup Diagrams
Shields should not cover more than one pair of signal wires at a time. • The IT400’s chassis must be connected to an earth ground via the screw attached to the outside of the unit. At least a 12 AWG preferably green wire is recommended. - Page 7 Liquid Controls Page: 4 DOC#: MN-IT400-R2c.doc IT400 Remote Totalizer & Rate Indicator Sponsler, Inc. Diagrams: Figure 1 IT400 Connections...
- Page 8 Liquid Controls Page: 5 DOC#: MN-IT400-R2c.doc IT400 Remote Totalizer & Rate Indicator Sponsler, Inc. 1 2 3 4 "#$%&%'( )"*%(# +',-#.#"& 1 2 3 4 "#$%&%'( )"*%(# +',-#.#"& Figure 2 IT400 Board Stack Assembly and Battery Removal...
- Page 9 Liquid Controls Page: 6 DOC#: MN-IT400-R2c.doc IT400 Remote Totalizer & Rate Indicator Sponsler, Inc. "#$%&%'( )"*%(# +',-#.#"& Figure 3 Meter Mounting and Dimensional...
-
Page 10: It400 Operational Overview
Zero is an invalid frequency; this will indicate the end of the table. The IT400 will not allow frequencies to be entered out numerical order. Frequencies between zero and the first programmed point will use the... -
Page 11: Lcd Display
Liquid Controls IT400 Remote Totalizer & Rate Indicator Page: 8 DOC#: MN-IT400-R2c.doc Sponsler, Inc. LCD Display The LCD display has three main areas: The 8 digit totalizer, 5 digit rate indicator, and the annunciators. • The 8-digit totalizer shows the total number of units... -
Page 12: User Controls
• External o Magnetic Switches – There are three magnetically activated reed switches located around the edge of the IT400 (indicated on the front panel with yellow text). These switches allow external activation of the following functions: – The following actions are taken when the grand reed switch is activated: Grand The total display will indicate the value of the grand totalizer. - Page 13 (the letter by itself) to the serial port. No carriage return is necessary. The IT400 will reply with the requested data and a CR+LF. The BAUD rate is fixed at 9600 baud 8N1. Currently, the datalogger data can only be captured via the RS-232 port. The functions available on this interface are: R –...
-
Page 14: Inputs
(computer or printer) is used to capture the data from the IT400. Refer to the menu section of the manual to see the data that can be captured and what triggers are available. Each line of data is terminated by a CR+LF combination (0x0D and 0x0A). -
Page 15: Backlight
Backlight activation may increment one additional input pulse and will cause 4-20mA errors. Power The IT400 may be powered externally by any 5-48VDC source, 4-20mA loop, internally by battery, or by a combination of these. Power consumption is affected by programmed options, input signal frequency, and the programmed power mode. -
Page 16: Enclosure
** Loop powered operation; the loop isolation switches SW5-1, 2 must be “On” (non-isolated). • Power Mode: controls the refresh rate of both the display and outputs of the IT400 and is a user selectable menu item. Refresh times and approximate battery life are in the following... -
Page 17: Menu System
Sponsler, Inc. Menu System The IT400’s menu system is designed to allow a simple means of entering all of the data required for the system to perform its calculations. This section steps through the menu system and provides a description of each item. To enter the menu system, simply press Menu. -
Page 18: Menu Descriptions
The menu is composed of a list of editable items which control the operation of the IT400. This is a listing of all of the menu items. The IT400 reverts to the Run Mode if no user input is detected within 30 seconds while viewing any of the following top level menu items. - Page 19 Liquid Controls IT400 Remote Totalizer & Rate Indicator Page: 16 DOC#: MN-IT400-R2c.doc Sponsler, Inc. Frequency Input Permits setting of the frequency of a given run in the linearizer. The number listed on the display indicates which point in the table is being edited. Frequencies must be in ascending order (point 1 is the lowest frequency).
- Page 20 Liquid Controls IT400 Remote Totalizer & Rate Indicator Page: 17 DOC#: MN-IT400-R2c.doc Sponsler, Inc. Ratemeter Decimal Place Set by turning the Number dial to the desired position. If no decimal is shown, the decimal is assumed one place to the right of the least significant digit. There is one special setting named + .
- Page 21 Light Note: The backlight is the highest current drawing component of the IT400. Use it sparingly; excessive use will quickly reduce the battery life (when running on the internal battery). Power Mode Sets the IT400’s internal power savings functions and the refresh rate.
- Page 22 Liquid Controls IT400 Remote Totalizer & Rate Indicator Page: 19 DOC#: MN-IT400-R2c.doc Sponsler, Inc. Alarm Displayed only if purchased as an option. The alarm menu allows the setting of various system warnings to trigger an alarm. The number at the top of the display indicates which alarms are enabled: A ( indicates the associated alarm is enabled, and a indicates disabled.
- Page 23 Liquid Controls IT400 Remote Totalizer & Rate Indicator Page: 20 DOC#: MN-IT400-R2c.doc Sponsler, Inc. Datalogger Displayed only if purchased as an option. The datalogger menu allows the setting of various data outputs and when to capture. Every datalog event is preceded by the date and time of the capture (See the Real Time Clock section).
- Page 24 Liquid Controls IT400 Remote Totalizer & Rate Indicator Page: 21 DOC#: MN-IT400-R2c.doc Sponsler, Inc. useful when the data is captured to a computer and later imported into a data analysis program or database. DB format Disabled – Pretty-Print format. This format will list data on separate lines, preceded by the name of the data and followed by the given units of measure.
- Page 25 5. / , – Pressing Select causes the IT400 to simulate five values on the 4-20mA output. Number dial is used to step through the following values: 0%, 25%, 50%, 75%, & 100%. The backlight will be disabled during the 4-20mA output test so as to not affect the 4-20mA output.
-
Page 26: Appendix
Liquid Controls IT400 Remote Totalizer & Rate Indicator Page: 23 DOC#: MN-IT400-R2c.doc Sponsler, Inc. Appendix... -
Page 27: Appendix 1: Menu Quick Reference
Liquid Controls IT400 Remote Totalizer & Rate Indicator Page: 24 DOC#: MN-IT400-R2c.doc Sponsler, Inc. Appendix 1: Menu Quick Reference Reset Totalizer Ratemeter Time-base Alarm Bits Done 0) Seconds Low Battery 1) Minutes Temperature Under Enable Temperature 2) Hours Temperature Over... -
Page 28: Appendix 2: Coefficient Of Thermal Expansion For Common Fluids
Liquid Controls IT400 Remote Totalizer & Rate Indicator Page: 25 DOC#: MN-IT400-R2c.doc Sponsler, Inc. Appendix 2: Coefficient of Thermal Expansion for Common Fluids Fluid Properties Table LIQUID Reference Density Reference Temperature Coefficient of Thermal Expansion Fluid (Lb/Gal) (ºF) 7.294 -317.8 0.0016262... -
Page 29: Appendix 3: Menu Flow Chart
Liquid Controls IT400 Remote Totalizer & Rate Indicator Page: 26 DOC#: MN-IT400-R2c.doc Sponsler, Inc. Appendix 3: Menu Flow Chart ToTAL R ATE Run Mode Menu Enter SETU P - R U N - Setup Start PRESS SEL I N CoR REC T... - Page 30 Liquid Controls IT400 Remote Totalizer & Rate Indicator Page: 27 DOC#: MN-IT400-R2c.doc Sponsler, Inc. P2-1 * Actual readings will vary EDI T No EDI T YES Select TABLE TABLE Digit Feature 'L' Note: Set FY to zero Menu Purchased? after last valid entry...
- Page 31 Liquid Controls IT400 Remote Totalizer & Rate Indicator Page: 28 DOC#: MN-IT400-R2c.doc Sponsler, Inc. P3-1 8 3359000 LBS 1 0000000 Set with Select Number 3 7810000 KG U N I TR Digit Dial* Entry 1 2000000 (Custom) 7. Rate Units...
- Page 32 Liquid Controls IT400 Remote Totalizer & Rate Indicator Page: 29 DOC#: MN-IT400-R2c.doc Sponsler, Inc. P4-1 *FREQUENCY,2,5,10,50,100,75(Custom) Set with Pulse Out Select Number P W I D Dial* Enabled? (Custom) Digit Entry Menu Menu DI SABLED ENABLED Select Enter Enter P out...
- Page 33 Liquid Controls IT400 Remote Totalizer & Rate Indicator Page: 30 DOC#: MN-IT400-R2c.doc Sponsler, Inc. P5-1 1000 01000 Select Select Number SER VE Digit C U R N T S SET Digit* Entry Service Timer Menu Menu Enter Enter * Resets the service timer...
- Page 34 Liquid Controls IT400 Remote Totalizer & Rate Indicator Page: 31 DOC#: MN-IT400-R2c.doc Sponsler, Inc. P6-1 EDI T No EDI T YES Menu **Any of: TCoM P, ALARM :TEM PU/TEM Po, or Select W ARN W ARN Enter DTALG:TEM P set to ENABLED...
- Page 35 Liquid Controls IT400 Remote Totalizer & Rate Indicator Page: 32 DOC#: MN-IT400-R2c.doc Sponsler, Inc. P8-1 DI SABLED ENABLED 1000 Menu Select Select Number C oD E Enter Digit Digit Entry Lockout Enable Menu Menu Enter Enter - C oNFI G -...
-
Page 36: Appendix 4: Manual Revision History
Liquid Controls IT400 Remote Totalizer & Rate Indicator Page: 33 DOC#: MN-IT400-R2c.doc Sponsler, Inc. Appendix 4: Manual Revision History Revision Date Notes Original 9/1/2004 Original Document 6/15/2005 Revision level added (title); Copyright date updated (ii); Loop voltage limits added (2); Wire length limits and CE power limitations added (3); Alarm editing description added (18);... - Page 37 Liquid Controls IT400 Remote Totalizer & Rate Indicator Page: 34 DOC#: MN-IT400-R2c.doc Sponsler, Inc.
- Page 38 Liquid Controls IT400 Remote Totalizer & Rate Indicator Page: 35 DOC#: MN-IT400-R2c.doc Sponsler, Inc.
- Page 39 Liquid Controls IT400 Remote Totalizer & Rate Indicator Page: 36 DOC#: MN-IT400-R2c.doc Sponsler, Inc.
- Page 40 © 2009 Pub. No. MN-IT400-R2c (1/2011)
