Summary of Contents for Cleode ZigBee ZMOVE
- Page 1 ZigBee Motion Detector ZMOVE User Manual Revision: 4.0 Document: UM_ZMOVE_20090731_001_04_00 S.A. au capital de 167 200 € R.C.S. Saint Brieuc TGI 450 570 767 Siège social : 8 rue Bourseul 22300 Lannion France Tél. : +33 (0) 2 96 48 68 18 – Fax : +33 (0) 2 96 48 19 11...
-
Page 2: Warranty
In order to invoke the warranty, the buyer must immediately send written notice to CLEODE of the flaws that it attributes to the device. It must enable CLEODE to have access to the device to observe these defects and repair them. The warranty provided by CLEODE is strictly limited to the equipment provided and shall only have for effect the replacement or repair, at CLEODE’s expense, on its own premises, of all devices or parts that are not... -
Page 3: Table Of Contents
......................11 CREW INSTALLATION III.1.3 ......................13 HANGE THE BATTERIES III.2 ZMOVE......................14 TARTING UP III.3 .................. 15 ESTART OF THE ASSOCIATION PHASE III.4 ............................15 ESET TECHNICAL FEATURES......................16 REPAIR AND MAINTENANCE ...................... 17 UM_ZMOVE_20090731_001_04_00 CLEODE Page 3 sur 18... - Page 4 ZMOVE – User Manual ABLE OF REVISIONS Version Authors(s) Version description Date CLEODE Initial version 08/02/2009 CLEODE Validated document 08/04/2009 CLEODE Minor corrections 04/09/2009 CLEODE Validated document 04/09/2009 CLEODE Add Technical features chapter 24/09/2009 CLEODE Validated document 24/09/2009 CLEODE Updated to new design...
-
Page 5: Reference Documents
ZMOVE – User Manual EFERENCE DOCUMENTS N° Document Description ZigBee_Cluster_Library_Public Spécification de la Zigbee Cluster Library ZigBee_Home_Automation_Profile Spécification du profile Home Automation ZigBee_Specification Spécification de la norme ZigBee UM_ZMOVE_20090731_001_04_00 CLEODE Page 5 sur 18... -
Page 6: Iintroduction

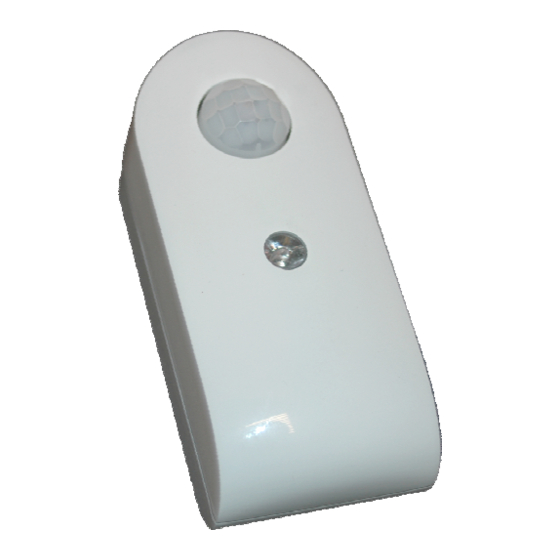

The motion detector has this form: Association light and Sensor PIR button The detector of presence ZigBee ™ ( ZMOVE) contains an infrared sensor allowing to detect the movements in a room in a maximum 10 meter. UM_ZMOVE_20090731_001_04_00 CLEODE Page 6 sur 18... -
Page 7: Copyright
OPYRIGHT The CLEODE trademark and the CLEODE logo are properties of CLEODE SA, France. This document also refers to trademarks and other product names that are registered trademarks of their respective owners. Copyright © 2009 CLEODE SA. All rights reserved. -
Page 8: Motion Detector Description
II.2.1 PEN DOOR DETECTOR APPLICATION DESCRIPTION Device ID : Occupancy Sensor Endpoint : 1 Clusters : Server Client Basic (0x0000) On/Off (0x0006) Power_Configuration (0x0001) Identify (0x0003) Alarms (0x0009) Occupancy_Sensing (0x0406) UM_ZMOVE_20090731_001_04_00 CLEODE Page 8 sur 18... -
Page 9: Ii.2.2 Clusters Description
This cluster is used to put a device into an identification mode. By writing the IdentifyTime attribute value, the user asks the device to blink the light, during a number of seconds specified by this value. Attribute Attribute ID IdentifyTime 0x0000 UM_ZMOVE_20090731_001_04_00 CLEODE Page 9 sur 18... - Page 10 This cluster is used to signal a motion or not by Occupancy attribute. On motion detection and at the end of detection on report of Occupancy attribute value is transmitted on the network. Attribute Attribute ID Occupancy 0x0000 OccupancySensorType 0x0001 PIROccupiedToUnoccupiedDelay 0x0010 UM_ZMOVE_20090731_001_04_00 CLEODE Page 10 sur 18...
-
Page 11: Installation And Network Association
1. To position the ZMOVE in the wished place, you may mark the position of both fixing holes by using the size below. 2. Drill the wall by taking into account your system of fixation (ankles + screw). UM_ZMOVE_20090731_001_04_00 CLEODE Page 11 sur 18... - Page 12 4. Position the case to make correspond both fixing holes and screws them. 5. Stick the ZMOVE to the wall; make a side movement downward to finalize the installation as indicate on the picture below. UM_ZMOVE_20090731_001_04_00 CLEODE Page 12 sur 18...
-
Page 13: Iii.1.3 Change The Batteries
ZMOVE of the wall as indicate on the plan below. Turn the case and press on the end of the lid as indicated this against. By continuing to press, pull on the lid to make slide downward of ZMOVE. UM_ZMOVE_20090731_001_04_00 CLEODE Page 13 sur 18... -
Page 14: Iii.2 Starting Up Zmove
In the cases where the association is not possible, the object is going to put itself in sleep and to try automatically to join at the end of 15 minutes. This time will increase twofold in every new failure of the association. UM_ZMOVE_20090731_001_04_00 CLEODE Page 14 sur 18... -
Page 15: Iii.3 Restart Of The Association Phase
III.4 R ESET If need, the user can reset the ZMOVE . For this, he has to press on the button during 5 seconds. When the ZMOVE reset, the LED flashes twice and turn off. UM_ZMOVE_20090731_001_04_00 CLEODE Page 15 sur 18... -
Page 16: Technical Features
ECHNICAL FEATURES Weight 30 g (without battery) Power Supply 2 AA battery Battery Life > 1 year Transmission range 100 m outdoor 30 m indoor Managed channels (frequency) 16 ZigBee™ channels (2.405 to 2.480 GHz) UM_ZMOVE_20090731_001_04_00 CLEODE Page 16 sur 18... -
Page 17: Repair And Maintenance
ZigBee Motion Detector – User Manual EPAIR AND MAINTENANCE Defective equipments shall be first reported to the CLEODE support team in order to be assigned an RMA number. Be prepared to state your name, company and the serial number of the defective item to the support personnel. - Page 18 ZigBee Motion Detector – User Manual CLEODE S.A. Technical Support Division 8, rue Bourseul 22300 Lannion France Phone : +33 (0) 2 96 48 68 18 Fax : +33 (0) 2 96 48 19 11 E-mail : support@cleode.com Web : http://www.cleode.com...
