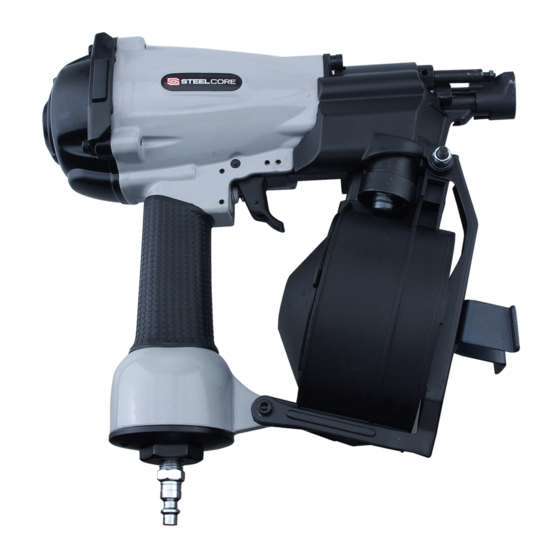

11GA COIL ROOFING NAILER
This product contains or, when used, produces a chemical
known to the State of California to cause cancer and birth
defects or other reproductive harm.
(California Health & Safety Code § 25249.5, et seq.)
Please carefully read and save these instructions before attempting to assemble, maintain, install, or operate this product.
Observe all safety information to protect yourself and others. Failure to observe the instructions may result in property
damage and/or personal injury. Please keep instructions for future reference.
For warranty purchases, please keep your dated proof of purchase. File or attach to the manual for safe keeping.
For Customer Service, Call 1-800-348-5004
or e-mail customerservice@focus-ontools.com
WARNING
*Actual product may vary slightly
40809
06/2017
Advertisement
Table of Contents
Related Manuals for Steel Core 40809
Summary of Contents for Steel Core 40809
- Page 1 Observe all safety information to protect yourself and others. Failure to observe the instructions may result in property damage and/or personal injury. Please keep instructions for future reference. For warranty purchases, please keep your dated proof of purchase. File or attach to the manual for safe keeping. For Customer Service, Call 1-800-348-5004 40809 06/2017 or e-mail customerservice@focus-ontools.com...
-
Page 2: Important Safety Instructions
IMPORTANT SAFETY INSTRUCTIONS WARNING: When using pneumatic tools, basic safety precautions should always be followed to reduce the risk of personal injury, including the followin g: READ AND F OLLOW ALL INS TRUCTIONS. There are certain applications for which this to ol was designed. we strongly recommends that this tool NOT be modified and /or used for any application other than for w hich it was designed. - Page 3 Fig.4 7. NEVER USE OXYGEN, CARBON combustible gases or any DIOXIDE, other bottled gas as a power source for this tool. to pressure 8.DO NOT CONNECT TOOL that potentially exceeds 180 PSI (12.3 BAR). 9. ONLY US E AIR HOSE THAT IS f or 1 5 0 % o f t h e m a xi mu m R AT E D Please try to use a hose...
- Page 4 carefully BEFORE USING TOLL, Fig.7 check if there i s any part damaged to obtai n id eal results. D o not use the tool i f th e to o l h a s a n y a i r l e a k e d , uncompleted, damaged parts and n eeds repairing.
-
Page 5: Employer's Responsibilities
23. GRIP TOOL FIR MLY TO MAINTAIN Fig.11 while all owing tool to recoil CONTR OL away from w ork surface as fastener is driven. If safety bracket is al lowed to co nta ct wor k su rf ace agai n b ef ore t ri gg e r i s re le a se d , a n un w a n ted fastener will b e fired. -
Page 6: Packing List
PACKING LIST DESCRIPTION Q'ty Ro ofing coil nailer S5 Hex Key S4 Hex Key S3 Hex Key Air Tool O il Safety glasses O perating instruction TECHNICAL PARAMETER CHARACTERISTIC VALUE 70-120PSI (4.9-8.3bar) Compressed Air pressure 11.5 " 11.5 " 5" Outline Dimension (L H W) ×... - Page 7 FASTENERS SPECIFICATIONS Only use recommended the fasteners. Max . Min. 0.39 ˝ φ 0.39 ˝ φ （ φ10mm ） （ φ10mm ） 15 -16 15 -16 0.12 ˝ φ 0.31˝ （ φ 3.05mm ） （ ） φ 0.12 ˝ 0.31˝ 3.05mm （...
- Page 8 C AU T ION : All line co mp o nents (ho ses, co nnectors, filters, regulators, etc.) must meet 150% of the maximum system pressure. Please try to use a hose of ID 3/8”connectingnailer with compressor. Do not connect this tool to a system with maximum potential. Only disconnect quick connector being connected with the connector of the body tail portion air inlet, no compressed air can be guaranteed when disconne cting .
-
Page 9: Using The Tool
Fig.14 Fig .15 Fig.16 Fig .17 Fig.18 Fig.19 USING THE TOOL There are two methods of operation to drive nails with theis tool: Contact Fire and Single Sequential Fire (Black trigger) Contact Fire This tool is set u p at the Contact Fire mode 1. - Page 10 Single Seq uential Fire 1. Position the nail outlet on the work piece with finger off the trigger 2. Depres s the safety firmly until it is comple tely depressed. 3. Pull the trigg er to drive a nail 4. Remove fing er from the trigger. To continue nailing in a separate location, move the to ol along the wood, rep eatin g steps 2 - 4 as required.
-
Page 11: Maintenance
CLEARING A JAMMED FASTENER Disconnect tool from air CA UTION: supply . 2.Open latch, rotate lowe r housing and remove the nails of the lowe r housing. 3.Use a slender, s oft steel rod to drive the Fig.21 drive blad e to its uppermost position. U se needle nose pliers to remove the jammed fastener (see Fig.21). -
Page 12: Troubleshooting
SERVICE AND REPAIRS All qu ality tools eventually require servicing of rep lace ment of parts due to we ar from normal use. S ome user servicea ble components are described in the TRO UBLE SHOOTING Section. All repairs made b y local agencies a re fully guaranteed against de fective material and w orkmanship. - Page 13 CAUSE PROBLEM SOLUT ION Skipping 1.Having the foreign matters 1.Disassemble/ clean/lubricate. fasteners/feeding between the small piston and intermittently small cylinder. 2.O-ring on the small piston is 2.Check/replaceO-ring/lubricate worn and damaged. 3.Use pneumatic tool oil. 3.Tool dry and lack lubrication. 4.The spring on the small piston is 4.Replace small piston the spring.
- Page 14 EXPLODED VIEW DRAWING customerservice@focus-ontools.com 1-800-348-5004...
-
Page 15: Part List
PART LIST Item Description Description Screw M5*20 Screw M4*12 Bushing Exhaust Cover Shaft Washer Spring Screw M5*30 Protector Spring Washer O-ring 10.3*1.9 Cylinder Cap O-ring 20.3*1.5 Gasket Valve set O-ring 36.3*2.5 Trigger Valve Guide O-ring 55.4*3 Spring Spring O-ring 9.5*1.9 Valve O-ring 20.3*2.5 O-ring 40.2*2.3... - Page 16 Limited Manufacturer Warranty FOT makes every effort to ensure that this product meets high quality and durability standards. FOT warrants to the original retail consumer a 1-year limited warranty from the date the product was purchased at retail and each product is free from defects in materials.
