INFODRAW PMRS Fast Installation

Portable handheld multimedia streaming and monitoring system

Advertisement

Quick Links

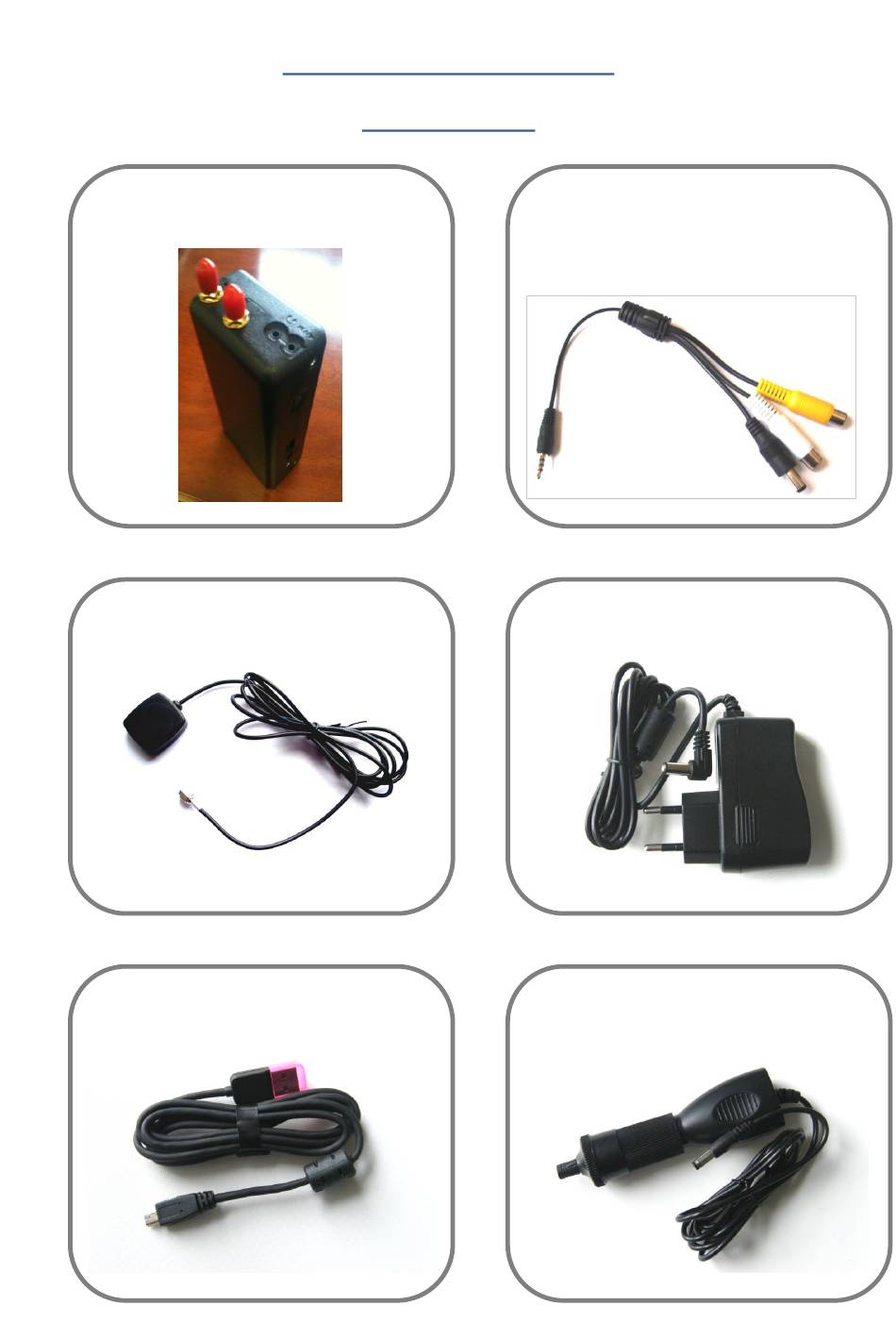

FAST Installation (PMRS)
Box Contents
Video/Power Adapter
PMRS Unit
5V Charger
GPS Antenna
u
12V – 5V Car Adapter
USB Cable

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the PMRS and is the answer not in the manual?

Questions and answers

Summary of Contents for INFODRAW PMRS

  • Page 1 FAST Installation (PMRS) Box Contents Video/Power Adapter PMRS Unit 5V Charger GPS Antenna 12V – 5V Car Adapter USB Cable...
  • Page 2 PTZ+GPIO Cable Voice splitter GSM Antenna (Optional) LAN Cable...
  • Page 3: Required Items

    Camera(s) Any analogue PAL/NTSC camera with a RCA MALE connection for video output can be connected to the PMRS unit. The unit supports 1 camera. The unit’s battery can feed power to a 5V camera for portable use. Micro SD Card A Micro SD Card is required for recording in the MRS device.
  • Page 4: Chapter 1 - Introduction

    3G/ HSPA/ EDGE/ GPRS networks and can be monitored from any location upon alarm/ request. The media streaming is done using PMRS units which can be carried handheld or located either on mobile vehicles or fixed locations. The units can be monitored remotely from fixed/mobile control centres, mobile phones/PDAs or an internet web client.
  • Page 5: System Components

    1-4 System Components: The system consists of the following components:  PMRS units which can stream 1 video channel, 1 audio channel and GPS location over the cellular network to the MRS server.  MRS Server which communicates with units and clients.
  • Page 6 1-5-1 Server Based Architecture:...
  • Page 7 The PMRS has an internal GSM antenna. However an external GSM antenna connector can be added to the PMRS if required and has a SMA interface which will be located on the top corner of the PMRS unit next to the GPS...
  • Page 8 Pull the notch out to insert the SIM card. 1-6-7 Alarm Button: The PMRS has a built in alarm button located on the side of the unit. The button can be used in emergencies and can be set up to trigger a variety of actions on the MRS monitor (Refer to Alarm Button Section).
  • Page 9 Disable – up position ii. Enable – down position 1-6-12 LED’s: The PMRS has 3 LED’s located on the top side of the unit. The 3 LED’s indicate the following: 1) Green LED – External power is connected. 2) Red LED – Software status, blinks when software is running.
  • Page 10 GPIO OUT 4 GRAY PTZ TX+ YELLOW PTZ TX- PURPLE TTL TX WHITE TTL RX BLACK 1-6-14 I/O Cable and LAN Cable Input: The i/o Cable and LAN Cable Input are located on the bottom side of the PMRS unit. GPI/O...
  • Page 11: Chapter 2 - Installation

    Open the MRS USB DRIVER folder Enter the website and install the 2 files: idmrs.sys and idmrs.inf. 2. Open the folder of the most current version of the PMRS ("4.3.1.3" for example). 3. Install “MRS device config” (Attached). 4. Run “MRS device config”.
  • Page 12 17. Insert the SIM card (notch is outside) 18. Insert the micro SD card. 19. Turn on the device. 20. The unit should connect to the server and live video/audio/location can be viewed.  A more comprehensive manual is available at http://www.infodraw.com/pmrs100usermanual.pdf...
