- Page 1 Portable Power Station Model: L780 Part No.: PR750NAL780 USER MANUAL...
- Page 2 If in need of service, please contact aviva Customer Service. Do not return this unit to the store. aviva Customer Service Email: support@avivapower.com Visit: www.avivapower.com...

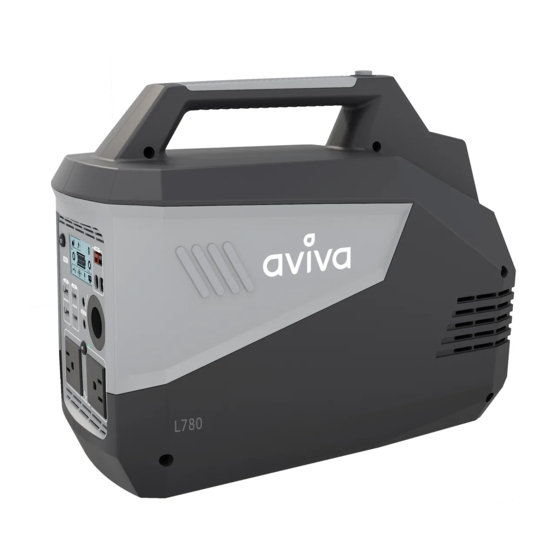

- Page 3 You can use this product at home and away, wherever life takes you. Many people will use the aviva L780 as a central power source at home, or wherever they need portable power such as off-grid, or for emergency back-up power.
-
Page 4: Table Of Contents
TABLE OF CONTENTS • Specifications • Product tour & functions • General information • How to charge the product • Lighting • Recharging • Warning states • Disposal • Troubleshooting • Attention • Safety and maintenance • Warranty statement... -
Page 5: Specifications
SPECIFICATIONS Model Number L780 Part Number PR750NAL780 Battery Energy Storage Capacity 786 Wh (10.8V, 72.8 Ah), peak capacity Lithium-Ion, 18650-cell type, 2600mAh @ 3.6V Equivalent Capacity 218Ah, 218,400mAh @ 3.6V Lifecycles ≥1000 cycles up to 80% with full charge/discharge Shelf-life ... - Page 6 DC Port (5525) Two (2) 12V 5A / 60W (2@ DC5525 ports) 12V Auto Port 12.5V 10A / 125W, regulated 110V AC inverter Two (2) 110VAC, 60Hz, grounded (3-prong), pure sine wave Supports 500W continuous, 2500W peak surge, pure sine wave General Flashlight High brightness 1W LED, multimode,...
- Page 7 Included in the Box Power station, AC charger with power cable, user manual Included in the Box: Portable Power Station Model: L780 Part No.: PR750NAL780 USER MANUAL Aviva L780 unit Charger User Manual Loading Time: 12V 3W Mini Smart Lighting...
-
Page 8: Product Tour & Functions
PRODUCT TOUR & FUNCTIONS Front View 1. ON/OFF Power Switch 2. LCD Screen 3. AC Adapter Input 4. Solar Charging Input 5. USB Outputs 6. 12V DC Outputs 7. DC Auto Output 8. AC Output Button 9. AC Output Indicator 10. - Page 9 LCD Screen Guide 12V DC Auto Output Battery Battery Level Indicator Output USB in use 12V DC in use 12V DC Auto Output in use AC Power is on Remain rotating when DC in use or AC is on Input In Solar Charging In AC Charging In the Charging Process...
-
Page 10: General Information
LCD screen remains rotating ( Power On Long press for 3 seconds to switch on the aviva L780, it will start initial self-checking. During the process, all the icons on the LCD screen will be activated. The LCD screen will turn to normal display if all functions are normal. - Page 11 5 seconds. Using 5V Output USB outputs can be used directly to charge your devices. When the aviva L780 detects the load, the USB icon ( ) on the LCD screen will be activated. The aviva L780 has both USB-A and Type-C ports, that can recharge a variety of devices.
- Page 12 Using 12V DC Output 12V DC outputs can be used directly to charge your devices. When the aviva L780 detects the load, the DC icon ( ) on the LCD screen will be activated. Our product has two separate 12V DC outputs, with the same output power.
-
Page 13: Lighting
LIGHTING The aviva L780 has 5 lighting modes: High bright (100% power), Normal (50% power), Energy saving (25% power), Emergency flash and SOS. Press the light button firmly to turn on/off the light, and press gently to shift between different modes. - Page 14 Following full re-charge times are based on ideal conditions: 40W Input 60W Input 80W Input 100W Input 120W Input aviva L780 33hrs-42hrs 20hrs-25hrs 17hrs-20hrs 13hrs-17hrs 10hrs-12hrs The above data is for reference only. The data will fluctuate...
-
Page 15: Warning States
WARNING STATES Item Buzzer Icon Display Causes Battery icon Flashes continuously when flashes battery capacity ≤5% Battery and AC AC output is locked when output icons battery capacity ≤5% flash buzzing sound every Battery and DC 3 seconds Use DC auto output when auto output and buzzing battery capacity ≤5%... - Page 16 DISPOSAL The aviva L780 must not be disposed as household waste. To improve the environmental management of WEEE and to contribute to a circular economy, useful raw materials can be recycled and reused to protect the environment. Please...
-
Page 17: Troubleshooting
Solutions Under-voltage Charge the aviva L780. Protection Remove the loads and recharge Power-up Failure Abnormal Load the aviva L780. If the problem Protection can not be solved, ask for customer service. Product Failure Contact aviva Customer Service. Unmatched Only use the authorized charger. -
Page 18: Attention
ATTENTION The aviva L780 may be used to charge your devices within the temperature range of -10C to 45C. Do not use in environments outside of the recommended temperature range. Recharge the aviva L780 only within the temperature range of 0 C-45 C. -
Page 19: Safety And Maintenance
Do not drop, nor place heavy objects on or strike the product with force. Do not cover this product with objects, such as towels or clothing during use. Do not charge longer than the time required to charge this product. Unplug devices from the aviva L780 once fully charged. -
Page 20: Warranty Statement
Remedy: aviva Power will repair or replace (at aviva’s option) any aviva product that fails to operate during the applicable warranty period due to defect in workmanship or material. If a valid... - Page 21 Exclusions: aviva’s warranty does not apply to (I) any product that is misused, abused, modified, damaged by accident, or used for anything other than normal consumer use as authorized in aviva’s current product literature, or (II) any product purchased through an online auction house. aviva’s warranty does not...
- Page 22 AND STRICT LIABILITY) OR UNDER ANY OTHER THEORY OF LIABILITY, EXCEED THE AMOUNT PAID BY YOU FOR THE AVIVA PRODUCT. Some states or provinces do not allow the exclusion or limitation of incidental or consequential damages, so the above limitation or exclusion may not apply to you.
- Page 23 The information contained herein is subject to change without notice. The only warranties for aviva products and services are set forth in the warranty statements accompanying such products and services. aviva shall not be liable for technical or editorial errors or omissions contained herein.
- Page 24 www.avivapower.com...
