- Page 1 P A S S P O R T A C h S - 1 V E R S I O N 3 . 0...

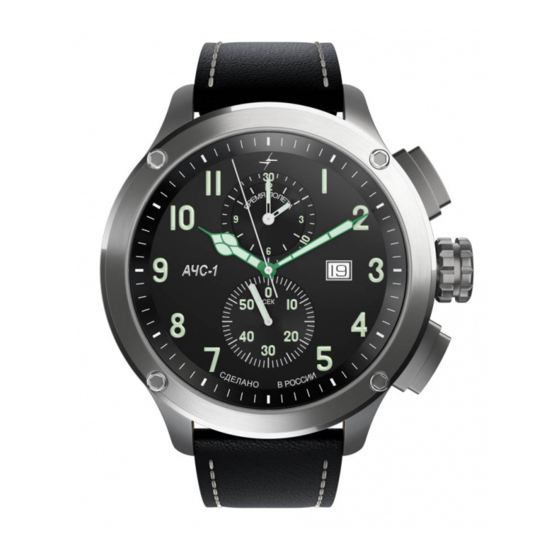

- Page 2 1 – hour hand 6 – minute counter 2 – minute hand 7 – hour counter 3 – second hand 8 – stopwatch 4 – date 9 – control button A 5 – winding crown 10 – control button B...
- Page 3 DESCRIPTION, FUNCTIONS AND DISPLAYS AChS-1 3.0. is a watch with a chronograph function with a quartz movement. 1. TIME SETTING А А В В Pull out the winding crown to position III (the watch will stop). Turn the crown until the correct time is set at 08:45.
- Page 4 CAUTION To set the time within the accuracy of a second, it is necessary: To pull the crown out to position III when the second hand is at 60. As soon as the hour and minute hands are in the correct position, position, position,...
- Page 5 Turn the crown counterclockwise until the correct date appears in the window. Return the crown to position I. CAUTION When setting the date between 8.30 p.m. and midnight, the next day’s date must be set. Setting the date / time А...
- Page 6 Pull the crown out to position II (the watch continues to operate). Turn the crown counterclockwise until setting yesterday’s date 3. А А В В Pull the crown out to position III (the watch stops). Turn the crown until the correct date is set 4. Continue turning the crown until the correct time is set at 8:30 p.m.
- Page 7 ** please ensure that the a.m. / p.m. mode is observed when setting the time. 3. CHRONOGRAPH USE Chronograph: basic functions А А В В Start / Stop / Reset Example: Start: Press Button A. Stop: To stop the count, press Button A again and read the chronograph reading for 4 hours/20 minutes/38 seconds.
- Page 8 Chronograph: adding time intervals А А В В Example: Start: (Start time count). Stop: (e.g., 15 min 5 sec, then step Stop: (e.g., 15 min 5 sec, then step Stop: (e.g., 15 min 5 sec, then step Restart: (count resumed). Stop: (e.g.
- Page 9 CAUTION * If you repeat step 4, the time intervals will continue to add if you continue to press the A Button. (Restart/Stop, Restart/Stop, ...). Chronograph: timespan or interval counting А А В В Example: Start: (begin the count). Displays the time interval: e.g. 20 min. 17 sec. (the count will continue in the background).
- Page 10 Stop: (the stop time is displayed). Reset: chronograph hands will return to their original position. CAUTION * Step 3 The following intervals or time spans can be displayed when button B is pressed again (displaying the interval/locking the measured time...). 4.
- Page 11 Example: One or more of the chronograph hands are in the wrong (other than zero) position and must be corrected (e.g. after replacing the battery). Pull the crown out to position III (all chronograph hands are in the correct or incorrect (other than zero) position). Hold down Button A and Button B for at least 2 seconds simultaneously (the stopwatch hand rotates 360 degrees: the adjustment mode is activated).
- Page 12 INSTRUCTIONS FOR USE, CARE AND STORAGE 1. WATER RESISTANCE AChS-1 3.0. is 5 ATM water resistant, this marking is conditional and means a pressure of 5 atmospheres the watch may withstand. These watches are resistant to splashes, rain, you can wash your hands wearing them.
- Page 13 the battery life. At the end of its service life, the battery must be removed immediately and replaced in an authorized service center. 3. CARE We recommend that you clean your watch regularly (except for the leather strap) with a soft cloth moistened with warm soapy water. 4.
- Page 14 sprayers, adhesives, paints, etc. Chemical reactions caused by these materials can destroy the gaskets, the case and the polish of the watch. The sapphire crystal is strong enough, but it may crack if the watch falls or receives shock. Avoid storing your watch with precious jewellery, as diamonds can damage sapphire crystal.
-
Page 15: Technical Specifications
TECHNICAL SPECIFICATIONS Case diameter 48 mm Case material 316L Steel Strap width 22 mm Glass type Sapphire crystal Movement Ronda 3520.D quartz Accuracy -10/+ 20 seconds per month Battery life up to 54 months... -
Page 16: Warranty
WARRANTY In accordance with the Decree of the Government of the Russian Federation No. 471 from 27.05.2016 «On amendments to certain acts of the Government of the Russian Federation on the return or exchange of technically sophisticated goods», this product is categorised as a technically sophisticated, and therefore, the buyer does not have the right to demand a free replacement for the repair period or a demand it be replaced with a similar product, and the buyer does... -
Page 17: Limitations And Restrictions
identical specifications. Repairs should only be carried out in authorized service centers. The contact details for authorized service centres are provided by authorized sales representatives. LIMITATIONS AND RESTRICTIONS The warranty does not cover: Battery life; glass and strap; defects in the watch caused by its use (e.g. scratches on the glass, changes in colour and/or material of non-metallic belts and bracelets, etc.);... -
Page 18: Warranty Card
WARRANTY CARD All warranty claims for repairs must be accompanied by a warranty card which has been filled out by both the buyer and the vendor who sold the watch. SERIAL NUMBER SALE DATE SELLER Name of the seller organization Address and phone number of the seller organization L.S. - Page 19 Name of the authorized service center The following steps have been taken in troubleshooting: Employee Date of the service center (Signature, full name) (Signature, full name) Owner Date (Signature, full name) (Signature, full name)
- Page 20 +7 (351) 700-13-80 +7 (351) 700-13-79 454091, Russian Federation, Chelyabinsk, Tsvillinga Street, 25 marketing@molnija-ltd.ru www.molnija-ltd.ru www.molnija.shop...
