Summary of Contents for Worx WA0863
- Page 1 WA0863 (compatible with Landroid models WR130E/WR141E/WR142E/WR143E/WR153E/WR) WA0892 (compatible only with Landroid L1000 model WR147E)
-
Page 2: Table Of Contents
Table of contents TABLE OF CONTENTS Welcome p. 03 Contact information Safety first p. 04 Important safety instructions Get familiar with p. 05 What’s in the box p. 06 How it works Getting started p. 07 Installation Quick reference p. 15 Trouble shooting p. -
Page 3: Welcome
Welcome Thank you for purchasing a Worx Off Limits. We’re here to help: Support www.worx-europe.com/support Landroid Owner’s Site https://account.worxlandroid.com/login... -
Page 4: Safety First
Safety first WARNING: Read all safety warnings and all instructions. Failure to follow the warnings and instructions may result in electric shock, fire and/or serious injury. Carefully read the instructions for the safe operation of the machine. Save all warnings and instructions for future reference. Symbols Warning Read the operator’s manual. -
Page 5: Get Familiar With

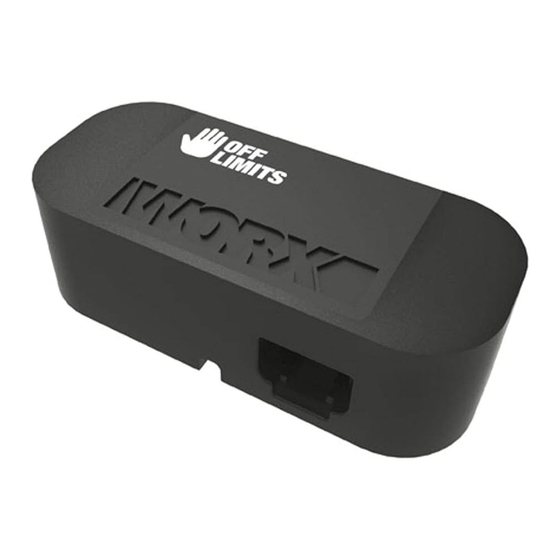

Get familiar with WHAT’S IN THE BOX 8 connectors 4 magnetic strip coils 24 pegs Off Limits module... -
Page 6: How It Works
Get familiar with HOW IT WORKS The Off Limits option allows you to define a no-mow zone in your lawn without using the boundary wire. Laying out an island in the middle of the garden, far away from the borders, can often be complicated, and it usually requires a great length of wire. -
Page 7: Getting Started
Before proceeding with the installation please make sure your Landroid’s firmware is updated to the last version. For more information on firmware upgrade please refer to the “Maintenance” section of the Landroid-o-pedia (https://support.worx-europe.com). Follow the steps below according to the Landroid model you own... - Page 8 11.The Off Limits icon is now active. Touch it to see the status magnetic strips! and to activate/disactivate the option. If the Status shows Avoid lying the magnetic strip in areas where Landroid “error” contact our support team at https://support.worx-eu- can slip (eg. areas with slopes). rope.com...
- Page 9 Getting started Landroid M 700 (WR142E) Landroid M 1000 (WR143E) 2. Remove Landroid blades using a screwdriver – wear gloves to 1. Turn off Landroid avoid injury 4. Plug the cables of the Off Limits until you hear a “click” and insert 3.
- Page 10 11.The Off Limits icon is now active. Touch it to see the status magnetic strips! and to activate/disactivate the option. If the Status shows Avoid lying the magnetic strip in areas where Landroid can “error” contact our support team at https://support.worx-eu- rope.com slip (eg. areas with slopes).
- Page 11 Getting started Landroid L1000 (WR147E) 1. Turn off Landroid 2. Remove Landroid blades using a screwdriver – wear gloves to avoid injury CLICK! 3. Take out the slot cover using a screwdriver 4. Plug the cables of the Off Limits until you hear a “click” and insert the module in its slot 5.
- Page 12 11. The Off Limits icon is now active. Touch it to see the sta- magnetic strips! tus and to activate/disactivate the option. If the Status shows Avoid lying the magnetic strip in areas where Landroid can “error” contact our support team at https://support.worx-eu- rope.com slip (eg. areas with slopes).
- Page 13 Getting started Landroid L 1500 (WR153E) Landroid L 2000 (WR155E) 2. Remove Landroid blades using a 1. Turn off Landroid screwdriver – wear gloves to avoid injury 4. Plug the cables of the Off Limits until you hear a “click” and insert 3.
- Page 14 11. The Off Limits icon is now active. Touch it to see the sta- magnetic strips! tus and to activate/disactivate the option. If the Status shows “error” contact our support team at https://support.worx-eu- Avoid lying the magnetic strip in areas where Landroid can rope.com...
-
Page 15: Quick Reference
Quick reference Troubleshooting ® Make sure your Off limits module is securely installed and follow the actions below if your Landroid does not operate correctly. If these do not identify and correct the problem, please go to https://account.worxlandroid.com/, access your profile and open a ticket using the form. -
Page 16: Declaration Of Conformity
Declaration of Conformity Positec Germany GmbH Grüner Weg 10, 50825 Cologne, Germany Declare that the product Description Fence module Type WA0863 Function Area isolation Complies with the following Directives: 2014/30/EU, 2011/65/EU & (EU)2015/863 Standards conform to EN 55014-1, EN 55014-2...
