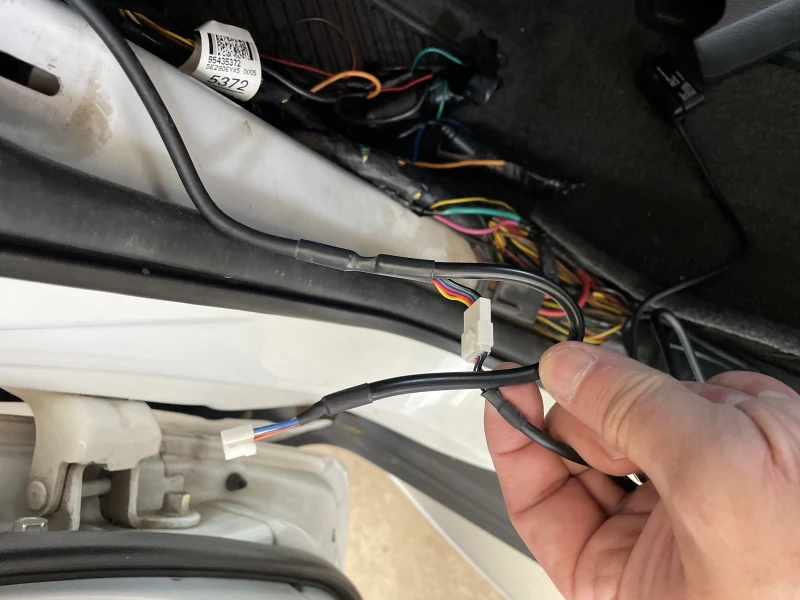

Здравствуйте. Есть еще один свободный штекер. Его нужно куда нибудь подключать? Автомобиль Шевроле Каптива 2015г

Summary of Contents for Motrex H100

Page 1 (Head Up Display) User Manual...
Page 2: Table Of Contents
▣ Before use (HUD, OBD) 1. Components｜5 ※ MOTREX HUD Main Body Buttons 2. HUD Installation｜7 3. MOTREX HUD APP Installation & HUD Connection｜10 4. WAZE APP Installation｜10 5. WAZE Navigation｜11 6. MOTREX HUD APP Settings｜12 1) Car information settings...
Page 3 ▶ The power for MOTREX HUD H100 is supplied through OBD Ⅱ. - If the car model is supported by OBD II, the car setting can be established in MOTREX HUD APP. ·Ask the seller or the installer for the types of car models supported.
Page 4 Checklist Before Use - OBD ▶ For the OBD Ⅱ setting, the car must be fully started and MOTREX HUD APP must be launched. (Setting cannot be modified under ACC ON or KEY ON status.) ▶ Please reenter and save the car information after an OBD Ⅱ firmware or DB file update.
Page 5: Components｜5
1. Components HUD （main body) Angle-Adjustable cradle Fixed cradle HUD main cable OBD ll module Fixing clip (Head Up Display) User Manual User manual 5 ■...
Page 6: Motrex Hud Main Body Buttons
** It automatically turns on when starting up the car (ACC ON) and off when the engine turns off (ACC OFF). ※ When the HUD auto-start is not selected on MOTREX HUD APP ** The user can manually turn on/off with the power button.
Page 7: Hud Installation｜7
When the first OBD module is connected to the vehicle, the HUD will illuminate for 10 minutes. Please set up the vehicle in the MOTREX HUD APP. The HUD APP automatically switches off after 10 minutes without having to set up the vehicle, after which the HUD must be switched on.
Page 8 4) Connect the HUD main cable to the HUD. (When connecting the HUD main cable, make sure the thicker part does not get inside the place for the cables as shown in the image below.) 5) Attach the HUD on the dashboard. (Install the HUD on the cradle and remove the 3M tape to attach the HUD on the dashboard.) (Choose the cradle of your preference between the adjustable type and the fixed type.) Adjustable Type...
Page 9 7) Connect the OBD module to the OBD terminal. 8) Connect the OBD module with the HUD main cable. 9 ■...
Page 10: Waze App Installation｜10
1) Open App Store (iOS) or Google Play Store (Android) on the smartphone. 2) Search for “MOTREX HUD”. 3) Download and install MOTREX HUD APP from App Store (iOS) or Google Play Store (Android). 4) Open MOTREX HUD APP. 5) Install MOTREX HUD APP and use Bluetooth to connect the smartphone with HUD.
Page 11: Waze Navigation｜11
4) Type in the destination. 5) Search for the route and press Start Navigation to start the guide. ※ The car information setting must be completed in MOTREX HUD APP to use HUD. ※ Both MOTREX HUD APP and WAZE APP should be installed on the smartphone.
Page 12: Motrex Hud App Settings｜12
6. MOTREX HUD APP Settings MOTREX HUD HUD-related settings Start the WAZE Navigation application. Car information settings When auto start is enabled, WAVE Navigation starts automatically when MOTREX HUD turns on. See the software version, user manual, and firmware updates.
Page 13 (Select the first file) click SET ※ Visit the MOTREX website to check which car models are supported by OBDⅡ. ※ Please set the vehicle to OBD II Standard for use if it is not in the vehicle settings. (It is limited to Hyundai and Kia vehicles.)
Page 14 Click “Yes” on the pop-up Uploading to upload OBD file OBD car setting Vehicle information completed update is complete ■ 14...
Page 15 2) OBD information correction Select Car info Settings If you do not have a vehicle on the OBD II supported vehicle list, you can use it by entering the OBD II Standard information. After OBDⅡ setting, the adjustment value can be modified if the speed, fuel consumption shown on the dashboard while driving are significantly different.
Page 16 3) HUD settings Select HUD Settings When brightness is set to Auto, the display brightness is adjusted automatically with the illumination sensor. Between -10% and +10%, additional adjustment can be made to the current brightness level. When Auto is not selected, the user can manually adjust the brightness from 0% to 100%. *Setting the brightness to 100% always instead of selecting the auto brightness control may shorten the life of the display.
Page 17 Set the background image for booting. When set to Auto, it changes according to the date on the phone. Select the unit of distance to be shown on HUD Select whether to auto start HUD. When selected, HUD automatically turns on when the car starts. * For HUD setting and navigation information, launch HUD APP and enter the destination for navigation.
Page 18 Set whether to show the battery charge rate on the display. When checked, the battery charge rate shows on the display. * Battery voltage is displayed for non-IBS cars. Set whether to use average fuel efficiency. An arbitrary number is shown on the display i nstead of the user information.
Page 19: Display ｜19

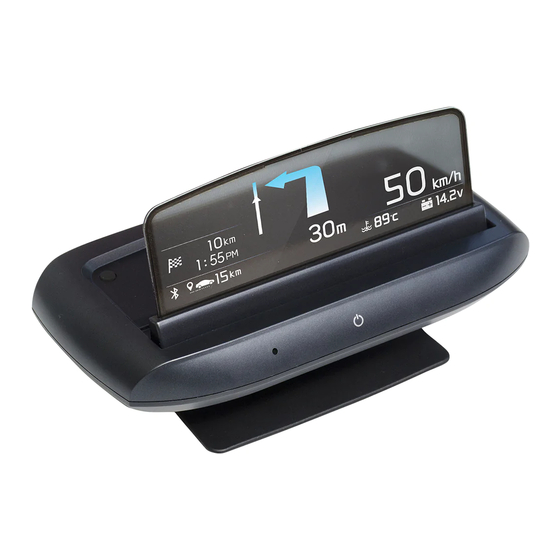

7. Display [With destination setting] 1. Navigation - Distance to the primary point 2. Remaining distance 5. Driving distance/driving time time 6. Gas (warning): Possible distance /DPF status to drive or remaining gas Coolant temperature: -40 to 150 4. Bluetooth connection 7.
Page 20 Car speed Average fuel efficiency - When traveling less than 1km after ignition, it is shown as “-- km/L” * Displayed as “--” for electric cars (not supported) ※ Change the usage option and values in MOTREX HUD APP. ■ 20...
Page 21 [Without destination setting] Car speed Driving distance/driving time Gas (warning): Distance to empty or /DPF status remaining gas Coolant temperature: -40 to 150 Bluetooth connection IBS car: Charge rate Average fuel efficiency non-IBS car: Battery voltage ※ Information on display may vary depending on the car model. 21 ■...
Page 22 · MOTREX website : www.motrex.co.kr ▶ Android (1) Connect the mobile phone with the computer. (2) Put downloaded OBDⅡ firmware file into the H100 folder on the mobile phone. (3) Disconnect the mobile phone from the computer. (4) Type in the destination.
Page 23 Click Software Click FIRMWARE Select “Yes” UPDATE on the pop-up for update Firmware update is Pop-up closes once Updating firmware complete the firmware update is completed. HUD is disconnected and restarts. ※ Keep the smartphone near HUD and keep the engine going during the update. ※...
Page 24 ▶ Android (1) Connect the mobile phone with the computer. (2) Put downloaded OBDⅡ DB file into the H100 folder on the mobile phone. (3) Disconnect the mobile phone from the computer. (4) Start the car and launch MOTREX HUD APP.
Page 25 Enter the car Click on Car info Select CAR SETTING Select DB file information Settings (Select the first file) and click SET Click “Yes” on the Uploading OBD file Vehicle information OBD car setting update is complete completed pop-up to upload 25 ■...
Page 26: Firmware Update｜26
2) Enter “MOTREX HUD” in the search box. 3) Update the app on App Store (iOS) or Google Play Store (Android). ※ If there is an update, the update button for MOTREX HUD APP on App Store (iOS) or Google Play Store (Android) becomes active.
Page 27 ※ If firmware update is enabled after updating the MOTREX HUD APP in the APP store(iOS) or Google Play store(Android), please proceed with firmware update. ※ The update order is in the order of Micom and OBD II.
Page 28: Product Specifications And Other Information｜28
Wireless connec- tion method Power 12V only (OBDⅡ connection) HUD application MOTREX HUD (iOS 10.0 or higher / Android 5.0 or higher) Interlocked mobile WAZE (iOS 10.0 or higher / Android 5.0 or higher) navigation Temperature for -20 to 70 degrees...
Page 29 2) FCC regulations FCC Warning This equipment has been tested and found to comply with the limits for a class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residental installation. This equipment generates, uses and can radiate radio frequency energy and, if nor installed and used in accordance with the instructions, may cause harmful interference to radio cummunications.
Page 32 (Head Up Display) User Manual...
