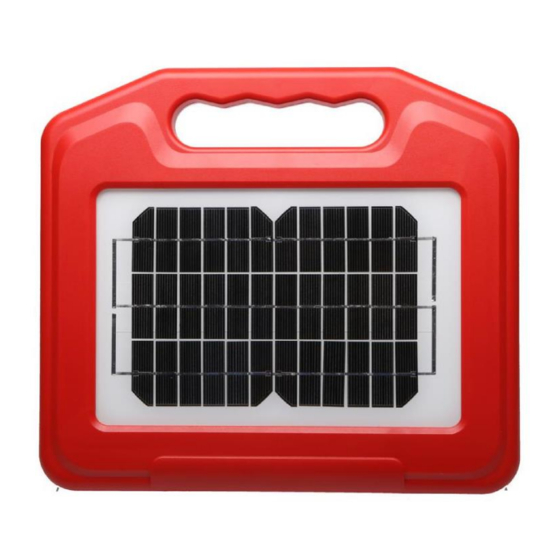

- Page 1 Operating Instructions Solar Fence Energizer 580580477, 580580478, 580580481 These Operating Instructions must be read thoroughly before use, and followed. These Operating Instructions must be retained for future reference. Translation of the original operating instructions...
-
Page 2: Table Of Contents
Operating Instructions Solar Fence Energizer 580580477, 580580478, 580580481 Table of contents About these operating instructions and symbol descriptions ........3 Safety instructions ....................3 Technical specifications ..................5 Installation instructions ..................6 Operating the Solar fence energizer ............... 7 Maintenance of the Solar fence energizer ............... 8 Troubleshooting and maintenance ................. -
Page 3: About These Operating Instructions And Symbol Descriptions
Operating Instructions Solar Fence Energizer 580580477, 580580478, 580580481 About these operating instructions and symbol descriptions The information in these Operating Instructions is labelled as follows: Improper use can lead to severe injury or death. Improper use or negligence can lead to injury, damage to the equipment, or false measurement results. - Page 4 Operating Instructions Solar Fence Energizer 580580477, 580580478, 580580481 An electric fence may not be supplied by two different Solar fence energizer s or independent connections from a single fencer. If two separate electric fences are used, each supplied by a separate Solar fence energizer, the interval between the wires of the two fences must be at least 2.5 m.
-
Page 5: Technical Specifications
Operating Instructions Solar Fence Energizer 580580477, 580580478, 580580481 Fig. 1 The legend or symbol must be permanently printed on both sides of the sign and be at least 25 mm high. The operator of the electric fence must ensure that all additional devices connected to the fence that are operated by grid power have sufficient insulation between the electric fence circuit and the supply grid. -
Page 6: Installation Instructions
Operating Instructions Solar Fence Energizer 580580477, 580580478, 580580481 Installation instructions Installing the battery: 1. Place the unit on a level surface. Open the battery compartment with a screwdriver (see Fig. 4). 2. Insert the battery. 3. Connect the positive wire (red) to the positive pole (+) of the battery. -
Page 7: Operating The Solar Fence Energizer
Operating Instructions Solar Fence Energizer 580580477, 580580478, 580580481 Abb. 6 Connecting the electric fence 1. Drive a 1 m grounding rod almost all the way into the ground. 2. Connect the black cable of the Solar fence energizer’s ground connection to the grounding rod. -
Page 8: Maintenance Of The Solar Fence Energizer
Operating Instructions Solar Fence Energizer 580580477, 580580478, 580580481 Alternatively, the battery can be disconnected and charged with a charger, and then put back in and reconnected. Battery Information The solar panel can fully charge an empty battery in three days if it is connected and there is enough sunlight. -
Page 9: Troubleshooting And Maintenance
Operating Instructions Solar Fence Energizer 580580477, 580580478, 580580481 Troubleshooting and maintenance Fault / Problem Solution / Action Make sure all connections and the fence and ground connections are tight and in good condition. If necessary, remove corrosion and tighten the connections. -
Page 10: Environmental Protection And Disposal
Operating Instructions Solar Fence Energizer 580580477, 580580478, 580580481 Environmental protection and disposal The separate, environmentally friendly disposal of materials encourages recycling of materials. Therefore, after expiry of the normal service life, the equipment itself and all related components, including the lubrication, packaging and wear parts, should be disposed of at a recyclables collection point. -
Page 11: Ec Declaration Of Conformity
The manufacturer, Wilhelm Fricke SE Zum Kreuzkamp 7 DE-27404 Heeslingen hereby declares on its sole responsibility that the Solar fence energizers Type/series identification: 580580477, 580580478, 580580481 are in conformity with the provisions of 2014/30/EU Directive on electromagnetic compatibility 2011/65/EU Directive on the restriction of the use of certain hazardous... -
Page 12: Warranty
Operating Instructions Solar Fence Energizer 580580477, 580580478, 580580481 10 Warranty The warranty terms of Wilhelm Fricke SE, as can be found in the sales documents and the current version of the Terms and Conditions, apply. In case of questions, please contact the company's customer service line.
