Summary of Contents for CAB HYBRA 24

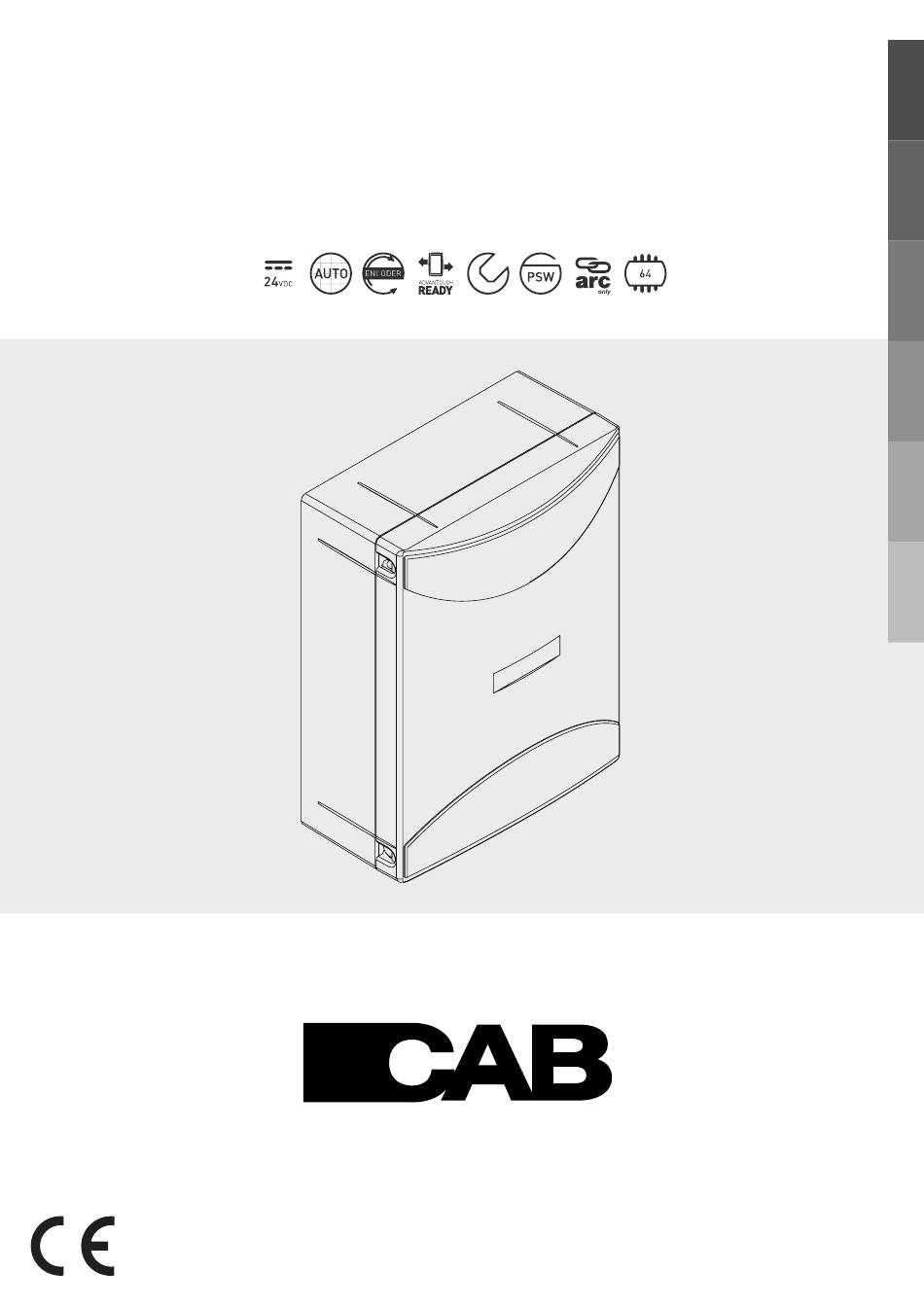

- Page 1 L8543262 02/2020 rev 1 HYBRA 24...
- Page 2 EXT. BOX 2x12V Battery (Optional) POWER INPUT SELECTION 230Vac 115Vac LD 1 100÷250 Vac SAR.24V + BAT F2 (T4A) - BAT AUX2 34 35 36 37 24Vdc JMP1 BAR Close DAS 8K2 JMP1 DAS Open DAS N.C. 26 27 28 29 30 31 32 33 4 5 6 7...
- Page 3 Collegamento ENCODER HD 3524/5024 ENCODER WIRING HD 3524/5024 ENCODER-Verkabelung HD 3524/5024 Câblage de ENCODER HD 3524/5024 Cableado del ENCODER HD 3524/5024 ENCODER okablowania HD 3524/5024 HYBRA24 ENC1 ENC2 26 27 28 29 30 31 4 5 6 ENC- Bianco White Weiß Blanc Blanco Biały Verde Green Grün Vert Verde Zielony ENC+ Marrone Brown Braun Brun Marrón Brązowy...
- Page 4 AUX2: SERVICE/ZONE LIGHT AUX1: SERVICE/ZONE LIGHT AUX2:2 AUX1:2 Service Light Service Light Service/Zone 24Vdc Light 500mA max Relè 24Vdc 230Vac Service/Zone Light 24Vdc 230Vac 500mA max AUX1:3 AUX2:3 Zone Light Zone Light AUx1:4 AUx1:4 test1:on test2:ON AUX1 AUX1 24Vdc PHOT 24Vdc PHOT-C 9 10...
- Page 5 Schema menu di programmazione - Menu programming layout Display OFF Diagramm Programmiermenü - Menu de programmation Menú de la carta de programación - Układ menu programowania Power ON v1. 0 0 irmware Ver. (3s) 8888 Diagnostic tped tsm1 ibca tsm2 spd1 spd2 sld1...
- Page 6 RADI PUSH PUSH PUSH PUSH Nman 0012 3456 MACI AUTO 2 Cycle PUSH OPEN/CLOSE RE-ENTER CODE 0000 9000 9C5a conf CODE Display OFF Legenda Premere il tasto (-) / Press key (-) / Die Taste (-) drücken Appuyez sur la touche (-) / Presionar la tecla (-) / Wcisnąć przycisk (-) Premere il tasto (+) / Press key (+) / Die Taste (+) drücken Appuyez sur la touche (+) / Presionar la tecla (+) / Wcisnąć...
-
Page 7: Technical Data
WARNING GENERAL INFORMATIONS The product shall not be used for purposes or in ways other than those for which the product is intended for and as described in this manual. Incorrect uses can damage the product and cause injuries and damages. The company shall not be deemed responsible for the non-compliance with a good manufacture technique of gates as well as for any de- formation, which might occur during use. -
Page 8: Wire Diagram
Power supply selection WARNING: to use the central unit with 115V power supply, it is necessary to jumper this terminal. Output 24Vdc Controller HYBRA 24 power supply output 24 Vdc + 24V - Batteries Clamp input for connection of back-up batteries (accessory). -
Page 9: Encoder Wiring
MHz frequency. 2) ENCODER WIRING The HYBRA 24 central unit is to be used exclusively with the HD.3524/HD5024 series gear motors with encoder. For connecting the encoder to the central unit, refer to Fig.2. Although present, inputs for mechanical limit switches are not used. -
Page 10: Parameters (Par)
5) PARAMETERS, LOGIC AND SPECIAL FUNCTIONS The tables below describe the individual functions available in the control unit. 5.1 PARAMETERS (PAR) MENU FUNCTION MIN-MAX-(Default) MEMO Automatic closing time. Active only with logic “TCA”=ON. 1-240-(40s) At the end of the set time the control unit orders a closing manoeuvre. Adjusts the motor 1 opening percentage (pedestrian function). - Page 11 Select the operating mode of the auxiliary output AUX1 (Free Contact N.O.) 0: Open gate warning (SCA), indicates gate status: closed contact when gate open, open contact when gate closed, intermittent during operation (fig.3) 1: Second preset receiver radio channel (see radio menu - 2CH) AUX1 0-4-(0) 2: Courtesy light, the duration of the contact closure is adjustable by the TLS parameter (fig.4).
- Page 12 Enabled or disables HOLD-TO-RUN function On: HOLD-TO-RUN function. The pressure of the OPENS/CLOSES button must be maintained throughout the entire manoeuvre. (OFF) The opening of the STOP input stops the motor. All the safety inputs are deactivated, except for the Limit switch inputs /SW01/SW02/SWC1/SWC2). Off: Automatic/semiautomatic function The operating mode with 1 or 2 motors is selected: On: The motor operation is synchronised.
-
Page 13: Back Up Batteries
8) BACK UP BATTERIES The control unit HYBRA 24 includes the power pack SAR.24V predisposed for the connection in series of two batteries by 12Vdc 2,1Ah DA.BT2 (optional) which guarantee the regular functioning of the automation in case of temporary power failure. -
Page 14: Error Messages
9) DIAGNOSTICS SWO1 SWO2 One segment of the display is linked to each input. In the event of failure it switches on according SWC1 SWC2 to the following scheme. P.P. OPEN CLOSE N.C. inputs are represented by the vertical segments. N.O. inputs are represented by the horizontal segments. - Page 15 1. Presser les deux ailettes latérales pour 1. Premere le alette sui fianchi per décrocher les deux cache-vis. sganciare le due maschere copriviti. 2. Enlever les deux vis sur le côté 2. Rimuovere le due viti sul lato di apertura desiderato. d’ouverture désiré.
- Page 16 AUTOMATISMI CAB Srl - Via della Tecnica,10 (z.i.) - 36010 Velo d’Astico (VI) (Italia) - Tel. 0445 741215 - Fax 0445 742094 info@automatismicab.com - www.automatismicab.com...
