Nitecore LHH82 User Manual

IMPORTANT NOTICE CONCERNING WARRANTY SERVICE
Thank you for purchasing! Before using this product, please find your verification code on the package box, and go to http://charger.nitecore.com/
validation (or scan the QR code beside the verification code to visit on your mobile phone). Type in your verification code and personal information as
required, and submit the page. After verification, NITECORE will send you a warranty service email. This email and your registration email address are
essential to your possible warranty application. Before you complete the warranty service registration, you cannot enjoy our warranty service for your purchase.
Brief Introduction
The LHH82 is a lens heater specially designed for camera lenses with a filter
size of 72~82mm to protect it from fogging and blurring the images. It is
equipped with an intelligent thermal control module to warm up the lens to
a temperature of approx. 45°C (113°F). It is powered by an external USB
power supply and withstand an extremely low temperature of -40°C (-40°F).
It has 4 heating zones with hook-and-loop design for quick installation and
dismount in various environments.
Technical Specifications
Input 5V⎓2A (MAX)
Input Port USB-C
Operating Temperature -40°C~40°C (-40°F~104°F)
Heating Temperature 45±5°C (113±9°F)
Camera lenses with a filter size of 72~82mm
Compatible with
Including Canon EF 70-200mm f/2.8L IS III USM and more
Main Materials 1680D Nylon
Zone 1: φ85mm (φ3.35")
Dimensions
Zone 2~4: 394mm×168mm (15.51"×6.61")
Weight 190g (6.70oz)
Accessories USB Charging Cable (USB-A to USB-C, 1.5m)
Note:
1. The heating temperature is tested in NITECORE Lab for reference only.
The data may vary in real world use due to different environmental
conditions.
2. Please refer to the filter size for more compatible models.
Operating Instructions

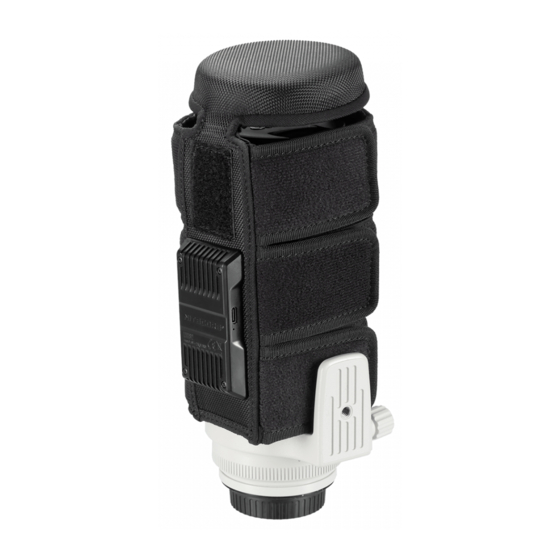

As illustrated, after wrapping up the camera lens, use the USB cable to
connect an external power supply (e.g. a power bank or other USB charging
devices) to the charging port to begin the heating process. After that, the
blue indicator beside the input port will turn on steadily.
• After connecting the power supply, the heating process will start
automatically without manual settings.
• The product will start to heat up Zone 2 first. After Zone 2 reaches
approx. 45°C (113°F), it will then start to heat up Zone 1, 3 and 4
simultaneously.
Warnings
1.
2.
3.
4.
5.
6.
7.
8.
9.
10. Please clean the product with a soft brush. DO NOT rinse it with water.
11. DO NOT leave the product unattended when it is in use. Stop using the
12. DO NOT disassemble or modify the device as doing so will render the
13. DO NOT misuse in any way! Use for intended purpose and function only.
Disclaimer
This product is globally insured. NITECORE shall not be held responsible or
liable for any loss, damage or claim of any kind incurred as a result of the
failure to obey the instructions provided in this user manual.
Warranty Service
All NITECORE
product can be exchanged for a replacement through a local distributor/
dealer within 15 days of purchase. After that, all defective / malfunctioning
NITECORE
from the date of purchase. Beyond 12 months, a limited warranty applies,
covering the cost of labor and maintenance, but not the cost of accessories
or replacement parts.
The warranty will be nullified if
1.
2.
※ All images, texts and statements specified herein this user manual are
SYSMAX Innovations Co., Ltd.
TEL: +86-20-83862000
E-mail: info@nitecore.com
Address: Rm 2601-06, Central Tower, No.5 Xiancun Road,
Thanks for purchasing NITECORE!
LHH82
Please read the user manual carefully before using the product.
Please use the USB charging cable included and high-quality power
banks to power the product. It is recommended to use official
NITECORE power banks (sold separately).
DO NOT use the product in an environment of -20°C (-4°F) or lower for
over 6 hours, as the USB charging cable could be damaged due to low
temperature.
Please connect the applicable external power supply only according to
the specifications in this user manual. Insufficient input power may lead
to malfunction of the product.
DO NOT expose the product in the rainy or moist environment. Keep it
away from any combustible material.
The product is only to be used by adults above 18 years old. Children
under this age must be supervised by an adult when using the product.
Please unplug the product when it is left unused.
DO NOT puncture the product.
DO NOT expose the product to corrosive liquid.
product at any sign of malfunction.
product warranty invalid. Please refer to the warranty section in the
manual for complete warranty information.
products are warranted for quality. Any DOA / defective
®
products can be repaired free of charge within 12 months
®
the product(s) is/are broken down, reconstructed and/or modified by
unauthorized parties;
the product(s) is/are damaged due to improper use.
For the latest information on NITECORE
contact a local NITECORE distributor or send an email to
®
service@nitecore.com
for reference purposes only. Should any discrepancy occur between
this manual and information specified on www.nitecore.com, Sysmax
Innovations Co., Ltd. reserves the rights to interpret and amend the
content of this document at any time without prior notice.
Please find us on facebook: nitecorephotoaccessory
FAX: +86-20-83882723
Web: www.nitecore.com
Tianhe District, Guangzhou, 510623, Guangdong, China
LENS HEATER
USER MANUAL
products and services, please
®
Made in China
LHH07048221
