SOLDERING SYSTEM
FA-1000
Better soldering operation time and quality
Operator
(Manual soldering)
Assembling
Operator does all
the work
work.
Operator
Assembling
Operator in charge
the work
of assembling
components.
Robot
Soldering
Robots bear
soldering which
needs skill.
Operator and robot divide the work and operate simultaneously
Does not rely on the operator's soldering skills
series
1 tact
Attaching
Detaching
Assembling
Soldering
the work
from jig
the work
to the jig
Shorter
Shorter
Attaching
Attaching
Assembling
the work
the work
the work
to the jig
to the jig
Soldering
Configuration Guide
1 tact
Attaching
Detaching
Soldering
the work
from jig
to the jig
Shorter
Shorter
High efficiency/Lower costs
g
High quality solderings
g
Manual Soldering
Approx. 10 mm
Robot Soldering
Soldering of even amount
Advertisement
Related Manuals for Taiyo Electric FA-1000 Series
Summary of Contents for Taiyo Electric FA-1000 Series

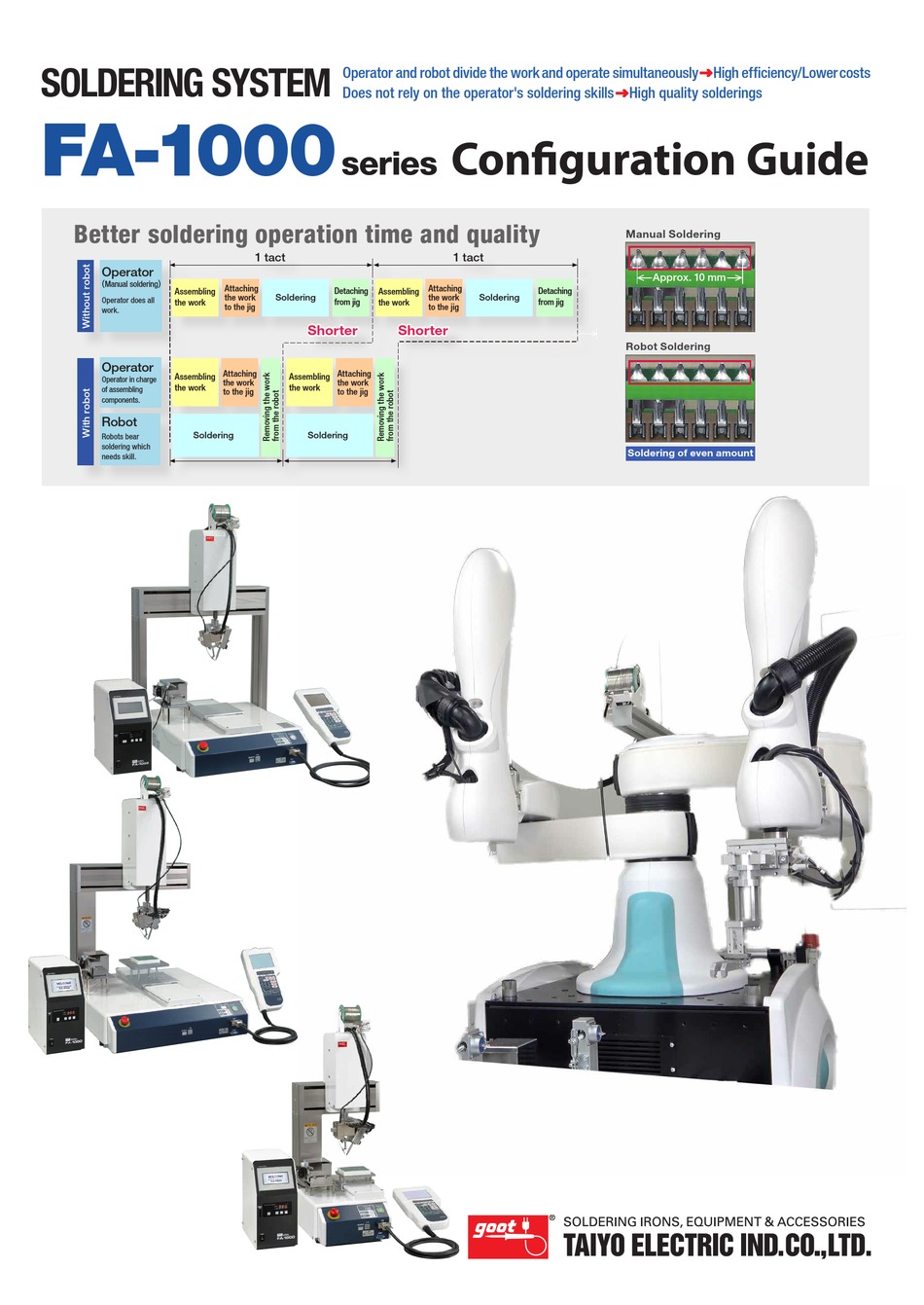

- Page 1 SOLDERING SYSTEM Operator and robot divide the work and operate simultaneously High efficiency/Lower costs Does not rely on the operator's soldering skills High quality solderings FA-1000 Configuration Guide series Better soldering operation time and quality Manual Soldering 1 tact 1 tact Operator Approx.
-
Page 2: Control Unit
Economical Soldering System Desktop Soldering System FA-1000 series • Compact tip with integrated heater gives accurate tip temperature and better running cost. RoHS • The direct heat effect from the heater is eliminated by miniaturizied sensor. • The rise time and heat recovery time of the tip are significantly reduced by winding the heater like a coil, without gaps, and placing a small sensor near the end of the tip. - Page 3 Soldering System Control Unit Solder Feeder Unit Soldering Unit V-Groove Unit Solder Reel Holder Air Blow Cleaner Example of customization Mechanical Tip Correcting Unit Easy detection and correction of tip position. (PAT.P) recognition Positioning Camera mark Monitor display Calibration Features Calibration pin Dual Head Configuration Positioning Camera (Optional)
- Page 4 Desktop Soldering System FA-1000 Units in Standard Configuration series Functions required for automatic soldering are sold as separate units. Lower price point can be realized by purchasing necessary units separately. ■ Control Unit ■ Soldering Unit FA-1000 FA-1000SD (Tip not included) High performance control unit.
-
Page 5: Related Products
■ Diagonal Driver • Reduced oxidation of soldered part and soldering tip. FA-1000SL • Improved spreading of solder wettability and cutting Soldering of solder. The up and down strokes of the FA-1000SD (Soldering ■ N Nozzle unit) are air-driven. FA-1000PH Up/Down detection sensor. - Page 6 Desktop Soldering System FA-1000 Guide to Module Selection (FA-3000 series) 1. Control Unit 1) FA-1000 About Optional Functions Memory Card Reader / Writer FA-1000 is the product code of the Control You can save soldering configurations on memory cards. Unit only. Very useful to copy the data to other FA-1000 Control Units and also to backup.
- Page 7 3. Choose Robot Configuration FA-3204 FA-3304 FA-3404 *Gate type also available. JANOME 3-Axis JANOME 4-Axis Model Please ask us details. FA-V2203 FA-V2303 FA-3204 FA-3304 FA-3404 Shape Cantilever type Gate type Cantilever type Gate type Cantilever type* X, Y-Axis (mm) 200×200 300×320 200×200 300×320...
- Page 8 Desktop Soldering System FA-1000 Guide to Module Selection (FA-3000 series) FA-10HRT-1.6D FA-10HRT-1.6D FA-1 FA-10HRT-2.4D FA-10HRT-2.4D FA-10HRT-3.2D FA-10HRT-1.6D FA-10HRT-4C FA-10HRT-2.4D FA-10HRT-3.2D FA-10HRT-0.8W 6. Replacement Tips FA-10HRT-0.8W *These are our standard tips. Custom tips available in small to large quantities. FA-10HRT-2PC FA-10HRT-0.8W FA-10HRT-0.8W FA-10HRT-0.8W 1.6D...
- Page 9 FA-1000 System Standard Specifications Rated Voltage AC 110-120V, 220-240V 50/60Hz Power Consumption 170–200 W Number of Soldering Programs 256 programs Tip Temperature Range 50−450˚C Tip Temperature Preset 6 settings Control Unit FA-1000 Input Air Pressure Dry Air 0.4 –0.5 MPa Heater break / Temperature sensor break / Solder Alarm Display clogging / Solder lacking etc.
- Page 10 JULY 2019...
