ENGLISH

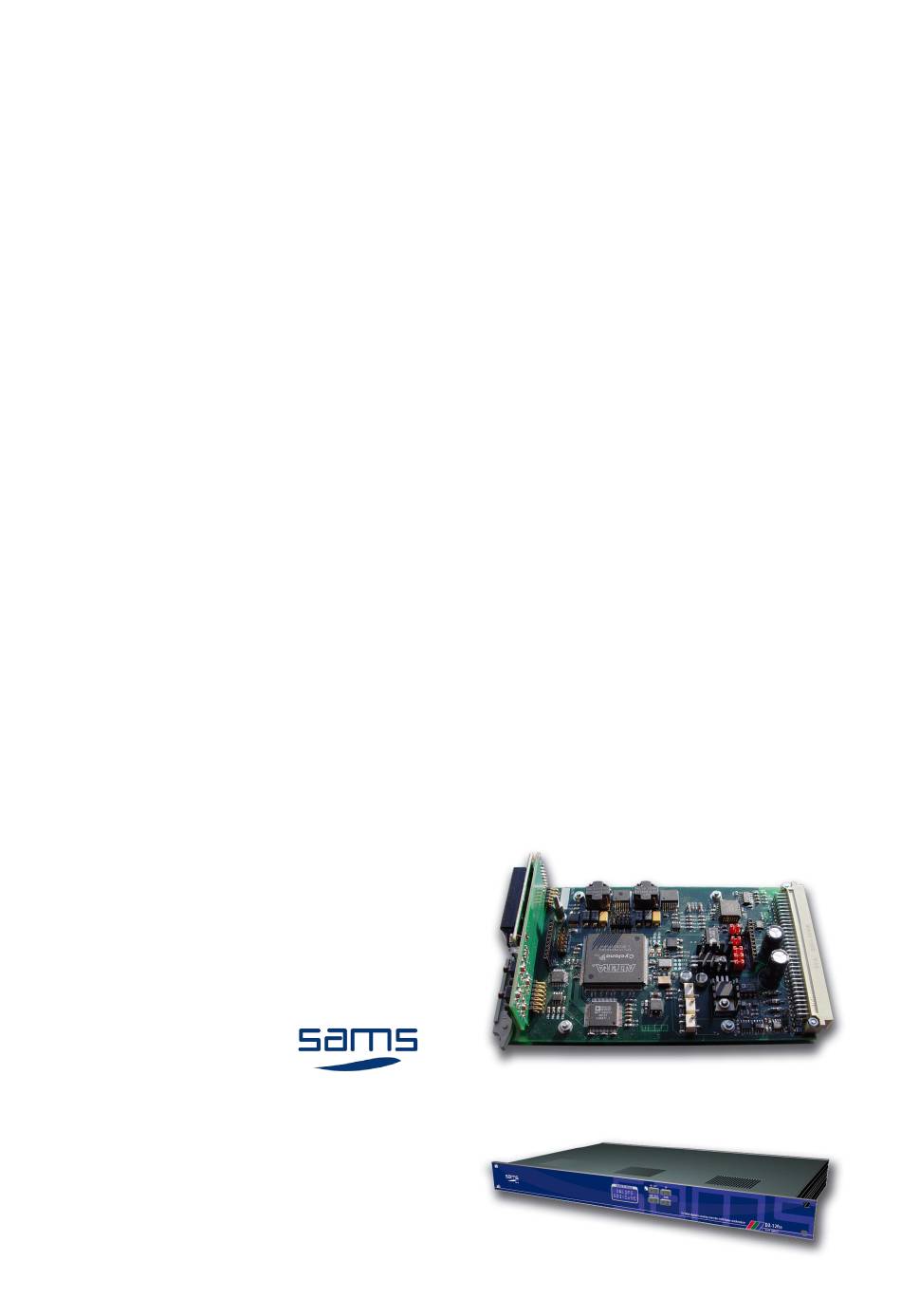

Z10-3 edition 1
Code: 005.130
005.112
DA-12fs(s)
SDI to analog video converter with
FSync 12/10 bit
- for SRU rack frame
- standalone
USER MANUAL FOR USE AND MAINTENANCE
Read the instructions before using the device.
Keep this manual for periodic usage.
Sams elektronik d.o.o.
48 Zivka Davidovica st.
11050 Belgrade
Serbia
Tel/Fax: +381 11 3806 253
+381 11 2402 212
sams@sams.rs
www.sams.rs
Copyright © 1999 - 2014 Sams elektronik d.o.o.
Published: 11. september 2012.
Updated: 30. july 2014.
Advertisement
Table of Contents
Related Manuals for Sams DA-12fs
Summary of Contents for Sams DA-12fs
- Page 1 Keep this manual for periodic usage. Sams elektronik d.o.o. 48 Zivka Davidovica st. 11050 Belgrade Serbia Tel/Fax: +381 11 3806 253 +381 11 2402 212 sams@sams.rs www.sams.rs Copyright © 1999 - 2014 Sams elektronik d.o.o. Published: 11. september 2012. Updated: 30. july 2014.
- Page 2 Any technical failure or deficiency that occurs during the warranty period specified on the invoice of the purchased equipment will be inspected and serviced by Sams elektronik doo or an authorized service center of the manufacturer, with the conditions set out in the warranty statement.
- Page 3 BACK CONNECTORS The product is designed and manufactured according to the following regulations: - Electromagnetic Compatibility Directive (EMC) - Low Voltage Directive (ELV) Documentation confirming statements can be obtained on written request for review. Sams elektronik d.o.o. • sams@sams.rs • www.sams.rs...
- Page 4 Design and specifications of the device may change without prior notice. TECHNICAL SUPPORT AND SERVICE Sams elektronik has made every effort to ensure that the equipment works in perfect condition. In the event that problems that occur can not be resolved, or if you have any questions regarding this...
-
Page 5: Table Of Contents
5. SC PHASE .........................19 6. COLOR FRAMING ......................20 7. ERROR MODE ......................20 8. LUMA LEVEL ......................21 9. COLOR LEVEL ......................21 10. PEDESTAL .......................21 11. SHARPNESS ......................22 12. YC DELAY ........................22 13. SETTINGS .......................23 NOTES .........................24 Sams elektronik d.o.o. • sams@sams.rs • www.sams.rs... -
Page 6: Unpacking And Installation
According to the user’s needs, the masses can be switched over between them. Places for fastening MAINTENANCE The system maintains only person authorized by Sams elektronik doo. Any voluntarily opening device, upgrading or servicing is strictly prohibited and is subject to warranty void, and the possibility of injury. -
Page 7: Description
Easy setup with local control and LCD display DA-12fs converts SDI to composite or component analog video. DA-12fs have a frame synchronizer that asynchronous video signal recorded in the memory and reads it synchronized with an external reference, as well as other settings. It is useful for sychronizing large number of external signals with signals from the TV station, or the capture of material from an amateur into a professional format. - Page 8 - Analog BB 300 mV: ..........1, BNC BLOCK DIAGRAM SDI OUT AUTO EQ A/V PROC AMP ORDERING INFORMATION RECLOCKER FRAME SYNC BB REF ANALOG Code Name Description SYNC PROC GENLOCK PAL ID 005.112 DA-12fss DAC FS Sams elektronik d.o.o. • sams@sams.rs • www.sams.rs...
-
Page 9: Module Instalation In Sru Rack Frames
POWER Lock module with lever to the position. NOTE: NEVER PLACE MODULE TO PLACE OF THE POWER SUPPLY MODULE! WARNING! POWER SUPPLY ONLY The label that indicates the place for power supply module Sams elektronik d.o.o. • sams@sams.rs • www.sams.rs... - Page 10 Converters elektronik 1. The module set between the guides (not metal plate). 2. Locking lever mount behind the groove. 3. Push the lever to lock in an upright position. The module is locked. Sams elektronik d.o.o. • sams@sams.rs • www.sams.rs...
-
Page 11: Back Connectors
OPTIONS CVBS & YC ANALOG OUTPUT BLUE ANALOG OUTPUT EXT. EXTERNAL REFERENCE REF. Fix the back connector with M2.5 screw. DA-12fs Be sure to install a protective pad before installing the back connectors. Sams elektronik d.o.o. • sams@sams.rs • www.sams.rs... -
Page 12: Sru Rear Side
DO NOT INSERT SHARP METAL OBJECTS OR FINGERS INTO THE SPACE BEHIND DANGER! THE POWER PANEL! HIGH VOLTAGE! THE SIGN “LIGHTNING IN A TRIANGLE” IS TO ALERT THE USER TO THE PRESENCE OF LIFE-THREATENING HIGH POWER. LABEL IS PLACED NEXT TO POWER PANEL. Sams elektronik d.o.o. • sams@sams.rs • www.sams.rs... -
Page 13: Pcb With The Layout Of Elements
Converters elektronik PCB WITH THE LAYOUT OF ELEMENTS DA-12 Trimmers to control the level of the video signal CVBS GREEN BLUE Sams elektronik d.o.o. • sams@sams.rs • www.sams.rs... -
Page 14: Installation (Standalone)
MENU / BACK DOWN S D I ~ C v Y C DA-12fss 12/10bit digital to multiformat analog converter with frame sinchronizer www.sams.rs Front side If everything is OK, the LED will glow green. Sams elektronik d.o.o. • sams@sams.rs • www.sams.rs... -
Page 15: The Device Functions
ERRORS WITH CONNECTIVITY AND STATUS If you notice that the LED flashes red, verify that the incoming signal is correct or check if the Warning! incoming signal cable is properly connected. SD1>CvYC NoSignal SD1>CvYC No input signal Sams elektronik d.o.o. • sams@sams.rs • www.sams.rs... -
Page 16: Factory Setup
To set the device, press the “MENU / BACK” button. Select the menu by pressing the UP / DOWN keys. On the selected menu, press OK. OK / SAVE Sel.Menu MENU / BACK DOWN Output Entering the menu for setting the device Sams elektronik d.o.o. • sams@sams.rs • www.sams.rs... -
Page 17: Menu Tree
-4.0 dB - 0.0 dB - +4dB SHARPNESS Sharpnes Sel.Menu 0/0 do 222/296 YC DELAY YC Delay Sel.Menu SETTINGS SAVE MEM 1-4 Setting1 LOAD MEM 1-4 FACTORY! The bold options are the factory default settings. Sams elektronik d.o.o. • sams@sams.rs • www.sams.rs... -
Page 18: Output
Select an option by pressing the UP / DOWN keys. OK / SAVE Sel.Menu MENU / BACK DOWN Hor.Pos Menu - Horizontal position Once you have selected the option, press the “MENU / BACK” button. Option is temporarily saved. Sams elektronik d.o.o. • sams@sams.rs • www.sams.rs... -
Page 19: Vertical Position
Select an option by pressing the UP / DOWN keys. OK / SAVE Sel.Menu MENU / BACK DOWN SC Phase Menu - SC Phase Once you have selected the option, press the “MENU / BACK” button. Option is temporarily saved. Sams elektronik d.o.o. • sams@sams.rs • www.sams.rs... -
Page 20: Color Framing
Select an option by pressing the UP / DOWN keys. OK / SAVE Sel.Menu MENU / BACK DOWN Err.Mode Menu - Error mode Once you have selected the option, press the “MENU / BACK” button. Option is temporarily saved. Sams elektronik d.o.o. • sams@sams.rs • www.sams.rs... -
Page 21: Luma Level
Select by pressing the UP / DOWN keys. OK / SAVE Sel.Menu MENU / BACK DOWN Pedestal Menu - Pedestal Once you have selected the option, press the “MENU / BACK” button. Option is temporarily saved. Sams elektronik d.o.o. • sams@sams.rs • www.sams.rs... -
Page 22: Sharpness
MENU / BACK DOWN YC Delay Menu - YC delay Default μs μs Table - YC Delay Once you have selected the option, press the “MENU / BACK” button. Option is temporarily saved. Sams elektronik d.o.o. • sams@sams.rs • www.sams.rs... -
Page 23: Settings
If you want to stay in this menu, press the UP / DOWN keys, and to exit the MENU / BACK button. OK / SAVE Sel.Menu MENU / BACK DOWN Setting1 Menu - Settings Sams elektronik d.o.o. • sams@sams.rs • www.sams.rs... -
Page 24: Notes
Converters elektronik NOTES Sams elektronik d.o.o. • sams@sams.rs • www.sams.rs...
