ARTICLES FOR TELESCOPIC SLIDING MULTI-LEAVES GATE
Description

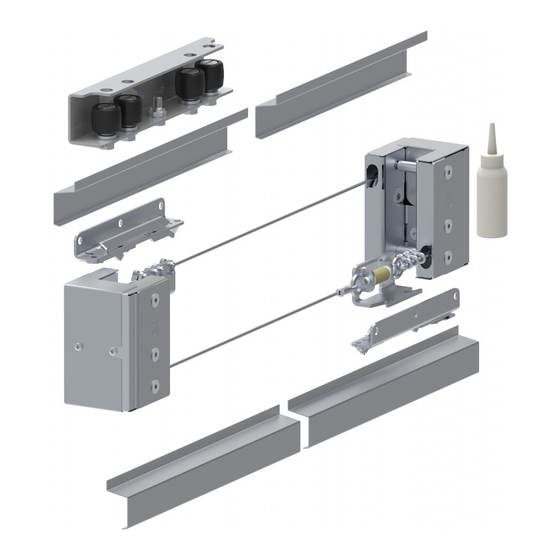

The Kit parts are made in galvanized steel optimized for use on telescopic sliding gates having up to 3 leaves . For use with 4
leaves is possible, but we recommend special attention and care. In such cases, pay particular attention to any friction and the
free sliding of the leaves. A reduction gear may be required. The kit is designed to be mounted on right side (for the left side
version consult the specific manual section)
Versione DX/Right version
Lato strada/Road side

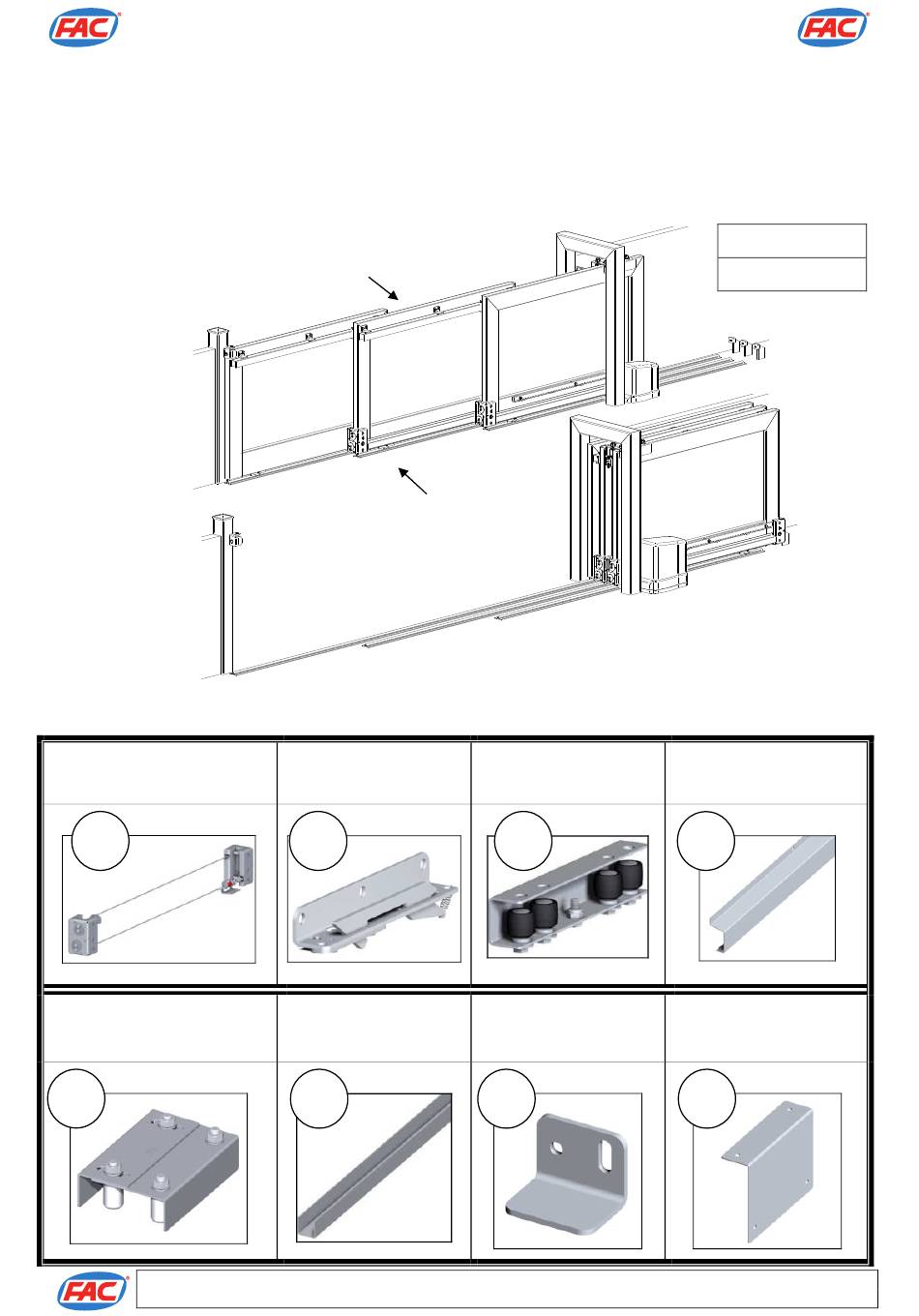

Lista Componenti/Componet list
1xVA5102.002/004
1
1xVA3203.A30/B40
Optional
5
Attention:
operations can cause the gate to derail and endanger the safety of persons and propriety
info@facsrl.com
A
S2
Sn
Lato interno/Internal side
1xVA5202.004
2
VA5401.003/006
Optional
6
installations that do not comply with the illustred procedure or or failure to carry out correct maintenance
Tel.+39 0444 976241
S1
B
1xVA3502.N34
3
VA5411.001
Optional
7
Articles family
KA5102
4-7xVA5302.001
4
VA5312.001
Optional
8
Advertisement
Summary of Contents for Fac MULTITELESCOPIC
- Page 1 info@facsrl.com Tel.+39 0444 976241 ARTICLES FOR TELESCOPIC SLIDING MULTI-LEAVES GATE Description The Kit parts are made in galvanized steel optimized for use on telescopic sliding gates having up to 3 leaves . For use with 4 leaves is possible, but we recommend special attention and care. In such cases, pay particular attention to any friction and the free sliding of the leaves.
- Page 2 S1-S2 S1-S2 Lato/Side Controllo posizione Check positions S1-S2 S1-S2 Allentare/Loosen Tendere in sequenza a bisogno Tighten in sequence as needed S1-S2 S1-S2 Lato/Side Lato/Side Attention: installations that do not comply with the illustred procedure or or failure to carry out correct maintenance operations can cause the gate to derail and endanger the safety of persons and propriety...
- Page 3 S1-S2 S1-S2 Lato/Side Fissare in sequenza Tighten in sequence S2-Sn Lato/Side Lato/Side S2-Sn Lato/Side Lato/Side Attention: installations that do not comply with the illustred procedure or or failure to carry out correct maintenance operations can cause the gate to derail and endanger the safety of persons and propriety...
- Page 4 Lato/Side Vite di sicurezza Vite di sicurezza Safety screws Safety screws Attention: installations that do not comply with the illustred procedure or or failure to carry out correct maintenance operations can cause the gate to derail and endanger the safety of persons and propriety...
- Page 5 S1-S2 Carter di copertura optional per tubolari > 40 mm / Optional Carter for tubolar > 40mm > 40mm Taglio/Cut Attention: installations that do not comply with the illustred procedure or or failure to carry out correct maintenance operations can cause the gate to derail and endanger the safety of persons and propriety...
- Page 6 Versione Sinistra/Left version Stesse istruzioni ma da interpretare in senso opposto/ Same instructions but to be interpreted in the opposite direction Attenzione soprattutto ai punti sotto indicati/ Pay attention to the points listed below • Rimontare tutti i kit aggancio nel verso opposto/ Install all the kit coupling in the opposite direction •...
- Page 7 TABELLA DIMENSIONAMENTO - DIMENSIONING TABLE DIMENSIONAMENTO ANTE - LEAF DIMENSIONING L(m) dipende dal numero di ante con B=0,08m L(m) depending on the number of leaves with B=0,08m Apertura Opening A(m) =2 Ante-Leaves =3 Ante-Leaves C(m) min L(m) C(m) min L(m) 0,35 1,89 1xKA5102.002...
- Page 8 Esempio calcolo lunghezza anta L x misure fuori tabella Example leaf calculation length L x measures not in table (numero ante/leaves number) A=9,6mt B=0,06mt C=0,35mt (da tabella sopra/from above table) L=[(A+B)/n]+C L=[(9,6+0,06)/3]+0,35=3,57mt Esempio scelta kit Example kit choice A/n fino a 2mt KA5102.002 - A/n up to 2 meters KA5102.002 A/n maggiore di 2 fino a 4 KA5102.004 -A/n greater than 2 up to 4 KA5102.004 A=9,6mt 9,6/3 =3,2mt...
