Summary of Contents for LES 4000KGS

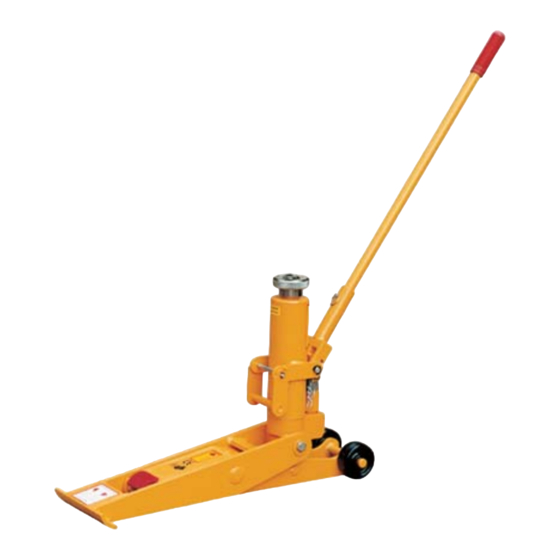

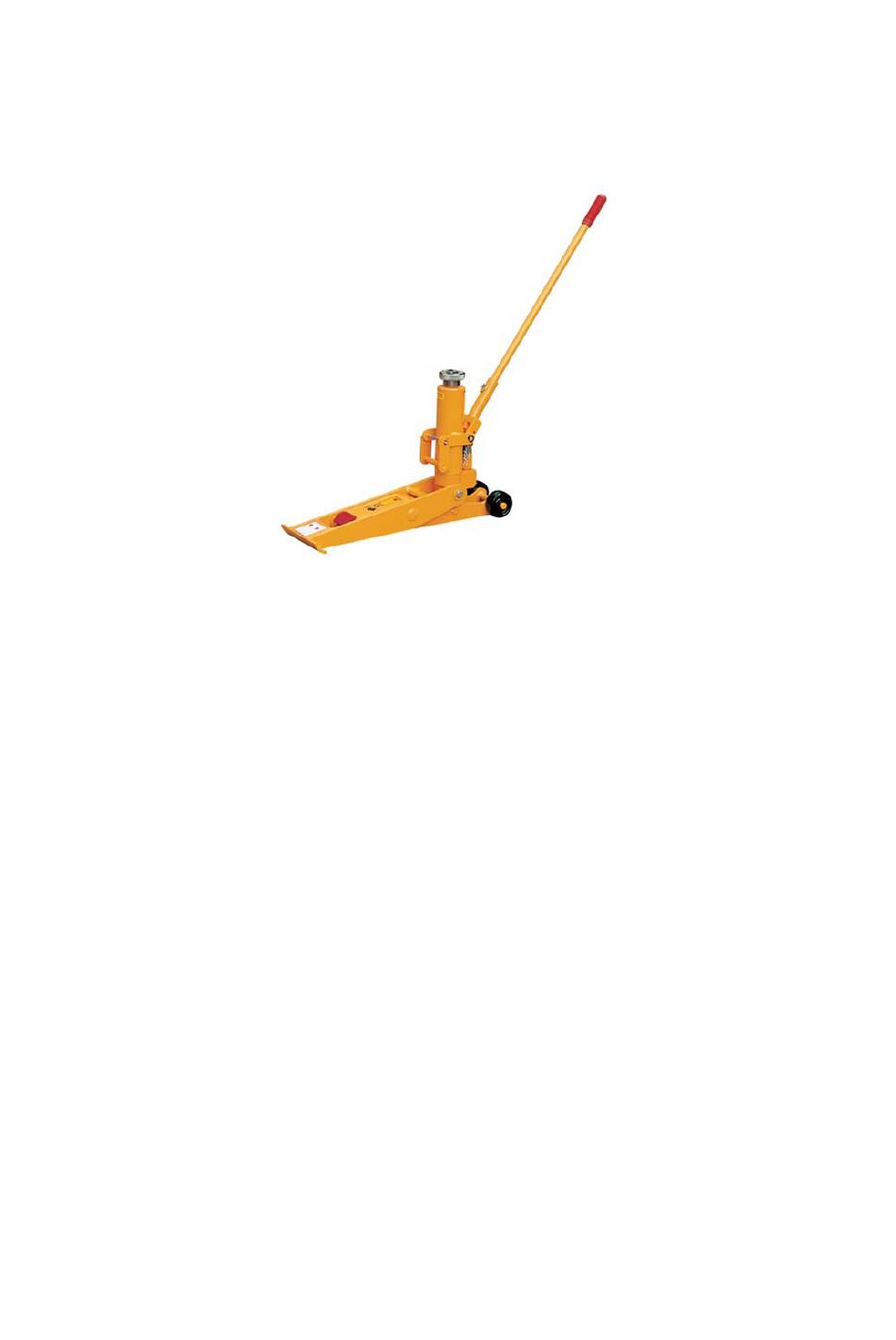

- Page 1 Instruction Manual FORKLIFT JACK 4000KGS/8800LBS Note: Owner/Operator must read and understand this instruction manual before using the forklift jack. RevB：04/2008...
- Page 2 SPECIFICATIONS Rated capacity 4000kgs/8800lbs "ling capacity 6000kgs/13200lbs Starting pad height(notch) 65mm/2 finches Mauaised height 406mm/16inches Width 203mm/8inches Weight 36kgs/79.2lbs Reach (Raised position) 178mm/7inches **lifting capacity means this jack can lift a forklift that self-weight is less than 6000kg, but two wheetls of...
- Page 3 To lower the jack 1. Slowly turn handle knob counter —clockwise. Speed of descent is controlled by how much the release valve is turned. Always lower the load slowly and with caution. 2. Always store jack in the fully lowered position. Safety Instruction 1.Do not overload.
- Page 4 Description Specification o-ring 26x2.4 Retaining Ring 26x2 Ky sealing Ring SJM05-1-16 o-ring 16x2.4 ZHM Sealing Ring SJM08-16 o-ring 26x2.4 o-ring 75x3.1 o-ring 50x3.1 Ky sealing Rin SJM01-2-35 o-ring 40x3.1 Dustproof Sealing Ring SJM03-35 o-ring 41x3.1...
- Page 5 EXPLODED VIEW & PART LIST Item Description Adjusting Handle Release cover assembly Plug Tank Retaining ring Handle axle Pump assembly Retaining ring assembly Piston rod assembly Lock & chain Tension Rod Handle Link rod Pump pin Retaining pin Screw Trunnion Retaining Ring Roll wheel Washer...
