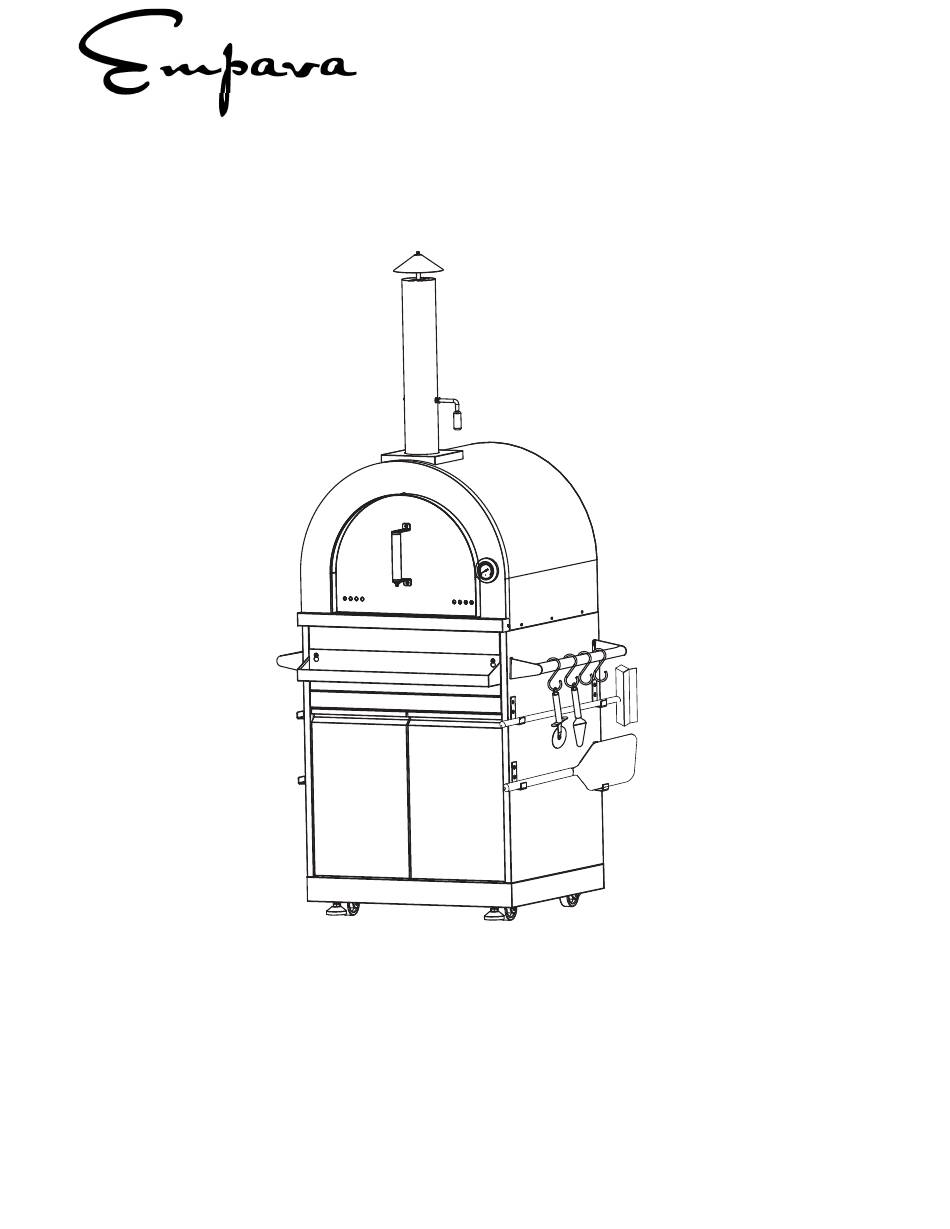

- Page 1 OUTDOOR Pizza Oven Cabinet Installat on Manual MODEL# EMPV-PG02 IMPORTANT: Save for electrical inspector’s use. Installer: Leave installation instructions with the homeowner. Homeowner: Keep installation instructions for future reference.
- Page 2 Please keep this manual for future reference, as it contains answers to questions that you might have as you begin to cook. Thank you This manual applies to the following models’ series: Model # EMPV-PG02 (Outdoor Pizza Oven Cabinet)
- Page 3 Parts Explosive Pictures...
-
Page 4: Parts List
Parts List Explosive # Part # Part Name Quantity 05.99.000119-000-A0 Chimney coping 05.19.008003-000-A0 Chimney supporting rod 22.99.009241-000-A0 Chimney pipe assemblyg 22.99.009239-000-A0 Pizza oven cavity 05.99.008024-000-A0 Thermometer 06.04.000377-000-A0 Mica plate 1 22.99.009243-000-A0 Pizza oven door handle assembly 20.01.008025-000-A1 Pizza oven door assembly 20.01.008022-000-A1 Beam w elding assembly 20.01.008018-000-A0... -
Page 5: Product Dimension
Product Dimension... -
Page 6: Cabinet Installation
Cabinet Installation Step 1 1. Install 2 pcs supporting legs (Part # 18) to bottom welding part (Part # 21) and adjustthe supporting legs to suitable position; 2. Use 16 pcs ¼” flat Philip’s screw head (Part # 37) to connect 2 pcs fixed casters (Part # 19) and 2 pcs universal casters with brake (Part # 20) to Part #21;... - Page 7 Step 2 1. Use 2 pcs Philips thumb head screw (Part # 38) to install Kick panel plate (Part # 17) to Part # 21; 2. Use 3 pcs ¼” flat Philip’s screw head (Part # 37) to connect left side panel (Part # 10) to Part # 21;...
- Page 8 Step 3 1. Use 4 pcs Part # 37 to connect beam welding part (Part # 24) to Part # 10 and Part # 25; 2. Use 4 pcs Part # 37 to connecttop cover welding part (Part # 15) to Part # 10 and Part # 25;...
- Page 9 Step 4 1. Make sure all the connections are smooth and the design is looking like below picture.
- Page 10 Step 5 1. Use 2 pcs ¼” 14” screw (Part # 37) to go through the two holes on Pizza oven door handle assembly (Part # 67), then go through 4 pcs mica plates (Part # 6), 2 pcs ¼” flat gasket (Part # 43), 2 pcs ¼” spring gasket (Part # 44), and 2 pcs ¼”...
- Page 11 Step 6 1. Use 4 pcs ¼” Philips thumb head screw with anti-slip design (Part # 37) to put 2 pcs ash pan holder (Part # 32) to the back of Pizza oven cavity (Part # 2. One part # 32 are installed, install ash pan welding assembly (Part # 27).
- Page 12 Step 7 1. Use 1 pc ¼” nut (Part # 40) and 1 pc ¼” flat gasket (Part # 43) to connect chimney coping (Part # 1) to chimney supporting rod (Part # 2) 2. Install Part # 1 and # 2 to the top of Chimney Pipe Assembly (Part # 3); 3.
- Page 13 Step 8 1. Put 4 pcs Cordierite Brick B (Part # 28), 2 pcs Cordierite Brick A (Part # 29) and 1 pc net cover (Part # 30) inside Pizza oven Cavity (Part # 4) 2. Insert Pizza oven door assembly (Part #8) into designated position on Part # 3.
- Page 14 Step 9 1. Use 6 pcs ¼” Philips thumb head screw with anti-slip design (Part # 37) to install Pizza oven cavity (Part # 4) to Cabinet left side panel (Part # 10) and Cabinet right panel (Part # 25). Make sure the connection is smooth; 2.
- Page 15 Step 10 1. Use 2 pcs Part # 37 to connect condiment storage welding assembly (Part # 16) to front panel assembly (Part # 15); 2. Use 24 pcs Parts # 39 to install door hinge (Part # 31) Part # 22 with Part # 10, and Part # 23 with Part # 25;...
- Page 16 Detailed Installation Pictures for Door hinge is shown below:...
- Page 17 Step 11 1. Use 4 pcs Part # 37 to connect Left handle welding assembly (Part # 11) to Left side panel (Part # 10), then put S-shape pothook (Part # 12) on Part # 2. Use 8 pcs Part # 37 to connect side panel hook 1 (Part # 13) and side panel hook 2 (Part # 14) to the left panel (Part # 10);...
- Page 18 Corner Cabinet front connecting plate Cabinet front connecting plate You Outdoor Cabinet could be connected with any other Our Door Cabinet models. If you are having a Corner Cabinet and you would like to connect it to another cabinet, use corner cabinet connecting plate with 2 pcs¼"...
- Page 19 You Outdoor Cabinet could be connected with any other Our Door Cabinet models. For Back Panel Connections, use Back Cabinet connecting plate with 2 pcs¼" screws (Part# 06.02.00093-000- AO) to connect both Cabinets.
-
Page 20: Warranty
Empava, service agency or representative. - Page 21 Note: You must provide proof of purchase and installation date for in-warranty service. Online Warranty Registration ou can register to activate your product warranty online to receive full benefit of Empava warranty service at www.empava.com Please rest assured that under no conditions will Empava sell your name or any of the information your provide to us.
