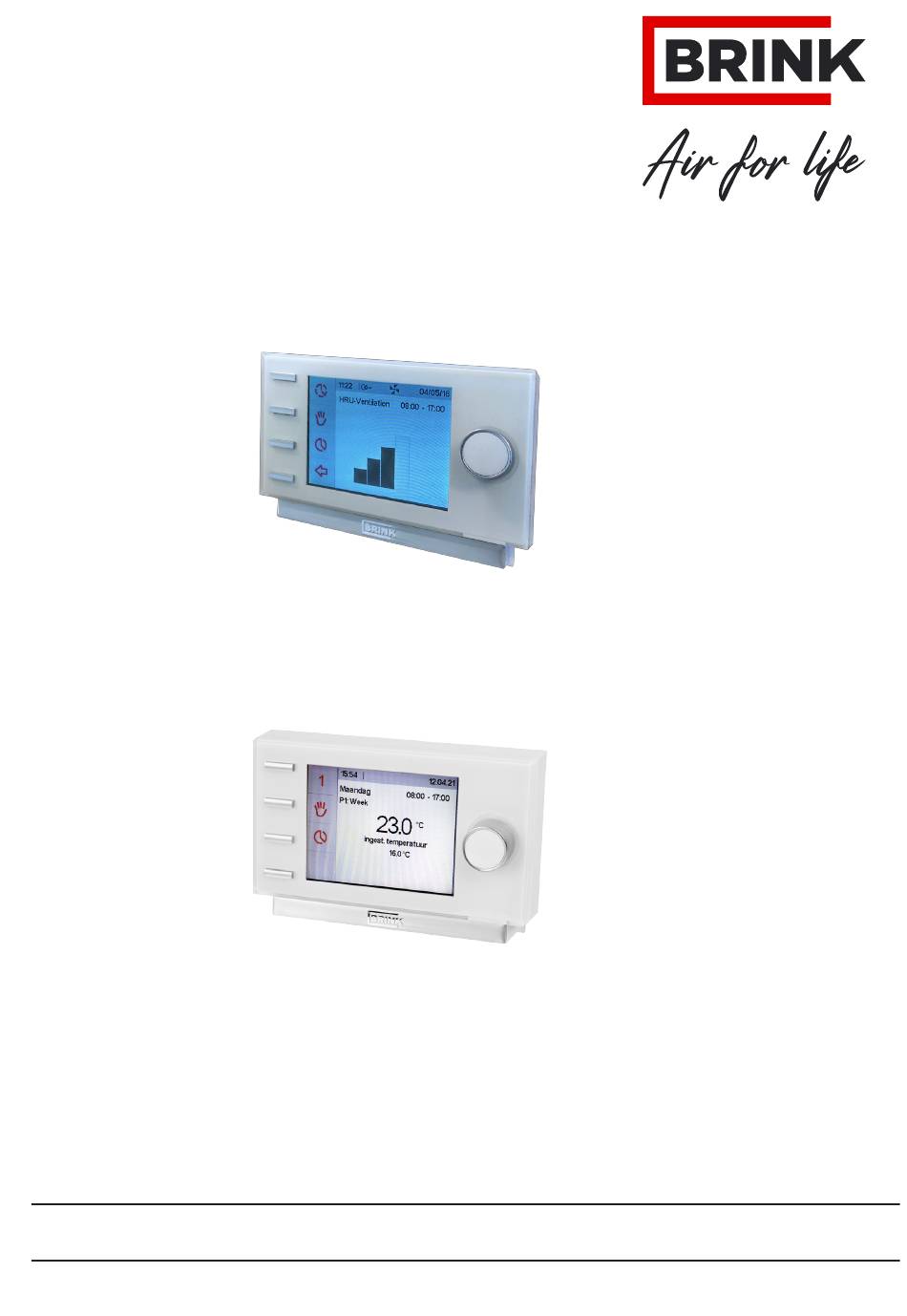

1 - Brink Air Control - Ventilation
2 - Brink Air Control - Allure
The Allure manual starts after page 32 of the Ventilation manual
STORE NEAR THE APPLIANCE
Brink Climate Systems B.V. Wethouder Wassebaliestraat 8 7951 SN Staphorst P.O. Box 11 NL-7950 AA Staphorst
T. +31 (0) 522 46 99 44 F. +31 (0) 522 46 94 00 info@brinkclimatesystems.nl www.brinkclimatesystems.nl
Art.nr.: 614884-C
Modifications reserved
Advertisement
Chapters
Table of Contents
Troubleshooting
Subscribe to Our Youtube Channel
Summary of Contents for Brink Air Control Ventilation
- Page 1 The Allure manual starts after page 32 of the Ventilation manual STORE NEAR THE APPLIANCE Brink Climate Systems B.V. Wethouder Wassebaliestraat 8 7951 SN Staphorst P.O. Box 11 NL-7950 AA Staphorst T. +31 (0) 522 46 99 44 F. +31 (0) 522 46 94 00 info@brinkclimatesystems.nl www.brinkclimatesystems.nl Art.nr.: 614884-C...
- Page 3 Installation regulations Brink Air Control- Ventilation English...
-
Page 4: Table Of Contents
9 Environment........27 1.1 Description Brink Air Control- Ventilation..3 10 Troubleshooting and guarantee. -
Page 5: User Manual
We kindly request you to carefully go through this information before using the product. This user’s manual is intended for the Brink Air Control- Ventilation installer and end user. You can retrieve the required information from the user’s manual via the table of contents. -
Page 6: Technical Specification
The Brink Air Control- Ventilation may only be mounted on the indoors, but not on the vicinity of a heat source, a radiator, in a draft or in a humid environment. The Brink Air Control- Ventilation may also not be exposed to direct radiation heat (sun light). -
Page 7: Overview Operational Controls
2.3 Overview operational controls The Brink Air Control- Ventilation has a number of buttons with which the device can be operated: Setting knob Return key Setting & activating timer programme Manual control key Bypassing the timer programme 2.4 Overview display version main screen... -
Page 8: Ventilation Modes
2.5 Ventilation modes The Brink Air Control- Ventilation has four ventilation modes. You can activate a ventilation mode yourself (for more information see ® Description of operation; manner of use page 15 ). You can adjust every ventilation mode yourself (for more information ®... -
Page 9: Precautionary Measures And Safety Instructions
▪ The Brink Air Control- Ventilation should be placed at a height of approximately 1.65 meters above the floor; ▪ The Brink Air Control- Ventilation may not be covered, for example, by a curtain or a cabinet; ▪ Consult paragraph ®... -
Page 10: During Maintenance
Never apply water and/or (cleaning) liquid to the screen. 3.5 For the environment Take note! The Brink Air Control- Ventilation may not be removed as unsorted urban waste, but should be treated separately. Make enquiries within your own region, where the Brink Air Control- Ventilation can be handed in when use has been terminated. -
Page 11: Assembly And Installation
4 Assembly and installation (to be performed by the installer) Assembly and installation should be performed by an installer approved by Brink Climate Systems B.V. 4.1 Assembly You should perform the steps, described in paragraph (® Disconnecting the operational module from the wall bracket page 9) through paragraph (®... -
Page 12: Electrical Connection
4.1.3 Electrical connection The following actions should be performed to connect the Brink Air Control- Ventilation electrically: ▪ Feed the two-core wire (from the device to be connected) through via opening at the back of the wall bracket. ▪ Check that the cables’ ends have been stripped in the correct manner. -
Page 13: Installation
Take note! The names of the described menu items will not correspond with this user manual’s menu items if the Brink Air Control- Ventilation is set to a language other than Dutch. Brink Air Control- Ventilation 614884-B Brink / 11... -
Page 14: Setting Time
4.2.2 Setting time You can set the time. The time is visible on the main screen. The Brink Air Control- Ventilation only has 24 hour representation. Perform the following actions to set the time : ▪ Press returnkey "2"as many times as necessary to get to the main screen, ▪... -
Page 15: Setting Date
1 = Flow rate indicator 2 = eBus connection indicator 3 = Fan indicator 4 = Fault symbol 5 = Filter message 6 = Current time block 7 = Current time 8 = Current date Brink Air Control- Ventilation 614884-B Brink / 13... -
Page 16: Selecting A Device Connected To The Brink Air Control- Ventilation
4.2.4 Selecting a device connected to the Brink Air Control- Ventilation You can choose the device you want to regulate with the control if multiple devices are connected to Brink Air Control- Ventilation. Proceed as follows to set the appliance selection: ▪... -
Page 17: Description Of Operation; Manner Of Use
5 Description of operation; manner of use You can increase or decrease the ventilation mode with the Brink Air Control- Ventilation. You can do this by setting a program. You can temporarily override the program while it is running. 5.1 Navigation: general description... -
Page 18: Selecting A Device Connected To The Brink Air Control- Ventilation
5.2 Selecting a device connected to the Brink Air Control- Ventilation You can choose the device you want to regulate with the control if multiple devices are connected to Brink Air Control- Ventilation ( ® Selecting a device connected to the Brink Air Control- Ventilation page 14 ). -
Page 19: Creating A P1 Program
▪ Press "1" to confirm the ventilation mode for period 1. You have set the ventilation mode for period 1. You can set period 2 through 6 in the same manner. A period ends when a new one starts. Brink Air Control- Ventilation 614884-B Brink / 17... -
Page 20: Creating A P2 Program
▪ Follow the steps from paragraph 5.3.3, until you have a choice between ‘Week’ and ‘Weekend’ ▪ Select ‘Weekend’ by turning setting knob "1" ▪ Press setting knob "1"; ‘Weekend’ opens ▪ Continue the steps from paragraph 5.3.3 at (*) Brink Air Control- Ventilation 614884-B... -
Page 21: Creating A P3 Program
If you have created a day program for Monday, you can do the same for the other days of the week. Then repeat the steps from paragraph 5.3.4, but, after (*) choose another day instead of ‘Monday’. Brink Air Control- Ventilation 614884-B Brink / 19... -
Page 22: Activating Program Type (P1, P2 Or P3)
5.4 Activating program type (P1, P2 or P3) The Brink Air Control- Ventilation has three types of weekly programs P1, P2 and P3. You can program the weekly programs by yourself, for more information see paragraph .® Weekly programmes P1, P2 and P3 page 16. -
Page 23: Setting Ventilation Mode Values
You can set debit 1 through 3 in the same manner as described above for Airflow 0 (Holiday). Take note! You can not feed in a value, lower than value of a lower Airflow position, for a higher (Airflow Holiday < Airflow Reduced < Airflow Normal < Airflow High). Brink Air Control- Ventilation 614884-B Brink / 21... -
Page 24: Retrieving Settings
You can look at, but not change, the settings via the info menu. 5.9 Factory setting connected device A device has been connected to the Brink Air Control- Ventilation. It is possible to set back all this device’s settings to the factory settings. Perform the following actions for this: ▪... -
Page 25: Maintenance
Brink Air Control- Ventilation display. 6.2.2 Removing, cleaning or replacing Consult the manual of the device connected to the Brink Air Control- Ventilation for removing, cleaning and replacing filters. Brink Air Control- Ventilation 614884-B Brink / 23... -
Page 26: Re-Setting Filter Notification
For this you press the setting knob "1" for at least five seconds . ▪ Press returnkey "2" to get to the main screen. ▪ The text filter on the Brink Air Control- Ventilation display disappears. Filter notification 5 seconds... -
Page 27: Dismanteling
7 Dismanteling Warning! You are not permitted to dismantle the Brink Air Control- Ventilation or parts of the Brink Air Control- Ventilation by yourself. This may only be done by a maintenance mechanic approved by Brink Climate Systems B.V.. Brink Air Control- Ventilation 614884-B... -
Page 28: Repair
8 Repair Warning! You are not permitted to open or repair the Brink Air Control- Ventilation or parts of the Brink Air Control- Ventilation by yourself. This may only be done by a maintenance mechanic approved by Brink Climate Systems B.V. -
Page 29: Environment
Handing in and recycling Make enquiries within your own region, where the Brink Air Control- Ventilation can be handed in when use has been terminated. Do not throw away electrical devices or parts, but check if (parts of) the Brink Air Control- Ventilation cannot be handed in, recycled or re-used. -
Page 30: Troubleshooting And Guarantee
Brink Climate Systems B.V. Mailbox 11 NL-7950 AA, Staphorst, The Netherlands The right to guarantee lapses in case of incorrect or improper use of the Brink Air Control- Ventilation and failure to follow the user indications in this user’s manual. Warning! Making changes to the Brink Air Control- Ventilation hardware or software is not permitted. -
Page 31: Appendix: Standard Settings Weekly Programs
11 Appendix: Standard settings weekly programs 11.1 Standard program P1 Week (Monday through Sunday) Period Start time Ventilation mode 07.00 08.00 17.00 22.00 Not set Not set Brink Air Control- Ventilation 614884-B Brink / 29... -
Page 32: Standard Program P2
Week (Monday through Friday) Weekend (Saturday and Sunday) Period Start time Ventilation mode Period Start time Ventilation mode 07.00 08.00 08.00 23.00 17.00 Not set 22.00 Not set Not set Not set Not set Not set Brink Air Control- Ventilation 614884-B... -
Page 33: Standard Program P3
Not set Tuesday (the same as Monday) Wednesday (the same as Monday) Thursday (the same as Monday) Friday (the same as Monday) Saturday (the same as Monday) Sunday (the same as Monday) Brink Air Control- Ventilation 614884-B Brink / 31... - Page 34 Installation regulations Air Control - Allure clock thermostat English...
- Page 35 Contents 1 User manual........3 11.1 Standard program P1.
-
Page 36: User Manual
Brink accessories that have been approved by Brink Climate Systems B.V. The <connectie Air Control - Allure clock thermostat is used to control Brink air heating systems that run under the eBus protocol. The Brink Air Control - Allure clock thermostat automatically recognizes the correc Brink appliance to which it is connected! Use in accordance with the instruction also means observance of the manual as well as all other additional applicable Brink Climate Systems B.V. -
Page 37: Technical Specification
2 Technical specification 2.1 General product specification Product description Name: Air Control - Allure clock thermostat Technical product specifications Electricity: 15 to 24 Volt Power consumption: 1,5 Watt Protection class: IP30 Power reserve: > 48 hours Ambient conditions Ambient temperature: 0 °C to 50 °C Storage temperature: -20 °C to 60 °C... -
Page 38: Overview Operational Controls
▪ If there is cooling demand, the system fan runs continuously in cooling mode; if there is no cooling demand, the system fan runs at minimum air flow rate. ▪ The burner can never be activated when the left-hand setting knob is set at cooling mode. Air Control - Allure clock thermostat 616720-A Brink / 5... -
Page 39: Overview Display Version Main Screen
8 Fault code In the event of a malfunction in the air heater, the Brink Air Control - Allure clock thermostat display shows an error message. It is composed of an E (Error) with an error number; an error message is also shown on the air heater display. -
Page 40: Precautionary Measures And Safety Instructions
The installation and assembly activities required to commission your Air Control - Allure clock thermostat should be performed by an installer approved by Brink Climate Systems B.V. Immediately remove the power from your Air Control - Allure clock thermostat by removing the connected device’s plug from the socket, if:... -
Page 41: During Maintenance
3.4 During maintenance Careful! Clean the screen with a soft cloth. Never apply water and/or (cleaning) liquid to the screen. 3.5 For the environment Take note! The Air Control - Allure clock thermostat may not be removed as unsorted urban waste, but should be treated separately. -
Page 42: Assembly And Installation
4 Assembly and installation (to be performed by the installer) Assembly and installation should be performed by an installer approved by Brink Climate Systems B.V. 4.1 Assembly You should perform the steps, described in paragraph (® Disconnecting the operational module from the wall bracket page 9) through paragraph (®... -
Page 43: Electrical Connection
± 25 seconds Brink Air heating system Take note! The operational module should click onto the wall bracket. Only then is a proper electrical connection established. -
Page 44: Installation
The names of the described menu items will not correspond with this user manual’s menu items if the Air Control - Allure clock thermostat is set to a language other than Englisch. Air Control - Allure clock thermostat 616720-A Brink / 11... -
Page 45: Setting Time
4.2.2 Setting time You can set the time. The time is visible on the main screen. The Air Control - Allure clock thermostat only has 24 hour representation. Perform the following actions to set the time : ▪ Press return key "2" as many times as necessary to get to the main screen, ▪... -
Page 46: Setting Date
1 = Basic settings ▪ Press return key "2" as many times as 2 = Date menu necessary to get to the main screen 3 = Adjustable date Air Control - Allure clock thermostat 616720-A Brink / 13... -
Page 47: Adaptive Setting On Or Off
4.2.4 Adaptive setting on or off The thermostat features adaptive temperature control. When adaptive temperature control is active, the system will ensure that the room temperature has already reached the preset value at the moment that the relevant period starts. You can set the adaptive temperature control in which the menus are presented. -
Page 48: Change Factory Program Setting
"2" to get back to the previous screen after pressing knob 1 to save change ▪ Change, if desired, other settings in the same way ▪ Press return key "2" as many times as necessary to get to the main screen Air Control - Allure clock thermostat 616720-A Brink / 15... - Page 49 1 = Clock program 2 = Selected program P1 3 = Selected period 2 4 = Adjustable time 5 = Adjustable temperature Air Control - Allure clock thermostat 616720-A...
-
Page 50: Description Of Operation; Manner Of Use
"2" a few times. The number of times you need to press return depends on how deep you have gone into the menu. U need not be afraid of pressing return too frequently. Air Control - Allure clock thermostat 616720-A Brink / 17... -
Page 51: Weekly Programmes P1, P2 And P3
5.2 Weekly programmes P1, P2 and P3 You can choose from 3 heating programs P1, P2 and P3 and 3 cooling programs P1, P2 and P3. The time programme allows you to decide whether you programme switching times for the day ranges Mo-Su, Mo-Fr and Sa-Su, or for every day separately. -
Page 52: Activating Cooling Program Type (P1, P2 Or P3)
▪ Select cooling program‘P1, P2 or P3’ by turning setting knob "1", ▪ Press setting knob "1" to activatecooling program P1, P2 or P3. 1 = Activate program 2 = Selected cool program 3 = Active cool program Air Control - Allure clock thermostat 616720-A Brink / 19... -
Page 53: Temperarily Overriding Program
5.2.3 Temperarily overriding program You can temporarily override the temperature of the timer program. You need to perform the following actions for this : ▪ Press return key "2" as many times as necessary to get to the main screen, ▪... -
Page 54: Overriding Program For A Longer Period Of Time
Press return key "2" if you wish to undo the manual position. Return key "2" can not be operated until some 10 seconds after the latest setting! 1 = Notification manual temperature set 2 = Desired manual temperature Air Control - Allure clock thermostat 616720-A Brink / 21... -
Page 55: Retrieving Settings
5.2.5 Retrieving settings You can retrieve the device information from the Air Control - Allure clock thermostat: ▪ Press returnkey "2" as many times as necessary to get to the main screen ▪ Press setting knob "1" ‘Main Menu’ opens ▪... -
Page 56: Factory Setting Connected Device
▪ The settings are put back to the factory settings. Selecting factory setting will restore all step numbers to the original factory setting. All fault messages will be deleted as well. Air Control - Allure clock thermostat 616720-A Brink / 23... -
Page 57: Maintenance
6 Maintenance 6.1 General maintenance Careful! Clean the screen with a soft cloth. Never apply water and/or (cleaning) liquid to the screen. 6.2 Cleaning or replacing filter 6.2.1 Filter notification The filters in the device, connected to the Air Control - Allure clock thermostat, should be cleaned or replaced when the text ‘FILTER’... -
Page 58: Re-Setting Filter Notification
"1" for at least five seconds . ▪ Press returnkey "2" to get to the main screen. ▪ The text filter on the Air Control - Allure clock thermostat display disappears. Filter notification 5 seconds Air Control - Allure clock thermostat 616720-A Brink / 25... -
Page 59: Dismanteling
You are not permitted to dismantle the Air Control - Allure clock thermostat or parts of the Air Control - Allure clock thermostat by yourself. This may only be done by a maintenance mechanic approved by Brink Climate Systems B.V.. Air Control - Allure clock thermostat 616720-A... -
Page 60: Repair
You are not permitted to open or repair the Air Control - Allure clock thermostat or parts of the Air Control - Allure clock thermostat by yourself. This may only be done by a maintenance mechanic approved by Brink Climate Systems B.V. Air Control - Allure clock thermostat 616720-A... -
Page 61: Environment
9 Environment Take note! The Air Control - Allure clock thermostat may not be removed as unsorted urban waste, but should be treated separately. Make enquiries within your own region, where the Air Control - Allure clock thermostat can be handed in when use has been terminated. -
Page 62: Troubleshooting And Guarantee
Air Control - Allure clock thermostat. 10.2 Guarantee The Air Control - Allure clock thermostat has been manufactured by Brink Climate Systems B.V. with care and in accordance with high quality standards. The Air Control - Allure clock thermostat operation is guaranteed for a period of two years from the time of delivery. -
Page 63: Appendix: Standard Settings Weekly Programs
11 Appendix: Standard settings weekly programs 11.1 Standard program P1 Week (Monday through Sunday) Period Start time Set temperature 07:00 20.0°C 08:00 16.0°C 17:00 20.0°C 20:00 21.0°C 22:00 16.0°C 00:00 16.0°C 11.2 Standard program P2 Week (Monday through Friday) Weekend (Saturday and Sunday) Period Start time Set temperature... -
Page 64: Standard Program P3
08:00 16.0°C 17:00 20.0°C 20:00 21.0°C 22:00 16.0°C 00:00 16.0°C Saterday & Sunday Period Start time Set temperature 08:00 20.0°C 17:00 21.0°C 23:00 16.0°C 00:00 16.0°C --:-- --.-°C --:-- --.-°C Air Control - Allure clock thermostat 616720-A Brink / 31... -
Page 65: Standard Cooling Program P1
11.4 Standard cooling program P1 Week (Monday through Sunday) Period Start time Set temperature 07:00 24.0°C 22:00 28.0°C --:-- --.-°C --:-- --.-°C --:-- --.-°C --:-- --.-°C 11.5 Standard cooling program P2 Week (Monday through Friday) Weekend (Saturday and Sunday) Period Start time Set temperature Period... -
Page 66: Standard Cooling Program P3
22:00 28.0°C --:-- --.-°C --:-- --.-°C --:-- --.-°C --:-- --.-°C Sunday Saterday & Period Start time Set temperature 08:00 24.0°C 23:00 28.0°C --:-- --.-°C --:-- --.-°C --:-- --.-°C --:-- --.-°C Air Control - Allure clock thermostat 616720-A Brink / 33... - Page 68 Brink Climate Systems B.V. Wethouder Wassebaliestraat 8 7951 SN Staphorst P.O. Box 11 NL-7950 AA Staphorst T. +31 (0) 522 46 99 44 F. +31 (0) 522 46 94 00 info@brinkclimatesystems.nl www.brinkclimatesystems.nl...
