Deluxe Real-Time Voice Changing Amp

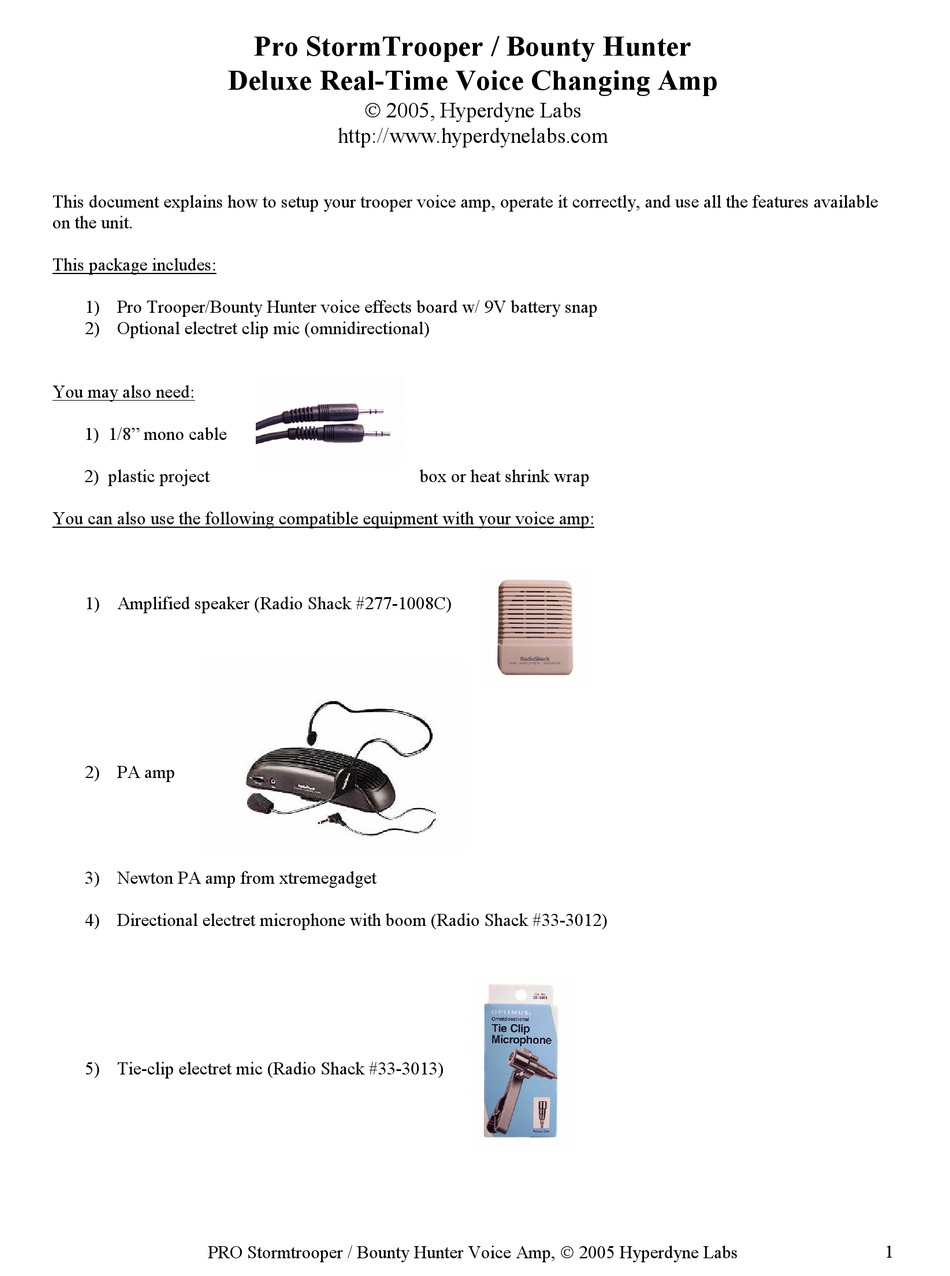

This document explains how to setup your trooper voice amp, operate it correctly, and use all the features available
on the unit.
This package includes:
1) Pro Trooper/Bounty Hunter voice effects board w/ 9V battery snap
2) Optional electret clip mic (omnidirectional)
You may also need:
1) 1/8" mono cable
2) plastic project
You can also use the following compatible equipment with your voice amp:
1) Amplified speaker (Radio Shack #277-1008C)
2) PA amp
3) Newton PA amp from xtremegadget
4) Directional electret microphone with boom (Radio Shack #33-3012)
5) Tie-clip electret mic (Radio Shack #33-3013)
PRO Stormtrooper / Bounty Hunter Voice Amp, 2005 Hyperdyne Labs
Pro StormTrooper / Bounty Hunter
2005, Hyperdyne Labs
http://www.hyperdynelabs.com
box or heat shrink wrap
1
Advertisement
Table of Contents
Summary of Contents for Hyperdyne Labs Pro StormTrooper / Bounty Hunter
- Page 1 1) Amplified speaker (Radio Shack #277-1008C) 2) PA amp 3) Newton PA amp from xtremegadget 4) Directional electret microphone with boom (Radio Shack #33-3012) 5) Tie-clip electret mic (Radio Shack #33-3013) PRO Stormtrooper / Bounty Hunter Voice Amp, 2005 Hyperdyne Labs...
-
Page 2: Section A. - Overview
We are not responsible for boards that are rendered useless by improper handling. Next is a picture of the trooper voice board with annotations. PRO Stormtrooper / Bounty Hunter Voice Amp, 2005 Hyperdyne Labs... -
Page 3: Section B. - Basic Setup And Operation
NOTE: A condenser mic will not work with the board, as the output will be too low for you to hear. PRO Stormtrooper / Bounty Hunter Voice Amp, 2005 Hyperdyne Labs... - Page 4 When you have broken squelch, the onboard LED will also light while you are talking. The LED extinguishes once you are done talking or the VOX timeout has expired. PRO Stormtrooper / Bounty Hunter Voice Amp, 2005 Hyperdyne Labs...
-
Page 5: Section C. - Changing Board Settings And Operation
NOTE: Unplug the microphone while changing any of the settings. After changing a setting, plug the mic back in. This way you can discern the number of LED blinks and ensure proper programming of the below settings. PRO Stormtrooper / Bounty Hunter Voice Amp, 2005 Hyperdyne Labs... - Page 6 When you press the button 2x in SETUP MODE, the board will respond with 1 short beep and 1 long beep. The new setting is also stored in the board’s memory, so when you power the unit on again it will remember your settings. PRO Stormtrooper / Bounty Hunter Voice Amp, 2005 Hyperdyne Labs...
- Page 7 This gives more of a “Boussh” type voice effect. If you are using the voice amp in a bounty hunter costume, you might want to disable the end static and clicks sounds shown above. Pushing the button 5x for a second time will disable this voice modulation. PRO Stormtrooper / Bounty Hunter Voice Amp, 2005 Hyperdyne Labs...
- Page 8 It is a fun mode to use while reenacting your favorite fight scene or just getting some much-needed attention. The number of blaster sounds stitched together is different each time. PRO Stormtrooper / Bounty Hunter Voice Amp, 2005 Hyperdyne Labs...
-
Page 9: Section D. - Tuning Volume, Voice Compressor, And Voice Effect
Turning the screw counterclockwise raises the volume. This is true for both volume pots. You will have to turn the screw at least 5 times to notice any difference. 20 turns in any one direction will span the entire volume range. PRO Stormtrooper / Bounty Hunter Voice Amp, 2005 Hyperdyne Labs... - Page 10 (20 turns max) Static volume Lowers volume Raises volume Main volume Lowers volume Raises volume Vocal compressor Raises compression Lowers compression Voice effect More trooper effect More bounty hunter effect PRO Stormtrooper / Bounty Hunter Voice Amp, 2005 Hyperdyne Labs...
- Page 11 This will allow you to close the mic right after you are done talking, which prohibits feedback from even starting. **** PRO Stormtrooper / Bounty Hunter Voice Amp, 2005 Hyperdyne Labs...
-
Page 12: Mounting The Unit
These things can short out the board and render it inoperable. A good way to protect the board is to use epoxy, hot glue, or even heat shrink wrap. If you boards gets wet or stops operating, turn it off and let PRO Stormtrooper / Bounty Hunter Voice Amp, 2005 Hyperdyne Labs... - Page 13 Plays sound 4 Long Toggle Bounty hunter voice effect Play random blaster sounds Long Toggle PTT mode Toggle PTT mode Long Long Reset all settings back to default Long PRO Stormtrooper / Bounty Hunter Voice Amp, 2005 Hyperdyne Labs...
-
Page 14: Troubleshooting (Faq)
Contact a professional if you need assistance. Hyperdyne Labs assumes no responsibility for the misuse of this kit. PRO Stormtrooper / Bounty Hunter Voice Amp, 2005 Hyperdyne Labs...
