Panasonic TH-P50X20K Service Manual

Plasma television gph13da chassis
Hide thumbs Also See for TH-P50X20K:
Table of Contents

Advertisement

Quick Links

TH-P50X20K
Model No.
TH-P50X20M
TH-P50X20P
TH-P50X20V
GPH13DA Chassis
© Panasonic Corporation 2010.
Unauthorized copying and distribution is a violation
of law.
ORDER NO. PSG1004052CE
Plasma Television

Advertisement

Table of Contents
loading

Related Manuals for Panasonic TH-P50X20K

Summary of Contents for Panasonic TH-P50X20K

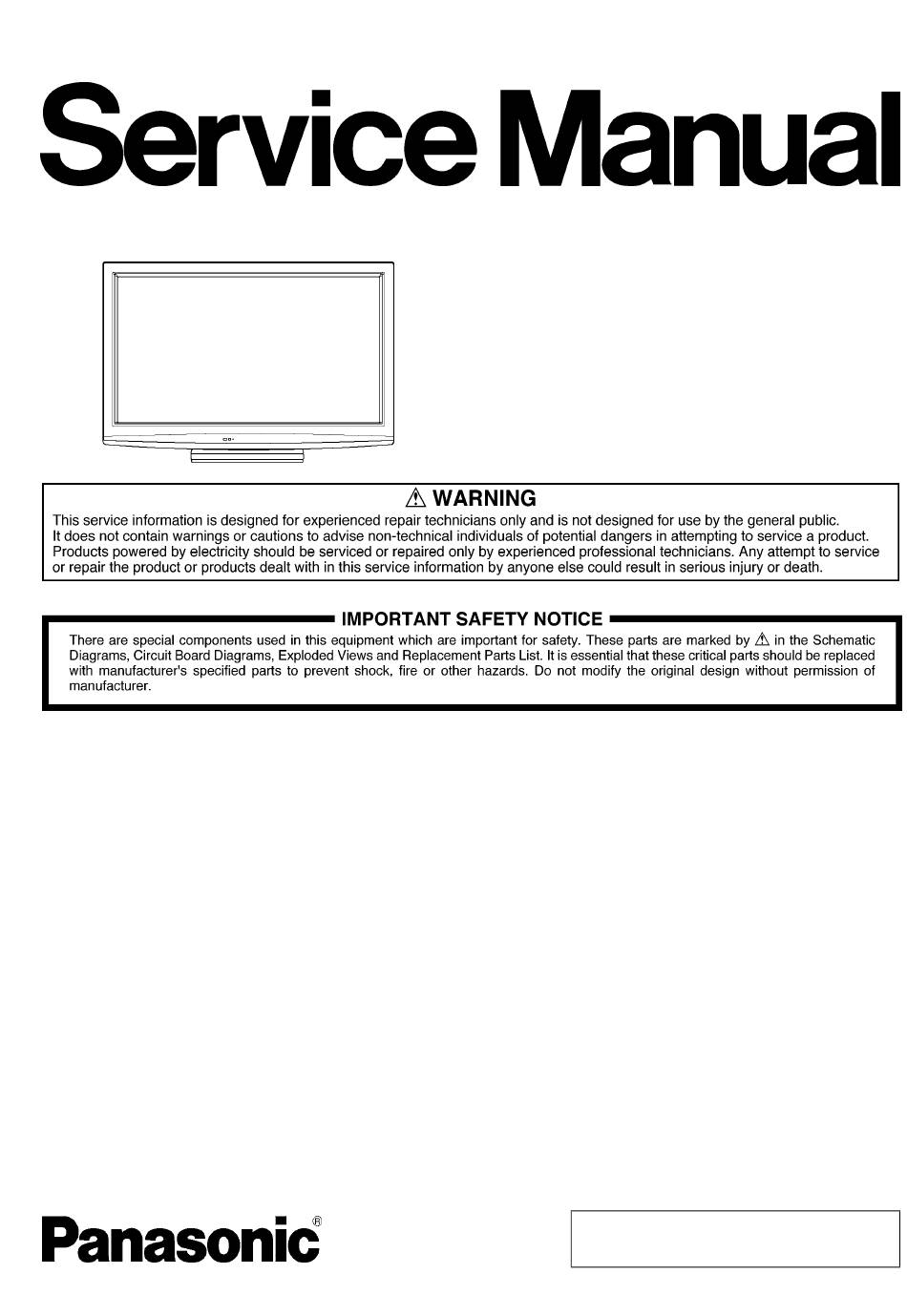

  • Page 1 ORDER NO. PSG1004052CE Plasma Television TH-P50X20K Model No. TH-P50X20M TH-P50X20P TH-P50X20V GPH13DA Chassis © Panasonic Corporation 2010. Unauthorized copying and distribution is a violation of law.

  • Page 2: Table Of Contents

    TABLE OF CONTENTS PAGE PAGE 1 Safety Precautions -----------------------------------------------3 11.3. Wiring (2) -------------------------------------------------- 40 1.1. General Guidelines ----------------------------------------3 11.4. Wiring (3) -------------------------------------------------- 40 11.5. Wiring (4) -------------------------------------------------- 41 1.2. Touch-Current Check--------------------------------------3 12 Schematic Diagram -------------------------------------------- 43 2 Warning --------------------------------------------------------------4 2.1. Prevention of Electrostatic Discharge (ESD) 12.1.

  • Page 3: Safety Precautions

    1 Safety Precautions 1.1. General Guidelines 1. When conducting repairs and servicing, do not attempt to modify the equipment, its parts or its materials. 2. When wiring units (with cables, flexible cables or lead wires) are supplied as repair parts and only one wire or some of the wires have been broken or disconnected, do not attempt to repair or re-wire the units.

  • Page 4: Warning

    2 Warning 2.1. Prevention of Electrostatic Discharge (ESD) to Electrostatically Sensitive (ES) Devices Some semiconductor (solid state) devices can be damaged easily by static electricity. Such components commonly are called Elec- trostatically Sensitive (ES) Devices. Examples of typical ES devices are integrated circuits and some field-effect transistors and semiconductor [chip] components.

  • Page 5: About Lead Free Solder (Pbf)

    2.2. About lead free solder (PbF) Note: Lead is listed as (Pb) in the periodic table of elements. In the information below, Pb will refer to Lead solder, and PbF will refer to Lead Free Solder. The Lead Free Solder used in our manufacturing process and discussed below is (Sn+Ag+Cu). That is Tin (Sn), Silver (Ag) and Copper (Cu) although other types are available.

  • Page 6: Service Navigation

    3 Service Navigation 3.1. PCB Layout Board Name Function Board Name Function Power Supply Data Driver (Lower Right) Non serviceable. Data Driver (Lower Left) P-Board should be exchanged for service. Scan Drive DC-DC Converter, Tuner Sustain Drive Speaker out, AV Terminal, HDMI in, SD Card Scan out (Upper) Digital Signal Processor, PEAKS-sLD Non serviceable.

  • Page 7: Applicable Signals

    3.2. Applicable signals COMPONENT (Y, P ), HDMI * Mark: Applicable input signal Signal name COMPONENT HDMI 525 (480) / 60i 525 (480) / 60p 625 (576) / 50i 625 (576) / 50p 750 (720) / 60p 750 (720) / 50p 1,125 (1,080) / 60i 1,125 (1,080) / 50i 1,125 (1,080) / 60p...

  • Page 8: Specifications

    4 Specifications Power Source AC 220-240 V, 50 / 60 Hz (K/M/V) AC 110-240 V, 50 / 60 Hz (P) Power Consumption Average use : 290 W (K/M/V) 295 W (P) Standby condition : 0.45 W Display panel Aspect Ratio 16:9 Visible screen size 127 cm (diagonal)
  • Page 9 Dimensions (W × H × D) 1,218 mm × 814 mm × 401 mm (With Pedestal) TH-P50X20K / TH-P50X20V 1,218 mm × 769 mm × 93 mm (TV only) 1,218 mm × 817 mm × 357 mm (With Pedestal) TH-P50X20M / TH-P50X20P 1,218 mm ×...

  • Page 10: Service Mode

    5 Service Mode 5.1. How to enter into Service Mode While pressing [VOLUME ( - )] button of the main unit, press [RECALL] button of the remote control three times within 2 seconds. 5.1.1. Key command [1] button...Main items Selection in forward direction [2] button...Main items Selection in reverse direction [3] button...Sub items Selection in forward direction [4] button...Sub items Selection in reverse direction...
  • Page 11 5.1.2. Contents of adjustment mode • Value is shown as a hexadecimal number. • Preset value differs depending on models. • After entering the adjustment mode, take note of the value in each item before starting adjustment. 5.1.3. How to exit Switch off the power with the [POWER] button on the main unit or the [POWER] button on the remote control.

  • Page 12: Option - Mirror

    5.2. Option - Mirror Picture can be reversed left and right or up and down. 00 : Default (Normal picture is displayed) 01 : Picture is reversed left and right. 02 : Picture is reversed up and down. Hint : If the defective symptom (e.g. Vertical bar or Horizontal bar) is moved by selection of this mirror, the possible cause is in A-board.

  • Page 13: Hotel Mode

    5.4. Hotel mode 1. Purpose Restrict a function for hotels. item Function 2. Access command to the Hotel mode setup menu Hotel Mode Select hotel mode ON/OFF In order to display the Hotel mode setup menu, please Initial INPUT Select input signal modes. enter the following command (within 2 second).

  • Page 14: Data Copy By Sd Card

    5.5. Data Copy by SD Card 5.5.1. Purpose (a) Board replacement (Copy the data when exchanging A-board): When exchanging A-board, the data in original A-board can be copied to SD card and then copy to new A-board. (b) Hotel (Copy the data when installing a number of units in hotel or any facility): When installing a number of units in hotel or any facility, the data in master TV can be copied to SD card and then copy to other TVs.
  • Page 15 5.5.3. Data copy from TV set to SD Card 1. Turn on the TV set. 2. Insert SD card with a startup file (pwd file) to SD slot. On-screen Display will be appeared according to the startup file automatically. 3. Input a following password for (a) or (b) by using remote control. (a) For Board replacement : 2770 (b) For Hotel : 4850 Data will be copied from TV set to SD card.
  • Page 16 5.5.4. Data copy from to SD Card to TV set 1. Turn on the TV set. 2. Insert SD card with Data to SD slot. On-screen Display will be appeared according to the Data folder automatically. 3. Input a following password for (a) or (b) by using remote control. (a) For Board replacement : 2771 (b) For Hotel : 4851 Data will be copied from SD card to TV set.

  • Page 17: Troubleshooting Guide

    6 Troubleshooting Guide Use the self-check function to test the unit. 1. Checking the IIC bus lines 2. Power LED Blinking timing 6.1. Check of the IIC bus lines 6.1.1. How to access Self-check indication only: Produce TV reception screen, and while pressing [VOLUME ( - )] button on the main unit, press [OK] button on the remote control for more than 3 seconds.

  • Page 18: Power Led Blinking Timing Chart

    6.2. Power LED Blinking timing chart 1. Subject Information of LED Flashing timing chart. 2. Contents When an abnormality has occurred the unit, the protection circuit operates and reset to the stand by mode. At this time, the defective block can be identified by the number of blinks of the Power LED on the front panel of the unit.

  • Page 19: No Power

    6.3. No Power First check point There are following 3 states of No Power indication by power LED. 1. No lit 2. Green is lit then turns red blinking a few seconds later. (See 6.2.) 3. Only red is lit.

  • Page 20: No Picture

    6.4. No Picture...

  • Page 21: Local Screen Failure

    6.5. Local screen failure Plasma display may have local area failure on the screen. Fig-1 is the possible defect P.C.B. for each local area. Fig-1...

  • Page 22: Service Fixture & Tools

    7 Service Fixture & Tools 7.1. SC jig Purpose: To find the failure board (SC or SU/SD) when the power LED is blinking 7 times. SC jig: Jumper connector to connect to SC50 connector on SC board Part number: TZSC09187 How to use: Caution: Remove SC jig from SC board after inspection.

  • Page 23: Disassembly And Assembly Instructions

    8 Disassembly and Assembly Instructions 8.1. Remove the Rear cover 8.4. Remove Side terminal cover and the Side shield metal 1. See PCB Layout (Section 3) 8.2. Remove the AC inlet , ×1 , ×1 1. Remove the screws (×2 2.

  • Page 24: Remove The Tuner Unit

    8.5. Remove the Tuner unit 8.7. Remove the Speakers 1. Remove the Side terminal cover and the Side shield- 1. Unlock the cable clampers to free the cable. metal. (See section 8.4.) 2. Disconnect the Speaker terminal. 2. Unlock the cable clampers to free the cable. 3.

  • Page 25: Remove The Sd-Board

    8.9. Remove the SD-Board 8.11. Remove the SS-Board 1. Remove the flexible cables (SD1, SD2, SD3 and SD4) 1. Remove the Tuner unit. (See section 8.5.) connected to the SD-Board. 2. Unlock the cable clampers to free the cable. 2. Remove the flexible cable (SU11-SD11) and the bridge 3.

  • Page 26: Remove The C1-Board

    8.15. Remove the Plasma panel sec- 3. Remove the Hanger metals (L, R) fastening screws (×2 each) and remove the Hanger metals (L, R). tion from the Cabinet assy (glass) 1. Remove the plasma panel fastening screws (×3 ) and remove the cabinet assy.

  • Page 27: Remove The Glass Holders

    8.16. Remove the Glass holders 8.18. Replace the plasma panel 1. Remove the Cabinet assy. (See section 8.15.) Caution: A new plasma panel itself without Hanger metals is 2. Remove the screws (×4 fragile. 3. Remove the Glass holder side (L, R). To avoid the damage to new plasma panel, carry a new 4.

  • Page 28: Measurements And Adjustments

    9 Measurements and Adjustments 9.1. Adjustment 9.1.1. Vsus selection Caution: When Plasma panel or A-board is replaced, Vsus should be set to LOW or HIGH. Procedure 1. Go into main item [VSUS] in Service Mode. LOW or HIGH will be displayed. 2.
  • Page 29 9.1.2. Sub-Contrast adjustment Name of measuring instrument Connection Remarks RF generator Base Band signal generator HD signal generator Steps Remarks Adjustment of TV (RF system) Note: Sub-contrast adjustment is unadjusted 1. Receive a RF PAL 100% Full White or Split Colour bar shown as below. for AV/ HD input.
  • Page 30 Steps Remarks Another procedure Adjustment of AV system 1. PAL 100% Full White or Split Colour bar receive AV1(or AV2), shown as below. 2. Goes into service mode. 3. Push [ 1 ] or [ 2 ] key, and goes into adjustment mode for [ Contrast ]. Adjustment 1.
  • Page 31 9.1.3. White balance adjustment Name of measuring instrument Connection Remarks W/ B pattern Panel surface Color analyzer (Minolta CA-100 or equivalent) Steps Remarks • Make sure the front panel to be used on the final set is fitted. Picture menu : Dynamic •...

  • Page 33: Block Diagram

    10 Block Diagram 10.1. Main Block Diagram DIGITAL SIGNAL PROCESSOR TMDS DATA HDMI1 TMDS DATA HDMI I/F HDMI3 TMDS DATA RECEIVER SD CARD DATA SD CARD SD CARD DATA HDMI2 SLOT Nile-TCON SIF I/F SIF I/F DDR2 TUNER EEPROM V/Y/PB/PR EEPROM V/Y/C STB3.3V...

  • Page 34: Block (1/4) Diagram

    10.2. Block (1/4) Diagram SPEAKER_L SPEAKER_R JK4502 JK8502 JK4500 JK4501 HDMI IN 3 TU8301 SD CARD ANT IN HDMI IN 1 HDMI IN 2 (SIDE) DIGITAL SIGNAL PROCESSOR TUNER IIC0 3.3V IC5613 SUB5V IC2106 AUDIO AMP SUB5V SUB3.3V SUB3.3V 3.3V SOUND15V IC5607 3.3V...

  • Page 35: Block (2/4) Diagram

    10.3. Block (2/4) Diagram DIGITAL SIGNAL PROCESSOR IC9300 VIDEO DATA PLASMA AI VIDEO DATA LVDS DATA CPG with SS H/V Sync Control VIDEO DATA Sub Filed Processor P+3.3V IC9304 P3V_ P+3.3V ADDR/DATA FLASH IIC2 FLASH I/F MEMORY CONTROL DATA P_S0 P_S0 P_S1 DISCHARGE CONTROL...

  • Page 36: Block (3/4) Diagram

    10.4. Block (3/4) Diagram POWER SUPPLY COLD COLD L005 D017 T501 Vsus Vsus D551 Q001 Q501 D524 D525 D528 Q521 SS11 Q451 D491 CORRECTION L401 VR451 RESONANCE Q522 D451 Vsus Vda_OUT ERROR DET PC401 CONTROL P+15V D521 PHOTO COUPLER IC001 Vsus D602 VR251...

  • Page 37: Block (4/4) Diagram

    10.5. Block (4/4) Diagram SCAN DRIVE TPVSUS TP59,TP60 TP61,TP62 Vsus F16V SC JIG IC16661 Q16661 IC16771 SUSTAIN DRIVE D16618 Q16607 Vad+5V PC16603 COMPARATOR CERS TPVSUS PHOTO COUPLER D16316 PC16461 Vsus PC16684 IPD CIRCUIT CPH1 PHOTO Q16672 P+15V PHOTO COUPLER CRC1 COUPLER Q16601 SCAN OUT (UPPER)

  • Page 39: Wiring Connection Diagram

    11 Wiring Connection Diagram 11.1. Caution statement. Caution: Please confirm that all flexible cables are assembled correctly. Also make sure that they are locked in the connectors. Verify by giving the flexible cables a very slight pull. 11.2. Wiring (1)

  • Page 40: Wiring (2)

    11.3. Wiring (2) 11.4. Wiring (3)

  • Page 41: Wiring (4)

    11.5. Wiring (4)

  • Page 43: Schematic Diagram

    12 Schematic Diagram 12.1. Schematic Diagram Note...

  • Page 44: A-Board (1/13) Schematic Diagram

    12.2. A-Board (1/13) Schematic Diagram A-BOARD (1/13) IC8001 C1AB00003250 Nile-TCON DVSS/AVSS GPIO/IRQ_MCU STB3.3V SUB1.2V IC8001 IC8001 AC19 STB1.2V DDR_VCC_POST IC8001 IC8001 R8032 C8012 IC8001 IC8001 AD18 IC8001 VDD12MCU IC8001 VDDC IC8001 AC10 VDD18DDR IC8001 IC8001 AE19 0.1u L8011 C8033 C8064 C8030 IC8001 VDDC...

  • Page 45: A-Board (2/13) Schematic Diagram

    12.3. A-Board (2/13) Schematic Diagram A-BOARD (2/13) IC8001 IC8002 C1AB00003250 C3ABSY000043 Nile-TCON DDR2 #0 84FBGA DDR2 800Mz x 16bit DDR2IF SUB1.8V DDR_VCC_POST L8000 J0JHC0000045 CH0DM0 DDRDM0 AD10 IC8001 IC8002 CH0DM1 DDRDM1 AD13 IC8001 IC8002 C8097 IC8002 CH0DQS0_N IC8002 VDDQ DDRDQSN0 IC8001 IC8002 UDQS...

  • Page 46: A-Board (3/13) Schematic Diagram

    12.4. A-Board (3/13) Schematic Diagram SUB3.3V_SD SD/IC_CARD R8539 SD_CARD EXB2HV680JV AE_SDDAT0 A-BOARD (3/13) SDDAT0 AE_SDCD SDCD AE_SDDAT1 R8543 SDDAT1 EXB2HV103JV AE_SDDAT2 TO 1/13 SDDAT2 AE_SDDAT3 SDDAT3 AE_SDCLK SDCLK AE_SDCMD SDCMD AE_SDWP SDWP C8520 0.1u R8530 L8501 EXB2HV330JV J0JHC0000045 TP8509 SUB3.3V C8503 0.1u R8538...

  • Page 47: A-Board (4/13) Schematic Diagram

    12.5. A-Board (4/13) Schematic Diagram A-BOARD (4/13) STB5V Q5602 TPS0S B1ADCE000022 R5607 1.5k AG_SOS TO 7/13 C5522 SUB5V R5608 2.2k SUB3.3V R5605 0.1u TP5603 D5670 B0JCCE000008 F15V R5606 R5610 TP5607 SUB6V VOUT *C5701 *C5700 SUB1.2V 6.3V 6.3V C5521 4.7u 4.7u ON/OFF F15V R5695...

  • Page 48: A-Board (5/13) Schematic Diagram

    12.6. A-Board (5/13) Schematic Diagram A-BOARD (5/13) PC MODEL SUB5V FL2102 R2117 C2107 J0HABB000004 PC_R_TERMINAL VR3IN *L2135 R2114 J0JHC0000075 VIDEO OUT 1 PS *C2299 *C2300 *C2301 FL2104 R2118 *R2376 J0HABB000004 C2108 100u 100u 0.1u 2 OUT PC_B_TERMINAL VB3IN TO 1/13 TO 7/13 U_NONUSE/A_VOUT__TERMINAL R2116...

  • Page 49: A-Board (6/13) Schematic Diagram

    12.7. A-Board (6/13) Schematic Diagram A-BOARD (6/13) R2393 C2103 R2307 TO 9/13 RF_V VCVS1IN TO 1/13 U_TU_V/A_TU_V US AV1_S *L2122 C2304 J0JCC0000287 R2304 AS AV2_S VY1IN U_AV1_S_Y/A_AV2_S_Y *D2129 R2308 EZJP0V080GA *L2124 C2303 J0JCC0000287 R2305 0.1u VC1IN TO 1/13 U_AV1_S_C/A_AV2_S_C *D2130 R2306 EZJP0V080GA C2311...

  • Page 50: A-Board (7/13) Schematic Diagram

    12.8. A-Board (7/13) Schematic Diagram A-BOARD (7/13) STB3.3V SUB1.2V STB3.3V SUB1.8V STB3.3V SUB5V ANALOG-ASIC R4809 R4821 R4830 R4748 R4831 STB3.3V STB1.2V STB5V 100k 100k IC4700 U_AV1_V/A_AV2_V__TERMINAL R4753 Q4704 C1ZBZ0004161 Q4703 Q4702 R4810 U_AV1_L/A_AV2_L__TERMINAL TO 6/13 DSC2001S0L DSC2001S0L DSC2001S0L A_AV2 R4752 SC_OHZ C4779 U_AV1_R/A_AV2_R__TERMINAL...

  • Page 51: A-Board (8/13) Schematic Diagram

    12.9. A-Board (8/13) Schematic Diagram A-BOARD (8/13) *R4519 *R4515 R4520 HPD1 HPLUG_A HPLUG_B HPLUG_C R4565 *R4566 *R4504 *R4567 *R4506 DDC5V_A DDC5V_B DDC5V_C R4507 C4541 *C4540 *C4539 R4525 *R4526 R4505 4.7k 4.7k *R4502 *R4527 *R4503 TO 1/13 TO 1/13 4.7k L4511 *L4504 *L4506 TO 1/13...

  • Page 52: A-Board (9/13) Schematic Diagram

    12.10. A-Board (9/13) Schematic Diagram A-BOARD (9/13) SUB5V R8335 R8307 AG_RF_AFT RF_AFT TO 1/13 SUB5V C8370 C8313 0.1u R8330 R8337 2.2k C8315 L8306 0.1u TP8302 J0JHC0000045 R8302 1000p RF_V TO 6/13 RF_V SIFIN TO 1/13 C8312 R8339 R8341 R8332 R8336 180p TU_SIF Q8306...

  • Page 53: A-Board (10/13) And K-Board Schematic Diagram

    12.11. A-Board (10/13) and K-Board Schematic Diagram SUB5V STB5V C4768 C4770 C4728 C4730 C4732 C4734 C4751 C4753 C4740 1000p 1000p 0.1u 1000p 1000p 1000p 0.1u 0.1u 0.1u A-BOARD (10/13) C4750 C4767 C4769 C4727 C4729 C4731 C4733 C4735 C4741 C4752 C4754 1000p 0.1u 1000p...

  • Page 54: A-Board (11/13) Schematic Diagram

    12.12. A-Board (11/13) Schematic Diagram TO 1/13 A-BOARD (11/13) SUB3.3V R9999 P15V 4.7k TCON_GDATA1 D9000 B0JCCE000008 R9984 R9880 4.7k PANEL_TEST_ON/VDD25_EN Q9800 R9884 B1ABCF000231 R9881 P15V R9985 4.7k P_ON/OFF TO 1/13 PANEL_AGW/AVDD_ENB Q9802 OHZ1 B1ABCF000231 R9958 R9882 STB_D3.3V 4.7k D9808 C9812 C9813 IC9801 INVERTER_SOS...

  • Page 55: A-Board (12/13) Schematic Diagram

    12.13. A-Board (12/13) Schematic Diagram A-BOARD (12/13) IC9300 C1AB00003259 P_S0 IC9300 DCCOP40 P_S1 P3.3V IC9300 DCCOP41 R9323 IC9300 CKMO TP9300 IC9300 DCCIPORT0 IC9300 SFLATCHI IC9300 P3.3V TP9111 IC9300 SFRST C9301 TP9301 *IC9304 TP9112 IC9300 SFVRST IC9300 SPIHZ C9300 TVRR809 IC9300 FPCLK 0.1u R9321...

  • Page 56: A-Board (13/13) Schematic Diagram

    12.14. A-Board (13/13) Schematic Diagram A-BOARD (13/13) IC9300 C1AB00003259 P3.3V P1.2V P2.5V L9302 J0JHC0000117 IC9300 LRX_V12C_2 VJ9303 IC9300 IC9300 AK20 IC9300 IC9300 IC9300 AA26 SCS_ANA_40 IC9300 SCS_ANA_7 IC9300 LRX_V12C_3 IC9300 VDDC IC9300 AF13 SCS_VDD18 IC9300 VDD33 IC9300 AA28 MLVDS_VDD C1AB00003259 IC9300 IC9300 AK28...

  • Page 57: C1-Board Schematic Diagram

    12.15. C1-Board Schematic Diagram C1-BOARD TXNC11LMUM A-BOARD TERM (A33) C1_P3.3V R17130 C1_P3.3V C17104 C17109 100V 0.33u C2-BOARD (C20) PANEL DATA C1_P3.3V DRIVER R17127 R17126 R17128 EXB38V681JV 3.3V_DET 3.3V_DET R17124 P3.3V AB_LED1 R17131 P3.3V AA_LED1 C1_P3.3V R17125 EXB38V470JV C17105 AB_ODED1 AA_ODED1 AB_PCD1 AA_PCD1 AB_PCD2...

  • Page 58: C2-Board Schematic Diagram

    12.16. C2-Board Schematic Diagram ZA17202 A-BOARD K4CD01000013 C2-BOARD TXNC21LMUM (A34) TERM SS_5V C2_P3.3V ZA17203 ZA17204 K4CD01000013 K4CD01000013 R17219 ZA17201 K4CD01000013 C2_P3.3V 3.3V_DET C2_P3.3V P3.3V C17210 P3.3V 0.1u R17232 AA_CLRD2 SS_5V AA_PCD4 AB_CLRD2 AB_PCD4 C17214 SS_5V AA_PCD3 AB_PCD3 0.1u AA_ODED2 AB_ODED2 R17217 AA_LED2 R17209...

  • Page 59: Sc-Board (1/4) Schematic Diagram

    12.17. SC-Board (1/4) Schematic Diagram SC-BOARD TXNSC1LMUM (1/4) P-BOARD TP105 TP106 TP107 TP108 TP109 TP110 TP111 TP112 TP113 TP114 TP115 TP116 TP117 TP118 (P2) TPVSUS VSUS Vsus C16411 C16412 250u 250V 220V 1.5u R16774 VSCN TP125 D16871 DZ2J330M0L R16751 R16752 150k 4.7k SOS7_SC2...

  • Page 60: Sc-Board (2/4) Schematic Diagram

    12.18. SC-Board (2/4) Schematic Diagram 16V_F SC-BOARD TXNSC1LMUM (2/4) IC16771 C0CBADC00072 Vad+5V VSUS Vad+5V VOUT R16534 C16771 C16796 470u D16401 DA3DF50ACSLW D16534 D16536 B0ECHR000001 B0ECHR000001 R16503 Q16501 Q16401 B1HFPFA00001 R16504 B1JAEQ000010 C16401 630V C16502 C16503 C16504 5600p R16401 PC16461 4.7u 470u 4.7u C16501...

  • Page 61: Sc-Board (3/4) Schematic Diagram

    12.19. SC-Board (3/4) Schematic Diagram SC-BOARD TXNSC1LMUM (3/4) Q16607 R16604 B1CBGD000001 AA_CERS VSUS C16603 C16604 630V 630V C16602 R16609 PC16603 R16765 R16633 1000p 1000p VSUS B3PBA0000223 D16618 B0ECKP000055 C16414 220V 250u D16497 R16601 B0ECKP000055 PC16684 R16631 B3PBA0000496 D16765 Q16606 B0ECKP000055 DSC2001Q0L AA_CPH1 R16615...

  • Page 62: Sc-Board (4/4) Schematic Diagram

    12.20. SC-Board (4/4) Schematic Diagram SC-BOARD TXNSC1LMUM (4/4) Q16931 B1ABCN000007 C16794 TP41 T16471 G4DYA0000201 16V_F 10 P1 Q16885 TP57 TP58 TP42 R16932 R16930 B1CFNG000001 AA_SIU R16931 D16728 8 PT TP43 AA_OC2 B0ECKP000055 AA_CLK VSUS AA_OC1 6 P2 TP44 R16827 Q16930 C16795 R16721 R16933...

  • Page 63: Ss-Board (1/2) Schematic Diagram

    12.21. SS-Board (1/2) Schematic Diagram SS-BOARD TXNSS1LMUM (1/2) SC-BOARD (SC3) P-BOARD (P11) SS11 VSUS C16018 TPVSUS *C16011 *C16012 220V 220V 250V *L16011 1.5u 250u 250u G0ZZ00002183 *L16012 G0ZZ00002183 TP61 TP60 *L16013 G0ZZ00002183 Q16001 B1JBEN000002 *L16014 C16001 G0ZZ00002183 630V R16001 1000p C16105 C16106 *C16101...

  • Page 64: Ss-Board (2/2) Schematic Diagram

    12.22. SS-Board (2/2) Schematic Diagram SS-BOARD TXNSS1LMUM (2/2) ZA001 K4CD01000011 *SS52 FPC protector D16285 TP54 B0ADEJ000035 R16289 C16286 R16281 330k TP36 0.1u R16284 Q16280 220k AA_SOS8 TP56 B1ABCF000231 D16280 D16282 DZ2J068M0L B0ACCJ000048 R16290 R16282 330k C16287 PANEL R16285 R16283 0.1u EXB38V623JV SUSTAIN ELECTRODE...

  • Page 65: Printed Circuit Board

    13 Printed Circuit Board 13.1. K-Board K-BOARD (FOIL SIDE) TXN/K1LLUM T P 5 0 8 T P 5 0 1 T P 5 0 2 TP2502 TP2501 TP2508 T P 5 0 4 TP2506 TP2504 T P 5 0 3 RM2510 R M 5 1 0 T P 5 0 6...

  • Page 66: A-Board

    13.2. A-Board A-BOARD (FOIL SIDE) TZTNP01LMUM(K/M/V) TZTNP01LMUP(P) TP9163 TP9176 TP9082 TP9084 TP9086 TP9088 TP9090 TP9092 TP9094 TP9096 TP9136 TP9142 TP9104 TP9193 TP9194 TP9081 TP9083 TP9085 TP9087 TP9089 TP9091 TP9093 TP9095 R9402 TP9158 TP9160 TP9164 TP9170 TP9173 TP9103 TP9146 TP9152 TD9360 TD9366 TP9195 TP9197...
  • Page 67 A-BOARD (COMPONENT SIDE) TZTNP01LMUM(K/M/V) TZTNP01LMUP(P) TP4742 VJ9902 R9126 C4763 C4747 A 1 1 L9802 C9102 I C 2 1 0 8 R2332 FL9900 C4721 C2251 C9103 TD9102 C2260 C2261 C2262 C2263 D9805 R4817 C4718 R4816 R9019 C9069 L2131 C9834 C2243 C2300 C9900 R9906...

  • Page 68: C1-Board

    13.3. C1-Board C1-BOARD (FOIL SIDE) TXNC11LMUM CMM11 P b F TNPA5079 1 C1 S E E R E V E R S E F O R O R D E R N O . C1-BOARD (COMPONENT SIDE) TXNC11LMUM R 1 2 4 I C 1 0 1 R 1 3 1 C 1 1 5...

  • Page 69: C2-Board

    13.4. C2-Board C2-BOARD (FOIL SIDE) TXNC21LMUM CMM21 T N P A 5 0 8 0 1 S E E R E V E R S E F O R O R D E R N O . P b F 1 2 3 C2-BOARD (COMPONENT SIDE) TXNC21LMUM...

  • Page 70: Sc-Board

    13.5. SC-Board SC-BOARD (FOIL SIDE) TXNSC1LMUM T P 6 3 T P 5 9 T P 4 2 SC50 SC42 T P 4 3 C462 T P 1 1 5 T P 2 5 T P 4 1 SC41 R696 SC46 C461 T P 7 9...
  • Page 71 SC-BOARD (COMPONENT SIDE) TXNSC1LMUM H.V. DANGER H.V. DANGER H.V. DANGER H.V. DANGER R 7 2 1 Z A 4 2 1 Z A 4 1 2 Z A 4 1 1 Z A 4 0 1 SC46 C 4 6 4 Z A 4 0 3 C 4 6 2 R 6 0 5...

  • Page 72: Ss-Board

    13.6. SS-Board SS-BOARD (FOIL SIDE) TXNSS1LMUM C 2 4 1 C 1 9 3 L 0 1 4 L 0 1 3 L 0 1 2 L 3 0 3 L 0 1 1 C R N o . 1 6 L 1 0 3 T P 6 6 T N P A 5 0 7 2...
  • Page 73 SS-BOARD (COMPONENT SIDE) TXNSS1LMUM C 2 4 4 R 1 3 1 R 1 3 5 C 1 0 6 C 1 0 5 R 1 3 6 C 2 4 2 R 1 9 1 C 1 0 4 D 1 3 1 C 1 0 3 C 3 2 8...

  • Page 75: Exploded View And Replacement Parts List

    14 Exploded View and Replacement Parts List 14.1. Exploded View and Mechanical Replacement Parts List 14.1.1. Exploded View 1...
  • Page 76 14.1.2. Exploded View 2...
  • Page 77 14.1.3. Packing 1...
  • Page 78 14.1.4. Packing 2...
  • Page 79 14.1.5. Mechanical Replacement Parts List...
  • Page 80 TBL3EX0010 PEDESTAL STAND 1 PAVCSG K/V TBLA3679 STAND POLE R TBLA3680 STAND POLE L TBLX0135 PEDESTAL STAND 1 PAVCSG M/P TBM4GA005 PANASONIC BADGE 1 PAVCSG TBX3EA00401 POWER BUTTON THEJ0339 SCREW(BC-TUNER:1 SIDE_COVER:4) THEL052Z SCREW (BC TOP:4) THEL080N PF SCREW(5x30) THTD020J SCREW(A-PRINT:4)
  • Page 81 Ref. Safety Part No. Part Name & Description Q'ty Remarks TPE3EB001 BAG (PEDESTAL STAND) 1 PAVCSG K/V TPE3EP002 BAG FOR AC CORD 1 PAVCSG TPE3EP003 ACCESSORIES BAG 1 PAVCSG TPEB340 BAG (STAND ACCESSORY) TPEB424 BAG (PEDESTAL STAND) 1 PAVCSG M/P TPEH419 SET BAG 1 PAVCSG...

  • Page 82: Electrical Replacement Parts List

    14.2. Electrical Replacement Parts List 14.2.1. Replacement Parts List Notes...
  • Page 83 14.2.2. Electrical Replacement Parts List Safety Ref. No. Part No. Part Name & Pcs Remarks Description Safety Ref. No. Part No. Part Name & Pcs Remarks C2203 F1J1A106A087 C 0.010UF, K, Description C2204 F1J1E105A231 C 1 UF 25V TZTNP01LMUM CIRCUIT BOARD A (RTL) C2205 F1J1A106A087 C 0.010UF, K,...
  • Page 84 Safety Ref. No. Part No. Part Name & Pcs Remarks Safety Ref. No. Part No. Part Name & Pcs Remarks Description Description C2274 F1J1A106A087 C 0.010UF, K, C4747 F1G1C104A116 C 0.10UF, K, 16V C4748 F1G1C104A116 C 0.10UF, K, 16V C2275 F1J1E105A231 C 1 UF 25V C4749 F1G1H102A730 C 1000UF, 50V...
  • Page 85 Safety Ref. No. Part No. Part Name & Pcs Remarks Safety Ref. No. Part No. Part Name & Pcs Remarks Description Description C5777 ECJ1VB1A105K C 0.01UF, Z, 50V C8071 F1G1C104A116 C 0.10UF, K, 16V C8001 ECJ1VB0J105K C 1UF, K, 6.3V C8073 F1G1C104A116 C 0.10UF, K, 16V C8002...
  • Page 86 Safety Ref. No. Part No. Part Name & Pcs Remarks Safety Ref. No. Part No. Part Name & Pcs Remarks Description Description C8515 F1J1A106A087 C 0.010UF, K, C9363 F1G1C104A116 C 0.10UF, K, 16V C9371 F1J1A106A087 C 0.010UF, K, C8517 F1J1A106A087 C 0.010UF, K, C9372 F1J1A106A087 C 0.010UF, K, C8519...
  • Page 87 Safety Ref. No. Part No. Part Name & Pcs Remarks Safety Ref. No. Part No. Part Name & Pcs Remarks Description Description C16328 F2A2D201A226 E 220UF, 200V C16854 F1J1H104A835 C 0.10UF, 50V C16401 F1L2J562A022 C 5600UF, K,6.3V C16856 ECJ1VB1A105K C 0.01UF, Z, 50V C16411 F2A2T251A004 E 250UF, 220V C16857...
  • Page 88 Safety Ref. No. Part No. Part Name & Pcs Remarks Safety Ref. No. Part No. Part Name & Pcs Remarks Description Description D8006 B0ACCJ000048 DIODE D16765 B0ECKP000055 DIODE D8300 B0ACCJ000048 DIODE D16790 B0JCME000093 DIODE D9000 B0JCCE000008 DIODE D16820 B0ACCJ000048 DIODE D9110 B0JCGD000002 DIODE D16821...
  • Page 89 Safety Ref. No. Part No. Part Name & Pcs Remarks Safety Ref. No. Part No. Part Name & Pcs Remarks Description Description IC16771 C0CBADC00072 IC L8011 J0JHC0000045 CHIP INDUCTOR IC16773 C0JBAB000715 IC L8012 J0JHC0000045 CHIP INDUCTOR IC16784 MIP3910MSSCF IC L8013 J0JHC0000045 CHIP INDUCTOR IC16785 C0DBZYY00352 IC...
  • Page 90 Safety Ref. No. Part No. Part Name & Pcs Remarks Safety Ref. No. Part No. Part Name & Pcs Remarks Description Description Q5613 B1ABCF000231 TRANSISTOR Q16885 B1CFNG000001 FET Q5614 DSC2001S0L TRANSISTOR Q16920 B1ABCN000007 TRANSISTOR Q5615 B1ABGC000011 TRANSISTOR Q16921 B1ABCN000007 TRANSISTOR Q8002 B1ABCF000231 TRANSISTOR Q16930...
  • Page 91 Safety Ref. No. Part No. Part Name & Pcs Remarks Safety Ref. No. Part No. Part Name & Pcs Remarks Description Description R2280 ERJ2GEJ103 M 10KOHM, R2377 ERJ2GEJ104 M 100KOHM, J,0.063W J,0.063W R2281 ERJ2GEJ103 M 10KOHM, R2378 ERJ2GEJ103 M 10KOHM, J,0.063W J,0.063W R2282...
  • Page 92 Safety Ref. No. Part No. Part Name & Pcs Remarks Safety Ref. No. Part No. Part Name & Pcs Remarks Description Description R4711 D0GA472JA015 M 4.7KOHM, R5610 D0GA471JA015 M 470OHM, J,0.063W J,0.063W R4715 D0GA222JA015 M 2.2KOHM, R5611 D0GB2R2JA057 M 2.2OHM J 1/10W J,0.063W R5613 D0GB2R2JA057 M 2.2OHM J 1/10W...
  • Page 93 Safety Ref. No. Part No. Part Name & Pcs Remarks Safety Ref. No. Part No. Part Name & Pcs Remarks Description Description R8044 ERJ2GEJ102X M 1K OHM J 1/4W R8320 D0GA101JA015 M 100 OHM, J,0.063W R8045 D0GA473JA015 M 47KOHM, J,0.063W R8321 D0GA472JA015 M 4.7KOHM, J,0.063W...
  • Page 94 Safety Ref. No. Part No. Part Name & Pcs Remarks Safety Ref. No. Part No. Part Name & Pcs Remarks Description Description R8557 D0GA472JA015 M 4.7KOHM, R9191 D0GA101JA015 M 100 OHM, J,0.063W J,0.063W R8560 D0GA472JA015 M 4.7KOHM, R9194 D0GA331JA015 M 330 OHM, J,0.063W J,0.063W R9022...
  • Page 95 Safety Ref. No. Part No. Part Name & Pcs Remarks Safety Ref. No. Part No. Part Name & Pcs Remarks Description Description R9904 ERJ2GEJ104 M 100KOHM, R16320 ERJ14YJ683 M 68KOHM, 1/2W J,0.063W R16330 D0GB102JA041 M 1KOHM,J,1/10W R9905 ERJ2GEJ103 M 10KOHM, R16332 D0GB474JA041 M 470KOHM,J,1/ J,0.063W...
  • Page 96 Safety Ref. No. Part No. Part Name & Pcs Remarks Safety Ref. No. Part No. Part Name & Pcs Remarks Description Description R16567 EXB38V472JV RESISTOR ARRAY R16711 ERJ3GEYJ472 M 4.7KOHM,J,1/ R16568 EXB38V472JV RESISTOR ARRAY R16712 ERJ6GEYJ102V M 1K OHM J 1/10W R16580 D0GB562JA041 M 5.6KOHM,J,1/ R16717...
  • Page 97 Safety Ref. No. Part No. Part Name & Pcs Remarks Safety Ref. No. Part No. Part Name & Pcs Remarks Description Description R16897 ERJ6ENF2611 M2.61KOHM, 1/10W R17208 D0GB101JA041 M 100 OHM,J,1/ R16899 ERJ6ENF3011 M3.01KOHM, 1/10W R17209 EXB38V470J RESISTOR ARRAY R16904 ERJ6GEYJ223 M 22KOHM,J,1/10W R17210...
  • Page 98 Safety Ref. No. Part No. Part Name & Pcs Remarks Description ZA17103 K4CD01000013 AV TERMINAL ZA17104 K4CD01000013 AV TERMINAL ZA17105 K4CD01000013 AV TERMINAL ZA17201 K4CD01000013 AV TERMINAL ZA17202 K4CD01000013 AV TERMINAL ZA17203 K4CD01000013 AV TERMINAL ZA17204 K4CD01000013 AV TERMINAL...

This manual is also suitable for:

Th-p50x20mTh-p50x20pTh-p50x20v

Table of Contents
