Summary of Contents for Benetech GM100D

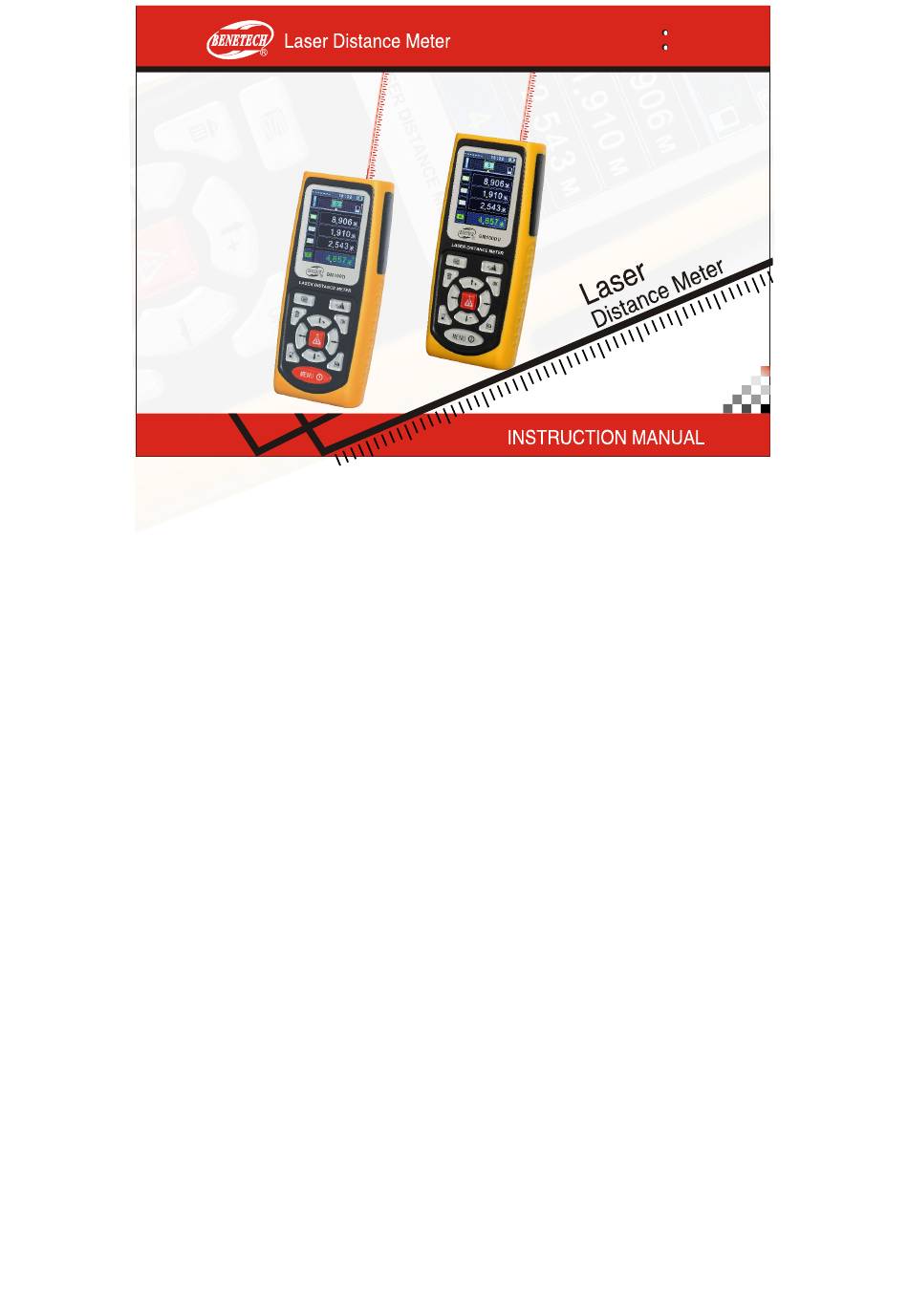

- Page 1 GM100D GM100DU...
-
Page 2: Table Of Contents
CONTENTS Before use 1. Check-up 2. Introduction 3. Safety instruction 4. Button functions Operation instructions 1. Start-up & Shut-down 2. Single measuring 3. Continuous measuring 4. Area measuring 5. Volume measuring 6. Indirect measuring-Pythagoras 7. Tilt measuement 8. Auto horizontal measurement 9. -
Page 3: Check-Up
Before use 1. check-up Thanks for your purchasing our product. Please read carefully this manual before using this unit and keep it well for future reference. Unpack the package and check the following components in it. If there is any missing part or incompl- ete manual, please contact the local dealer. -
Page 4: Safety Instruction
3. Safety guide a. Permitted use Measuring distances Computing functions, e. g. areas and volumes Indirect measuring with Pythagorean Angle measurement b. Prohibited use Using the instrument without instruction Using outside the stated limits Deactivation of safety systems and removal of explanatory and hazard labels Opening of the equipment by using tools, as far as not specifically permitted for certain cases Carrying out modification or conversion of the product Use after misappropriation... -
Page 5: Button Functions
d. Warning Looking directly into the beam with optical aids (e.g. Binoculars, telescopes) can be hazardous Precautions: Do not look directly into the beam with optical aids. e. Caution: Looking into the laser beam may be hazardous to the eyes Precautions: Do not look into the laser beam. -
Page 6: Operation Instructions
Operation instructions 1. Start-up & Shut-down a. Inserting / replacing batteries Pull up the snap of the battery door to open it and insert the battery included in the package, then close the door and lock it up. b. Start-up Press key to start-up, and directly go to the interface of single measuring. -
Page 7: Volume Measuring
Press again to take the second distance measurement (e.g. width). The results of length, width, perimeter and area are displayed in the historical data line in order. 5. Volume Measuring: Press twice, the symbol appears in the function field on the display, and the volume function activated as well. -
Page 8: Tilt Measuement
7. Tilt measurement: Press button the symbol appears in the function field, press to take the inclination and the distance. The inclination sensor measures tilts between 45 . During the measurement of tilt, the instrument should be held without transverse tilt, as far as possible within 10 . -
Page 9: Data Locking
c. Adjust measurement result: When this data was selected, press , the cursor appears in the measurement type field, press move the cursor to select the digit of data, and press UP or DOWN to increase or reduce the value, press OK to save and return to measurement interface, or press to cancel the modification and return the previous data. -
Page 10: Historical Record
12. Historical record: a. .Historical record review: Press to call up the function, press UP or DOWN to select the Measurement type, sorting by which, all of the data record displays. b. Historical record delete: Move cursor to select one of measurement type, Press , then press to delete all the histori... -
Page 11: Set Up
Set up Press key to main menu as following screen, press UP / DOWN / LEFT / RIGHT to be next sub-setting function. Press to save and return to previous interface, or press cancel the modification and return to the previous data. The main menu shows as below: TOOLS PERSONAL SET... -
Page 12: Illustration Icons
Illustration of icons Level Bubble Bright Reset Timer Timer Set Offset Factory Reset Stacking Out Beep Time Format About Us Temperature Measure Unit G-Sensor Data Export Angle Unit Language 100m Usb... -
Page 13: Measurement Steps
Measurement Steps Measurement Measurement Additional Additional Function Icon Function Icon Steps Steps Information Information Red side: measuring Red side: measuring Green side: result Green side: result Inclination Area Measurement Auto Horizontal Volume Auto Heights Pythagorean 1 Triangular Pythagorean 2 Staking... -
Page 14: Technical Specifications
Technical Specifications Functional Functional 100M 100M(USB) 100M 100M(USB) Spec Spec Measurement 100m 100m Recall last values 1000 range Buzzer indication Accuracy 1.5mm 1.5mm Li-ion battery Li-ion battery Battery Measurement 1200mAh 1200mAh m/in/ft m/in/ft unit Battery life Up to 15000 Up to 15000 Laser class Class Class... -
Page 15: Maintenance And Warranty
Maintenance and warranty 1. Maintenance a. If there is a icon appears on screen, please charge the unit with the adaptor included in the package. b. Take out the battery from the battery door if the unit is supposed not to be used for a long time. c. - Page 16 Version 100m- EN-00...
