Summary of Contents for Maono AU-AM200
- Page 1 User Manual Portable Live Streaming and Podcast Console For Computer & Smartphone...
-
Page 2: Product Description

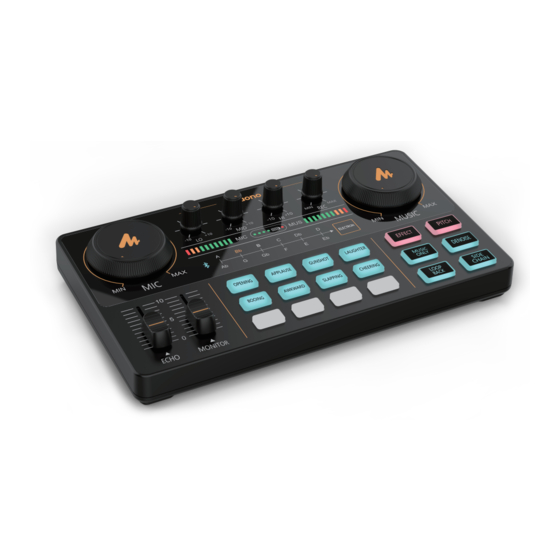

Product Description Maonocaster AU-AM200 is a comprehensive solution for audio processing that integrates audio collecting, processing and output controlling. It is compatible with smartphones, tablets and computers, including Android, iOS, Window and macOS. It is plug-and-play with no extra driver required. The built-in DSP digital audio processor makes it possible to vary your voice and add more sound effect to your podcast with one single button, which will make your livestream more entertaining. -
Page 3: Product Layout
Product Layout ELECTRON MUSIC EFFECT PITCH OPENING APPLAUSE GUNSHOT LAUGHTER MUSIC DENOSIE BOOING AWKWARD SLAPPING CHEERING ONLY LOOP SIDE BACK CHAIN ECHO MONITOR POD1 POD2 POD3 MUSIC OUTPUT HEADSET MIC1 MIC2 OUTPUT OUTPUT OUTPUT OUTPUT - 02 -... - Page 4 Microphone volume control Rotate the control knob clockwise to increase the volume of the microphone. 2. Accompaniment volume control Rotate the control knob clockwise to adjust the volume of the external accompaniment music. When in use, you can turn clockwise to increase the volume of accompaniment music or counterclockwise to decrease the volume of accompaniment music.
- Page 5 7. Vocal FX There are six function buttons in this area, which are EFFECT, PITCH, MUSIC ONLY, DENOISE, LOOP BACK , SIDE CHAIN. 7.1 "EFFECT" The button has 4 modes corresponding to different light colors, including the original sound mode (Pink ), professional mode (red), pop mode (blue), and yelling mode (green).
- Page 6 11. Microphone Volume Level Display Indicate the volume of the microphone. 12. Battery Level Display 4 LED lights on means 100% fully charged, 3 LED lights on means 75%, 2 LED lights 50%, 1 LED 25%; The power indicator LED flashes and red light on when charging. 13.
- Page 7 22. Microphone interface It can be connected to a 3.5 mm condenser microphone that does not require external power supply, such as MAONO A03, A340, PM325 and other models. Sound card connection guide 1. Karaoke by mobile phone MUSIC POD1...
- Page 8 2. Live Streaming on mobile phones POD1 POD2 POD3 MUSIC OUTPUT HEADSET MIC1 MIC2 INPUT OUTPUT OUTPUT OUTPUT Broadcast interface Smartphone 1 Condenser Microphone Smartphone 1 Smartphone 2 Smartphone 2 Smartphone 3 Smartphone 3 Monitoring headset Phone for accompanimen 1. Connect the mobile phone/headsets/microphone to the podcast console as the picture shows. 2.
- Page 9 2. Connect the computer and the podcast console by USB-C cable. The computer will automatically recognize the podcast console and select the driver. 3. Enter the sound control panel of Windows, and set the podcast console "MAONO AU-AM200" as the system default playback in "Playback" and "Recording" option.
- Page 10 4. Open the live streaming software on the computer and confirm again in software settings that "MAONO AU-AM200" is the the default audio and playback device. NOTE: • You can stream to computer and smartphone at the same time. • Please activate "LOOP BACK" mode during call-in in live streaming.
-
Page 11: Bluetooth Connection
ELECTRON 1. Turn on the podcast console, the Bluetooth light on the front of the sound card starts to flash. 2. Search for the device in the Bluetooth menu of the phone, find the Bluetooth device of "MAONO OPENMING APPLAUSE... - Page 12 SIDE ② Please check whether the podcast console "MAONO AU-AM200" has been set as the default playback and recording CHAIN device of the live broadcast software. If not, please set refer to " Live Streaming on the Computer " part.
- Page 13 Model : AU-AM200 Technical Support: support@maono.com www.maono.com...
