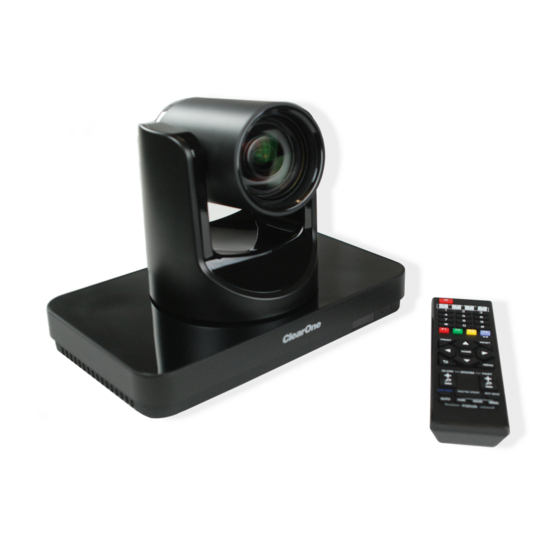

ClearOne UNITE 200 PTZ User Manual
  1. Manuals
  2. Brands
  3. ClearOne Manuals
  4. Camcorder
  5. UNITE 200 PTZ
  6. User manual

ClearOne UNITE 200 PTZ User Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

User Manual
UNITE
200 PTZ HD Camera
®

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the UNITE 200 PTZ and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for ClearOne UNITE 200 PTZ

Summary of Contents for ClearOne UNITE 200 PTZ

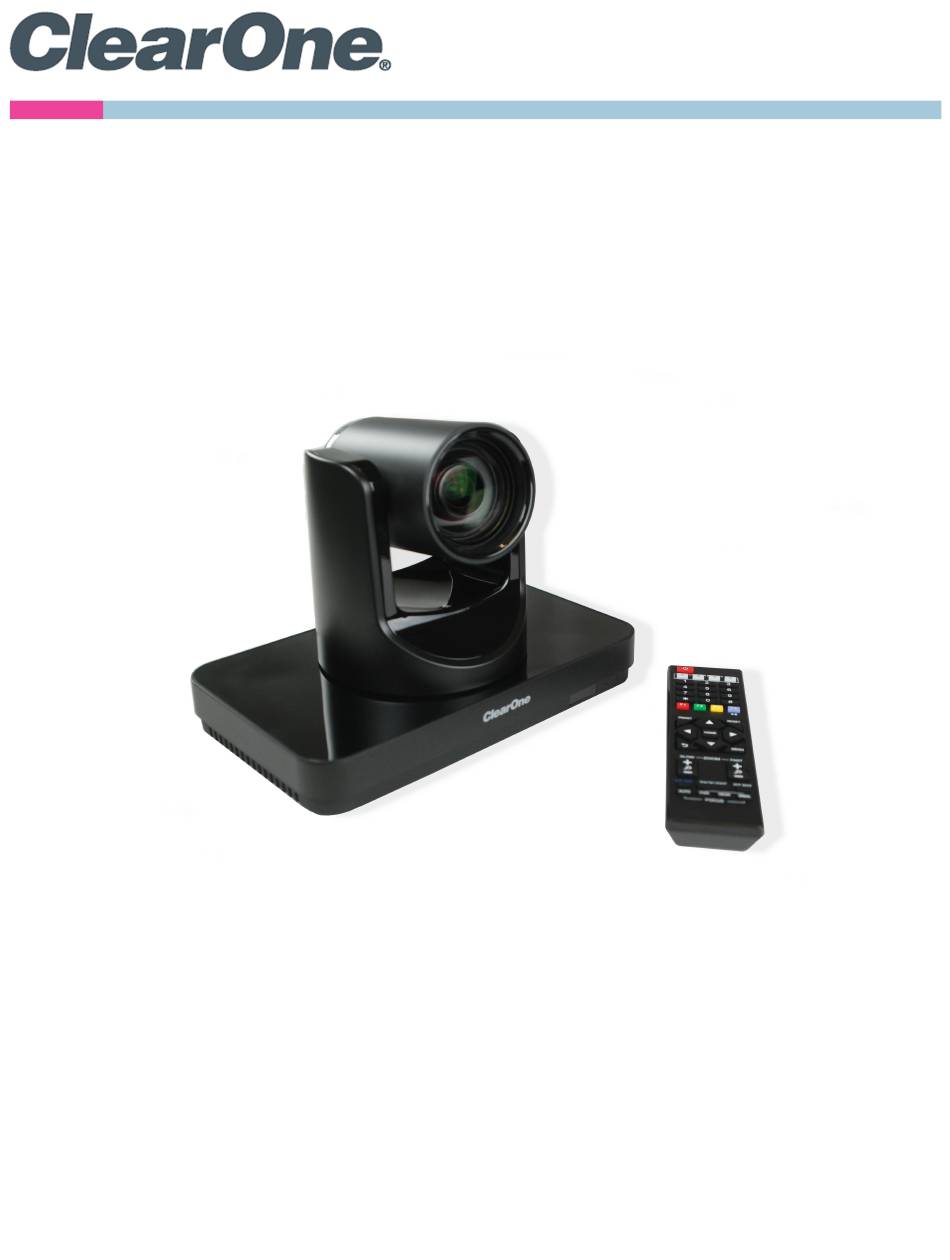

  • Page 1 User Manual UNITE 200 PTZ HD Camera ®...
  • Page 2 Tel: +1.801.975-7200 Salt Lake City, UT 84116 Sales Technical Support Tel: +1.801.975.7200 Tel: +1.801.974.3760 sales@clearone.com videotechsupport@clearone.com Notices © 2021 ClearOne, Inc. All rights reserved. Information in this document is subject to change without notice Document: DOC-0263-001v1.6, August 2021 August 2021 DOC-0263-001v1.6...

  • Page 3: Table Of Contents

    UNITE 200 PTZ HD Camera User Manual Contents anchor Introduction ....................1 Remote Control ..................1 Menu Settings ...................3 EXPOSURE ......................3 COLOR ........................5 NOISE REDUCTION ....................8 SETUP ........................8 COMMUNICATION SETUP ..................9 RESTORE DEFAULT .....................10 USB 3.0 ....................10 IP Function ....................11 Access Through a Local Area Network (LAN) .............11 Access Through a Wide Area Network (WAN) ............12...

  • Page 4: Introduction

    UNITE 200 PTZ HD Camera User Manual Introduction This user manual provides advanced information regarding control of the ClearOne UNITE 200 PTZ HD Camera. Additional information about the camera is provided in the corresponding Datasheet and Quick-Start Guide, which are available in ClearOne’s Resource Library...
  • Page 5 UNITE 200 PTZ HD Camera User Manual Set Camera IR Address Buttons Function 1. Set camera IR address [*]+[#]+[F1]: Address 1 [*]+[#]+[F2]: Address 2 [*]+[#]+[F3]: Address 3 [*]+[#]+[F4]: Address 4 Function 2: Image freezing function Press [F4] to start the freeze function. The word “Freeze” displays in the upper left. After five seconds, the display automatically disappears (though the freeze feature continues).

  • Page 6: Menu Settings

    UNITE 200 PTZ HD Camera User Manual Menu Settings Press the [MENU] button to display the main menu. Use the arrow buttons to select the item to be set. Press the [HOME] button to enter a sub-menu. EXPOSURE Select Exposure from the main menu and press the [HOME] button.
  • Page 7 UNITE 200 PTZ HD Camera User Manual Setting Description Options Effective only when the exposure mode is set to... Mode • Auto • AAE • Manual • Bright • SAE ExpCompMode Exposure compensation • On Auto mode • Off ExpComp...

  • Page 8: Color

    UNITE 200 PTZ HD Camera User Manual COLOR From the main menu, select Color, then press the [HOME] button. The system displays the COLOR menu. Setting Description Options Effective only when... WB-Mode White balance mode • Auto • OnePush • Indoor •...
  • Page 9 UNITE 200 PTZ HD Camera User Manual IMAGE From the main menu, select Image, then press the [HOME] button. The system displays the IMAGE menu. Setting Description Options Luminance Brightness adjustment 0 ~ 14 Contrast Contrast adjustment 0 ~ 14...
  • Page 10 UNITE 200 PTZ HD Camera User Manual P/T/Z From the main menu, select P/T/Z, then press the [HOME] button. The system displays the P/T/Z menu. Setting Description Options SpeedByZoom The depth of field • On scale switch • Off AF-Zone Interested in •...

  • Page 11: Noise Reduction

    UNITE 200 PTZ HD Camera User Manual NOISE REDUCTION From the main menu, select Noise Reduction, then press the [HOME] button. The system displays the NOISE REDUCTION menu. Setting Description Options NR2D-Level 2D noise reduction • Off • 1 - 5 •...

  • Page 12: Communication Setup

    UNITE 200 PTZ HD Camera User Manual COMMUNICATION SETUP From the main menu, select Setup, then press the [HOME] button. The system displays the COMMUNICATION SETUP menu. Setting Description Options Protocol Control protocol type • AUTO • PELCO-D • VISCA •...

  • Page 13: Restore Default

    • Mac OS: FaceTime. iChat, Photo Booth and Debut Video Capture, etc. Note the following: • ClearOne recommends the use of AMCAP version 8.0 in Windows, as its software performance is more stable. When you use the high version of AMCAP in a low configuration system, it shows the stream rendering.

  • Page 14: Ip Function

    UNITE 200 PTZ HD Camera User Manual IP Function Access Through a Local Area Network (LAN) 1. Setup IP address The camera’s default IP address is 192.168.100.88. If you forget the camera’s IP address or have changed it, to show the camera IP address on screen, on the remote control, press * and # and 4.

  • Page 15: Access Through A Wide Area Network (Wan)

    UNITE 200 PTZ HD Camera User Manual After login, the Web interface appears, as shown below: Note: If this is the first use of the web interface, you must install the VLC player software. Access Through a Wide Area Network (WAN)
  • Page 16 UNITE 200 PTZ HD Camera User Manual Pan-Tilt control: Up, Down, Left, Right, Home button. • Rate: You can choose vertical speed as 1 - 24, horizontal direction at the rate of 1 - 20. • Select corresponding speed and click direction button to realize PTZ speed increase or decrease.
  • Page 17 UNITE 200 PTZ HD Camera User Manual • Fluctuate level Restrain the fluctuation magnitude of variable rate. Options: 1 - 6 Image Setup Click “Image.” • Brightness Image brightness, 0 -14, slider control, on the right shows the corresponding numerical value. The default value is 7.
  • Page 18 UNITE 200 PTZ HD Camera User Manual System Setting Click “System.” • Work Mode Work Mode RTSP • Reboot Click the “Reboot” button to restart the system. • User and password You can modify the password (letters and numbers only) •...

  • Page 19: Control Interface Definition

    UNITE 200 PTZ HD Camera User Manual Device Information Click “Information”, the current device information as shown. Serial Command Control In default working mode, the camera can be controlled via RS-232 or RS-485 (half-duplex mode). The parameters are as follows: •...

  • Page 20: Network Configuration

    UNITE 200 PTZ HD Camera User Manual Camera DB - 9 Serial Camera In Camera Out 1. DTR 1. CD 1. DTR 1. DTR 2. DSR 2. RXD 2. DSR 2. DSR 3. TXD 3. TXD 3. TXD 3. TXD 4.

  • Page 21: Command List

    UNITE 200 PTZ HD Camera User Manual Command List The camera uses the VISCA/Pelco-D/Pelco-P serial standard. Camera-Issued Messages Note: In the following tables, z = Camera Address + 8 ACK/ Completion Message Command Function Command Packet Comments z0 4y FF...
  • Page 22 UNITE 200 PTZ HD Camera User Manual Camera Control Commands Command Function Command Packet Comments AddressSet Broadcast 88 30 01 FF Address setting Stop 8x 01 04 07 00 FF Tele(Standard) 8x 01 04 07 02 FF Wide(Standard) 8x 01 04 07 03 FF...
  • Page 23 UNITE 200 PTZ HD Camera User Manual Command Function Command Packet Comments Command List Reset 8x 01 04 0B 00 FF 8x 01 04 0B 02 FF Iris Setting The camera uses the VISCA/Pelco-D/Pelco-P serial standard. CAM_Iris Down 8x 01 04 0B 03 FF...
  • Page 24 UNITE 200 PTZ HD Camera User Manual Command Function Command Packet Comments 8x 01 04 61 02 FF Image Flip Horizontal CAM_LR_Reverse On/Off 8x 01 04 61 03 FF 8x 01 04 66 02 FF Image Flip Vertical On/ CAM_PictureFlip...
  • Page 25 UNITE 200 PTZ HD Camera User Manual Command Function Command Packet Comments 8x 01 04 AA 00 FF CAM_AFZone Center 8x 01 04 AA 01 FF AF Zone weight select Bottom 8x 01 04 AA 02 FF p: Color Hue setting 0h...
  • Page 26 UNITE 200 PTZ HD Camera User Manual Command Command Return Values Comments Packed CAM_ApertureInq (Sharpness) 8x 09 04 42 FF y0 50 00 00 0p 0q FF pq: Aperture Gain y0 50 02 FF CAM_PictureEffectModeInq 8x 09 04 63 FF y0 50 04 FF B&W...

  • Page 27: Maintenance And Troubleshooting

    UNITE 200 PTZ HD Camera User Manual Command Command Return Values Comments Packed CAM_IridixInq 8x 09 04 A7 FF y0 50 00 00 0p 0q FF pq: Iridix Position y0 50 00 FF CAM_AFZone 8x 09 04 AA FF y0 50 01 FF...
  • Page 28 UNITE 200 PTZ HD Camera User Manual Trouble Solution Unable to access IP Camera by • To rule out cable failure or network failure caused by a virus, make sure your browser computer is connected to the network, Make sure you can ping the computer from another computer and that computer can ping other computers on the local network or the gateway.
