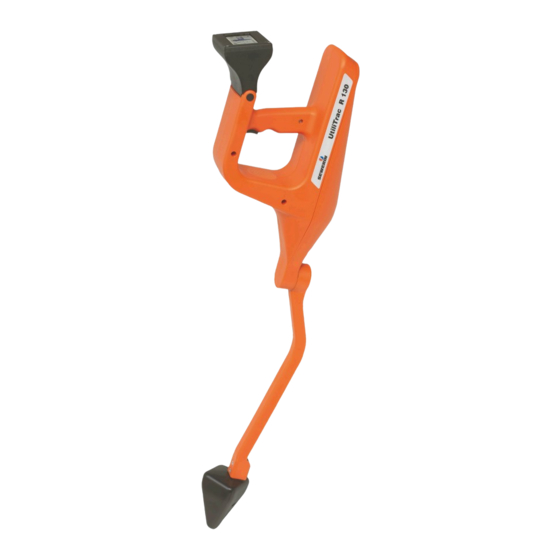

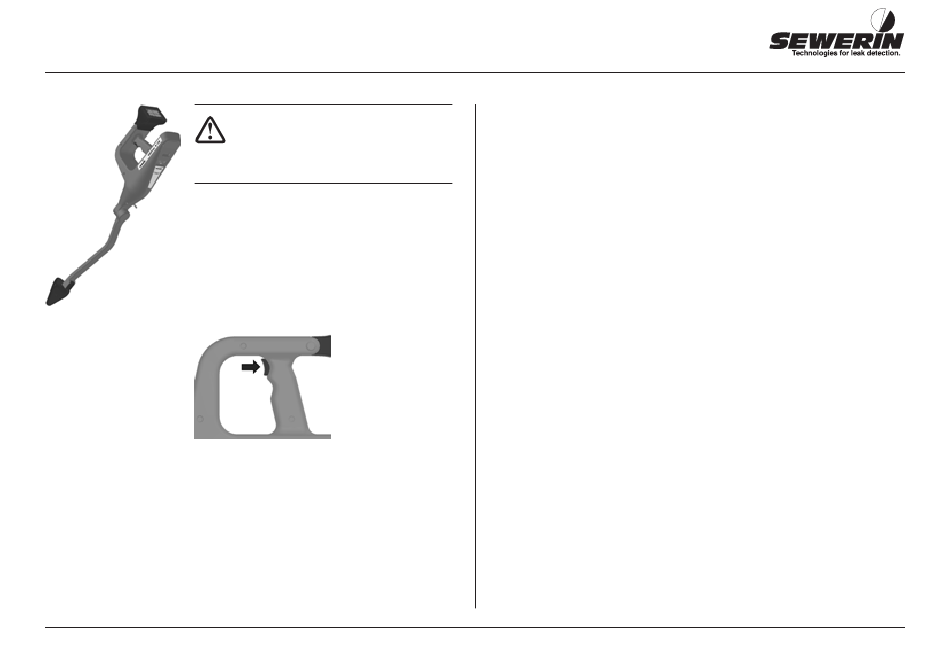

UtiliTrac Receiver
Trigger
Click
Press trigger briefly and release immediately
●
Switch on/off
●
Change menu option (select function or parameter)
Press
Press and hold the trigger
●
Open or apply menu item
●
Open settings menu
WARNING!
Do not operate this product until you
have read and understood the relevant
operating instructions.
30.10.2009 – 105891 – en
Locate pipe with Generator (active)
1.
Energize pipe
2.
Switch on receiver
3.
Select NEW SET UP
4.
Select SET FREQUENCY > ACTIVE (GENERATOR) >
Frequency (must correspond to G 100 frequency)
5.
Select SET LOCATING MODE > LINE
6.
Locate pipe
Locate pipe without Generator (passive)
1.
Switch on receiver
2.
Select NEW SET UP
3.
Select SET FREQUENCY > PASSIVE > Frequency
4.
Select SET LOCATING MODE > LINE
5.
Locate pipe
Locate sonde
1.
Switch on sonde
2.
Switch on receiver
3.
Select NEW SET UP
4.
Select SET FREQUENCY > ACTIVE (GENERATOR) > Fre-
quency (must correspond to sonde frequency)
5.
Select SET LOCATING MODE > SONDE
6.
Install the sonde
7.
Locate sonde
