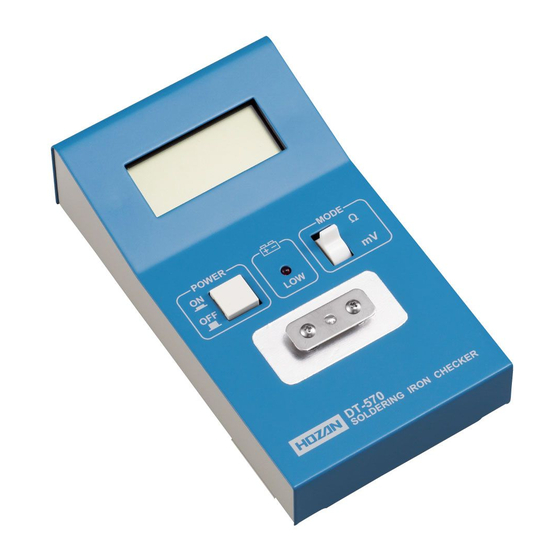

DT-570
SOLDERING IRON CHECKER
Thank you for purchasing the HOZAN DT-570 SOLDERING IRON CHECKER. With proper
care and handling, this fine instrument will provide years of trouble-free operation. Please
read this entire instruction manual carefully before attempting to place this instrument in
service. Please keep this instruction manual available for reference.

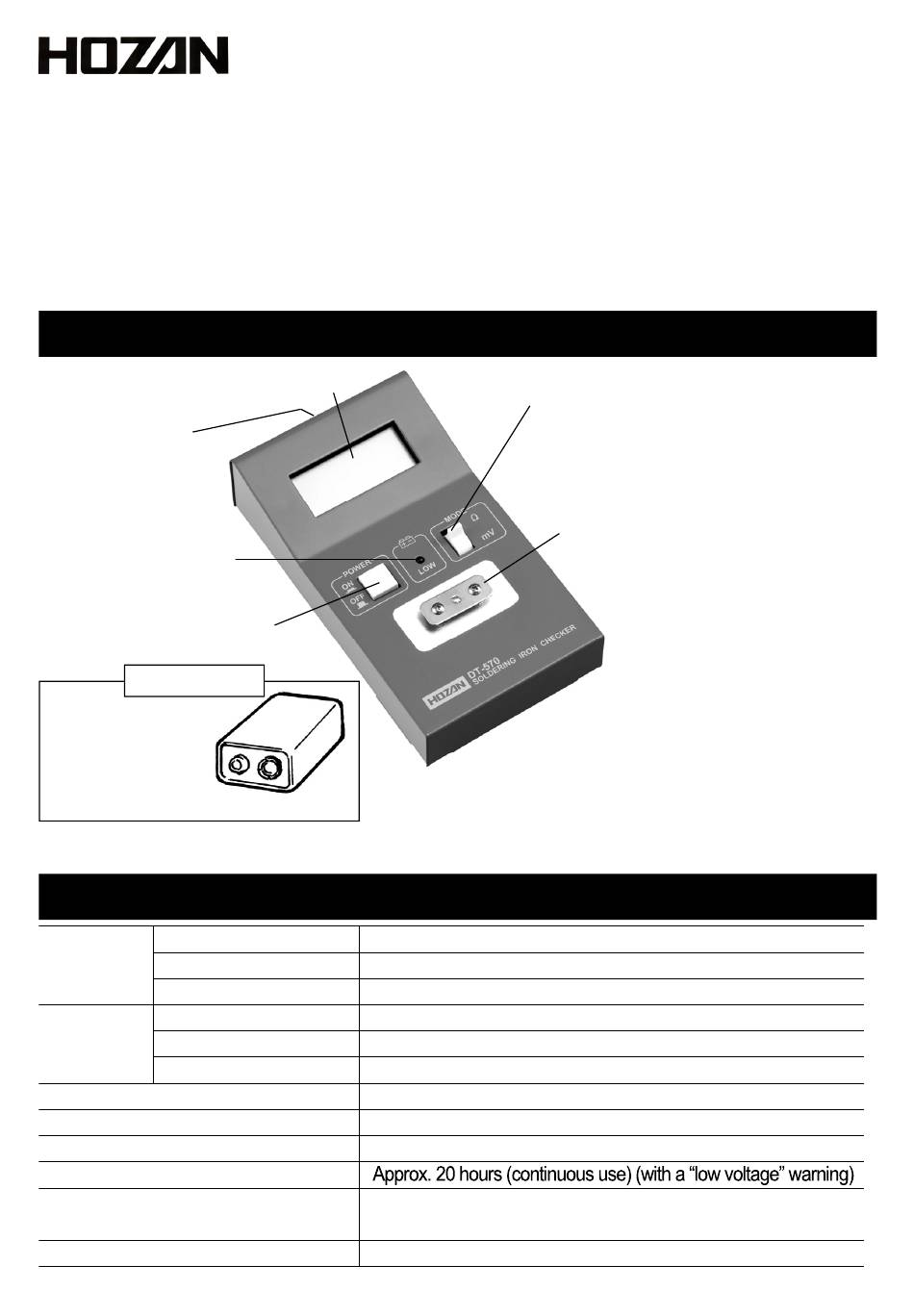

Identification of parts and contents
Jack
Battery lamp
Power switch
Accessories
・2-pin conversion
adapter
・Ground cord
with plug
9V Laminated (6F22) battery
The battery is not warranted in its
life since just a testing battery.
Specifications
Resolution
Leakage
Measurement range
voltage
Accuracy
Resolution
Ground
Measurement range
resistance
Accuracy
Max. readout
Sampling rate
Power supply
Battery life
External dimensions
Weight
Display
0.1 mV
0 to 199.9 mV
±(5%rdg + 1 dgt)
0.1 Ω
0.1 to 199.9 Ω
±(5%rdg + 1 dgt)
199.9 count (Burnout: 1)
2 times/sec.
9V Laminated (6F22) battery × 1
71(W) × 31(H) × 125(D) mm
(not including the protruding part)
300g
１
INSTRUCTION MANUAL
Mode selector
Ω
: Ground resistance
measurement
mV : Leakage current voltage
measurement
Sensor plate
Utilize this device to check
soldering irons' condition and
keep it good always through
measuring leakage current
voltage and ground resistance
of them.
This is applied exclusively to
soldering irons which have
grounding circuits.
Advertisement
Table of Contents
Related Manuals for HOZAN DT-570
Summary of Contents for HOZAN DT-570
- Page 1 DT-570 SOLDERING IRON CHECKER Thank you for purchasing the HOZAN DT-570 SOLDERING IRON CHECKER. With proper care and handling, this fine instrument will provide years of trouble-free operation. Please read this entire instruction manual carefully before attempting to place this instrument in service.
- Page 2 Warning and caution symbols These symbols are used throughout the instruction manual to alert the user to potential safety hazards as follows : Warning … Notice when incorrect handling could cause the user's death or serious injury. Caution … Notice when incorrect handling could cause injury to the user or material damage.
- Page 3 Preparation ２ Soldering irons This device can be used for soldering irons which have which have no grounding circuits. grounding circuits are not applicable. Ｂ Ｃ Ａ or terminal-less Connecting When soldering irons which have power plugs type A (illustration A above) : Connect the power plug of the soldering iron to be measured to the 2-pin adapter provided, and connect the 2-pin adapter to the wall outlet.
- Page 4 Wipe gently flux and such stuck on the painted surface of the unit using alcohol. Do not use thinner, naphtha or such. ・ We attach a calibration certificate to DT-570-TA. Please ask HOZAN through your deal- er to re-calibrate after using a definite period. Refer to your dealer for that expense and details.
