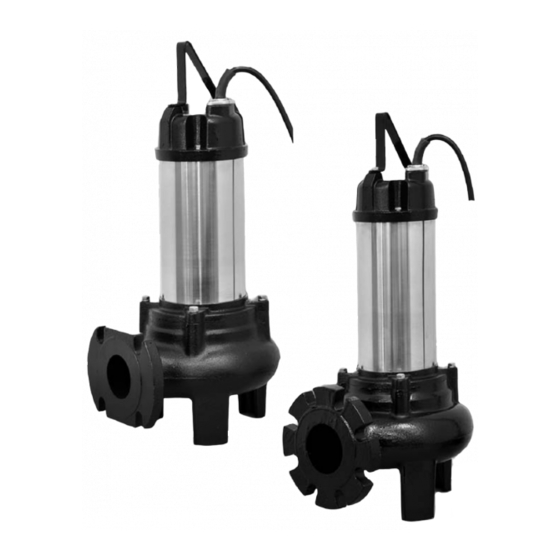

Summary of Contents for Evak E Series
-
Page 3: Table Of Contents

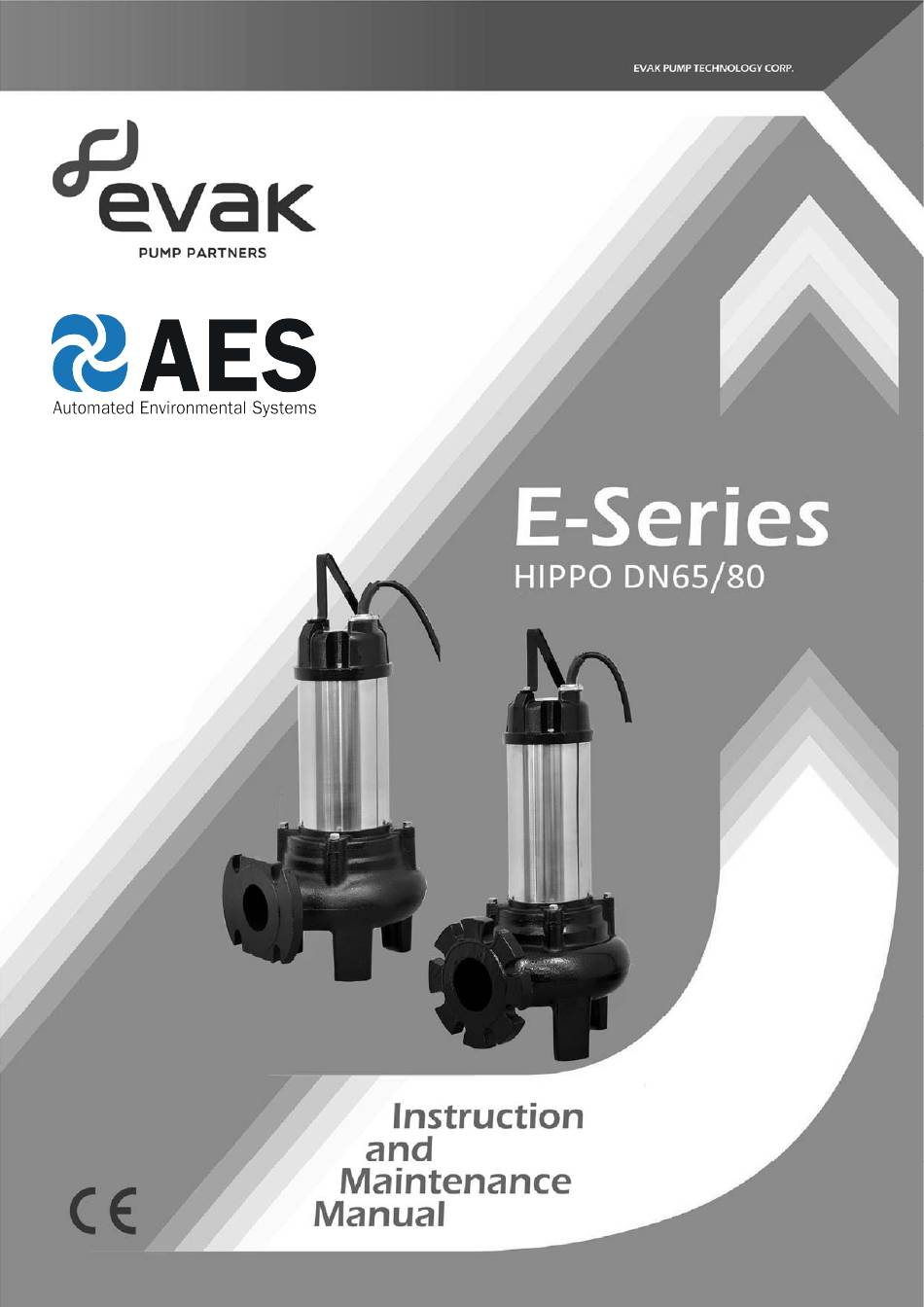

Instruction Manual 2.5" & 3" Full Free Passage Submersible Sewage Pump HIPPO DN65/80 Series INDEX Introduction……………...…………..PAGE. 3 Construction …..PAGE. 6 (HIPPO DN 1.5~2HP)…... Specifications………………….…….PAGE. 3 Construction ……....PAGE. 8 (HIPPO DN 3HP) Construction ……..PAGE. 10 Installation……….…………………...PAGE. 4 (HIPPO DN 4~5.5HP) Electrical wiring……………………...PAGE. 4 Disassembly and Assembly…………….PAGE. -
Page 4: Installation
Installation 1. Check the following before beginning installation. Insulation resistance measurement: With the motor and cable (excluding the power supply cable) immersed in water, use a Megger to measure the insulation resistance between ground and each phase of the motor, and again between each phase of the motor. The Megger should indicate an insulation resistance of not less than 20mega ohms. -
Page 5: Operation
Operation 1. Before starting the pump a. After completing installation, measure the insulation resistance again as described in Installation. b. Check water level. If the pump is operated continuously for an extended period of time in a dry condition or at the lowest water level, the motor protector will be activated. - Page 6 Construction HIPPO DN 1.5~2HP...
- Page 7 Part Material Photo Part Material Photo Pump Casing Handle ASTM A36 EN-GJL-200 (DN65) Motor Pump Casing EN-GJL-200 EN-GJL-200 Cover (DN80) 15-1 Upper Bearing Bracket EN-GJL-200 NTN/TPI 15-2 Lower Bearing Motor Housing 17-1 AISI 304 O-rings +Stator 17-2 Shaft with Rotor AISI 410 Gasket Elbow Gasket...
-
Page 8: Construction (Hippo Dn 3Hp)
Construction HIPPO DN 3HP... - Page 9 Part Material Photo Part Material Photo Pump Casing Handle ASTM A36 EN-GJL-200 (DN65) Motor Pump Casing EN-GJL-200 EN-GJL-200 Cover (DN80) 15-1 Upper Bearing Bracket EN-GJL-200 NTN/TPI 15-2 Lower Bearing Motor Housing 17-1 AISI 304 O-rings +Stator 17-2 Shaft with Rotor AISI 410 Gasket Elbow Gasket...
-
Page 10: Construction (Hippo Dn 4~5.5Hp)
Construction HIPPO DN 4~5.5HP... - Page 11 Part Material Photo Part Material Photo Pump Casing Handle ASTM A36 EN-GJL-200 (DN65) Motor Pump Casing EN-GJL-200 EN-GJL-200 Cover (DN80) 15-1 Upper Bearing Bracket EN-GJL-200 NTN/TPI 15-2 Lower Bearing Motor Housing 17-1 AISI 304 O-rings +Stator 17-2 Shaft with Rotor AISI 410 Gasket Elbow Gasket...
-
Page 12: Disassembly And Assembly
Disassembly and Assembly 1. Disassembly- When disassembling pump, have a piece of cardboard or wooden board ready to place the different parts on as you work. Do not pile parts on top of each other. They should be laid out neatly in rows. The “O” ring and gasket cannot be used again once they are removed. -
Page 13: Nameplate Format
Nameplate format... -
Page 14: Troubleshooting
Troubleshooting Trouble Cause Remedy (1) Power failure (1)~(3) Contact electric power company and Does not start. devise counter-measures Starts, but imme- (2) Large discrepancy between power source and voltage diately stops. (3) Significant drop in voltage (4) Motor phase malfunction (4) Inspect electric circuit (5) Electric circuit connection faulty (5) Correct wiring... - Page 15 Note...
- Page 16 Unit 1, 1 Wimbledon Avenue, Brandon, Suffolk, IP27 0NZ 01842 819130 sales@automatedenvironmentalsystems.co.uk Vol.PMHIPPODN-20051...
