Phoenix's new hydronic fan coils, the Phoenix Aquadry
TX 80 and TX 200 set a new standard for heat drying
technology. The Phoenix Aquadry fan coils, when coupled
to a glycol central heat system, deliver safe, efficient, and
even heat to your restoration job.
The Phoenix Aquadry TX 80 provides 80,000 BTU/hr and
950 CFM. The Phoenix Aquadry hydronic fan coils are
engineered to be the most efficient, most rugged, and
most portable hydronic heat exchangers made.
Unlike direct-fired heaters, Phoenix Aquadry fan coils
completely isolate the heat source from combustion
byproducts. This not only provides a safer heat source
on the job, but also eliminates the need for outside air
ventilation. By doing so, the Phoenix Aquadry hydronic
fan coils give restoration professionals higher efficiency,
more flexibility in job setup, and a larger number of drying
opportunities.
Phoenix Aquadry fan coils are thermostatically controlled,
allowing the user to set the optimal temperature for
each job. Both units use a motorized impeller and high
efficiency coil to ensure the most efficient heat transfer
and even heat distribution throughout the structure.

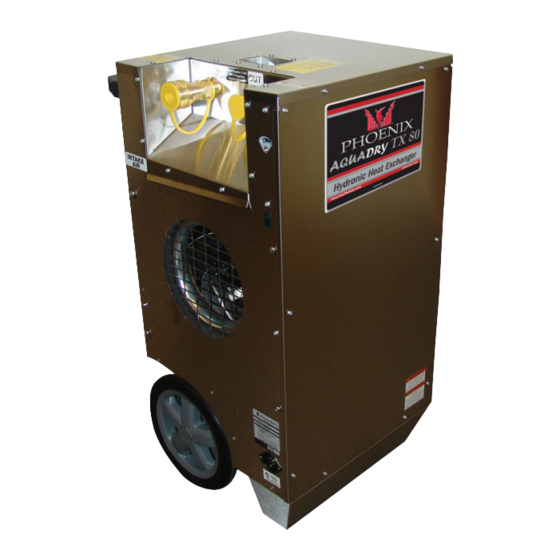

The Phoenix Aquadry TX 80
Hydronic Heat Exchanger
• 80,000 BTUs
• 950 CFM
• ETL Certified to ANSI/UL 1995 and CSA
C22.2 No. 236
• Thermostatically controlled
• Multiple air filter options
• Multiple ducting options
16" intake, 14" supply
• Stainless steel cabinet
• Operates both vertically and horizontally
Specifications subject to change without notice.
Toll-Free 1-800-533-7533
4201 Lien Rd. • Madison, WI 53704
Installation, Operation & Service Instructions
Read and Save These Instructions
The Phoenix Aquadry TX 80, like the TX 200, can be
transported and operated upright or on its back. This
flexibility, along with multiple ducting options, allows the
restoration professional to maneuver into tight or low-
clearance spaces and direct the heat precisely where it is
needed.
The Phoenix Aquadry fan coils feature compact designs,
sturdy handles, and chamfered cabinets. Their light
weight, large recessed wheels, and high-impact skid
plates help negotiate curbs and stairs easily. The units'
balanced designs and integral lift hooks further enhance
maneuverability on the job site, while stainless steel
cabinets ensure years of service without corrosion or the
need for repainting.
