Cosmo QUANTUM Series User Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

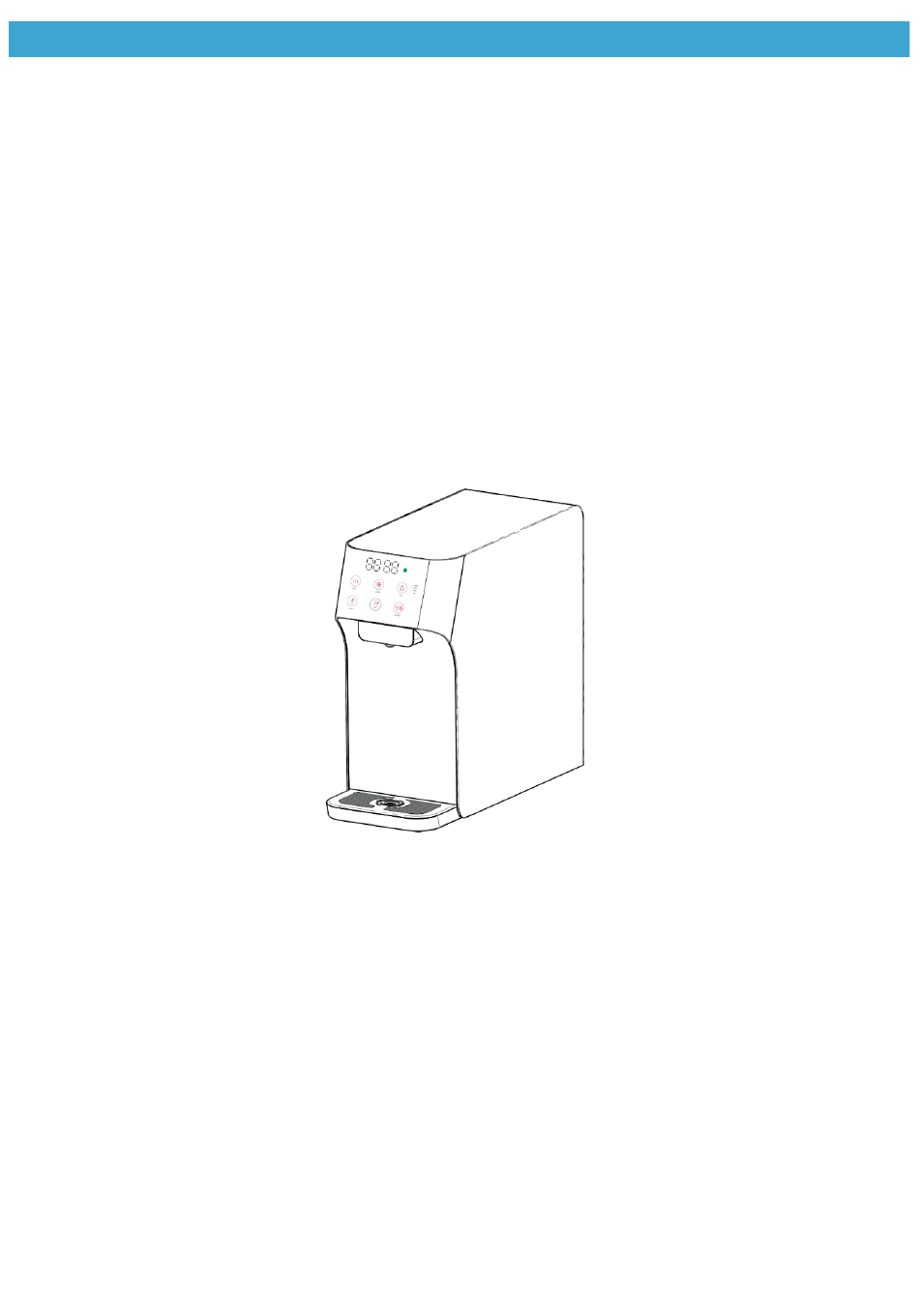

COSMO QUANTUM USER MANUAL
1
Dear Customer,
Thank you for purchasing the "COSMO QUANTUM" series water purifier.
Rest assured that all our products are designed and manufactured to the highest
standards.
We would like you to utilize all the features of our device, including our internal smart
filtration system.
Now you can enjoy an unlimited supply of high-quality, healthy, clean water, just the
way water is meant to be consumed - at cold, hot or ambient temperatures.
We care about the same things you care about: you and your family's health. We are
here to make every day healthier and easier for you.
Please read this manual carefully before operating.
COSMO QUANTUM
#
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the QUANTUM Series and is the answer not in the manual?

Questions and answers

Summary of Contents for Cosmo QUANTUM Series

  • Page 1 COSMO QUANTUM USER MANUAL Dear Customer, Thank you for purchasing the “COSMO QUANTUM” series water purifier. Rest assured that all our products are designed and manufactured to the highest standards. We would like you to utilize all the features of our device, including our internal smart filtration system.

  • Page 2: Safety Precautions

    COSMO QUANTUM USER MANUAL SAFETY PRECAUTIONS 1. Keep water dispenser out of reach from children. Do not let them operate the appliances without supervision. 2. To avoid risk of electrical shock, do not immerse product, cord, or plug into water or any other liquids.

  • Page 3: Product Description

    COSMO QUANTUM USER MANUAL PRODUCT DESCRIPTION 1. GENERAL OVERVIEW 1. User Interface/ UI 8. Side Panel 2. Decorative Plate 9. Back Panel 3. Water Spout 10. Power Cord 4. Front Panel 11. Water Inlet 5. Top Cover 12. Heating System Switch ON(1)/ OFF (0) 6.

  • Page 4: Description Of Button Functions

    COSMO QUANTUM USER MANUAL 2. OPERATION USER INTERFACE (UI) ① Hot Water Button ⑥ Energy Saving Sensor Clock/ Timer Extra Hot+ /Reboiling Button ② ⑦ Cold Water Button Water Dispensing/ Mixed Water/ ③ ⑧ Volume Selection Button Setting Confirm Button ④...
  • Page 5 COSMO QUANTUM USER MANUAL *When the machine starts the cooling, the light shows blue. When cooling is finished, the light will turn back to white. *When the machine starts dispensing the cold water, the light will be blue. When the cold water dispensing is over, the light will turn back to white.

  • Page 6: Hot Water Dispensing

    COSMO QUANTUM USER MANUAL DESCRIPTION OF BUTTON OPERATION A. HOT WATER DISPENSING Press the button first (indicated by a buzzer sound and red light). Then press the button within 5 seconds to dispense a predetermined quantity of hot water. When done, the light will turn white and you can press any button to stop the dispensing.

  • Page 7: Volume Selection

    COSMO QUANTUM USER MANUAL Mixed water: Cold and Hot water Distribution Table Needed Capacity Cold Capacity Hot Capacity 1000ml 420ml 580ml 220ml 90ml 130ml 180ml 80ml 100ml Note: This data is based on hot water at 90 ºC and cold water at 20 ºC. The temperature of the mixed water will change due to the temperature difference between cold and hot water.
  • Page 8 COSMO QUANTUM USER MANUAL 1.2 When the clock hour setting is completed, press the button again where the red frame number on the right starts flashing. Press the button to increase the number of minutes, and the button to decrease the number of minutes.
  • Page 9 COSMO QUANTUM USER MANUAL button, the figure on the right changes “OFF” to close. Press the 5.2 UVC LED Working Principle: Whenever the cold water is being dispensed, the UVC LED starts to work, the button light will be blue, and when dispensing stops, the light turns back to white.
  • Page 10 COSMO QUANTUM USER MANUAL 6.5 Filter Replacement Instruction Unscrew the old filter and replace with new 7. ENERGY-SAVING MODE SETTING (DEFAULT STATUS IS “OFF”) 7.1 After the filter life setting is completed, press the button again. The red frame number on the right starting flashing. Enter to energy saving mode.
  • Page 11 COSMO QUANTUM USER MANUAL DESCRIPTION OF STANDBY STATUS 1. When the machine is not operated for 10 minutes, the system automatically enters to standby status, the operation panel displays as the right picture: and the water dispensing and timer button is on, all the other lights will be off.
  • Page 12 COSMO QUANTUM USER MANUAL • Any buttons are touched, the buzzer will be activated, and the sound with a chord voice. MACHINE FIRST TIME USE ATTENTIONS Power on for the first time: 1. Before power on, please check whether the raw water pipeline is well connected.
  • Page 13 COSMO QUANTUM USER MANUAL PRODUCT SPECIFICATION & PARAMETER Item Power Supply 110-120 Volts 220-230 Volts Voltage 115V, 1 Phase 230V, 1 Phase Frequency 60Hz 50Hz/ 60Hz Cooling Power Heating Power 500W 500W UVC LED Power 0.4W 0.4W Total Power 580.4W 580.4W...

  • Page 14: Installation & Unpacking

    COSMO QUANTUM USER MANUAL INSTALLATION & UNPACKING Please cut off water source before replacing filters. Never remove or replace filters in water running state. 1. Open the top of the packing case, take out the top foam and its accessories…...
  • Page 15 COSMO QUANTUM USER MANUAL 6. Take out the pin of the quick joint at the rear of the product’s base plate, and then take out the blue plug. Insert the water inlet PE pipe in the quick joint, and tighten the pin.

  • Page 16: Troubleshooting Guide

    COSMO QUANTUM USER MANUAL TROUBLESHOOTING GUIDE In case of failure, please carry out inspection according to the requirements below. If unresolved, please contact the local service agency. Failure & Error Code Cause Solution Check and adjust the water Low water pressure...
