DynaQuip WaterCopPRO Owner's Manual & Installation Manual

Owner's Manual / Installation Guide
Con trol s, Inc
Dyn aQu ip
o r
W a te r S e n s
te r
& T ra n s m it
, M O
c. St . Cl air
Co nt ro ls, In
Dy na Qu ip
rc op .co m
ww w. wa te
Flood Sensor
Range Enhancing Repeater
St at io n
M on ito rin g
WS 1
OP EN
WS 2
WS 3
CL OS E
MO DE
WS 4
WS 5
WS 6
WS 7
WS 8
. St. Cla ir,
Co ntr ols , Inc
Dy na Qu ip
Ma de in U.S
rco p.c om
ww w.w ate
Monitoring Station – Hardwired
WaterCopPRO
OP EN
Actuator
CL OS E
MO DE
U.S .A.
m Ma de in
ate rco p.co
MO ww w.w
. St. Cla ir,
Brass Valve
a n ci n g
R a n g e E n h
R e p e a te r
TR A N SM IT
R EC EI V E
MO
. St. Cla ir,
Co ntr ols , Inc
Dy na Qu ip
rco p.c om
ww w. wa te
MO
.A.
www.watercop.com • 800-545-3636

System Description

The WaterCopPRO System is designed to detect leaks in
your plumbing system at predetermined locations, and
automatically shut off the water supply to help effectively
reduce the chances of major water damage associated
with a leak.

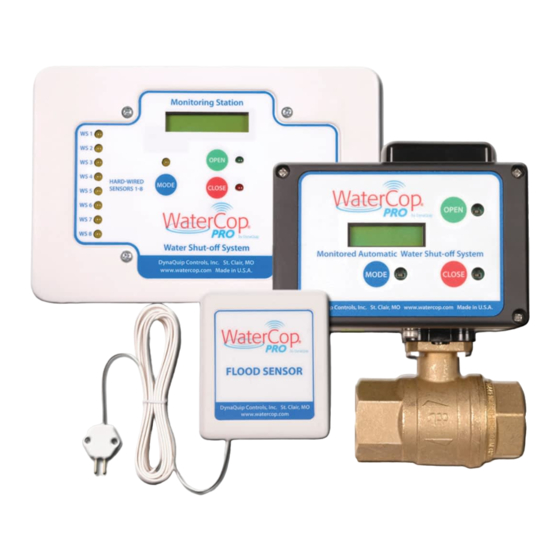

System Components

Brass Valve: Full port, ANSI NSF 372 approved, lead-free,
brass, 125 psi cold water, designed for placement on
incoming water main.
WaterCopPRO Actuator: Polycarbonate housing containing
motor to drive valve, AC/DC power converter with 20' cord,
liquid crystal display with back light for sensor/trouble
status, ambient temperature 35°F to 105°F, manual override,
local open/close water control.
Flood Sensor: Wireless sensors are addressable and
supervised for conditions such as water detection, actuator
power loss, sensor short/open and low battery. Ten foot
sensor cord allows optimal sensor placement. Flood sensors
can support one or two sensor probes. Each WaterCopPRO
actuator can support up to 45 wireless sensors.
Range Enhancing Repeater: Enhances transmission range
of wireless sensors. Plugs into any standard wall outlet.
Receives and re-transmits sensor signals from outlying
sensors to the WaterCopPRO actuator.
Monitoring Station – Standard: LCD display with back light
provides instant feedback of sensor alarm and trouble
conditions as well as open/close status of water supply. On/
Off push button for local control of water supply. Audible
alarm sounds when any sensor detects flooding. Internal
mounting bracket mounts to standard wall boxes for
aesthetics and cord management. AC/DC power converter
with 20' cord included.
Monitoring Station – Hardwired: Accommodates up to 8
zones for WPSC hardwired flood sensors (sold separately).
The flood sensors are a battery powered device enabling
it to be located anywhere a leak is likely to occur, or
where water might cause damage. The WaterCop requires
household electrical power (common 115 VAC, grounded
outlet) and will not operate during a power outage.
