LYNXTechnik Yellobrik SPG 1707 Quick Reference

HDTV Sync 3 x Tri-level HD Analog Sync outputs. Accuracy 2 ppm
Standards:
1080i /50Hz / 59.94Hz / 60Hz.
1080p / 23.98Hz / 24Hz / 25Hz / 29.97Hz / 30Hz.
720p / 23.98Hz / 24Hz / 25Hz / 29.97Hz / 50Hz / 59.94Hz.
1080psf / 23.98Hz/24Hz
Note: 1080p 50Hz/60Hz is not supported and 720p 30Hz/60Hz is not supported, but the
.001 derivatives are supported
SMPTE 274M, SMPTE 296M
Selectable via integrated 16 position rotary switch
Return Loss > 40dB up to 5MHz
SNR > 75dB
SDTV Sync 3 x Bi-level SD sync outputs, Standards: NTSC, PAL, PAL M/N
SMPTE 170M, ITU-R BT 470.6
Selectable: 75% color bars / black burst / sync only
NTSC 7.5 IRE pedestal ON/OFF. Adjustable burst phase.
Return Loss > 40dB up to 5MHz. SNR > 75dB
Ref Sync Input Bi-level or tri-level analog sync, SMPTE 274M, SMPTE 296M
Cross lock compatible to 525 and 625 SD sync and all HD sync
standards (excluding 1080p 50/60/59.94Hz)
Audio Ref. Selectable 48KHz Word Clock or DARS
DARS: SMPTE 276M unbalanced AES (24-bits) - Grade 2
48KHz Word Clock: 0 - 5.0V
Power +12VDC
We are constantly adding additional yellobrik modules.
Please visit our website for the latest product updates.
www.lynx-technik.com
LYNXTechnik AG
yellobrik
www.lynx-technik.com
yellobrik
®

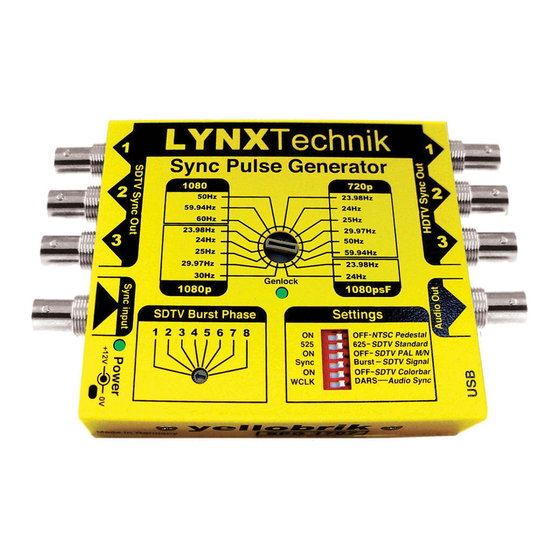

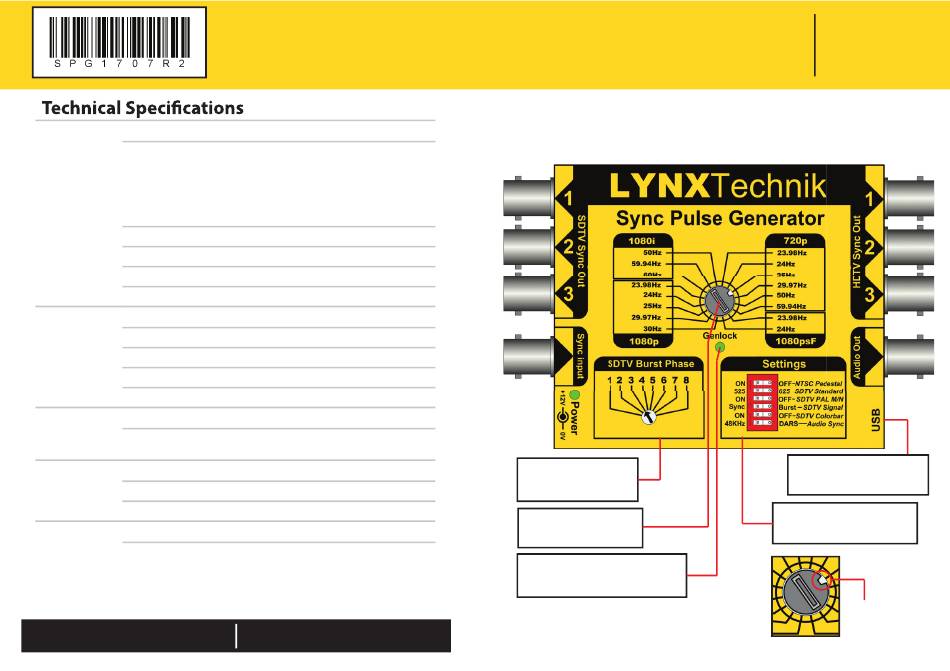

SPG 1707
Sync Pulse Generator with Genlock
SDTV Burst Phase
adjustment
HDTV Sync output
selection
Genlock LED
(illuminated when locked)
Quick
TM
Reference
USB Input
(for firmware updates)
SDTV Sync output and
audio output settings
This notch points
to the selection
made
