Tinker & Rasor QUASAR User Manual

100 amp, gps current interrupter
Hide thumbs

Advertisement

Quick Links

Download this manual

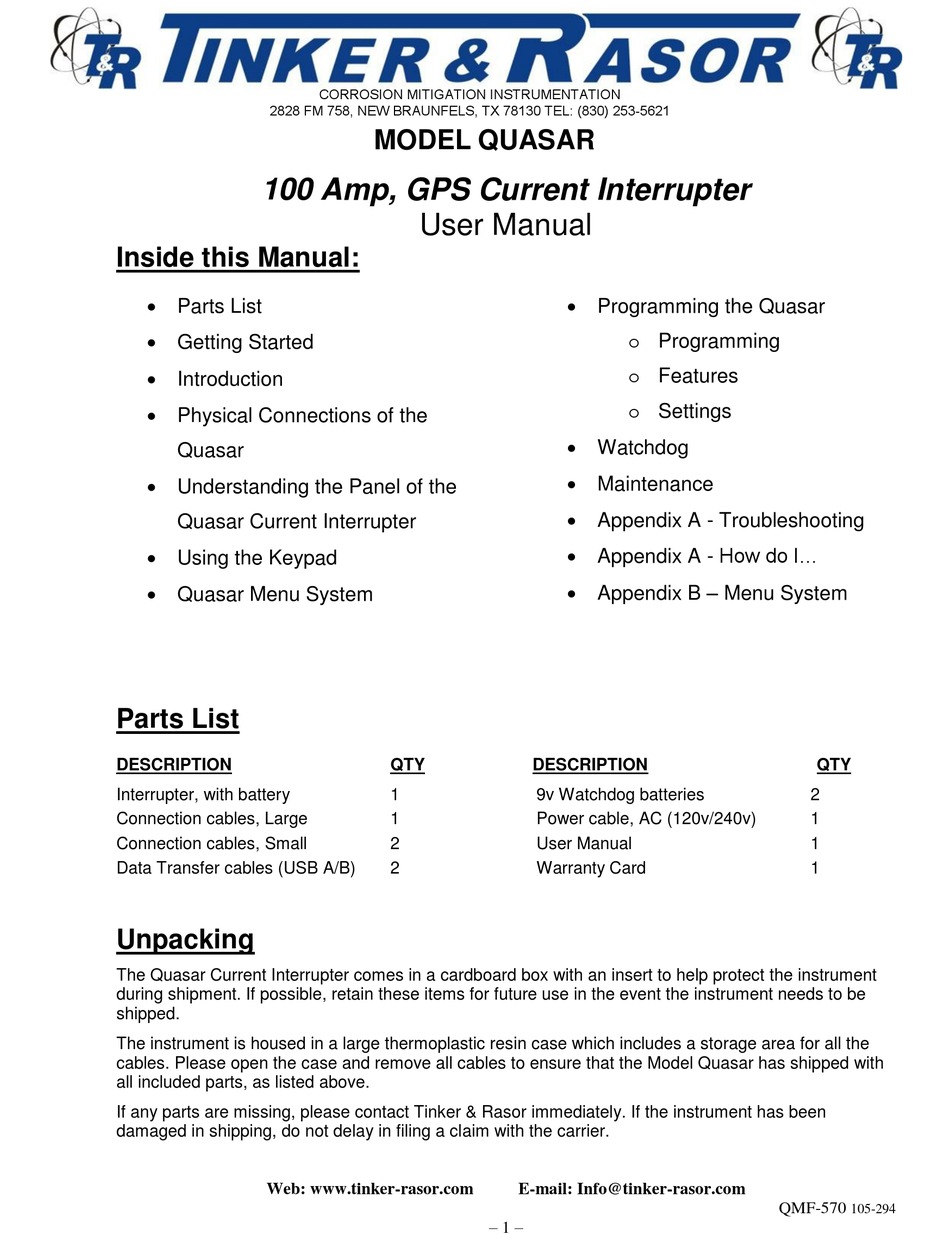

2828 FM 758, NEW BRAUNFELS, TX 78130 TEL: (830) 253-5621
100 Amp, GPS Current Interrupter
Inside this Manual:
 Parts List
 Getting Started
 Introduction
 Physical Connections of the
Quasar
 Understanding the Panel of the
Quasar Current Interrupter
 Using the Keypad
 Quasar Menu System
Parts List
DESCRIPTION
Interrupter, with battery
Connection cables, Large
Connection cables, Small
Data Transfer cables (USB A/B)
Unpacking
The Quasar Current Interrupter comes in a cardboard box with an insert to help protect the instrument
during shipment. If possible, retain these items for future use in the event the instrument needs to be
shipped.
The instrument is housed in a large thermoplastic resin case which includes a storage area for all the
cables. Please open the case and remove all cables to ensure that the Model Quasar has shipped with
all included parts, as listed above.
If any parts are missing, please contact Tinker & Rasor immediately. If the instrument has been
damaged in shipping, do not delay in filing a claim with the carrier.
Web: www.tinker-rasor.com
CORROSION MITIGATION INSTRUMENTATION
MODEL QUASAR
User Manual
QTY
1
1
2
2
– 1 –
 Programming the Quasar
o Programming
o Features
o Settings
 Watchdog
 Maintenance
 Appendix A - Troubleshooting
 Appendix A - How do I...
 Appendix B – Menu System
DESCRIPTION
9v Watchdog batteries
Power cable, AC (120v/240v)
User Manual
Warranty Card
E-mail: Info@tinker-rasor.com
QTY
2
1
1
1
QMF-570
105-294

Advertisement

loading
Need help?

Need help?

Do you have a question about the QUASAR and is the answer not in the manual?

Questions and answers

Summary of Contents for Tinker & Rasor QUASAR

  • Page 1 The instrument is housed in a large thermoplastic resin case which includes a storage area for all the cables. Please open the case and remove all cables to ensure that the Model Quasar has shipped with all included parts, as listed above.
  • Page 2 To better understand this issue, please see Technical Appendix A (attached to this document). Introduction The Model Quasar is an advanced current interrupting instrument and has many new features not found on previous versions of the Quasar. After many years of feedback from customers, Tinker & Rasor has added new functionality to the Quasar and updated and upgraded other essential elements of the 100Amp GPS Current Interrupter.
  • Page 3 120v AC sources. Outside of the United States and for areas where 240v AC is more common, a suitable AC power cord will need to be obtained for use with the Quasar. The AC plug accepts standard PC computer power cables, and this additional power cord should be easy to find in most areas of the world.
  • Page 4 GPS Lock Condition The GPS lock condition of the Quasar will be displayed in the upper Right hand corner of the LCD display and will show a “0” for no lock to a GPS satellite, a “1” to show minimal, but sufficient lock to three GPS satellites and a “2”...

  • Page 5: Using The Keypad

    They are: OK (Accept), DEL (Cancel),  (Forward),  (Back), _-> (Up), and . (Decimal). These keys are used to interact with the Quasar during programming and viewing of features. Most are self explanatory, with the possible exception of the “Up”...
  • Page 6 The Model Quasar can sync with other Quasar interrupters via USB cable. The Quasar can be used to sync the clock of non-GPS versions of the Quasar and also to transfer the program data of one Quasar to as many other Quasars as needed. This feature not only saves a lot of time that would otherwise be spent programming, but also removes the possibility of an error in programming on one or more of a group of Quasars that are meant to operate together.
  • Page 7 ON and OFF Time settings. Get In Sync The Get In Sync feature is meant to be used to add a Quasar to a group of Quasars already interrupting. For example, during a close interval pipe to soil potential survey (CIPS), five Quasars are being used to interrupt rectifiers in the field.
  • Page 8 1. AUTOMATIC 2. manual The current setting of the Quasar is shown in all CAPITOL letters. The alternative choice is show in all lowercase letters. To change from one setting to the other, press the appropriate button, one (1) or two (2).
  • Page 9 NOTE: The Quasar is able to operate in sync with GPS current interrupters made by manufacturers other than Tinker & Rasor, the Quasar is able to adjust whether it begins operation in the ON or OFF position. Refer to the user manual of your non Quasar units to see which cycle mode they use.
  • Page 10 Mode. Standby Mode occurs when the Quasar is waiting to run an interrupter program, or is in Periodic Mode and waiting for the next Start Time to occur. By default, the Model Quasar is in the ON or Closed position when in Standby Mode. To change this, press #3 in the Cycling Settings Sub Menu. The screen...

  • Page 11: Over Voltage Alarm

    The Model Quasar is equipped with an alarm that will sound in the event of an over voltage condition. If the system that the Quasar is connected to has more than 240v DC or AC, the unit will emit a high pitched, continuous beep to alert you of an over voltage.
  • Page 12 Service If the Quasar needs to be shipped back to Tinker & Rasor for any reason, a suitable box will need to be found. UPS and other carriers will charge extra fees if the unit is shipped without a box. Also, the exposed heat sink could become damaged without an outer carton.

  • Page 13: Troubleshooting

    Get in Sync. This will allow you to enter program data for program? a date and time in the past. The Quasar will figure the exact moment to start the program and be in sync with all the other units already running.
  • Page 14 This step becomes especially important when the DC output of the rectifier is ≥ 50% or of the maximum current the interrupter can handle. In the case of the Quasar, which is a 100 Amp max instrument, a rectifier with an output greater than 24 amps should be investigated with an oscilloscope.
  • Page 15 CORROSION MITIGATION INSTRUMENTATION 2828 FM 758, NEW BRAUNFELS, TX 78130 TEL: (830) 253-5621 MODEL QUASAR Model QUASAR Current Interrupter Top Level Screen Flow Chart 1? Program 2? Manual Cycling 3? Settings start in 012h34m56 1? View Programs 1? Start Manual...
  • Page 16 CORROSION MITIGATION INSTRUMENTATION 2828 FM 758, NEW BRAUNFELS, TX 78130 TEL: (830) 253-5621 MODEL QUASAR Model QUASAR Current Interrupter Add New Program Screen Flow Chart Return to New Program ‘Program’ menu Enter Start Date: Start Time: MM/DD/YY 11:25:00 Enter Stop Time:...
  • Page 17 CORROSION MITIGATION INSTRUMENTATION 2828 FM 758, NEW BRAUNFELS, TX 78130 TEL: (830) 253-5621 MODEL QUASAR Model QUASAR Current Interrupter Change Settings Screen Flow Chart 1? Time/Position 2? Cycling Settings 3? Battery Status start in 012h34m56 Date: 01/02/2008 Display Battery Time: 13:45:00...
