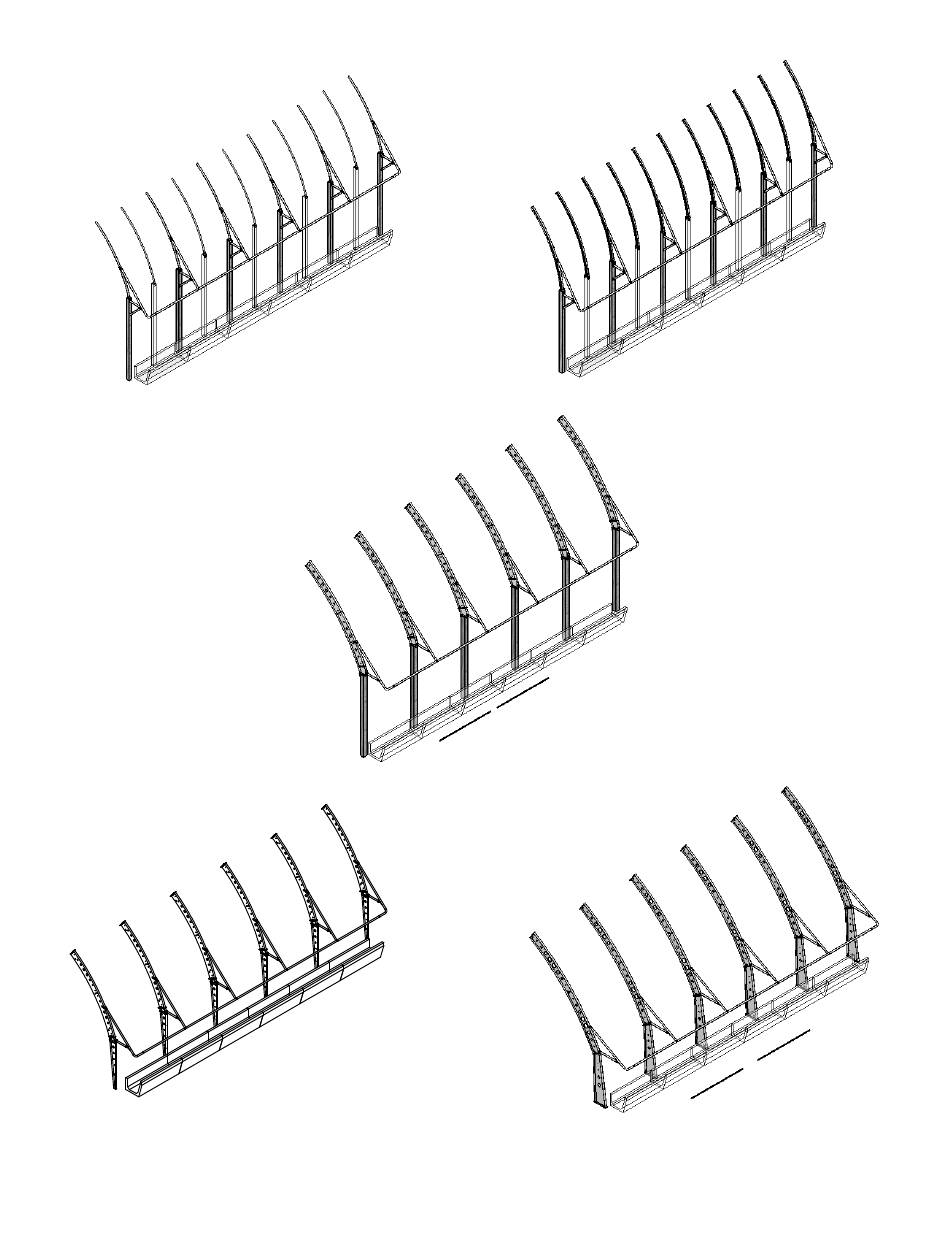

PRO-TEC AWNING SYSTEMS
36' PONY WALL SINGLE TUBE BUILDING
36' PONY WALL TRUSS BUILDING
42', 56', 64', 70' PONY WALL TRUSS BUILDING
42', 56' TRUSS WALL BUILDING
64', 70' TRUSS WALL BUILDING
MANUAL NO. 187297
/ 08/31/2009
REV B/MRS 8/8/17 ECN 17-141

Advertisement

loading
Need help?

Need help?

Do you have a question about the PRO-TEC PONY Series and is the answer not in the manual?

Questions and answers

Summary of Contents for Sioux Tools PRO-TEC PONY Series

  • Page 1 PRO-TEC AWNING SYSTEMS 36' PONY WALL SINGLE TUBE BUILDING 36' PONY WALL TRUSS BUILDING 42', 56', 64', 70' PONY WALL TRUSS BUILDING 42', 56' TRUSS WALL BUILDING 64', 70' TRUSS WALL BUILDING MANUAL NO. 187297 / 08/31/2009 REV B/MRS 8/8/17 ECN 17-141...
  • Page 2 Dear Sentry Building Owner, We would like to take this opportunity to thank you for purchasing a SIOUX STEEL PRO-TEC BUILDING. We believe that it will serve you well for many years. The framework uses quality certified structural grade steel tubing. All welded rafter assemblies are powder coated or hot-dipped galvanized to provide maximum corrosion protection.

  • Page 3: General Information

    GENERAL INFORMATION Foundation for Sentry Building: In all cases, the soil and foundation must be sufficiently stable and deemed suitable to support the forces produced by the structure. It is recommended that the customer consult a qualified engineer to certify the soil conditions and foundation design for their location. Soil and foundation must be able to withstand forces which meet or exceed the structural forces.
  • Page 4 AWNING FRAME PARTS LISTING 36' PW SINGLE TUBE BUILDING REF - RAFTER TUBE REF - POST ITEM NUMBER DESCRIPTION 179947GRY AWNING END TUBE, LH 179948GRY AWNING END TUBE, RH 179720GRY AWNING CENTER TUBE 179758GRY EAVE SWAGED END TUBE 172328GRY EAVE DOUBLE SLIP TUBE 172329GRY EAVE SINGLE SLIP TUBE 177962GRY...
  • Page 5 AWNING COMPONENTS 36' PONY WALL SINGLE TUBE BUILDING 179947GRY END TUBE, LH 179948GRY END TUBE, RH 179720GRY CENTER TUBE 179758GRY EAVE- SWAGED END TUBE 172329GRY EAVE- SINGLE SLIP TUBE 172328GRY EAVE- DOUBLE SLIP TUBE 177964GRY 177962GRY LOWER BRACE LOWER TUBE...
  • Page 6 AWNING COMPONENTS 36' PONY WALL SINGLE TUBE BUILDING 187299 DRILL SCREW, 1/4" X 3/4" 167834 LAGSCREW, 5/16" X 3" 169706 BOLT, 3/8" X 1-1/2" 154029 BOLT, 3/8" X 3-1/2" 154051 HEX NUT, 3/8"...
  • Page 7 INSTALLATION OF BRACE TUBES 36' PONY WALL SINGLE TUBE BUILDING Attach the 177962GRY Lower Tubes to posts as shown below using (4) 167834 5/16 x 3 lag bolts. Note the brace positions for each post location. Attach the 177964GRY Lower Braces to the posts by aligning the single hole with the lower tube and attching its mount plate to the posts using (4) 167834 5/16 x 3 lag bolts.
  • Page 8 BRACE TUBE INSTALLATION OVERALL VIEW 36' PONY WALL SINGLE TUBE BUILDING Install the Lower Tubes and Lower Braces on every other post per the diagrams on the preceeding page. The spacing of the Awning frame members is 10' on centers. 10' Center to Center for awning frame members...
  • Page 9 MAIN AWNING TUBES INSTALLATION 36' PONY WALL SINGLE TUBE BUILDING Attach 179947GRY End Tube, LH to the Brace Tubes using 3/8 x 1-1/2 bolts and nuts. Attach the other end to the rafter tubes by drilling a 7/16 dia hole (use the Awning tube bracket as a guide) and secure with 3/8 x 3-1/2 bolts and nuts.
  • Page 10 AWNING SLIP TUBE INSTALLATION 36' PONY WALL SINGLE TUBE BUILDING Install one end of 179758GRY Eave- Swaged Slip Tube into the 179947GRY Awning End Tube, LH. The opposite end slides into 172328GRY Eave- Double Slip Tube. Slide the bungs of the Double Slip Tubes into 179720GRY Awning Center Tubes.
  • Page 11 AWNING PACKAGES - CURVED ENDS LENGTH 36' SINGLE TUBE BLDGS 100 110 120 130 140 150 160 170 180 190 200 210 220 230 240 250 260 PART # 179759-(LENGTH) PART # DESCRIPTION QTY QTY QTY QTY QTY QTY QTY QTY QTY QTY QTY QTY QTY QTY QTY QTY QTY QTY QTY QTY QTY QTY QTY QTY 179947GRY AWNING END TUBE LH 179948GRY AWNING END TUBE RH 179720GRY UPPER AWNING CORD...
  • Page 13 AWNING FRAME PARTS LISTING 36' PONY WALL TRUSS BUILDING REF - RAFTER REF - POST ITEM NUMBER DESCRIPTION 179947GRY AWNING END TUBE, LH 179948GRY AWNING END TUBE, RH 179720GRY AWNING CENTER TUBE 179758GRY END SWAGED TUBE 172328GRY DOUBLE SLIP TUBE 172329GRY SINGLE SLIP TUBE 177962GRY...
  • Page 14 AWNING COMPONENTS 36' PONY WALL TRUSS BUILDING 179947GRY AWNING END TUBE, LH 179948GRY AWNING END TUBE, RH 180816GRY AWNING CENTER TUBE 179758GRY EAVE- SWAGED END TUBE 172329GRY EAVE- SINGLE SLIP TUBE 172328GRY EAVE- DOUBLE SLIP TUBE 177964GRY 177962GRY LOWER BRACE LOWER TUBE...
  • Page 15 AWNING COMPONENTS 36' PONY WALL TRUSS BUILDING 187299 DRILL SCREW, 1/4" X 3/4" 167834 LAGSCREW, 5/16" X 3" 169706 BOLT, 3/8" X 1-1/2" 154025 BOLT, 3/8" X 2-1/2" 154029 BOLT, 3/8" X 3-1/2" 154051 HEX NUT, 3/8"...
  • Page 16 INSTALLATION OF BRACE TUBES 36' PONY WALL TRUSS BUILDING Attach the 177962GRY Lower Tubes to posts as shown below using (4) 167834 5/16 x 3 lag bolts. Note the brace positions for each post location. Attach the 177964GRY Lower Braces to the posts by aligning the single hole with the lower tube and attching its mount plate to the posts using (4) 167834 5/16 x 3 lag bolts.
  • Page 17 BRACE TUBE INSTALLATION OVERALL VIEW 36' PONY WALL TRUSS BUILDING Install the Lower Tubes and Lower Braces on every other post per the diagrams on the preceeding page. The spacing of the Awning frame members is 10' on centers. 10' Center to Center for awning frame members...
  • Page 18 MAIN AWNING TUBES INSTALLATION 36' PONY WALL TRUSS BUILDING Attach 179947GRY End Tube, LH to the Brace Tubes using 3/8 x 1-1/2 bolts and nuts. Attach the other end to the rafter tubes by drilling a 7/16 dia hole (use the Awning tube bracket as a guide) and secure with 3/8 x 3-1/2 bolts and nuts.
  • Page 19 AWNING SLIP TUBE INSTALLATION 36' PONY WALL TRUSS BUILDING Install one end of 179758GRY Eave- Swaged Slip Tube into the 179947GRY Awning End Tube, LH. The opposite end slides into 172328GRY Eave- Double Slip Tube. Slide the bungs of the Double Slip Tubes into 180816GRY Awning Center Tubes.
  • Page 20 AWNING PACKAGES - CURVED ENDS LENGTH 36'PW TRUSS BLDGS 100 110 120 130 140 150 160 170 180 190 200 210 220 230 240 250 260 PART # 180827-(LENGTH) PART # DESCRIPTION QTY QTY QTY QTY QTY QTY QTY QTY QTY QTY QTY QTY QTY QTY QTY QTY QTY QTY QTY QTY QTY QTY QTY QTY 179947GRY AWNING END TUBE LH 179948GRY AWNING END TUBE RH 180816GRY UPPER AWNING CORD...
  • Page 22 AWNING FRAME PARTS LISTING 42', 56', 64', 70' PONY WALL BUILDING REF - RAFTER REF - POST ITEM NUMBER DESCRIPTION 179947GRY AWNING END TUBE, LH 179948GRY AWNING END TUBE, RH 179720GRY AWNING CENTER TUBE 179758GRY END SWAGED TUBE 172328GRY DOUBLE SLIP TUBE 172329GRY SINGLE SLIP TUBE 172320GRY...
  • Page 23 AWNING COMPONENTS 42', 56', 64'. 70' PONY WALL BUILDING 179947GRY END TUBE, LH 179948GRY END TUBE, RH 179720GRY CENTER TUBE 179758GRY EAVE- SWAGED END TUBE 172329GRY EAVE- SINGLE SLIP TUBE 172320GRY LOWER BRACE TUBE 172328GRY EAVE- DOUBLE SLIP TUBE 161125 STRAIGHT TIE DOWN TUBE 160972 SWAGED TIE DOWN TUBE...
  • Page 24 AWNING COMPONENTS 42', 56', 64', 70' PONY WALL BUILDING 161754 - RATCHET, 1" 184651 - WINCH STRAP, 1" X 10' 178169 - WINCH STRAP, 2" X 15' 187299 DRILL SCREW, 1/4" X 3/4" 170052 PLUG 167834 LAGSCREW, 5/16" X 3" 154019 BOLT, 3/8"...
  • Page 25 MAIN AWNING TUBES INSTALLATION 42', 56', 64', 70' PONY WALL BUILDING Attach the 172320GRY Lower Mount Tubes to each Corner by drilling a 7/16 hole and installing 3/8 x 3-1/2 bolts and nuts. Attach the Lower Mount Tubes to each 179947GRY, 179948GRY, and 179720GRY Awning Tubes with 3/8 x 1 bolts and nuts.
  • Page 26 AWNING SLIP TUBE INSTALLATION 42', 56', 64', 70' PONY WALL BUILDING Install one end of 179758GRY Eave Swaged Slip Tube into the 179947GRY Awning End Tube, LH. The opposite end slides into 172328GRY Eave Double Slip Tube. Slide the bungs of the Double Slip Tubes into 179720GRY Awning Center Tubes.
  • Page 27 AWNING PACKAGES - CURVED ENDS LENGTH 42'/56'/64'/70' PW BLDGS 100 110 120 130 140 150 160 170 180 190 200 210 220 230 240 250 260 PART # 179760-(LENGTH) PART # DESCRIPTION QTY QTY QTY QTY QTY QTY QTY QTY QTY QTY QTY QTY QTY QTY QTY QTY QTY QTY QTY QTY QTY QTY QTY QTY 179947GRY AWNING END TUBE LH 179948GRY AWNING END TUBE RH 179720GRY UPPER AWNING CORD...
  • Page 29 AWNING FRAME PARTS LISTING 42', 56' TRUSS WALL BUILDING REF - RAFTER REF - LEG ITEM NUMBER DESCRIPTION 179947GRY AWNING END TUBE, LH 179948GRY AWNING END TUBE, RH 179720GRY AWNING CENTER TUBE 179758GRY END SWAGED TUBE 172328GRY DOUBLE SLIP TUBE 172329GRY SINGLE SLIP TUBE 172320GRY...
  • Page 30 AWNING COMPONENTS 42', 56' TRUSS WALL BUILDING 179947GRY END TUBE, LH 179948GRY END TUBE, RH 179720GRY CENTER TUBE 179758GRY EAVE- SWAGED END TUBE 172329GRY EAVE- SINGLE SLIP TUBE 172328GRY EAVE- DOUBLE SLIP TUBE 172320GRY LOWER BRACE TUBE...
  • Page 31 AWNING COMPONENTS 42', 56 TRUSS WALL BUILDING 161754 - RATCHET, 1" 184651 - WINCH STRAP, 1" X 10' 178169 - WINCH STRAP, 2" X 15' 187299 DRILL SCREW, 1/4" X 3/4" 167834 LAGSCREW, 5/16" X 3" 154019 BOLT, 3/8" X 1" 154029 BOLT, 3/8"...
  • Page 32 MAIN AWNING TUBES INSTALLATION 42', 56' TRUSS WALL BUILDING Attach the 172320GRY Lower Mount Tubes to each Corner outer tube by drilling a 7/16 hole and secure with 3/8 x 3-1/2 bolts and nuts. Attach the Lower Mount Tubes to each 179947GRY, 179948GRY, and 179720GRY Awning Tubes with 3/8 x 1 bolts and nuts.
  • Page 33 AWNING SLIP TUBE INSTALLATION 42', 56' TRUSS WALL BUILDING Install one end of 179758GRY Eave Swaged Slip Tube into the 179947GRY Awning End Tube, LH. The opposite end slides into 172328GRY Eave Double Slip Tube. Slide the bungs of the Double Slip Tubes into 179720GRY Awning Center Tubes.
  • Page 34 AWNING PACKAGES - CURVED ENDS LENGTH 42'/56' TW BLDGS 100 110 120 130 140 150 160 170 180 190 200 210 220 230 240 250 260 PART # 180825-(LENGTH) PART # DESCRIPTION QTY QTY QTY QTY QTY QTY QTY QTY QTY QTY QTY QTY QTY QTY QTY QTY QTY QTY QTY QTY QTY QTY QTY QTY 179947GRY AWNING END TUBE LH 179948GRY AWNING END TUBE RH 179720GRY UPPER AWNING CORD...
  • Page 36 AWNING FRAME PARTS LISTING 64', 70' TRUSS WALL BUILDING REF - RAFTER REF - LEG ITEM NUMBER DESCRIPTION 179947GRY AWNING END TUBE, LH 179948GRY AWNING END TUBE, RH 179720GRY AWNING CENTER TUBE 179758GRY END SWAGED TUBE 172328GRY DOUBLE SLIP TUBE 172329GRY SINGLE SLIP TUBE 180645GRY...
  • Page 37 AWNING COMPONENTS 64', 70' TRUSS WALL BUILDING 179947GRY END TUBE, LH 179948GRY END TUBE, RH 179720GRY CENTER TUBE 179758GRY EAVE- SWAGED END TUBE 172329GRY EAVE- SINGLE SLIP TUBE 180645GRY 172328GRY LOWER BRACE TUBE EAVE- DOUBLE SLIP TUBE 161125 STRAIGHT TIE DOWN TUBE 160972 SWAGED TIE DOWN TUBE...
  • Page 38 AWNING COMPONENTS 64', 70' TRUSS WALL BUILDING 161754 - RATCHET, 1" 184651 - WINCH STRAP, 1" X 10' 178838 - WINCH STRAP, 2" X 28' 170052 PLUG 187299 DRILL SCREW, 1/4" X 3/4" 167834 LAGSCREW, 5/16" X 3" 154019 BOLT, 3/8" X 1" 154029 BOLT, 3/8"...
  • Page 39 MAIN AWNING TUBES INSTALLATION 64', 70' TRUSS WALL BUILDING Attach the 180645GRY Lower Mount Tubes to each Rafter upper tube by drilling a 7/16 hole and secure with 3/8 x 3-1/2 bolts and nuts. Attach the Lower Mount Tubes to each 179947GRY, 179948GRY, and 179720GRY Awning Tubes with 3/8 x 1 bolts and nuts.
  • Page 40 AWNING SLIP TUBE INSTALLATION 64', 70' TRUSS WALL BUILDING Install one end of 179758GRY Eave Swaged Slip Tube into the 179947GRY Awning End Tube, LH. The opposite end slides into 172328GRY Eave Double Slip Tube. Slide the bungs of the Double Slip Tubes into 179720GRY Awning Center Tubes.
  • Page 41 AWNING PACKAGES - CURVED ENDS LENGTH 64'/70' TW BLDGS 90' 100' 110' 120' 130' 140' 150' 160' 170' 180' 190' 200' 210' 220' 230' 240' 250' 260' PART # 180826-(LENGTH) PART # DESCRIPTION QTY QTY QTY QTY QTY QTY QTY QTY QTY QTY QTY QTY QTY QTY QTY QTY QTY QTY QTY QTY QTY QTY QTY QTY 179947GRY AWNING END TUBE LH 179948GRY AWNING END TUBE RH 179720GRY UPPER AWNING CORD...

  • Page 42: Maintenance Schedule

    MAINTENANCE SCHEDULE 1. One Week Inspection a. The key visual indicator of adequate tension in the building fabric cover and end wall panel is to ensure all creases and wrinkles in the fabric are removed. Check the ratchet straps for tightness and adjust as necessary. Refer to step 9 of cover installation manual for recommended torque settings for 1"...
  • Page 43 RODUCT ARRANTY UILDINGS LIMITED WARRANTY FOR NEW SIOUX STEEL COMPANY PRODUCTS A. GENERAL PROVISIONS. “Sioux Steel” means Sioux Steel Company, 196 1/2 East Sixth Street, Sioux Falls, South Dakota 57104. The warranties described below are provided by Sioux Steel to the original purchasers of new products purchased from Sioux Steel or from an authorized Sioux Steel Dealer (the “Products”).
